2021 HONDA ACCORD SEDAN Owner's Manual (in English)

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise
Control
(ACC) with
Low Speed
Follow
Indicator
(Amber)
●Comes on if there is a problem with
ACC with Low Speed Follow.●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after the battery has
been disconnecte d, then re-
connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●ACC with Low Speed Follow has
been automatica lly canceled.
●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 407●Stays on constantly - Have your vehicle
checked by a dealer.—

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise
Control
(ACC) with
Low Speed
Follow
Indicator
(White/
Green)●Lights up in white when you press
the button.
●Lights up in green when you press
the RES/+ button or SET/- button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 472—
Lane Keeping
Assist System
(LKAS)
Indicator
(Amber)●Comes on if there is a problem with
the LKAS.●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
(LKAS)
Indicator
(White/
Green)●Lights up in white when you press
the LKAS button.
●Lights up in green when the LKAS is
in operation.2 Lane Keeping Assist System (LKAS)
P. 488—
Cruise Mode
Indicator
(White/
Green)●Lights up in white when you change
to cruise mode.
●Lights up in green when you have
set a speed for cruise control.
2 To Switch ACC with Low Speed Follow
to Cruise Control P. 486—

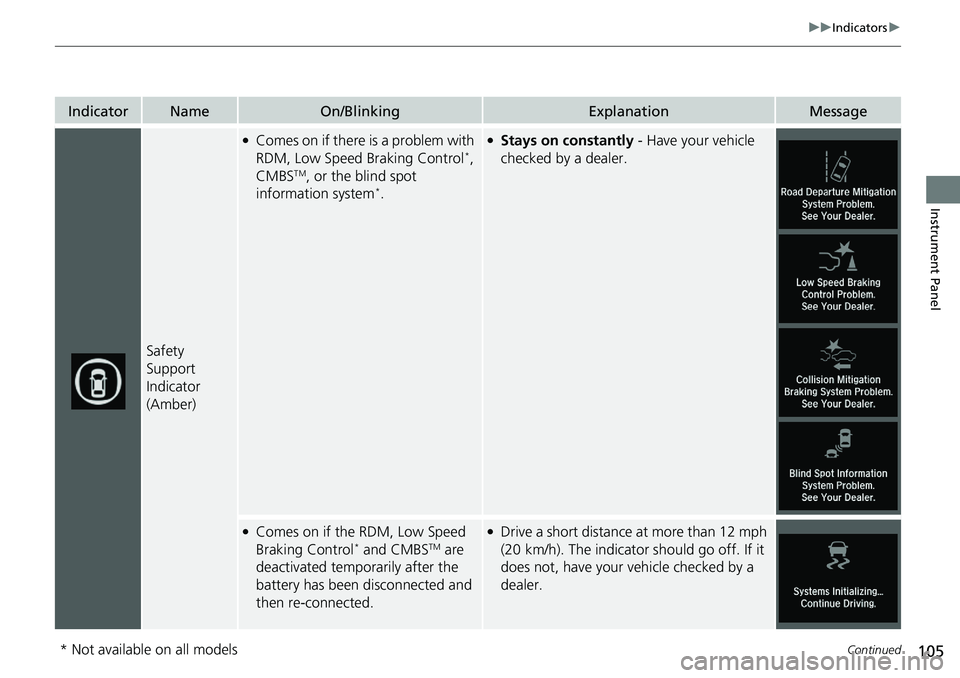

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Amber)
●Comes on if there is a problem with
RDM, Low Speed Braking Control*,
CMBSTM, or the blind spot
information system*.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the RDM, Low Speed
Braking Control* and CMBSTM are
deactivated temporarily after the
battery has been disconnected and
then re-connected.
●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
* Not available on all models

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Amber)
●Comes on when RDM, Low Speed
Braking Control* and/or CMBSTM
shuts itself off.
●Indicator may come on temporarily when
passing through an enclosed space, such as
a tunnel.
●The area around the radar sensor cover is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place and wipe the debris off with
a soft cloth.
Indicator may take some time to go off after
the radar sensor cover is cleaned.
●Have your vehicle checked by a dealer if the
indicator does not go off even after you
have cleaned the radar sensor cover.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
2 Radar Sensor P. 508
●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 506
* Not available on all models

107
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Amber)
●Comes on when RDM, Low Speed
Braking Control* and/or CMBSTM
shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place and wipe the debris off with
a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed
even after you have cleaned the area
around the camera.
2 Front Sensor Camera P. 506
●Comes on when mud, snow, or ice
accumulates in the vicinity of sonar.
●Remove the obstacle in the vicinity of sonar
sensor.
2Low Speed Braking Control* P. 467
2 Sonar Sensors* P. 509
●Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot in formation system
sensor.
●Comes on while driving - Something may
be interfering with the blind spot
information system sensor. Check the
vicinity of the blind spot information system
sensor and remove any obstacles.
2 Blind spot information System* P. 452
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 407
—
Models with Low Speed
Braking Control
Models with blind spot
information system
* Not available on all models

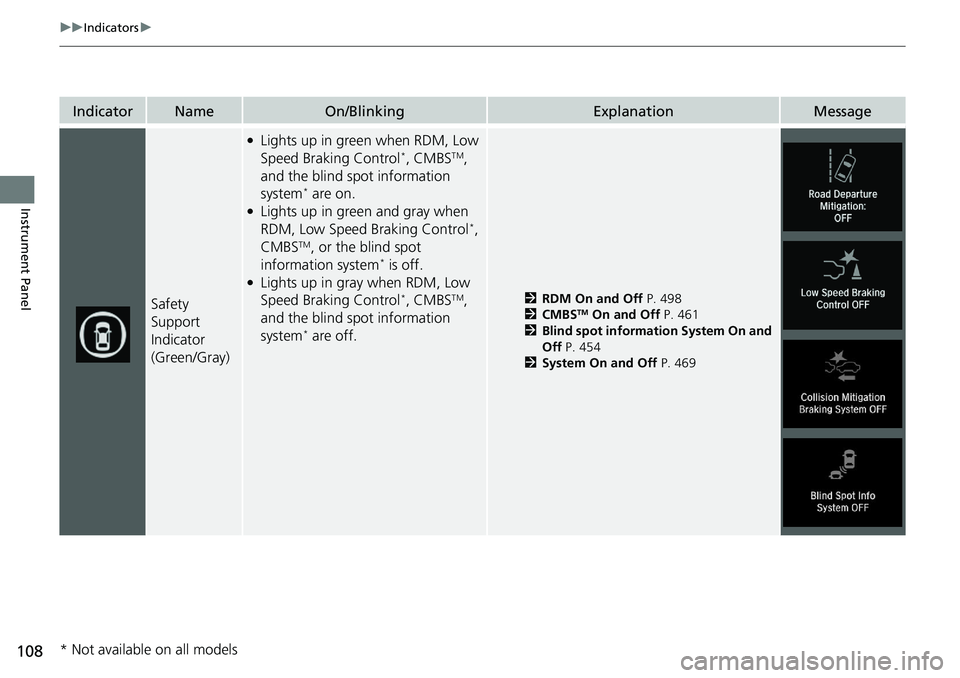

108
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Green/Gray)
●Lights up in green when RDM, Low
Speed Braking Control*, CMBSTM,
and the blind spot information
system
* are on.●Lights up in green and gray when
RDM, Low Speed Braking Control*,
CMBSTM, or the blind spot
information system* is off.●Lights up in gray when RDM, Low
Speed Braking Control*, CMBSTM,
and the blind spot information
system
* are off.
2 RDM On and Off P. 498
2 CMBSTM On and Off P. 461
2 Blind spot information System On and
Off P. 454
2 System On and Off P. 469
* Not available on all models

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver info rmation interface. Press the (home) button, select Warnings, then press the left
selector wheel to see the message agai n with the system message indicator on.
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when there is a ri sk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 510●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2Starting the Engine P. 414
Automatic transmission models

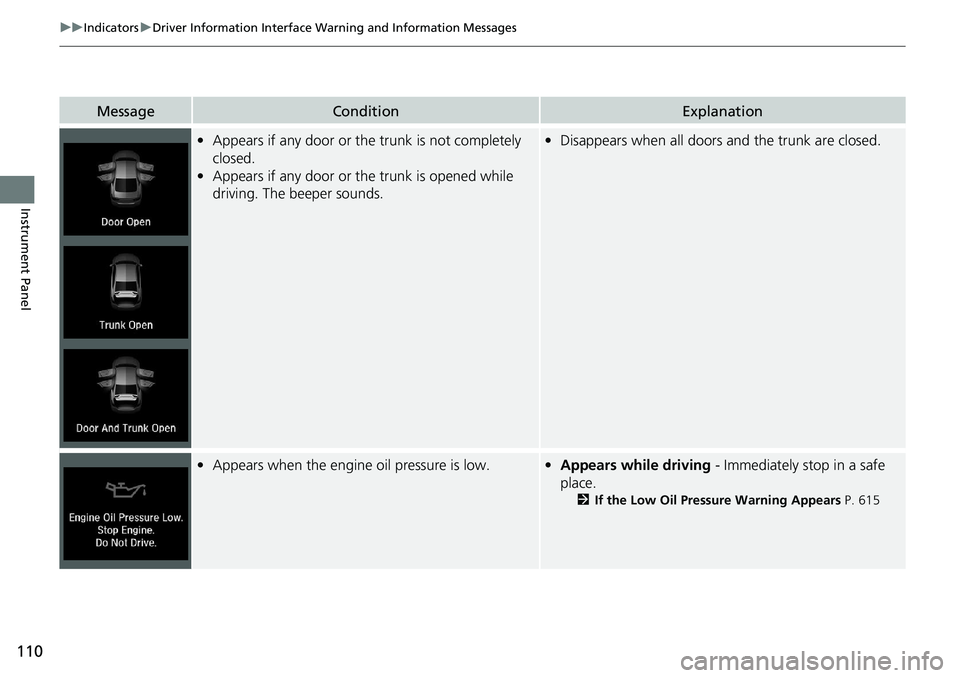

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or the trunk is not completely
closed.
• Appears if any door or the trunk is opened while
driving. The beeper sounds.•Disappears when all doors and the trunk are closed.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 615
