2021 GENESIS G90 relay

7-63
07
Fuse name Fuse rating Circuit protected
SENSOR110A
[3.3 T-GDI] Oil Controlvalve #1/#2/#3/#4 (Intake/Exhaust),
Purge Control Solenoid Valve, Oil Pressure
Solenoid Valve, Canister Close Valve
[5.0 GDI] Oil Controlvalve #1/#2/#3/#4 (Intake/ Exhaust),
Purge Control Solenoid Valve, Canister Close
Valve
SENSOR310ARear Sub Junction Block (Fuel Pump Relay)
SENSOR410A[5.0 GDI] Camshaft Position Sensor #1/#2/#3/#4 (Intake/
Exhaust)
IGN COIL15A[3.3 T-GDI] Ignition Coil #1/#2/#3/#4/#5/#6
[5.0 GDI] Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8
ECU420AECM
ECU520AECM
A/C210AA/Con Comp Relay
POWER
OUTLET4 20APower Outlet #2 Relay
A/C110AA/C Control Module
BLOWER FRT40AFront Blower Relay
IG140AIG1 Relay
START30AEngine Room Junction Block (Start Relay)
ECU115AECM
TCU120ATCM
ESC310AESC Control Module

7-64
Maintenance
Fuse name Fuse rating Circuit protected
MODULE210A4WD ECM, Active Air Flap, Smart Cruse Control Radar
MDPS210AMDPS Unit, Steering Angle Sensor
SENSOR510A[3.3 T-GDI] Engine Room Junction Block (Vacuum Pump-
Relay), Brake Vacuum Switch
HORN20AHorn Relay
ECU210AECM
TCU215ATCM, B/UP Lamp Relay, P/N Relay
B/UP
LAMP10AB/Up Lamp Relay
ACC40AACC Relay

7-65
07
Trunk fuse panel
(Rear sub junction block)
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OHI079036N
OHI078034

7-66
Maintenance
Trunk fuse panel
Fuse name Fuse rating Circuit protected
REAR HEATED40A Rear Defogger Relay
POWER
TRUNK30A Power Trunk Module
DOOR LOCK215A Passenger Door Module
RDM LH15A Rear Door Module LH
P/SEAT
(RR RH) 225A Rear IMS Control Module RH
AIR BAG15A Air Bag Relay
RDM RH15A Rear Door Module RH
S/HEATER
(RR RH)20A Rear CCS Module RH,
Rear Seat Warmer Control Module RH
AMP25A AMP (Premium, Premium High)
P/SEAT
(RR RH) 130A Rear IMS Control Module RH,
Rear Electronic Power Seat Relay RH
P/SEAT
(RR RH) 315A Rear Seat Lumbar Support Module RH
P/SEAT
(RR LH) 315A Rear Seat Lumbar Support Module LH
ECS10A ECS Unit
FUEL LID10A Fuel Lid Open Relay, Fuel Filler Door & Trunk Lid Switch
DOOR LOCK110A Driver Door Module
TRUNK10A Trunk Lid Relay
S/HEATER
(RR LH)20A Rear CCS Module LH,
Rear Seat Warmer Control Module LH
BLOWER RR20A Rear Blower Relay

7-67
07

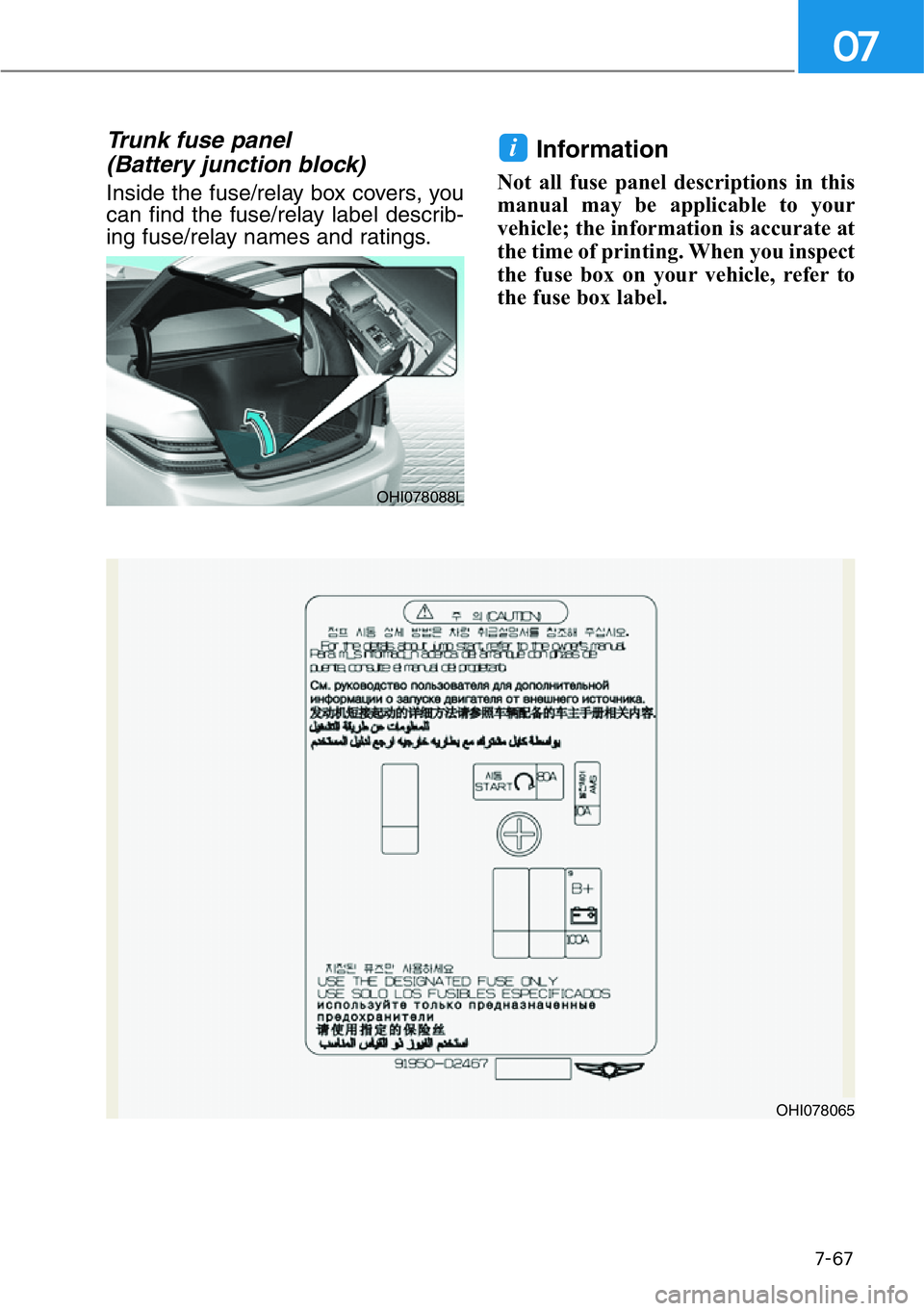

Trunk fuse panel
(Battery junction block)
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OHI078088L
OHI078065
