TPMS (Tire Pressure
Monitoring System)
Malfunction Indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
Have the system checked by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. Have the flat tire repaired by an
authorized retailer of Genesis Branded
products as soon as possible or replace
the flat tire with the spare tire.
NOTICE
It is recommended that you do not use a
puncture-repairing agent not approved
by an authorized retailer of Genesis
Branded products to repair and/or
inflate a low pressure tire. Tire sealant
not approved by an authorized retailer
of Genesis Branded products may
damage the tire pressure sensor.
The spare tire does not come with a
tire pressure monitoring sensor. When
the low pressure tire or the flat tire is
replaced with the spare tire, the Low
Tire Pressure LCD position indicator will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 20 minutes.
Once the original wheel equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.

Maintenance
9-36
Tire speed ratings
The chart below lists many of the
different speed ratings currently
being used for passenger vehicle
tires. The speed rating is part of the
tire size designation on the sidewall
of the tire. This symbol corresponds
to that tire’s designed maximum safe
operating speed.
Speed Rating Symbol Maximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y 186 mph (300 km/h)
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of
the wheel), displaying the DOT Code.
The DOT Code is a series of numbers
on a tire consisting of numbers and
English letters. The manufacturing
date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT shows a
plant code number, tire size and
tread pattern and the last four
numbers indicate week and year
manufactured.
For example:
DOT XXXX XXXX 1520 represents that
the tire was produced in the 15th
week of 2020.
4. Genesis exclusive tire
Genesis Branded Vehicle
recommends that tires designed
specifically for Genesis vehicles
be used. You may find the marking
“GOE” (Genesis Original Equipment)
embossed on the tire sidewall.
5. Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter “R” means radial ply
construction; the letter “D“ means
diagonal or bias ply construction;
and the letter “B” means belted-bias
ply construction.
6. Maximum permissible inflation
pressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
7. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.

09
9-47
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
MODULE9 10AOverhead Console, AMP, Smart Phone Wireless Charger,
Low DC-DC Converter (AUX/AMP), Data Link Connector,
Driver/Passenger Power Seat Module, Electro Chromic
Mirror, Front/Rear A/C controller, Rear Seat Console
Remote Control Switch Switch, A/V & Navigation Head
Unit, A/C Control Module, Rear Seat LH/RH Heater Unit
SUNROOF 25A
Sunroof Control Unit (Master/Slave)
MODULE11 10AHead Lamp LH, Head Lamp RH, Multifunction Switch,
ADAS Unit (Parking)
MODULE12 10A
IAU, IBU
A/C3 10AE/R SUB Junction Block(Blower Relay), Incar Temperature
Sensor, A/C Control Module, Front A/C controller, Rear A/C
controller
A/BAG IND 10A
Instrument Cluster, Overhead Console
E-SHIFTER2 10A
Electronic ATM Shift Lever Dial
SPARE(IG2) 10A
Not Used
MODULE10 10A
ICU Junction Block (ESU)
MODULE7 10ADriver Door Module, IBU, Multifunction Switch, IAU, Stop
Lamp Switch
MULTI MEDIA 10A
Low DC-DC Converter
MODULE13 10AFront/Rear A/C controller, Rain Sensor, Head-Up Display,
Security Indicator, A/C Control Module, Rear Occupant
Alert (ROA) Sensor, PTL Unit, Driver/Passenger Power
Outside Mirror, Driver/Passenger Power Seat Module,
Driver/Passenger Power Seat Switch, Driver/Passenger
Lumbar Support Unit(3/5/7CELL)
CLUSTER 10A
Instrument Cluster, Head-Up Display
IBU2 10A
IBU
AIR BAG2 15A
SRS Control Module, Passenger Occupant Detection Sensor
PRESAFETY
SEAT BELT3 10A
Pre-Active Seat Belt Unit

09
9-53
Engine compartment fuse panel
TypeFuse Name Fuse Rating Circuit Protected
MULTI FUEL HEATER
40A
Not Used
PTC HEATER1 50A
Not Used
PTC HEATER2 50A
Not Used
PTC HEATER3 50A
Not Used
SB BLOWER 40A
Blower Relay
MICRO LDC
10AFront Radar LH/RH, Rear Radar LH/RH,
Smart Phone Wireless Charger, Head-Up
Display,
Instrument Cluster, Front/Rear A/C controller,
Rear Seat Console Remote Control Switch
Switch,
Front Console Keyboard
A/C 10A
A/C Control Module

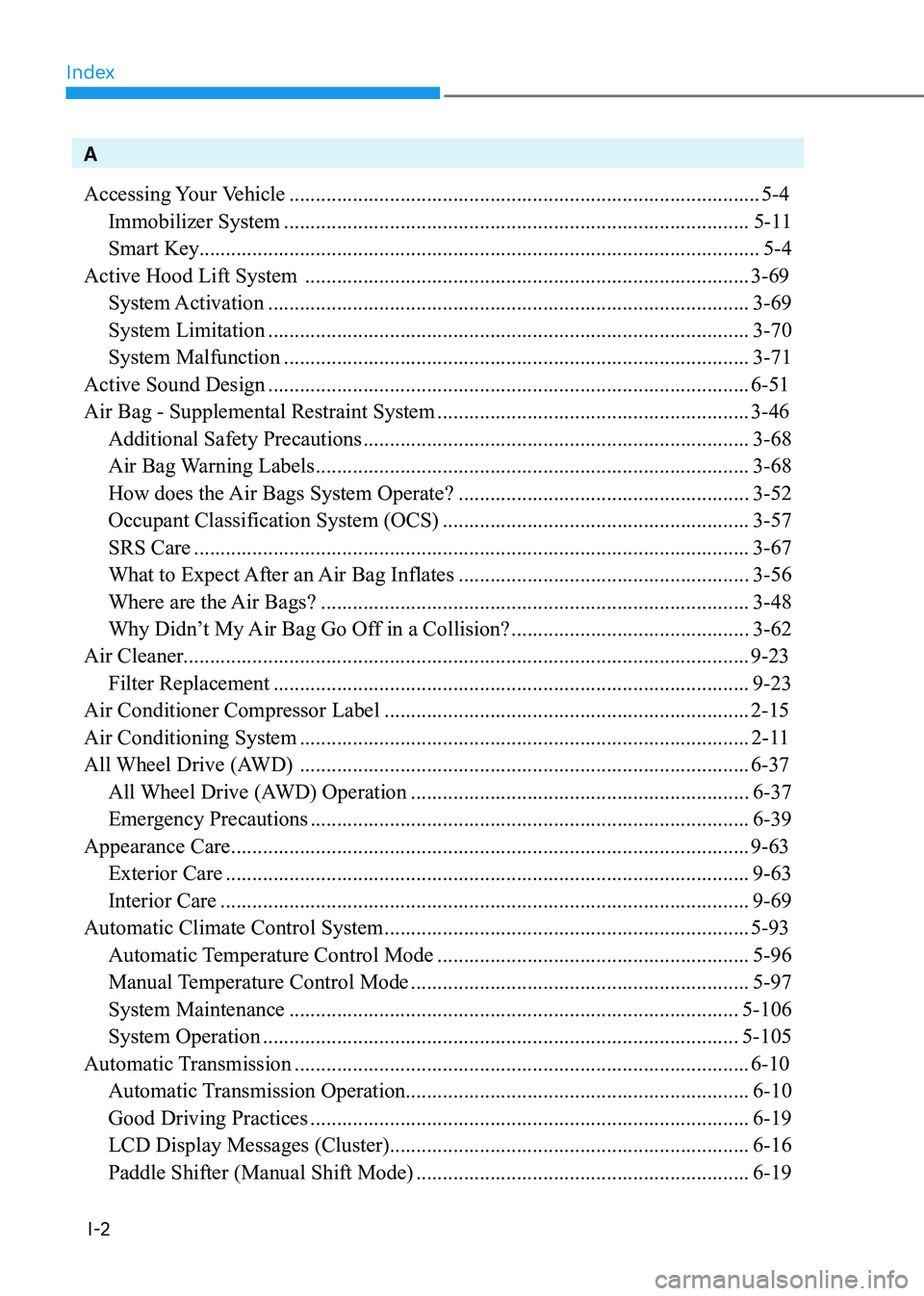

Index
