2021 FORD MUSTANG wiper fluid

Customer Assistance
Getting the Services You Need
..............238
In California (U.S. Only) ...........................
239
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) ....................
240
Utilizing the Mediation/Arbitration Program (Canada Only) .......................
241
Getting Assistance Outside the U.S. and Canada ........................................................
241
Ordering Additional Owner's Literature ........................................................................\
243
Reporting Safety Defects (U.S. Only) ........................................................................\
243
Reporting Safety Defects (Canada Only) ........................................................................\
243
Fuses
Fuse Specification Chart .........................
245
Changing a Fuse .........................................
254
Maintenance
General Information ..................................
256
Opening and Closing the Hood .............
256
Under Hood Overview - 2.3L EcoBoost™ ........................................................................\
258
Under Hood Overview - 5.0L .................
259
Under Hood Overview - 5.0L, Mach 1 .......................................................................
260
Engine Oil Dipstick ......................................
261
Engine Oil Check ..........................................
261
Oil Change Indicator Reset ......................
261
Changing the Engine Air Filter - 5.0L, Mach 1 .........................................................
262
Changing the Engine Air Filter - 2.3L EcoBoost™/5.0L ....................................
263
Engine Coolant Check ..............................
264
Manual Transmission Fluid Check - 6-Speed Manual Transmission – 3160
........................................................................\
268
Manual Transmission Fluid Check - 6-Speed Manual Transmission – MT82
........................................................................\
268 Automatic Transmission Fluid Check
........................................................................\
269
Brake Fluid Check .......................................
269
Clutch Fluid Check - Manual Transmission ............................................
270
Power Steering Fluid Check ....................
270
Changing the 12V Battery ........................
270
Adjusting the Headlamps ........................
272
Washer Fluid Check ...................................
274
Fuel Filter ........................................................
274
Checking the Wiper Blades .....................
274
Changing the Wiper Blades ....................
274
Changing a Bulb ..........................................
275
Track Use
Track Use - Mach 1 ......................................
276
Track Use .......................................................
283
Vehicle Care
General Information ..................................
289
General Information - GT500/Mach 1 ........................................................................\
289
Cleaning Products .....................................
290
Cleaning the Exterior - Mach 1 ................
291
Cleaning the Exterior ..................................
291
Waxing ............................................................
293
Cleaning the Engine - Mach 1 .................
293
Cleaning the Engine ...................................
293
Cleaning the Windows and Wiper Blades ........................................................................\
294
Cleaning the Interior ..................................
294
Cleaning the Instrument Panel and Instrument Cluster Lens ......................
295
Cleaning Leather Seats ............................
295
Repairing Minor Paint Damage .............
296
Cleaning the Wheels .................................
296
Vehicle Storage ...........................................
296
Cleaning the Convertible Top ................
298
Body Styling Kits ........................................
298
5
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Table of Contents

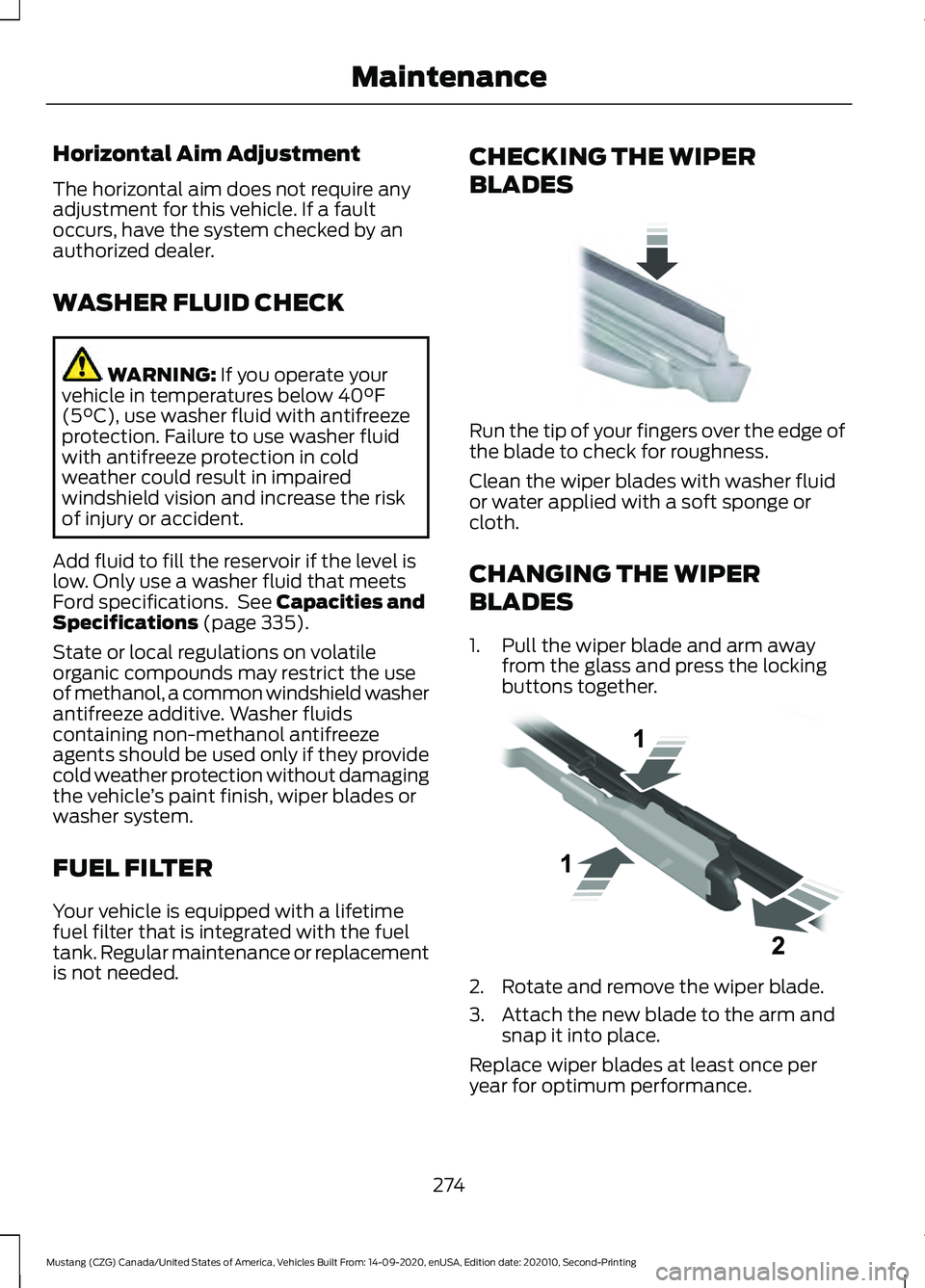

Horizontal Aim Adjustment
The horizontal aim does not require any
adjustment for this vehicle. If a fault
occurs, have the system checked by an
authorized dealer.
WASHER FLUID CHECK
WARNING: If you operate your
vehicle in temperatures below 40°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.
Add fluid to fill the reservoir if the level is
low. Only use a washer fluid that meets
Ford specifications. See
Capacities and
Specifications (page 335).
State or local regulations on volatile
organic compounds may restrict the use
of methanol, a common windshield washer
antifreeze additive. Washer fluids
containing non-methanol antifreeze
agents should be used only if they provide
cold weather protection without damaging
the vehicle ’s paint finish, wiper blades or
washer system.
FUEL FILTER
Your vehicle is equipped with a lifetime
fuel filter that is integrated with the fuel
tank. Regular maintenance or replacement
is not needed. CHECKING THE WIPER
BLADES
Run the tip of your fingers over the edge of
the blade to check for roughness.
Clean the wiper blades with washer fluid
or water applied with a soft sponge or
cloth.
CHANGING THE WIPER
BLADES
1. Pull the wiper blade and arm away
from the glass and press the locking
buttons together. 2. Rotate and remove the wiper blade.
3. Attach the new blade to the arm and
snap it into place.
Replace wiper blades at least once per
year for optimum performance.
274
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing MaintenanceE142463 E129990

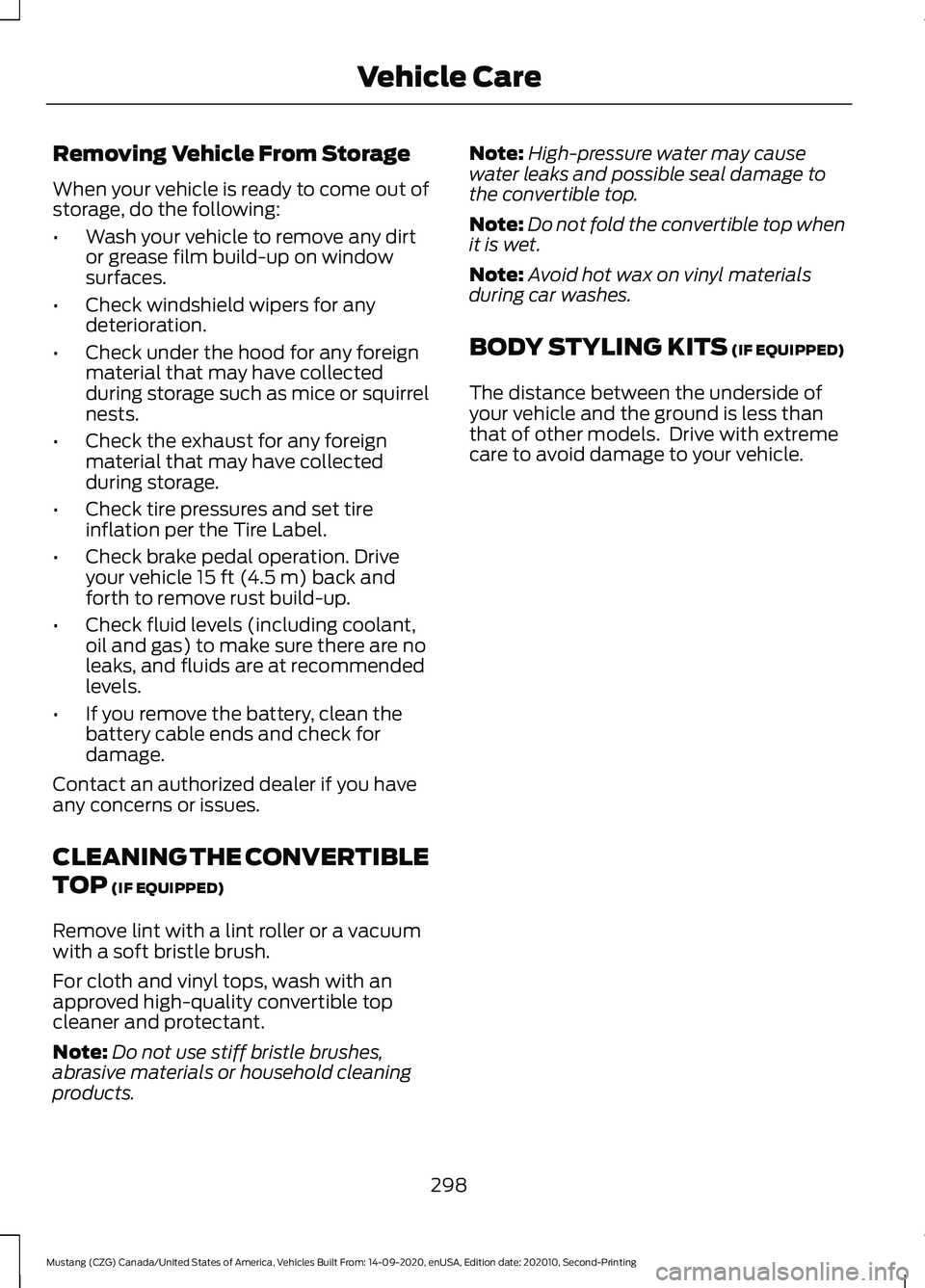

Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
•
Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood for any foreign
material that may have collected
during storage such as mice or squirrel
nests.
• Check the exhaust for any foreign
material that may have collected
during storage.
• Check tire pressures and set tire
inflation per the Tire Label.
• Check brake pedal operation. Drive
your vehicle 15 ft (4.5 m) back and
forth to remove rust build-up.
• Check fluid levels (including coolant,
oil and gas) to make sure there are no
leaks, and fluids are at recommended
levels.
• If you remove the battery, clean the
battery cable ends and check for
damage.
Contact an authorized dealer if you have
any concerns or issues.
CLEANING THE CONVERTIBLE
TOP
(IF EQUIPPED)
Remove lint with a lint roller or a vacuum
with a soft bristle brush.
For cloth and vinyl tops, wash with an
approved high-quality convertible top
cleaner and protectant.
Note: Do not use stiff bristle brushes,
abrasive materials or household cleaning
products. Note:
High-pressure water may cause
water leaks and possible seal damage to
the convertible top.
Note: Do not fold the convertible top when
it is wet.
Note: Avoid hot wax on vinyl materials
during car washes.
BODY STYLING KITS
(IF EQUIPPED)
The distance between the underside of
your vehicle and the ground is less than
that of other models. Drive with extreme
care to avoid damage to your vehicle.
298
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Vehicle Care

Less Cost to Properly Maintain Your
Vehicle
Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine Belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).
Interest Free Finance Options
Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (CANADA ONLY)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of Canada
and the United States are not eligible for
Ford Protect extended service plan
coverage.
This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.
440
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Ford Protect

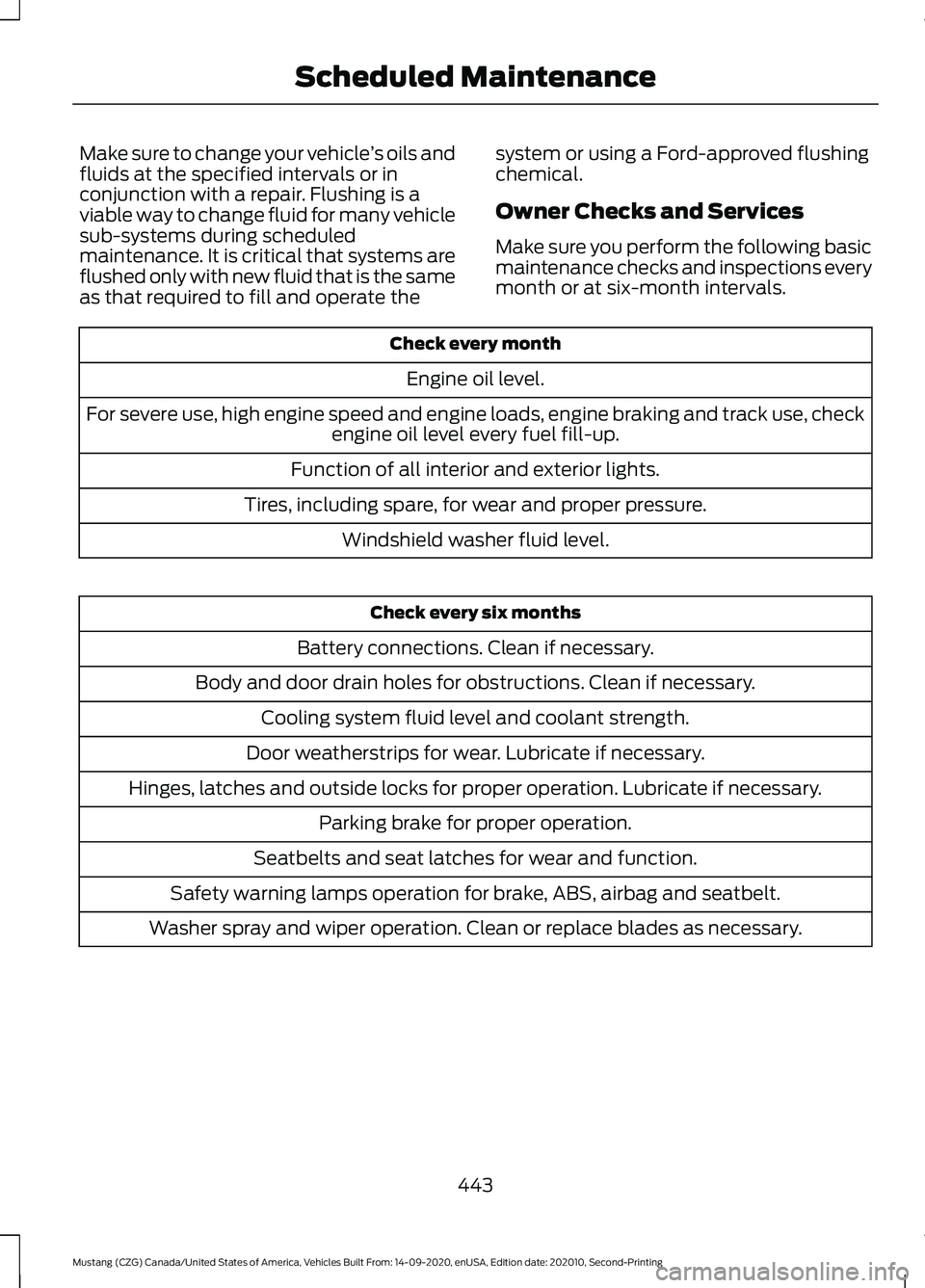

Make sure to change your vehicle
’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals.Check every month
Engine oil level.
For severe use, high engine speed and engine loads, engine braking and track use, check engine oil level every fuel fill-up.
Function of all interior and exterior lights.
Tires, including spare, for wear and proper pressure. Windshield washer fluid level. Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Seatbelts and seat latches for wear and function.
Safety warning lamps operation for brake, ABS, airbag and seatbelt.
Washer spray and wiper operation. Clean or replace blades as necessary.
443
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

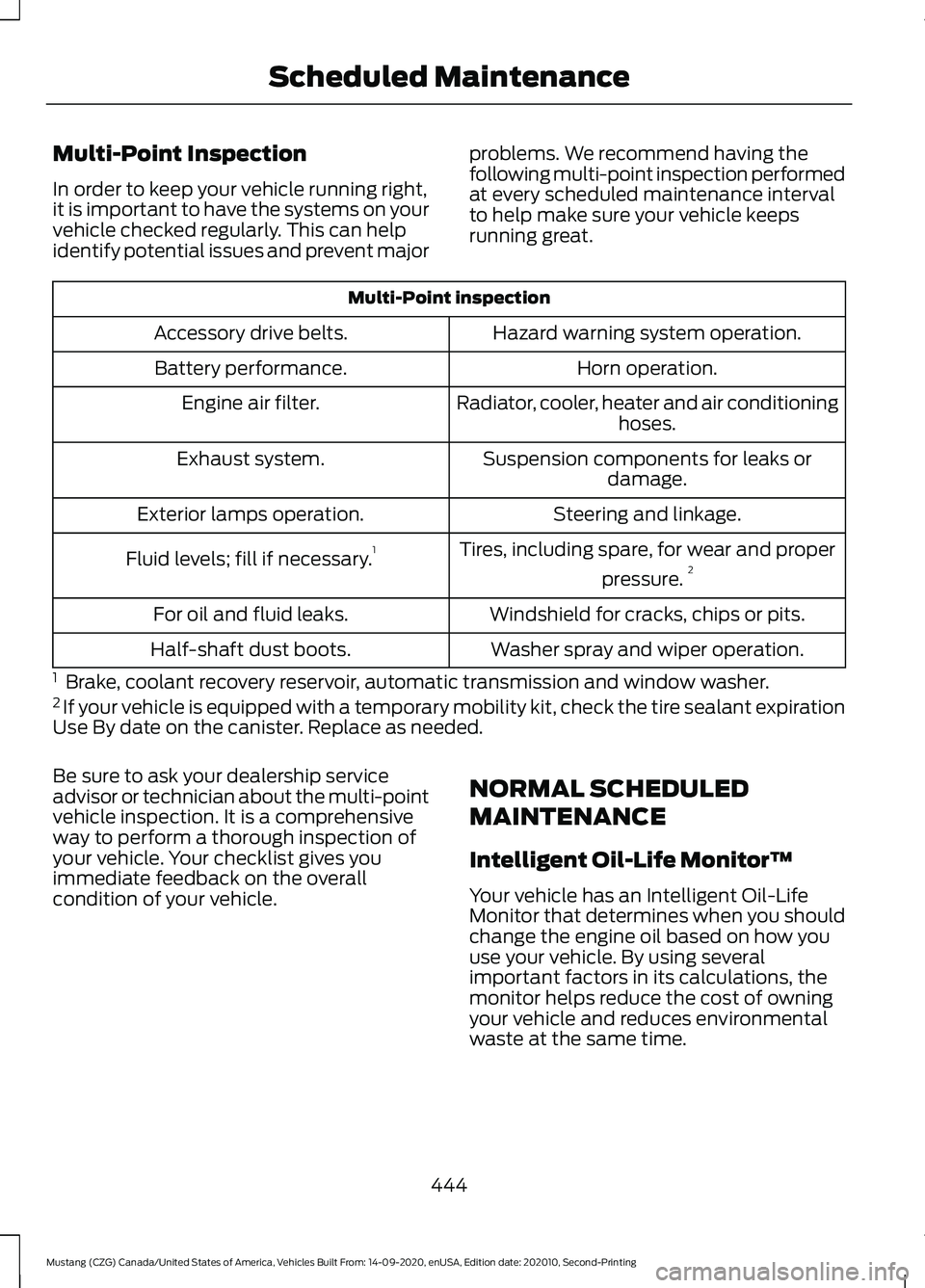

Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.Multi-Point inspection
Hazard warning system operation.
Accessory drive belts.
Horn operation.
Battery performance.
Radiator, cooler, heater and air conditioninghoses.
Engine air filter.
Suspension components for leaks ordamage.
Exhaust system.
Steering and linkage.
Exterior lamps operation.
Tires, including spare, for wear and properpressure.2
Fluid levels; fill if necessary. 1
Windshield for cracks, chips or pits.
For oil and fluid leaks.
Washer spray and wiper operation.
Half-shaft dust boots.
1 Brake, coolant recovery reservoir, automatic transmission and window washer.
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle. NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time.
444
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

Switching Maximum Air Conditioning On
and Off............................................................... 129
Switching Maximum Defrost On and Off........................................................................\
129
Switching Recirculated Air On and Off....................................................................... 130
Switching the Air Conditioning On and Off........................................................................\
129
Switching the Climate Control On and Off........................................................................\
129
Automatic High Beam Control.................84
Automatic High Beam Control Indicators.......................................................84
Automatic Transmission...........................165
Automatic Transmission Adaptive
Learning............................................................ 168
Brake-Shift Interlock.......................................... 167
If Your Vehicle Gets Stuck in Mud or Snow.................................................................. 168
SelectShift Automatic ™
Transmission................................................... 166
Understanding the Positions of Your Automatic Transmission............................ 166
Automatic Transmission Fluid Check............................................................269
Autowipers........................................................78
Auxiliary Power Points................................145 12 Volt DC Power Point..................................... 145
Locations............................................................... 145
B
Battery See: Changing the 12V Battery..................... 270
Blind Spot Information System..............196 ........................................................................\
........... 197
Switching the System On and Off...............198
System Errors....................................................... 198
Using the Blind Spot Information System............................................................... 197
BLIS See: Blind Spot Information System..........196
Body Styling Kits.........................................298
Bonnet Lock See: Opening and Closing the Hood..........256
Booster Seats
..................................................35
Types of Booster Seats...................................... 36Brake Fluid Check........................................269
Brake Fluid Service Interval............................ 270
Brakes.................................................................171 General Information............................................ 171
Brake System Specifications - Mach 1........................................................................\
337
Breaking-In.....................................................230 Ground Clearance............................................. 230
Bulb Specification Chart..........................359
C
Canceling the Set Speed...........................185
Capacities and Specifications - 2.3L EcoBoost™.................................................343
Air Conditioning System................................. 344
Alternative Engine Oil for Extremely Cold Climates............................................................ 347
Automatic Transmission................................ 344
Engine Coolant................................................... 345
Engine Oil 2.3L EcoBoost Base.................... 346
Engine Oil 2.3L EcoBoost High Output.............................................................. 348
Fuel Tank.............................................................. 349
Grease.................................................................... 349
Hydraulic Brake System.................................. 350
Locks...................................................................... 350
Manual Transmission....................................... 345
Rear Axle............................................................... 350
Washer Reservoir................................................ 351
Capacities and Specifications - 5.0L.................................................................351
Air Conditioning System.................................. 352
Alternative Engine Oil for Extremely Cold Climates........................................................... 355
Automatic Transmission................................. 352
Engine Coolant................................................... 354
Engine Oil.............................................................. 355
Fuel Tank.............................................................. 356
Grease.................................................................... 356
Hydraulic Brake System................................... 357
Locks....................................................................... 357
Manual Transmission - 3160......................... 354
Manual Transmission - MT82....................... 353
Rear Axle............................................................... 357
Washer Reservoir............................................... 358
Capacities and Specifications................335
514
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index

Phone Controls...................................................
379
Phone Voice Commands................................ 378
Using Traction Control................................174 Switching the System Off ............................... 174
System Indicator Lights and Messages........................................................... 174
Using Voice Recognition............................376
Audio Voice Commands................................. 395
Climate Voice Commands............................. 396
Initiating a Voice Session................................ 376
Mobile App Voice Commands...................... 399
Navigation Voice Commands.......................398
Phone Voice Commands............................... 396
SiriusXM Traffic and Travel Link Voice Commands.................................................... 400
System Interaction and Feedback...............377
Voice Settings Commands........................... 400
Using Winter Tires.......................................323
Utilizing the Mediation/Arbitration Program (Canada Only)
.........................241
V
Vehicle Care
...................................................289
General Information......................................... 289
General Information - GT500/Mach 1........................................................................\
... 289
Vehicle Identification Number
................343
Vehicle Storage............................................296
Body........................................................................\
297
Brakes..................................................................... 297
Cooling system................................................... 297
Disconnecting Your 12 Volt Battery.............297
Engine..................................................................... 297
Fuel system.......................................................... 297
General.................................................................. 296
Miscellaneous..................................................... 297
Removing Vehicle From Storage.................298
Tires........................................................................\
. 297
Vehicle Wi-Fi Hotspot
...............................364
Ventilation See: Climate Control.......................................... 127
VIN See: Vehicle Identification Number............343
Voice Control....................................................75 W
Warning Lamps and Indicators................94
Adaptive Cruise Control Indicator.................94
Airbag Warning Lamp........................................ 94
Anti-Lock Brake System Warning Lamp.................................................................... 94
Automatic Headlamp High Beam Indicator .............................................................. 94
Battery ...................................................................... 94
Blind Spot Information System Indicator.............................................................. 95
Brake System Warning Lamp.......................... 95
Cruise Control Indicator..................................... 95
Direction Indicator............................................... 95
Door Ajar Warning Lamp................................... 95
Engine Coolant Temperature Warning Lamp
.................................................................... 95
Fasten Seatbelt Warning Lamp.....................95
Front Fog Lamp Indicator................................. 95
Headlamp High Beam Indicator....................96
Heads Up Display................................................. 95
Hood Ajar................................................................ 96
Lane Keeping System Lamp............................ 96
Launch Control..................................................... 96
Low Beam Malfunction..................................... 96
Low Fuel Level Warning Lamp....................... 96
Low Tire Pressure Warning Lamp.................. 96
Low Washer Fluid Level Warning Lamp.................................................................... 96
Oil Pressure Warning Lamp............................. 96
Parking Lamps...................................................... 96
Powertrain Fault................................................... 96
Service Engine Soon........................................... 96
Shift Indicator........................................................ 97
Stability Control and Traction Control Indicator.............................................................. 97
Stability Control and Traction Control Off Warning Lamp.................................................. 97
Trunk Ajar................................................................. 97
Washer Fluid Check.....................................274
Washers See: Cleaning the Exterior............................... 291
See: Cleaning the Exterior - Mach 1.............291
See: Wipers and Washers................................. 78
Waxing.............................................................293
Welcome Lighting..........................................83
What Is a Connected Vehicle.................360
526
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
