2021 FIAT TALENTO Owner handbook (in English)

CONTROL PANEL
AND ON-BOARD
INSTRUMENTS
On-board computer 1 fig. 172
Depending on the vehicle version, it
includes the following functions:
distance travelled;
travel parameters;
information messages;
malfunction messages (together with
warning lights
);
alarm messages (together with the
STOPwarning light).
Selection buttons for displaying
Scroll up (button 9) or down (button 10)
for the following information, pressing a
few times briefly (the display will depend
on the vehicle's equipment and country
of sale) fig. 173.You can view the following information
on the display screen:
overall and partial odometer for the
distance travelled;
fuel consumed;
average fuel consumption;
instantaneous consumption;
expected range with remaining fuel;
distance travelled;
average speed;
service limit, oil change counter;
tyre pressure re-initialisation;
speed set on the Cruise Control /
Speed Limiter;
time and temperature;
on-board log, information message
scrolling and operational malfunction;
percentage volume of remaining
additive.Resetting the trip odometer
When the "trip meter" display is
selected, press either button 9 or 10
fig. 173 until the odometer is reset to
zero.
Resetting travel parameters
When one of the trip parameters is
selected on the display, press button
9 or 10 fig. 173 until the display is reset.
Interpreting some of the displayed
values after resetting
The further you travel after the last
reset, the more accurate and significant
the average fuel consumption,
autonomy and average speed become.
During the first kilometres travelled after
resetting, you will notice that the
autonomy increases as you travel. This
is because the system takes the
average fuel consumption since the last
reset into account. The average fuel
consumption can decrease when:
the vehicle is no longer accelerating;
the engine reaches operating
temperature (reset: cold engine);
going from urban to extra-urban
driving.
Automatic travel parameter reset
Reset is automatic when one of the
parameter's capacities is exceeded.
172T36518
173T35570
87

ON BOARD COMPUTER: travel parameters
Selection examples Meaning of the data selected
101778 km 112.4 km General a partial totaliser.
FUEL
8L
Travel parameters.
Fuel consumed.
Fuel consumed since last reset.
AVERAGE FUEL
CONSUMPTION
5.8 L/100
Average fuel consumptionsince last reset.
The value displayed after travelling at least 400 meters from the last reset.
INSTANT
7.4 L/100
Instant consumption.
Value displayed after reaching speed of 30 km/h.
RANGE
541 km
Foreseeable autonomy with residual fuel.
Value displayed after travelling at least 400 meters.
DISTANCE
522 km
Distance travelledsince last reset.
AVERAGE SPEED
89.4 km/h
Average speedsince last reset.
Value displayed after travelling at least 400 meters.
TYRE SET PRESSURE
< PRES LUNGA >Tyre pressure re-initialisation.
Refer to the “TPMS – TYRE PRESSURE MONITORING SYSTEM” paragraph in the “Safety” chapter
88
KNOWING THE INSTRUMENT PANEL

Selection examples Meaning of the data selected
LIMITER
90 km/hSpeed set
by cruise control
Refer to the "Speed Limiter” paragraph in the "Knowing your vehicle” chapter
ADJUSTER
90 km/hSpeed set by cruise control
Refer to the "Cruise Control” paragraph in the "Knowing your vehicle” chapter
13°
16:30Time and temperature.
Refer to the "Display" paragraph in the "Knowing the instrument panel" chapter
NO MESSAGE MEMORIZEDOn-board log.
Viewing in succession:
information messages (passenger airbag OFF, etc.);
messages relating to malfunctions (check injection, etc.).
ADBLUE 62%Percentage volume of remaining additive.
Refer to the information in the "AdBlue (Urea) additive tank" paragraph in the "Knowing your vehicle" chapter.
89

Selection examples
Meaning of the data selected
On-board computer with service limit message
MAINTENANCE
SCHEDULEOIL CHANGE IN 30,000 KM/
24 MONTHSMaintenance schedule
With the contact inserted, engine not on and the dedicated message on the
display, hold button 9 or 10 fig. 173 pressed for about 5 seconds to see the
service deadline (distance and time remaining until the next service deadline).
The following cases may occur as the next service deadline approaches:range less than 1500 km or one month: the dedicated message will appear
with the nearest due date (distance or time);
range at 0 km or the date for oil replacement reached: the dedicated
message appears on the screen along with the warning light .
The vehicle needs an oil change as soon as possible. SERVICE WITHIN 300 km / 24 DAYS
SERVICE
Depending on how old the vehicle is, the oil change limit will adapt to driving style (frequently at low speeds, door-to-door, the least prolonged
driving, towing a trailer, etc.). The distance that remains until the next oil change can, in certain cases, thus be reduced more rapidly than the
distance actually covered.
Reinitialisation:to reinitialise the oil change deadline, view the remaining range (distance and time), by holding button 9 or 10 pressed
fig. 173 for approximately 10 seconds until the fixed oil change deadline appears fixed.
ON-BOARD: information messages
These can help vehicle ignition, provide information on a selection or on driving conditions.
ON-BOARD COMPUTER: anomaly messages
They appear along with the warning light
.When these messages appear, drive carefully to the Fiat
Dealership. Failure to follow this instruction could damage the vehicle.
They are deleted when you press the viewing selection button, or automatically after a few seconds. However, they are stored
in the on-board log. The warning light
stays on.
ON-BOARD COMPUTER: alarm messages
They appear along with the STOP warning light to make you stop as soon as traffic conditions allow, for your own
safety. Stop the engine and do not turn it back on. Contact a Fiat Dealership.
90
KNOWING THE INSTRUMENT PANEL

SAFETY
The chapter that you are about to read
is very important: it describes the safety
systems with which the vehicle is
equipped and provides instructions on
how to use them correctly.OCCUPANT PROTECTION
SYSTEMS.................92
SEATBELTS................92
PRE-TENSIONERS............95
FRONT AIRBAGS.............96
SIDE AIR BAGS..............99
CHILD PROTECTION SYSTEMS . .100
ACTIVE SAFETY SYSTEMS.....126
TPMS –
Tyre Pressure Monitoring System . .129
91

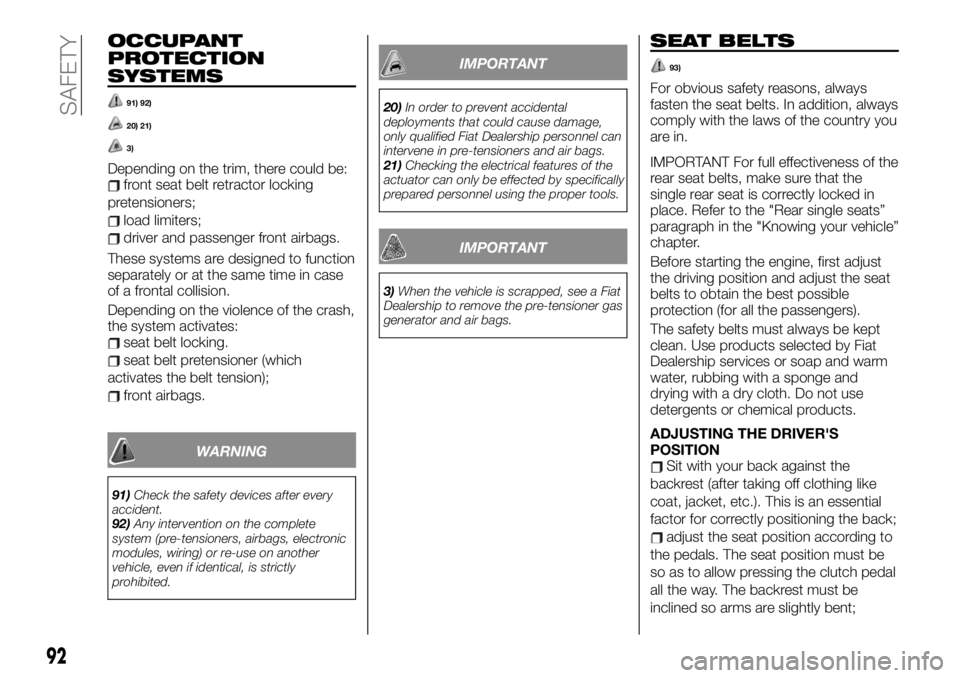

OCCUPANT
PROTECTION
SYSTEMS
91) 92)
20) 21)
3)
Depending on the trim, there could be:front seat belt retractor locking
pretensioners;
load limiters;
driver and passenger front airbags.
These systems are designed to function
separately or at the same time in case
of a frontal collision.
Depending on the violence of the crash,
the system activates:
seat belt locking.
seat belt pretensioner (which
activates the belt tension);
front airbags.
WARNING
91)Check the safety devices after every
accident.
92)Any intervention on the complete
system (pre-tensioners, airbags, electronic
modules, wiring) or re-use on another
vehicle, even if identical, is strictly
prohibited.
IMPORTANT
20)In order to prevent accidental
deployments that could cause damage,
only qualified Fiat Dealership personnel can
intervene in pre-tensioners and air bags.
21)Checking the electrical features of the
actuator can only be effected by specifically
prepared personnel using the proper tools.
IMPORTANT
3)When the vehicle is scrapped, see a Fiat
Dealership to remove the pre-tensioner gas
generator and air bags.
SEAT BELTS
93)
For obvious safety reasons, always
fasten the seat belts. In addition, always
comply with the laws of the country you
are in.
IMPORTANT For full effectiveness of the
rear seat belts, make sure that the
single rear seat is correctly locked in
place. Refer to the "Rear single seats”
paragraph in the "Knowing your vehicle”
chapter.
Before starting the engine, first adjust
the driving position and adjust the seat
belts to obtain the best possible
protection (for all the passengers).
The safety belts must always be kept
clean. Use products selected by Fiat
Dealership services or soap and warm
water, rubbing with a sponge and
drying with a dry cloth. Do not use
detergents or chemical products.
ADJUSTING THE DRIVER'S
POSITION
Sit with your back against the
backrest (after taking off clothing like
coat, jacket, etc.). This is an essential
factor for correctly positioning the back;
adjust the seat position according to
the pedals. The seat position must be
so as to allow pressing the clutch pedal
all the way. The backrest must be
inclined so arms are slightly bent;
92
SAFETY

adjust the head restraint. For
maximum safety, the distance between
the head and headrest must be
minimum;
adjust cushion (seat) height. This
adjustment optimises visibility;
adjust the steering wheel.
ADJUSTING THE SEAT BELTS
Sit firmly on the backrest.
The chest belt 1 fig. 174 must be as
close as possible to the neck without
touching it.
The waist belt 2 fig. 174 must be
resting on the thighs and against the
pelvis.
The belt must adhere as much as
possible to the body. (e.g. avoid
wearing clothes that are too bulky or
placing obstacles between the body
and belt).Locking
Pull out the belt slowly without forcing it
and insert the tab 3 fig. 175 into the
buckle 5 (make sure it is locked by
pulling the tab 3).
Repeat the operation if the seat belt
blocks.
If the belt is completely blocked, pull
slowly but firmly and draw out at least
3 cm. Let it rewind normally then pull it
out again. If the problem persists,
contact a Fiat Dealership.
Front seat belts not fastened
warning light
This is on the central display and turns
on when the engine is started. Then, if
the seat belt is not fastened and the
vehicle reaches 16 km/h, it flashes and
an acoustic warning turns on for about
2 minutes.
Depending on the vehicle, it flashes if
the front passenger seat belt is not
fastened.Adjusting the front seat belt height
Move the lever 6 fig. 176 to select the
adjustment position so the chest belt 1
fig. 174 adheres to the body as
described above.
After adjusting, make sure it is properly
locked in place.
Unlocking
Press button 4 fig. 175, the belt
rewinds. Accompany it as it rewinds.
Rear side belts
For the first row in the rear, you must
use belts 8 fig. 177;
for the last row at the rear, you must
use the seat belts 7 fig. 177.
When the seat belt 8 fig. 177 is not
worn, insert the tab 9 into the buckle
10.
174T13622
175T13622-1176T36553
93

Conditions for use: before using the
rear side seat belts, make sure that
each belt’s tab 11 fig. 178 is locked into
the buckle 12.
Locking and unlocking are done in the
same way as for the front seat belts.Access to the last row: to facilitate
access to the last row, release the
second row seat belt from the buckle
13 fig. 179.
94)
Do not forget to lock the belt again
when a passenger is sitting there.
Central seat belts
Slowly unwind the belt until you can
lock the tab into the buckle 14 fig. 180.
95)
IMPORTANT For rear seat operation,
refer to the "Rear single seats"
paragraph in the "Knowing your vehicle”
chapter.
96) 97) 98) 99) 100) 101) 102) 103) 104) 105)
WARNING
93)Seat belts that are not adjusted or are
twisted could cause injuries in case of an
accident. Use one seat belt per person,
child or adult. Even pregnant women have
to fasten their seat belts. In this case, make
sure the pelvis belt does not press too hard
on the lower stomach area, but not be too
loose either.
94)Make sure the rear seat belts are
positioned and operating properly after
adjusting the single rear seat.
95)To make full use of seat belt protection,
make sure the rear single seat is locked in
place. Read the "Single rear seat"
paragraph in the "Knowing your vehicle”
chapter.
96)Do not change the originally installed
restraining system components in any way:
belts, seats and related fasteners. In
special cases (e.g.: installing a child seat)
see a Fiat Dealership.
97)Do not use anything that could loosen
the buckles (diaper pins, clips, etc.)
because a loose seat belt can cause injury
in case of an accident.
98)Never pass the shoulder belt under
your arm or behind your back.
99)Never use the same belt for more than
one person, and never fasten your seat
belt across a newborn or child you are
holding in your lap.
177T36613
178T36614
179T36704
180T36556
94
SAFETY
