2021 DACIA DUSTER display

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.1
ENG_UD35424_5
Sommaire 1 (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 1.5
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.8
Opening and closing the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . 1.9
Engine immobiliser system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 1.11
Front headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.13
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 1.23
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . 1.24
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 1.25 mounting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . 1.28
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 1.30
deactivating/activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.36
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.39
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Instrument panel: warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . 1.44
Display and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 1.51
On-board computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 1.54
Steering wheel, Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . 1.60
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.61
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.62
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.64
Adjusting the headlight beam height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 1.66
Screen washer, wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 1.68
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 1.70

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.51
ENG_UD32126_1
Afficheur et indicateurs (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
DISPLAY AND INDICATORS (1/3)
Speedometer 2 (kph or mph)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the vehi-
cle is travelling in excess of 72 mph
(120 km/h).
12
Rev counter 1 (rpm x 1,000)

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.52
ENG_UD32126_1
Afficheur et indicateurs (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
DISPLAY AND INDICATORS (2/3)
5
In 4x4 ( 4WD) mode on rough ter-
rain, there is a risk that incorrect in-
formation on the fuel level may be
displayed. Wait until you are on flat
ground again for a stable reading of
the oil level indicators.
Fuel gauge 3, 4 or 5
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light comes on, depen-
ding on the vehicle.
On-board computer A, B or C
Refer to the information on the “Trip
computer and warning system” in
Section 1.
34
C
AB

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.53
ENG_UD32126_1
Afficheur et indicateurs (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
DISPLAY AND INDICATORS (3/3)
Coolant temperature
indicator 6
The number of squares lit depends on
the engine coolant temperature. There
is no warning unless the last three
squares light up.
Multifunction display C
Total mileage recorder, distance travel-
led trip mileometer, clock.
OR
Trip computer and warning
system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Multifunction key 7
– Display selection
By pressing the button you can shift
from the total mileage recorder, trip
mileometer and time or vice-versa.
– Resetting the trip mileage recor-
der
Once the trip mileage display is se-
lected, press and hold the button.
– Resetting the clock
Refer to the information on the
“Clock” in Section 1.
6
7
C

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.54
ENG_UD34963_2
Ordinateur de bord (H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
ON-BOARD COMPUTER (1/6)
2
3
4
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
On-board computer 1 or 3
Display selection key 2 or 4
Scroll through the following information
by repeatedly pressing button 2 or 4:
a) Total mileage recorder
b) Trip mileage recorder
c) Fuel consumed
d) Average fuel consumption
e) Current fuel consumption f) Estimated range
g) Distance travelled
h) Average speed
i) Oil change interval
j) Speed limiter
k) Time
l) Exterior temperature
m) reset the tyre pressure.
Refer to the table on the following
pages showing display examples.
Resetting the trip mileage
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button
2 or 4.
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.55
ENG_UD34963_2
Ordinateur de bord (H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
Interpreting some of the
values displayed after
resetting
The values showing average fuel
consumption, range and average
speed will become more stable and re-
liable the further you travel after pres-
sing the reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the fuel consumption may decrease
when:
– the vehicle stops accelerating,
– the engine reaches its operating
temperature (engine cold when
reset button pressed),
– when driving from a built-up area
onto the open road.
Therefore, if the average fuel
consumption decreases, the
range will increase. – You may also notice that the ave-
rage fuel consumption increases
when the vehicle is stationary and
the engine idling.
This is normal, since the computer
takes account of fuel used during
idling.
Manually resetting the journey para-
meters: with the display showing one
of the journey parameters, press the
button 2 until the display is reset.
Automatically resetting the journey
parameters: the reset is automatic
when the capacity of one of the memo-
ries is exceeded.
ON-BOARD COMPUTER (2/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.56
ENG_UD34963_2
Ordinateur de bord (H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
Examples of display selections by repeatedly
pressing 2 or 4
Interpreting the display selected
Display A Display B Display C
a) Total mileage recorder.
b) Trip mileage recorder.
–c) Fuel used since the last time the reset button was pressed.
–
d) Average fuel consumption since the last time the
reset button was pressed.
This value is displayed after driving 400 metres and
takes into account the distance travelled and the fuel
used since the last time the reset button was pressed.
ON-BOARD COMPUTER (3/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

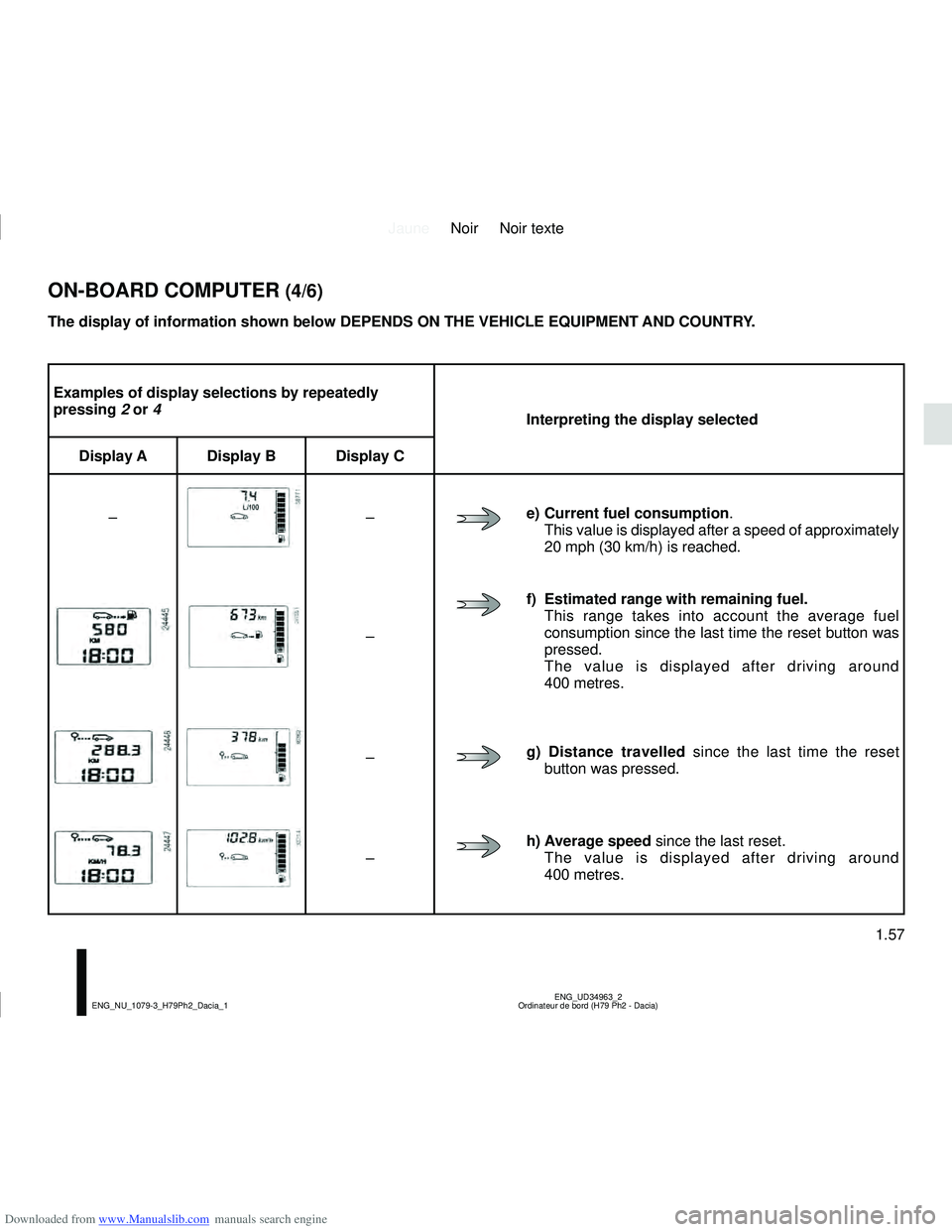

1.57
ENG_UD34963_2
Ordinateur de bord (H79 Ph2 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_1
Examples of display selections by repeatedly
pressing 2 or 4
Interpreting the display selected
Display A Display B Display C
–
–e) Current fuel consumption .
This value is displayed after a speed of approximately
20 mph (30 km/h) is reached.
–
f) Estimated range with remaining fuel. This range takes into account the average fuel
consumption since the last time the reset button was
pressed.
The value is displayed after driving around
400 metres.
–g) Distance travelled since the last time the reset
button was pressed.
–
h) Average speed since the last reset. The value is displayed after driving around
400 metres.
ON-BOARD COMPUTER (4/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
