CITROËN Connect Nav

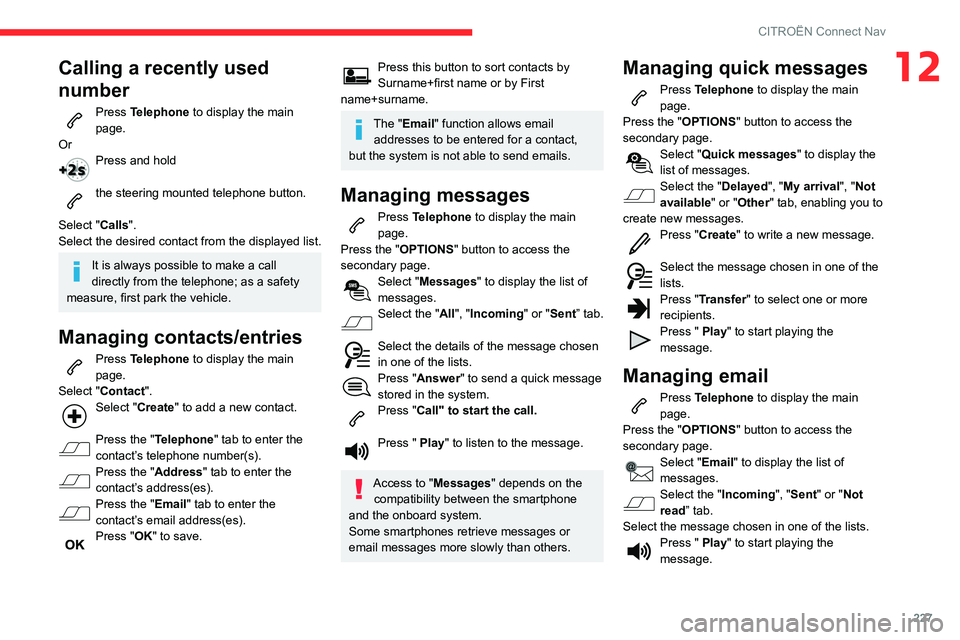

12Calling a recently used
number
Press Telephone to display the main
page.
Or
Press and hold
the steering mounted telephone button.
Select "Calls".
Select the desired contact from the displayed list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Managing contacts/entries
Press Telephone to display the main
page.
Select "Contact".
Select "Create " to add a new contact.
Press the "Telephone" tab to enter the
contact’s telephone number(s).
Press the "Address" tab to enter the
contact’s address(es).
Press the "Email" tab to enter the
contact’s email address(es).
Press "OK" to save.
Press this button to sort contacts by
Surname+first name or by First
name+surname.
The "Email" function allows email addresses to be entered for a contact,
but the system is not able to send emails.
Managing messages
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Messages " to display the list of
messages.
Select the "All", "Incoming " or "Sent” tab.
Select the details of the message chosen
in one of the lists.
Press "Answer" to send a quick message
stored in the system.
Press "Call" to start the call.
Press " Play" to listen to the message.
Access to "Messages" depends on the
compatibility between the smartphone
and the onboard system.
Some smartphones retrieve messages or
email messages more slowly than others.
Managing quick messages
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Quick messages " to display the
list of messages.
Select the "Delayed", "My arrival", "Not
available" or "Other" tab, enabling you to
create new messages.
Press "Create " to write a new message.
Select the message chosen in one of the
lists.
Press "Transfer" to select one or more
recipients.
Press " Play" to start playing the
message.
Managing email
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Email" to display the list of
messages.
Select the "Incoming ", "Sent" or "Not
read” tab.
Select the message chosen in one of the lists.
Press " Play" to start playing the
message.

228
CITROËN Connect Nav
Access to email messages depends on the compatibility between the
smartphone and the onboard system.
Settings
Audio settings
Press Settings to display the main page.
Select "Audio settings ".
Then select "Ambience", "Position"; "Sound ",
"Voice" or "Ringtone ".
Press "OK" to save the settings.
The balance/distribution (or spatialisation
with the Arkamys© system) uses audio
processing to adjust the sound quality
according to the number of passengers in the
vehicle.
Available only with the front and rear speaker
configuration.
The Ambience setting (choice of 6 ambiences) and the Bass, Medium and
Treble sound settings are different and
independent for each audio source.
Activate or deactivate "Loudness".
The "Position ” settings (All passengers,
Driver and Front only) are common to all
sources.
Activate or deactivate "Touch tones ",
"Volume linked to speed " and "Auxiliary
input ".
Onboard audio: Arkamys Sound Staging©
optimises the sound distribution inside
the passenger compartment.
Configuring profiles
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting of the profiles ".
Select "Profile 1", "Profile 2", "Profile 3” or
"Common profile ".
Press this button to enter a name for the
profile using the virtual keypad.
Press "OK" to confirm.
Press this button to add a photograph to
the profile.
Insert a USB memory stick containing the
photograph in the USB port.
Select the photograph.
Press "OK" to accept the transfer of the
photograph.
Press "OK" again to save the settings.
The location for the photograph is square; the system reshapes the original
photograph if in another format.
Press this button to reset the selected
profile.
Resetting the selected profile activates
the English language by default.
Select a "Profile" (1 or 2 or 3) to link "Audio
settings" with it.
Select "Audio settings ".
Then select "Ambience", "Position"; "Sound ",
"Voice" or "Ringtone ".
Press "OK" to save the selected profile’s
settings.
Modifying system settings
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Screen configuration".
Select "Animation".
Activate or deactivate:Automatic scrolling
Select "Brightness".
Move the slider to adjust the brightness of
the screen and/or the instrument panel.
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "System settings".
Select "Units" to change the units of distance,
fuel consumption and temperature.
Select "Factory settings" to restore the initial
settings.
Resetting the system to "Factory
settings" activates English and degrees
Fahrenheit and deactivates summer time.
Select "System info" to display the versions of
the various modules installed in the system.
Selecting the language
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Languages" to change the
language.
Setting the date
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.

229
CITROËN Connect Nav
12Move the slider to adjust the brightness of
the screen and/or the instrument panel.
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "System settings".
Select "Units" to change the units of distance,
fuel consumption and temperature.
Select "Factory settings" to restore the initial
settings.
Resetting the system to "Factory
settings" activates English and degrees
Fahrenheit and deactivates summer time.
Select "System info" to display the versions of
the various modules installed in the system.
Selecting the language
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Languages" to change the
language.
Setting the date
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Date".
Press this button to set the date.
Press "OK" to confirm.
Select the display format for the date.
Time and date setting is only available if "GPS synchronisation" is deactivated.
Setting the time
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Time".
Press this button to set the time using the
virtual keypad.
Press "OK" to confirm.
Press this button to set the time zone.
Select the display format for the time
(12h/24h).
Activate or deactivate summer time (+1 hour).
Activate or deactivate GPS synchronisation (UTC).
Press "OK" to confirm.
The system may not automatically manage the change between winter and
summer time (depending on the country of
sale).
Colour schemes
Depending on equipment/Depending on version.
As a safety measure, the procedure for changing the colour scheme is only
possible when the vehicle is stationary.
Press Settings to display the main page.
Select "Color schemes".
Select a colour scheme in the list then
press "OK" to confirm.
Whenever the colour scheme is
changed, the system restarts, temporarily
displaying a black screen.
Frequently asked
questions
The following information groups together the answers to the most frequently asked questions
concerning the system.

230
CITROËN Connect Nav
Navigation
I cannot enter the navigation address.
The address is not recognised.
►
Use the "intuitive method" by pressing
the "Search…" button at the bottom of the
"Navigation” page.
The route calculation is not successful.
The route settings may conflict with the current
location (for example, if toll roads are excluded
but the vehicle is on a toll road).
►


Check the route settings in the "Navigation"
menu.
I do not receive "Danger zone” alerts.
Y

ou have not subscribed to the online services
option.
►

If you have subscribed to the option:
- a few days may elapse before the service is
activated,
- services may not be selected in the system
menu,
- online services are not active ("T

OMTOM
TRAFFIC" not shown on the map).
The POIs do not appear.
The POIs have not been selected.
►

Set the zoom level to 600 ft (200 m) or select
POIs in the POI list.
The "Danger zone" audible warning feature is
not working.
The audible warning is not active or the volume
is too low

. ►

Activate the audible warning in the
"Navigation" menu and check the voice volume
in the sound settings.
The system does not suggest a detour
around an incident on the route.
The route settings do not take account of

TMC
messages.
►

Configure the "T
raffic info " function in
the route settings list (Without, Manual or
Automatic).
I receive a warning about a "Danger area"
that is not on my route.
As well as providing guided navigation, the
system announces all "Danger areas" positioned
in a cone located in front of the vehicle. It may
provide an alert for "Danger areas" located on
nearby or parallel roads.
►

Zoom the map to show the exact location
of the "Danger area".

You can select "On the
route" to stop receiving warnings or decrease the
warning duration.
Certain traffic jams along the route are not
indicated in real time.
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►

W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available. The altitude is not displayed.
On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the tuned radio
station gradually deteriorates or the station
presets are not working (no sound, 87.5 MHz
is displayed, etc.).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
► Have the aerial checked by a dealer.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
► Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
► Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.

231
CITROËN Connect Nav
12The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►
Have the aerial checked by a dealer
.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►

Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick. There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder

, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►

Start playback from the device.
T
rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telphone’
s
Bluetooth function. The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check that your telephone is
compatible on the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►
Reduce the ambient noise level (close
windows, reduce ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order
.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system does not receive SMS.
SMS text messages cannot be sent to the
system in Bluetooth mode.

233
Alphabetical index
A
ABS 73
Accessories
69, 96
Access to the 3rd row

43
Access to the spare wheel

158–159
Active Safety Brake

122–123
AdBlue®

151
AdBlue® tank

152
Additive, Diesel

149–150
Adjusting headlamps

65
Adjusting head restraints

45
Adjusting seat

38, 43
Adjusting the air distribution

53–54
Adjusting the air flow

53–54
Adjusting the date

205, 229
Adjusting the height and reach of
the steering wheel

40
Adjusting the lumbar support

38
Adjusting the temperature

53–54
Adjusting the time

205, 229
Advanced Grip Control

75–76
Advice on care and maintenance

153
Advice on driving

7, 92
Airbags

80, 82–84
Airbags, curtain

81–82
Airbags, front

80–81, 84
Airbags, lateral

81–82
Air conditioning

52, 54, 55, 57
Air conditioning, digital

56
Air conditioning, dual-zone automatic

53–54
Air conditioning, electronic
(with display screen)
57
Air conditioning, manual

53, 55
Air intake

53–54
Air vents

52
Alarm

33–34
Android Auto connection

220
Anti-lock braking system (ABS)

73
Antitheft / Immobiliser

24
Apple CarPlay connection

201, 219
Applications

220
Armrest

38
Armrest, front

45
Assistance call

69–71
Assistance, emergency braking

73, 123
Audible warning

73
Audio streaming (Bluetooth)

188, 200, 224
B
Battery 144–145, 169, 171–172
Battery, 12 V
149, 169–170
Battery, charging

170–171
Battery, remote control

29, 59
Bench seat, one-piece, fixed

43
Blind spot monitoring system

128
Blind spot monitoring system, active

129
Blind spot sensors

127, 129
BlueHDi

149, 155
Bluetooth
(hands-free)

189–190, 202, 225–226
Bluetooth (telephone) 202–203, 225–226
Bodywork
154
Bonnet

146
Boot lid

26, 28
Bottle holder

45
Brake discs

150
Brake lamps

166
Brakes

150
Braking assistance system

73–74
Braking, automatic emergency

122–123
Braking, dynamic emergency

98–99
Brightness

204
Bulbs

162
Bulbs (changing)

161–162
Bulbs (changing, type)

162
C
Cable, audio 224
Cable, Jack
224
Capacity, fuel tank

140–141
Cap, fuel filler

140–141
Care of the bodywork

154
CD

187, 200
CD, MP3

187, 200
Central locking

23, 26
Changing a bulb

161–164
Changing a fuse

167–169
Changing a wheel

156, 158
Changing a wiper blade

66–67
Changing the remote control battery

29

234
Alphabetical index
Charger, induction 48
Charger, wireless
48
Checking the levels

147–149
Checking tyre pressures
(using the kit)

156, 158
Checks

147, 149–150
Checks, routine

149–150
Child lock

91
Children

79, 85
Children (safety)

91
Child seats

79, 82–85, 89, 90
Child seats, conventional

85
Child seats, i-Size

90–91
Child seats, ISOFIX

90
Cleaning (advice)

153–154
Closing the doors

23, 26
Collision Risk Alert

122
Connected applications

221
Connection, Bluetooth

189, 202–203,
221, 225–226
Connection, MirrorLink

201–202, 220
Connection, Wi-Fi network

221–222
Connectivity

219
Container, AdBlue®

152
Control, emergency boot release

28
Control, emergency door

23, 27–28
Control, heated seats

39
Control stalk, lighting

61, 63
Control stalk, wipers

65–68
Courtesy lamp

59
Courtesy lamp, front

60
Courtesy lamp, rear

60Courtesy lamps 60
Cover, load space
50
Cruise control

112, 115–118, 121
Cruise control, adaptive

11 8
Cruise control by speed limit recognition

11 2
Cruise control, dynamic with Stop function

11 2
Cup holder

45
D
DAB (Digital Audio Broadcasting) -
Digital radio
185, 199–200, 223
Date (setting)

205, 229
Daytime running lamps

63, 163–164
Daytime running lamps, LED

164
Deactivating the passenger airbag

80, 84–85
Deactivation of DSC (ESC)

74
Deadlocking

27
Defrosting

41, 55–56
Demisting

55–56
Demisting, rear

40, 56
Demisting, rear screen

40, 56
Dimensions

175
Dipstick

147
Direction indicators

62–63, 163, 165–166
Display, head-up

107–108
Doors, side

31
Doors, side-hinged

26–27
Driver’s attention warning

129–130
Driving

92
Driving abroad

62
Driving aids camera (warnings) 109
Driving aids (recommendations)
108
Driving economically

7
Dynamic stability control (DSC)

73, 75
E
EBFD 73
Eco-driving (advice)
7
Economy mode

144–145
Electric windows

35
Electronic brake force distribution (EBFD)

73
Emergency braking assistance (EBA)

73
Emergency call

69–71
Emergency warning lamps

52, 72
Emissions control system, SCR

151
Energy economy mode

144–145
Engine compartment

147
Engine, Diesel

140, 147, 155, 178–180
Engine, petrol

147, 176–177
Engines

176–180
Environment

7, 29, 59
ESC (electronic stability control)

73
Expanded traffic sign recognition

11 3
F
Fatigue detection 129–130
Filling the AdBlue® tank
149, 152
Filling the fuel tank

140–141

235
Alphabetical index
Filter, air 150
Filter, oil
150
Filter, particle

149–150
Filter, passenger compartment

52, 149
Finisher

161
Fitting a wheel

159, 161
Fitting roof bars

145
Fittings, interior

45, 49
Flap, fuel filler

140–141
Flashing indicators

62–63, 166
Fluid, brake

148
Fluid, engine coolant

148
Foglamp, rear

166
Foglamps

165
Foglamps, front

61, 163
Foglamps, rear

61
Folding the rear seats

41–43
Frequency (radio)

223
Fuel

7, 140
Fuel consumption

7
Fuel tank

140–141
Fusebox, dashboard

167
Fusebox, engine compartment

167, 169
Fuses

167–169
G
Gauge, fuel 140–141
Gearbox, automatic
96, 100–105, 150
Gearbox, manual

100–101, 105, 150
Gear lever, automatic gearbox

101–103
Gear lever, manual gearbox 100–101
Gear shift indicator ~ Gear efficiency
indicator

104
Glove box

45
G.P.S.

216
H
Hazard warning lamps 52, 72
headlamp adjustment
65
Headlamp adjustment

65
Headlamps, automatic dipping

63–64, 128
Headlamps, automatic illumination

62–63
Headlamps, dipped beam

61, 163–164
Headlamps, halogen

162
Headlamps, main beam

61, 163–164
Head restraints, front

45
Head restraints, rear

41–42
Head-up display

107–108
Heating

52–53, 55, 57–58
Heating, additional

33, 57–58
Heating, programmable

33, 57–58
Hill Assist Descent Control (HADC)

77
Hill Descent Control

77
Hill start assist

99–100
Horn

73
I
Ignition 96, 227
Ignition on 96
Immobiliser, electronic
93
Indicator, coolant temperature

16
Indicator lamps, operation

61
Indicators, direction

62
Inflating tyres

150, 181
Inflating tyres and accessories
(using the kit)

156, 158
Infrared camera

109
Instrument panel

9, 110
Internet browser

217, 221
ISOFIX

89
J
Jack 158, 224
Jump starting
170
K
Key 23–24, 26–28
Key, electronic
23, 96
Keyless Entry and Starting

23, 25–26, 94, 96
Key with remote control

26
Kit, hands-free

189–190, 202, 225–226
Kit, puncture repair

155
Kit, temporary puncture repair

155–156, 158
