CHEVROLET COLORADO 2021 Duramax Diesel Supplement Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
48 Driving and Operating

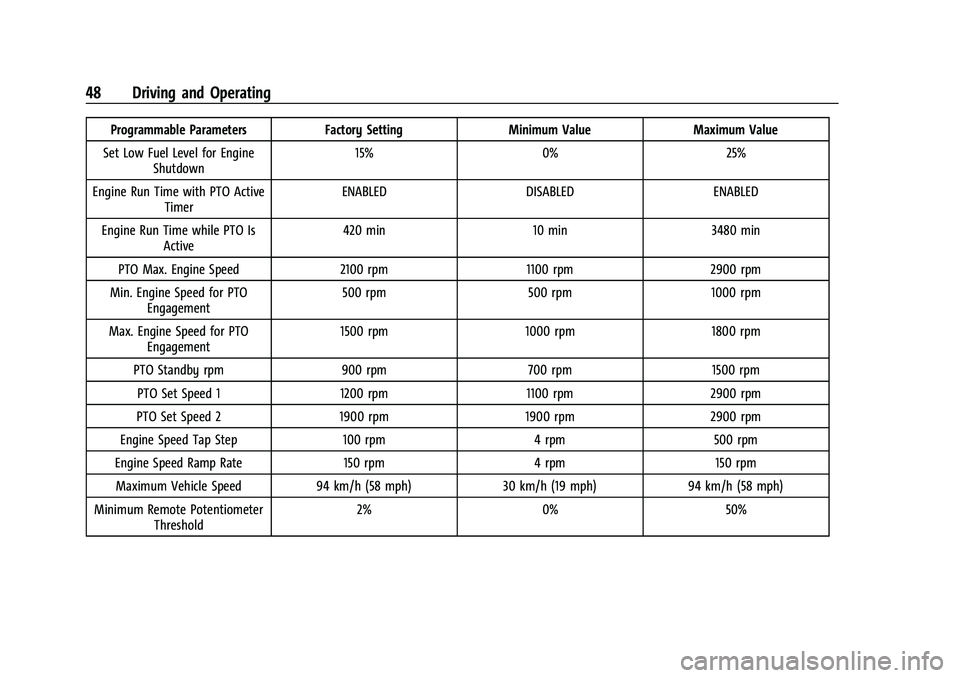

Programmable ParametersFactory SettingMinimum Value Maximum V

Page 50 of 89

Page 51 of 89

Page 52 of 89

Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Driving and Operating 51
.PTO: REDUCE VEHICLE SPEED
.PTO: REDUCE ENGINE SPEED
.PTO: DISENGAGE CRUISE CONTROL
.PTO: ACCELERATION UPON BRAKE RELEASE
.PTO: SERVICE PTO
.PTO: SHIFT TO M1, M2 OR M3 (Mobile
mode only)
.Action Required Cleaning Exhaust Filter
Continue Driving (DPF only)
.Action Required Cleaning Exhaust Filter
Must Continue Driving (DPF only)
.Exhaust Filter Cleaning Available Go to
Options Menu (DPF only)
In addition, the PTO indicator light will light
when all conditions required to engage PTO
have not been met. When enabling PTO, the
PTO indicator light will turn on, then turn
off after one second. Under normal
operating conditions, the PTO indicator light
will remain on throughout the PTO
operating cycle.
Additional in-vehicle PTO module
information can be accessed by the service
technician to aid in troubleshooting. Also see
the service manual for more information. The GM service technician can access Service
Tool information that will contain reasons
why PTO may not engage and why PTO
may unexpectedly disengage due to system
conditions.
See www.gmupfitter.com for information on
the installation of wiring and programming
for PTO aftermarket equipment.
Diesel Particulate Filter Cleaning during
PTO Operation
This feature is only available on Fleet and
Commercial vehicles. To verify that the
vehicle has this feature, see
www.gmupfitter.com to contact the GM
Upfitter Integration Group for assistance.
If equipped, this feature allows for manual
cleaning/regeneration of the Diesel
Particulate Filter (DPF) when it is unable to
clean itself. It may be necessary to perform
a manual regeneration if driving conditions
—
such as extended slow speed, stop-and-go
traffic, extended idles, short drive cycles,
or stationary PTO operation —prevent DPF
self-cleaning. Manual regeneration can only be used when
the DPF has become at least 90% full. At
100% full, it will attempt to automatically
self-clean if proper driving conditions are
met. The DPF will clean itself if the vehicle
can be driven above 50 km/h (30 mph) for
about 30 minutes.
Manual regeneration can be used during a
stationary PTO session. However it is
strongly recommended that the exhaust
filter be cleaned before continuous PTO.
If manual regeneration is operating
concurrently with PTO then the PTO system
will retain control of the engine speed. Low
PTO engine speeds will cause regeneration
to take longer. To initiate a manual DPF
regeneration, see
“Manual Regeneration of
Diesel Particulate Filter” inDiesel Particulate
Filter 019.

Page 53 of 89

Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
52 Vehicle Care
Vehicle Care
General Information
Accessories and Modifications . . . . . . . . . . 52
Vehicle Checks

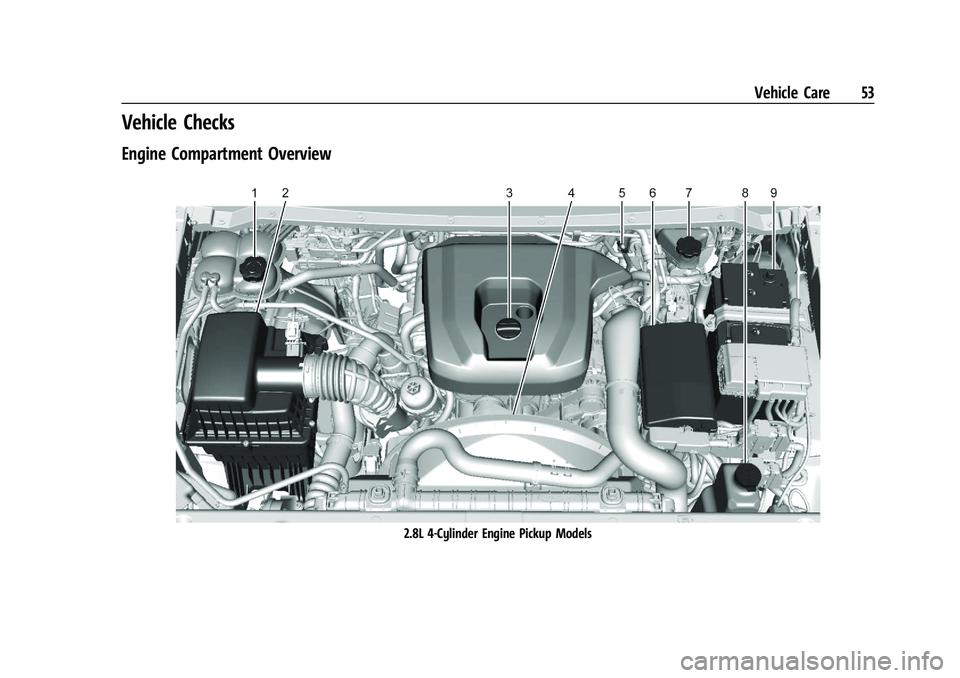

Engine Compartment Overview . . . . . . . . . 53
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Engine Oil Life System . . . . . . . . . . . . . . . . . 58
Automatic Transmission Fluid . . . . . . . . . . 58
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . 58
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 60
Engine Overheating . . . . . . . . . . . . . . . . . . . . 62
Battery (4-Cylinder Pickup Only) . . . . . . . . 63
Electrical System
Engine Compartment Fuse Block . . . . . . . 64
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
General Information
Accessories and Modifications
Adding non-dealer accessories or making
modifications to the vehicle can affect
vehicle performance and safety, including
such things as airbags, braking, stability,
ride and handling, emissions systems,
aerodynamics, durability, and electronic
systems like antilock brakes, traction control,
and stability control. These accessories or
modifications could even cause malfunction
or damage not covered by the vehicle
warranty.
Damage to vehicle components resulting
from modifications or the installation or use
of non-GM certified parts, including control
module or software modifications, is not
covered under the terms of the vehicle
warranty and may affect remaining
warranty coverage for affected parts.
GM Accessories are designed to complement
and function with other systems on the
vehicle. See your dealer to accessorize the
vehicle using genuine GM Accessories
installed by a dealer technician.
See the warranty manual.
Aftermarket Engine Performance
Enhancement Products and Modifications
Some aftermarket engine performance
products and modifications promise a way
to increase the horsepower and torque
levels of the vehicle's powertrain. You should
be aware that these products could have
harmful effects on the performance and life
of the engine, exhaust emission system,
transmission, and drivetrain. The engine,
transmission, and drivetrain have been
designed and built to offer industry leading
durability and performance in the most
demanding applications. Engine power
enhancement products may enable the
engine to operate at horsepower and torque
levels that could damage, create failure,
or reduce the life of the engine, engine
emission system, transmission, and
drivetrain. Damage, failure, or reduced life of
the engine, transmission, emission system,
drivetrain, or other vehicle components
caused by aftermarket engine performance
enhancement products or modifications
might not be covered under the vehicle
warranty.

Page 54 of 89

Page 55 of 89

Page 56 of 89
