2021 CADILLAC ESCALADE jacking

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
28 KEYS, DOORS, AND WINDOWS
Power Assist Steps
{Warning
To avoid personal injury or property
damage, before entering or exiting
the vehicle, be sure the power assist
step is fully extended. Do not step
on the power assist step while it is
moving. Never place hands or other
body parts between the extended
power assist step and the vehicle.
If equipped, the power assist steps will
deploy when the door is opened and
automatically retract three seconds
after the door is closed. The power
assist steps will retract immediately if
the vehicle starts moving.
Disable the power assist steps before
jacking or placing any object under
the vehicle. Too much ice buildup
may prevent deployment of the power
assist steps. Check the step position
before exiting the vehicle. If this
happens, disable the power assist
steps, clear the ice, then enable the
assist steps and confirm normal
function prior to use. Keep hands, children, pets, objects,
and clothing clear of the power assist
steps when in motion. The steps will
reverse direction if they encounter an
obstruction when opening or closing.
Remove the obstruction, then open
and close the door on the same side
to complete the motion of the assist
steps. If the obstruction is not cleared,
the assist steps remain extended while
driving.
To extend or retract both power assist
steps for cleaning, see
Vehicle
Personalization 0138.
Enable/Disable
To enable or disable the power assist
steps, see Vehicle Personalization
0 138.
Vehicle Security
This vehicle has theft-deterrent
features; however, they do not make
the vehicle impossible to steal.
Vehicle Alarm System
The indicator light, on the driver door
near the window, indicates the status
of the system. See Power Door Locks
0 18
Arming the Alarm System
1. Turn off the vehicle.
2. Lock the vehicle in one of
three ways:
.Use the remote key.
.Use the Keyless Access system.
.With a door open, pressQon
the interior of the door.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
VEHICLE CARE 413
Warning (Continued)
dealer or an authorized tire service
center repair or replace the flat tire
as soon as possible.
{Warning
Lifting a vehicle and getting under
it to do maintenance or repairs is
dangerous without the appropriate
safety equipment and training. If a
jack is provided with the vehicle, it
is designed only for changing a flat
tire. If it is used for anything else,
you or others could be badly injured
or killed if the vehicle slips off the
jack. If a jack is provided with the
vehicle, only use it for changing a
flat tire.
If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place, well off the road,
if possible. Turn on the hazard
warning flashers. See Hazard Warning
Flashers 0153.
{Warning
Changing a tire can be dangerous.
The vehicle can slip off the jack and
roll over or fall causing injury or
death. Find a level place to change
the tire. To help prevent the vehicle
from moving:
1. Set the parking brake firmly.
2. Shift the vehicle to P (Park).
3. For vehicles with four-wheel drive with an N (Neutral)
transfer case position, be sure
the transfer case is in a drive
gear —not in N (Neutral).
4. Turn off the engine and do not restart while the vehicle is
raised.
5. Do not allow passengers to remain in the vehicle.
6. Place wheel blocks, if equipped, on both sides of the tire at the
opposite corner of the tire
being changed. When the vehicle has a flat tire (2),
use the following example as a guide
to assist in the placement of the
wheel blocks (1), if equipped.
1. Wheel Block (If Equipped)
2. Flat Tire
The following information explains
how to use the jack and change a tire.
Tire Changing
Before changing a flat tire, see
“Hands-Free Operation
”under Liftgate
0 20.
Removing the Spare Tire and
Tools
The equipment needed to change a
flat tire is stored in the rear of the
vehicle. The jacking tools are under

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

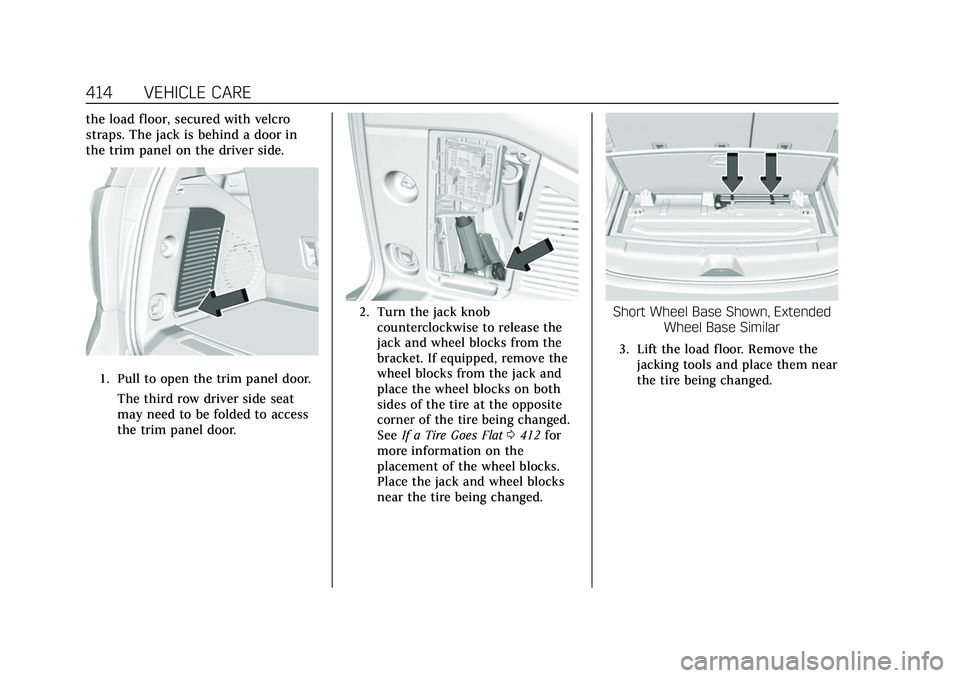

414 VEHICLE CARE
the load floor, secured with velcro
straps. The jack is behind a door in
the trim panel on the driver side.
1. Pull to open the trim panel door.
The third row driver side seat
may need to be folded to access
the trim panel door.
2. Turn the jack knobcounterclockwise to release the
jack and wheel blocks from the
bracket. If equipped, remove the
wheel blocks from the jack and
place the wheel blocks on both
sides of the tire at the opposite
corner of the tire being changed.
See If a Tire Goes Flat 0412 for
more information on the
placement of the wheel blocks.
Place the jack and wheel blocks
near the tire being changed.Short Wheel Base Shown, Extended Wheel Base Similar
3. Lift the load floor. Remove the
jacking tools and place them near
the tire being changed.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
VEHICLE CARE 417
Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check beforeproceeding. See If a Tire Goes Flat
0 412 for more information.
2. If the vehicle has a center cap that
covers the wheel fasteners, place
the chisel end of the wheel wrench
in the slot on the wheel and gently
pry the cap out.
If the wheel has a bolt-on hub cap,
loosen the plastic nut caps by
turning the wheel wrench
counterclockwise. The plastic nut
caps will be retained in the hub cap
after it is removed from the wheel.
3. Use the wheel wrench to loosen allthe wheel nuts. Turn the wheel
wrench counterclockwise to loosen
the wheel nuts. Do not remove the
wheel nuts yet.
{Warning
To avoid personal injury and
vehicle damage, disable the power
assist steps before using a jack or
placing an object under the vehicle.
See Power Assist Steps 028.
Caution
Only raise the vehicle from the
jacking locations shown. Raising
the vehicle from the rear could
damage the frame or other
components. The damage may not
be covered by the vehicle warranty.
Vehicle Jacking Locations
4. Position the jack lift head as shown, at the jacking location
nearest the flat tire. The jack must
not be used in any other position.
