Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
CLIMATE CONTROLS 223
started in cold weather and turns off
when the vehicle is warmed. To turn
Auto Rear Defog on or off, see
“Climate and Air Quality”under
Vehicle Personalization 0138.
The heated outside rearview mirrors
turn on when the rear window
defogger button is on and help to
clear fog or frost from the surface of
the mirrors.
Caution
Do not try to clear frost or other
material from the inside of the
front windshield and rear window
with a razor blade or anything else
that is sharp. This may damage the
rear window defogger grid and
affect the radio's ability to pick up
stations clearly. The repairs would
not be covered by the vehicle
warranty.
Driver and Passenger Heated and
Cooled Seats : Press
Ior+to heat
the driver or passenger seatback only.
Press
Jorzto heat the driver or
passenger seat cushion and seatback. Press
Cor{to cool the driver or
passenger seat.
There are also auto heated and cooled
seats, for more information see Heated
and Ventilated Front Seats 048.
Remote Start Climate Control
Operation : The climate control
system may run when the vehicle is
started remotely. The system uses the
driver’s previous settings to heat or
cool the inside of the vehicle. The rear
defog may come on during remote
start based on cold ambient
conditions. The rear defog indicator
light does not come on during a
remote start. If equipped with heated
or cooled seats, they may come on
during a remote start. See Remote
Vehicle Start 014 and
Heated and Ventilated Front Seats 048.Sensor
The solar sensor, on top of the
instrument panel near the windshield,
monitors the solar heat.
The climate control system uses the
sensor information to adjust the
temperature, fan speed, recirculation,
and air delivery mode for best
comfort.
If the sensor is covered, the automatic
climate control system may not work
properly.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
DRIVING AND OPERATING 283
Do not modify the hood, headlamps,
or fog lamps, as this may limit the
camera’s ability to detect an object.
Cleaning the Sensing System
The camera sensor on the windshield
behind the rearview mirror and the
radar sensors on the front of the
vehicle can become blocked by snow,
ice, dirt, mud, or debris. These areas
need to be cleaned for ACC to operate
properly.
If ACC will not operate, regular cruise
control may be available. See
“Switching Between ACC and Regular
Cruise Control”previously in this
section. Always consider driving
conditions before using either cruise
control system.
For cleaning instructions, see
“Washing the Vehicle ”under Exterior
Care 0432.
System operation may also be limited
under snow, heavy rain, or road spray
conditions.Super Cruise
If equipped, Super Cruise can steer to
maintain lane position under certain
conditions on Super Cruise-enabled
roads that are separated from
opposing traffic.
Super Cruise can also steer to perform
a lane change under certain
conditions on Super Cruise-enabled
roads when a lane change is initiated
by the driver using the turn signal
lever. See “Super Cruise Lane Change ”
later in this section and Turn and
Lane-Change Signals 0153.
{Warning
Super Cruise can only assist to
maintain lane position, or steer to
change lanes, when driving on
compatible roads. You must
supervise the driving task and
monitor the road conditions. You
may need to respond to traffic
events by steering, braking,
or accelerating. See Defensive
Driving.
(Continued)
Warning (Continued)
Super Cruise is:
.Not a self-driving system
.Not a crash avoidance or warning
system
.Not a substitute for proper
supervision of the driving task.
Super Cruise uses the following to
detect the current lane position and
lane markings ahead on compatible
roads under certain conditions:
.Cameras
.Global Positioning System (GPS)
sensing
.A high-precision map
.GPS-enhancement data downloaded
through Connected Services
Super Cruise works with Adaptive
Cruise Control (ACC), which controls
acceleration and braking while Super
Cruise is enabled and operating.
Review and understand both this
section and the ACC section before
using Super Cruise. See Adaptive
Cruise Control (Advanced) 0274.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

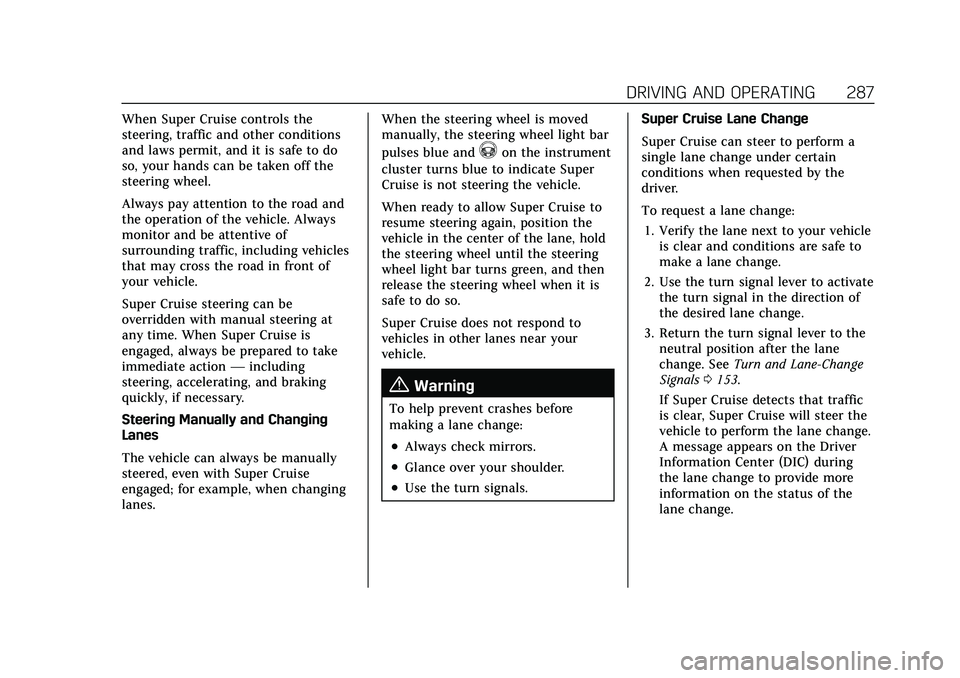

DRIVING AND OPERATING 287
When Super Cruise controls the
steering, traffic and other conditions
and laws permit, and it is safe to do
so, your hands can be taken off the
steering wheel.
Always pay attention to the road and
the operation of the vehicle. Always
monitor and be attentive of
surrounding traffic, including vehicles
that may cross the road in front of
your vehicle.
Super Cruise steering can be
overridden with manual steering at
any time. When Super Cruise is
engaged, always be prepared to take
immediate action—including
steering, accelerating, and braking
quickly, if necessary.
Steering Manually and Changing
Lanes
The vehicle can always be manually
steered, even with Super Cruise
engaged; for example, when changing
lanes. When the steering wheel is moved
manually, the steering wheel light bar
pulses blue and
^on the instrument
cluster turns blue to indicate Super
Cruise is not steering the vehicle.
When ready to allow Super Cruise to
resume steering again, position the
vehicle in the center of the lane, hold
the steering wheel until the steering
wheel light bar turns green, and then
release the steering wheel when it is
safe to do so.
Super Cruise does not respond to
vehicles in other lanes near your
vehicle.
{Warning
To help prevent crashes before
making a lane change:
.Always check mirrors.
.Glance over your shoulder.
.Use the turn signals. Super Cruise Lane Change
Super Cruise can steer to perform a
single lane change under certain
conditions when requested by the
driver.
To request a lane change:
1. Verify the lane next to your vehicle is clear and conditions are safe to
make a lane change.
2. Use the turn signal lever to activate the turn signal in the direction of
the desired lane change.
3. Return the turn signal lever to the neutral position after the lane
change. See Turn and Lane-Change
Signals 0153.
If Super Cruise detects that traffic
is clear, Super Cruise will steer the
vehicle to perform the lane change.
A message appears on the Driver
Information Center (DIC) during
the lane change to provide more
information on the status of the
lane change.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
INDEX 481
CheckEngine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 122
Child Restraints Infants and Young Children . . . . . . . 78
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . . . . . 84
Older Children . . . . . . . . . . . . . . . . . . . . . 77
Securing . . . . . . . . . . . . . . . . . . . . . . . . 91, 94
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 385
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . 432
Interior Care . . . . . . . . . . . . . . . . . . . . . . 437
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . . . . . 220
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Cluster, Instrument . . . . . . . . . . . . . . . . . 114
Collision Damage Repair . . . . . . . . . . . 465
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . 477
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 478
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 476 Connections
Connected Services . . . . . . . . . . . . . . . 477
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Control of a Vehicle . . . . . . . . . . . . . . . . 231
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . 160
Convenience Net . . . . . . . . . . . . . . . . . . . . 101
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . 31
Coolant Engine Temperature Gauge . . . . . . 117
Engine Temperature WarningLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Cooling . . . . . . . . . . . . . . . . . . . . . . . . .220, 224
Cooling System . . . . . . . . . . . . . . . . . . . . . 372
Cornering Lamps . . . . . . . . . . . . . . . . . . . 153
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Coverage Explanations . . . . . . . . . . . . . 191
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 271 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Cruise Control, Adaptive . . . . . . . . . . . 274
Cruise Control, Super . . . . . . . . . . . . . . . 283
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Customer Assistance . . . . . . . . . . . . . . . 460 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460
Text Telephone (TTY) Users . . . . . 460 Customer Information
Publications Ordering
Information . . . . . . . . . . . . . . . . . . . . . . 467
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 458
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . 469
D
Damage Repair, Collision . . . . . . . . . . . 465
Danger, Warning, and Caution . . . . . . . . 2
Data Collection Infotainment System . . . . . . . . . . . . . 470
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
Data Recorders, Event . . . . . . . . . . . . . . 469
Database Coverage Explanations . . . . . . . . . . . . . . . . . . . . . . 191
Daytime Running Lamps (DRL) . . . 151
Defensive Driving . . . . . . . . . . . . . . . . . . . 231
Delayed Locking . . . . . . . . . . . . . . . . . . . . . 19
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Diagnostics
Connected Services . . . . . . . . . . . . . . . 478
Distracted Driving . . . . . . . . . . . . . . . . . . 230
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 154
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 132
Delayed Locking . . . . . . . . . . . . . . . . . . . 19
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
484 INDEX
Headlamps (cont'd)Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . . . . . 151
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 151
High-Beam On Light . . . . . . . . . . . . . . 130
High/Low Beam Changer . . . . . . . . . 151
Lamps On Reminder . . . . . . . . . . . . . . 131
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Steering Wheel . . . . . . . . . . . . . . . . . . . . 104
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 33
Heating . . . . . . . . . . . . . . . . . . . . . . . . .220, 224
High-Beam On Light . . . . . . . . . . . . . . . . 130
High-Speed Operation . . . . . . . . . . . . . . 401
Hill and Mountain Roads . . . . . . . . . . 238
Hill Start Assist (HSA) . . . . . . . . . . . . . 263
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
How to Wear Seat Belts Properly . . . 59
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . .220, 224
I
If the System Needs Service . . . . . . . 190
Ignition Positions . . . . . . . . . . . . . . . . . . . 245
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Indicator
Pedestrian Ahead . . . . . . . . . . . . . . . . . 126
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . 126
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Information Publication Ordering . . . . . . . . . . . . . 467
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Infotainment System . . . . . . . . . . . . . . . 470 Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Instrument Cluster . . . . . . . . . . . . . . . . . 114
Instrument Panel Overview . . . . . . . . . . . 4
Interior Lamps . . . . . . . . . . . . . . . . . . . . . . 154
Interior Rearview Mirrors . . . . . . . . . . . 34
Introduction . . . . . . . . . . . . . . . . . . . . . . 1, 158
J
Jump Starting - North America . . . . 425
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . 7
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L
Labeling, Tire Sidewall . . . . . . . . . . . . . 395
Lamps Cornering . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Daytime Running (DRL) . . . . . . . . . . 151 Lamps (cont'd)
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Exterior Controls . . . . . . . . . . . . . . . . . . 149
Exterior Lamps Off Reminder . . . . 151
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Malfunction Indicator (Check
Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . 122
On Reminder . . . . . . . . . . . . . . . . . . . . . . 131
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Lane Change Alert (LCA) . . . . . . . . . . . 321
Lane Keep Assist (LKA) . . . . . . . . . . . . 324
Lane Keep Assist Light . . . . . . . . . . . . . 125
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . 61
LATCH System
Replacing Parts after a Crash . . . . . 91
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . 84
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . 384
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Illumination Control . . . . . . . . . . . . . . 154
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Lights Airbag Readiness . . . . . . . . . . . . . . . . . 120
