Checking and topping up fluids
A WARNING
- To avoid the risk of being scalded, never
open the bonnet if
you
see steam or coolant
escaping from the engine compartment.
Wait until no steam or coolant can be seen
before opening the bonnet.
- For safety reasons the bonnet must always
be completely closed when the vehicle is

moving.
After closing it always check that it
is properly secured. It should not be possi­
ble to
lift
the front edges of the bonnet.
Should you notice that the bonnet is not
safely secured when the vehicle is moving,
stop the vehicle immediately and close the
bonnet properly, otherwise it could cause an
accident.
Engine compartment layout
Main components for checking and refilling

CO

< o rN
iv
rN
t-H
o <

?

Fig.
245 Typical locations of fluid containers, engine oil dipstick and engine
oilfiller
cap

(T)
Coolant expansion tank
C=t)
<^page
300
(2) Engine oil dipstick
Opage
298
(3) Engine
oilfiller
cap
(*&*)
Opage
298
(4) Brake fluid reservoir (CO))
^>page
301
(5) Vehicle battery (+) beneath a cover

^page
303,
^page
326
(?) Earth
point
on
body
(-)•=>page
303,

^>page
326
(7) Windscreen
washer
container
(<3?)
^>page
303

(§)
Fuse box
^page
332
The positions of the oil
dipstick
(2) and the en­
gine
oilfiller
cap(D^F/'g.
245 may be different
on some engine versions.
Engine oil
Choosing the correct engine oil grade
The service interval display in the instrument
cluster of your vehicle will inform you when it is
time for an oil change. We recommend having
the oil changed by
a
qualified workshop. •
297

Checking and topping up fluids
If
you
have to top up the oil between oil changes,
use the grades of oil specified in the table in ac­
cordance with VW standards.
You will need to know whether
- the vehicLe is being serviced based on the
flexi­

ble or fixed oil change service (see last service
record).
- the vehicle has a petrol or diesel engine (see
sticker on inside of fuel tank flap).
Petrol engines
Diesel engines
Oil Change Service
Flexible
VW 504 00
VW 507 00
Fixed
VW 502 00
With diesel
particulate
fil­

ter:
VW 507 00
Without diesel
particulate
fil­

ter:
VW 505 00
Audi recommends

ÇÇastrol
(MMMM'
FriOFSSskimL

Audi recommends LongLife high-performance
engine oil from Audi Genuine Parts
© Note
If the oil grades specified in the table are not
available, you can use one of the
folLowing

grades as a substitute. To prevent damage to
the engine, this should not be done more
than once between oil changes and no more
than 0.5 litres should be used.
- Petrol engines: ACEA A3 or API SN (API SM)
standard
- Diesel engines: ACEA C3 or API CJ-4 stand­
ard
© Note
The flexible oil change service is not available
for all models in all countries.
Checking and topping up the engine oil
level

The
oil dipstick differs depending on the type of
engine.

Fig.
246 Oil dipstick (examples): Checking engine oil level

Fig.
247 Engine compartment: Engine oil filler cap
(exam-

pLe)
Please refer to the safety notes
opage
295,
Working on components in the engine compart­
ment.
Checking engine oil level
- Park the vehicle on a level surface.
- Switch off the warm engine. Wait for
a
few mi­
nutes for the oil to drain back into the sump.
- Open the bonnet
opage
296.
-
PuLl
out the oil dipstick
^>page
297, Fig. 245,
wipe it with a clean cloth and insert it again,
pushing it in as far as it will go.
- Then pull the dipstick out again and check the
oil level
•=>
table on page 299.
- If the oil level is too Low, add more engine oil.
298

Checking and topping up fluids

CO

<
O
rN
iv
rN
i—i
o <

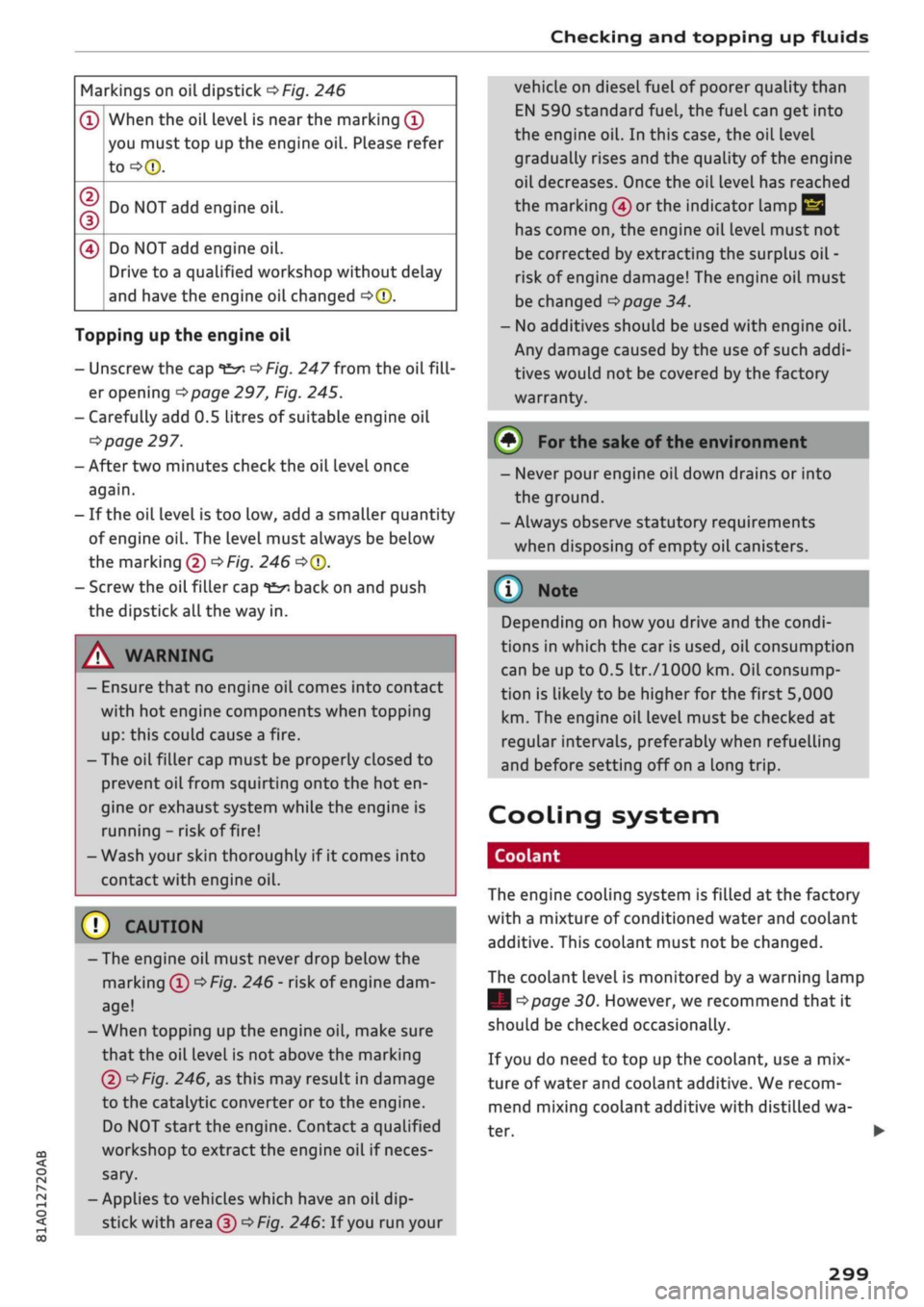

Markings on oil dipstick
^>Fig.
246

®

CD

(D

0
When the oil level is near the marking
(Î)

you must top up the engine oil. Please refer

to-=>®.

Do NOT add engine oil.
Do NOT add engine oil.
Drive to a qualified workshop without delay
and have the engine oil changed
•=>©.

Topping up the engine oil
- Unscrew the cap
"fc^
^>Fig.
247 from the
oilfill­

er opening
^>page
297, Fig. 245.
-Carefully add 0.5 Litres of suitable engine oil

^>
page 297.
- After two minutes check the oil level once

again.

- If the oil level is too low, add a smaller quantity
of engine oil. The level must always be below
the marking (5)
<^Fig.
246
<=>©.

- Screw the oil filler cap
*£/;
back on and push
the dipstick all the way in.
A WARNING
- Ensure that no engine oil comes into contact
with hot engine components when topping

up:
this could cause a fire.
- The oil filler cap must be properly closed to
prevent oil from squirting onto the hot en­
gine or exhaust system while the engine is
running - risk of fire!
- Wash your skin thoroughly if it comes into
contact with engine oil.
- The engine oil must never drop below the
marking®
^>Fig.
246- risk of engine dam­

age!

- When topping up the engine oil, make sure
that the oil level is not above the marking

@
^Fig.
246, as this may result in damage
to the catalytic converter or to the engine.
Do NOT start the engine. Contact a qualified
workshop to extract the engine oil if neces­
sary.
- Applies to vehicles which have an oil
dip­

stick with area
(3)^
Fig. 246: If you run your
vehicle on diesel fuel of poorer quality than
EN 590 standard
fuel,
the fuel can get into
the engine oil. In this case, the oil level
gradually rises and the quality of the engine
oil decreases. Once the oil level has reached
the marking
@
or the indicator lamp
E

has come on, the engine oil level must not
be corrected by extracting the surplus oil -

risk
of engine damage! The engine oil must
be changed
^>page
34.
- No additives should be used with engine oil.
Any damage caused by the use of such
addi­

tives would not be covered by the factory
warranty.
© For the sake of the environmen
- Never pour engine oil down drains or into
the ground.
-Always observe statutory requirements
when disposing of empty oil canisters.
© Note
Depending on
how
you drive and the condi­
tions in which the car is used, oil consumption
can be up to 0.5
Itr./lOOO
km. Oil consump­
tion is likely to be higher for the first 5,000

km.
The engine oil Level must be checked at
regular intervals, preferably when refuelling
and before setting off on a long trip.
Cooling system
Coolant
The engine cooling system is filled at the factory
with a mixture of conditioned water and coolant
additive. This coolant must not be changed.
The coolant level is monitored by a warning lamp
|
<^page
30. However, we recommend that it
should be checked occasionally.
If you do need to top up the coolant, use a mix­
ture of water and coolant additive. We recom­
mend mixing coolant additive with distilled wa­
ter.
299

Checking and topping up fluids
Coolant additive
The coolant additive contains anti-freeze and cor­
rosion protection agent. Only use one of the
fol­

lowing coolant additives. It is possible to mix
these additives.
Topping up coolant
Coolant additive
G13
G12++
Specification

TL774J

TL 774
G

The amount of coolant additive which needs to
be mixed with the water depends on the temper­
atures to be expected in the winter season. If the
anti-freeze concentration is too Low, the coolant
can freeze and cause engine damage.
Hot regions
Cold regions
Coolant
additive

min.
40%
max. 45 %

min.
50%
max. 55 %
Frost protec­
tion

min.-25°C

max. -40 °C

(T)
CAUTION
- Have your qualified workshop check the
cooling system before the winter season to
make sure that the anti-freeze concentra­
tion is adequate for the conditions to be ex­

pected.
This applies particularly if
you
drive
into a colder climate zone.
- To prevent damage to the engine, do not
use a different type of anti-freeze additive if
the approved type of additive is not availa­

ble.
In this case use only water and bring
the coolant concentration back up to the
correct level as soon as possible by putting
in the specified additive.
- Always top up with fresh, unused coolant.
- Radiator sealants must not be added to the
coolant.

Fig.
248 Engine compartment: Markings on coolant ex­
pansion tank
Please refer to the safety notes
^page
295,

Working on components in the engine compart­
ment.
Checking coolant level

•
Park the vehicle on a level surface.

•
Switch off the ignition.

•
Read off the coolant level on the coolant ex­
pansion tank
^>Fig.
248. When the engine is

cold,
the coolant level should be between the
marks. When the engine is warm, it may be
slightly above the top mark.
Topping up coolant
Important: The coolant expansion tank must not
be empty
•=>([).

•
Wait for the engine to cool down.

•
Cover the cap on the expansion tank with a

cloth,
and carefully unscrew the cap
anti-clock­

wise
<=>
/K.

*-
Add coolant in the correct concentration

tapage
299 up to the top mark.

•
You should make sure that the fluid level re­
mains stable. If necessary, add more coolant.

•
Screw the cap on again tightly.
Any loss of coolant normally indicates a Leak in
the cooling system. Drive to a qualified workshop
without delay and have the cooling system

checked.
If there are no leaks in the system, a
loss of coolant can only occur if the coolant boils
and is forced out of the system as a result of
overheating.
300

Checking and topping up fluids
A WARNING

CO

rN
IV
rN
•-i

00
- The cooling system is under pressure. Do
not unscrew the cap on the expansion tank
when the engine is hot: you could be
scal­

ded by escaping steam.
- The coolant and coolant additive can be a
health hazard. Store the coolant additive in
the original container in a safe place out of
reach of children - risk of poisoning.
- When working in the engine compartment
be aware that the radiator fan may start
running suddenly, even if the ignition is
switched off- risk of injury!
Brake fluid
© CAUTION
Do not add coolant if the expansion tank is
empty. Air could have got into the cooling
system - risk of engine damage! In this case,
do NOT drive on. Obtain professional assis­

tance.

- Have your qualified workshop check the
cooling system before the winter season to
make sure that the anti-freeze concentra­
tion is adequate for the conditions to be ex­

pected.
This applies particularly if
you
drive
into a colder climate zone.
-To prevent damage to the engine, do not
use a different type of anti-freeze additive if
the approved type of additive is not availa­

ble.
In this case use only water and bring
the coolant concentration back up to the
correct level as soon as possible by putting
in the specified additive.
- Always top up with fresh, unused coolant.
- Radiator sealants must not be added to the
coolant.

ëB

k
DOT
4
A

•9
o
o
:>
li-

Fig.
249 Engine compartment: Cap of brake fluid reservoir
Please refer to the safety notes
^page
295,
Working on components in the engine compart­
ment.
Checking brake fluid level
Read off the brake fluid level on the brake fluid
reservoir
^>page
297, Fig. 245. The brake fluid
level must be between the MIN and MAX marks

<=>A.

The brake fluid
level
is also automatically moni­

tored.

In right-hand drive vehicles the brake fluid reser­
voir is on the other side of the engine compart­
ment.
Changing brake fluid
Have the brake fluid changed regularly by a quali­
fied workshop.
WARNING
-If the brake fluid Level is under the MIN
mark, the effectiveness of the brakes and
therefore the safety of the vehicle may be
impaired - risk of accident! Do not drive on.
Obtain professional assistance.
- Heavy use of the brakes may cause a vapour
lock if old brake fluid is left in the system.
This would seriously impair the effective­
ness of the brakes and the safety of the car
- risk of accident!
© CAUTION
- If the brake fluid level is above the MAX
mark, brake fluid may escape via the cap on •
301

Checking and topping up fluids
the reservoir in certain circumstances and
cause damage to the vehicle.
- Brake fluid must not be allowed to come in­
to contact with the vehicle's body, other­
wise it will attack the paintwork.

©
For the sake of the environment

1?
Batteries contain toxic substances including
sulphuric acid and
lead.
PLease contact a
qualified workshop if
you
have any questions.
Battery
General warnings for batteries
Because of the complexity of the power supply,
any battery work, such as disconnection, replace­
ment, etc. must be carried out by
a
qualified
workshop
^A-

The term "vehicle battery" refers to the 12 Volt
battery in your vehicle.
Explanation of warnings on vehicle battery:

m

Wear safety glasses!
Battery acid is extremely corrosive. Wear
protective gloves and safety glasses.

A

Keep open flames, sparks, uncovered
Lights and lit cigarettes away from the
battery!
A highly explosive mixture of gases may

~\
be given off when the battery is under
charge!
Keep children away from batteries and
battery
acid.

A WARNING
Any work on the batteries and electrical sys­
tem in your vehicLe entails a risk of injury and
chemical burns in addition to danger of
acci­

dent or fire. For this reason, you must have
the work carried out by a qualified workshop.
©
CA UTION

If the car is left standing for long periods,
protect the battery from frost. The battery
will be damaged irreparably if it is allowed to
freeze
^>page
303, Charging the vehicle
bat­

tery.

Vehicle battery

The
term "vehicle battery" refers to the 12 Volt
battery in your vehicle.
If the vehicle is not used for long periods
If
you
do not drive your vehicle for a period of
several days or weeks, the power management
will gradually shut off the on-board systems one
by one, or reduce the amount of current they are

using.
This limits the amount of power consumed
and helps to ensure reliable starting even after a
long period
^>page
149. Certain convenience fea­

tures,
such as interior lighting or electric seat ad­
justment, may not be available. These functions
will be restored when you switch on the ignition
and start the engine.
Even though some systems are deactivated auto­
matically, certain electrical equipment continues
to draw current even when the ignition is off. If
the vehicLe is left standing for long periods, this
can result in total battery discharge. If the
vehi­

cle battery is allowed to discharge completely, an
internal
chemicaL
reaction damages the battery
irreparably. To avoid this, the vehicle battery
should be recharged at Least once a month

^>page
303. PLease contact a qualified workshop
if
you
have any questions.
Winter conditions
Cold weather is very hard on the vehicle battery.
The starting capacity may be reduced as a result.
For this reason, you should have the vehicle bat­
tery checked by
a
qualified workshop before the
start of winter.
302

Checking and topping up fluids
Charging the vehicle battery

CO

< o rN
iv
rN
t-H
o < 00

Fig.
250 Engine compartment: Terminals for jump leads
and battery charger
Please refer to the safety notes
^>page
295,
Working on components in the engine compart­
ment.
Important: Only use chargers with a maximum
charge voltage of 14.8 V (the battery cables do
not have to be disconnected).
The battery is Located in the engine compart­
ment. The earth
point 0
is always on the
vehi­

cle's body.

•
Note the warnings
•=>/^
in General warnings
for batteries on page 302 and
Q/\.

•
Switch off all electrical equipment and the
igni­

tion.

•
Open the bonnet
^>page
296.

•
Open the battery cover
^Fig.
250.

•
Connect the charger cables to the positive ter­
minal (+) and the earth point on the body (-)
(not the negative terminal on the battery) as

specified.

•
Connect the battery charger to the mains and
switch it on.

•
After charging the battery: switch off the bat­
tery charger and disconnect the mains cable.

•
Detach the charger cables from the terminals.

•
Fold the cover back onto the battery in its cor­
rect position.

•
Close the bonnet
^>page
296.
A WARNING
- A highly explosive mixture of gases may be
given off when the battery is under charge.
Only charge the vehicle battery in a well
ventilated area.
- When it is discharged the vehicle battery
can freeze at temperatures around 0°C. You
must not use a vehicle battery which has

frozen,
even after it has thawed, because
the ice may have cracked the battery casing
and allowed the battery acid to escape - risk
of explosion and chemical burns! Please
contact
a
qualified workshop if
you
have any
questions.
- Do not connect or disconnect the charging
cables during the charging process - risk of

explosion!

© Note
- Use only the terminals in the engine com­
partment to charge the vehicle battery.
- Before you charge the vehicle battery, al­
ways read and follow the manufacturer's in­
structions for using the battery charger.

Wind
screen washer

Fig.
251 Engine compartment: Cap of windscreen washer
container
Please refer to the safety notes
^>page
295,
Working on components in the engine compart­
ment.
The container for the windscreen washer
&
con­

tains the cleaning fluid for the windscreen, the
rear window* and the headlight washer system*

Opage
297, Fig. 245.
For
the container capacity,
please refer to
opage
343.
Clean water should be used when topping up. If
possible, use soft water to prevent scaling on the
washer
jets.
Always add washer fluid to the wa­
ter. In cold weather you should add anti-freeze to
the water to prevent it from freezing. •
303

Checking and topping up fluids
© CAUTIO
-The anti-freeze concentration must be
matched to the climate of the country in
which you are driving. If the concentration
is too
high,
damage to the car may result.
- Never put in radiator anti-freeze or other
additives.
- Never use washer fluid which contains paint
thinners or solvents as it can damage the
paintwork.
Service interval display

The
service interval display detects when the
next
service
is due
for
your vehicle.
There are two service interval dispLay levels:
- Inspection or oil change reminder: After a cer­
tain mileage, a service reminder will appear in
the instrument cluster dispLay each time the ig­
nition is switched on/off. The distance or time
remaining will be shown briefly.
- Inspection or oil change due: When your
vehi­

cle is due for an inspection, oil change or
both,

the corresponding reminder Inspection
due!,

Oil change due! or Oil change and inspection

due!
will appear briefly after you switch the ig­
nition on/off.
Checking the service intervals
On the infotainment system, you can look up the
distance and time remaining until the next oil
change or next service inspection. Select the
fol­

lowing on the infotainment system:
|MENU|
but­
ton > Car
>
left control button > Servicing &
checks
>
Service intervals.

Applies
to: vehicles with flexible oil change service
You cannot check the service interval on a new
vehicle until it has been driven for about 500 km.
Qualified workshops reset the service interval af­
ter the oil is changed. The distance to the next oil
change is initially displayed based on the driving
profile prior to the oil change. Your own personal
driving profile is used subsequently to calculate
the remaining distance. Frequent cold starts or
short trips place extra demands on the engine oil
with the result that the oil has to be changed
more often.
Resetting the display
Your qualified workshop resets the service inter­
val display after each service.
It is very important that you reset the oil change
dispLay if
you
change the oil yourself. The
next
oil
change will be due after
a
fixed service interval.
To reset the display, select the following on the
infotainment system:
|MENU|
button > Car
>
left
control button > Servicing & checks
>
Service in­
tervals
>
Reset oil change interval.

(J) CAUTION

- Do not reset the oil change interval display
unless you have changed the oil.
- Keeping to the correct service intervals is
crucial for the operation, service life and re­
sidual value of the vehicle (and especially
for the life of the engine). Services must al­
ways be carried out promptly, even if the
mileage is Low.
304
