2020 YAMAHA XSR 900 fuel cap

Table of contentsSafety information........................... 1-1
Description ....................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments................ 2-3
Instrument and co ntrol functions... 3-1
Immobilizer system ..... .................... 3-1
Main switch/steering lock................ 3-2
Indicator lights and warning
lights ............................................ 3-3
Multi-function meter unit ................. 3-5
D-mode (drive mode).................... 3-12
Handlebar switches ...................... 3-12
Clutch lever................................... 3-14
Shift pedal..... ............................ .... 3-14
Brake lever ................................... 3-15
Brake pedal .................................. 3-15
ABS .............................................. 3-15
Traction control syst em ................ 3-16
Fuel tank cap ................................ 3-18
Fuel............................................... 3-18
Fuel tank overflow hose................ 3-20
Catalytic converter ........................ 3-21
Seat .............................................. 3-21
Storage compartment ................... 3-22
Adjusting the front fork.................. 3-22
Adjusting the shock absorber assembly ................................... 3-24
Luggage strap holders . ................. 3-25Auxiliary DC connector................. 3-26
Sidestand ..................................... 3-26
Ignition circuit cut-
off system ........ 3-27
For your safety – pre-operation
checks .............................................. 4-1
Operation and important riding
points ................................................ 5-1
Engine break-in .............................. 5-1
Starting the engine ......................... 5-2
Shifting ........................................... 5-3
Tips for reducing fuel consumption ............................... 5-3
Parking ........................................... 5-4
Periodic maintenance and
adjustment ....................................... 6-1
Tool kit............................................ 6-2
Periodic maintenance charts .......... 6-3
Periodic maintenance chart for the emission control system ............. 6-3
General maintenance and
lubrication chart .......................... 6-5
Checking the spark plugs ............... 6-9
Canister ........................................ 6-10
Engine oil ..................................... 6-10
Why Yamalube ............................. 6-13
Coolant ......................................... 6-13
Air filter element ........................... 6-14 Checking the engine idling
speed............ ............................ 6-15
Checking the throttle grip free play ........................................... 6-15
Valve clearance ........................... 6-15
Tires ............................................. 6-16
Cast wheels ................................. 6-18
Adjusting the clutch lever free
play ........................................... 6-18
Checking the brake lever free play ........................................... 6-19
Brake light switches ..................... 6-20
Checking the front and rear brake pads................................ 6-20
Checking the brake fluid level ...... 6-21
Changing the brake fluid .............. 6-22
Drive chain slack.......................... 6-22
Cleaning and lubricating the drive chain ................................ 6-24
Checking and lubricating the
cables ....................................... 6-25
Checking and lubricating the throttle grip and cable ............... 6-25
Checking and lubricating the brake and shift pedals .............. 6-25
Checking and lubricating the brake and clutch levers ............ 6-26
Checking and lubricating the
sidestand .................................. 6-27
Lubricating the swingarm pivots ........................................ 6-27BAE-28199-E1.book 1 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Description
2-2
12
3
4
5
6
7
8
9
10
11
12
EAU10421
Right view
2
5
8
7
9
6
10
1
3, 4
1. Fuses (page 6-30)
2. Fuel tank cap (page 3-18)
3. Spring preload adjuster (page 3-22)
4. Rebound damping force adjuster (page 3-22)
5. Headlight (page 6-33)
6. Coolant reservoir (page 6-13)
7. Engine oil level check window (page 6-10)
8. Engine oil filler cap (page 6-10) 9. Brake pedal (page 3-15)
10.Rear brake fluid reservoir (page 6-21)
BAE-28199-E1.book 2 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Instrument and control functions
3-18
1
234
5
6
7
8
9
10
11
12
EAU13077
Fuel tank capTo open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be opened.
To close the fuel tank cap
With the key still inserted, push down
the fuel tank cap. Turn the key 1/4 turn
counterclockwise, remove it, and then
close the lock cover.TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition, the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly closed after filling fuel.Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank cap lock cover
2. Unlock.
1
2
BAE-28199-E1.book 18 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Instrument and control functions
3-19
1
23
4
5
6
7
8
9
10
11
12 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU86072
Your Yamaha engine was designed to
use unleaded gasoline with a research
octane number of 95 or higher. If en-
gine knocking or pinging occurs, use a
gasoline of a different brand or higher
octane rating.
TIP
This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).

Confirm the gasoline pump nozzle
has the same fuel identificationmark.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system

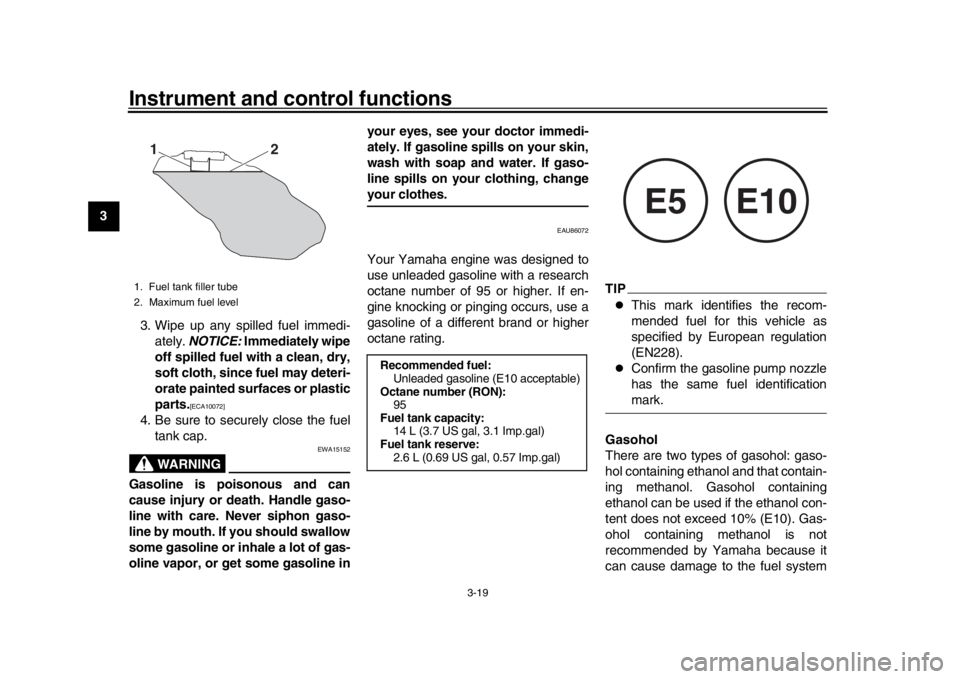

1. Fuel tank filler tube
2. Maximum fuel level
2
1
Recommended fuel: Unleaded gasoline (E10 acceptable)
Octane number (RON):
95
Fuel tank capacity: 14 L (3.7 US gal, 3.1 Imp.gal)
Fuel tank reserve: 2.6 L (0.69 US gal, 0.57 Imp.gal)
E5
E10
BAE-28199-E1.book 19 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Periodic maintenance and adjustment
6-10
1
2
3
4
56
7
8
9
10
11
12
EAU36112
CanisterThis model is equipped with a canister
to prevent the discharging of fuel vapor
into the atmosphere. Before operating
this vehicle, make sure to check the fol-
lowing:
Check each hose connection.

Check each hose and canister for
cracks or damage. Replace if dam-
aged.

Make sure that the canister breath-
er is not blocked, and if necessary,
clean it.
EAU1990G
Engine oilThe engine oil level should be checked
regularly. In addition, the oil must be
changed and the oil filter cartridge re-
placed at the intervals specified in the
periodic maintenance chart.NOTICE
ECA11621

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-rial enters the crankcase. To check the engine oil level
1. After warming up the engine, wait a few minutes for the oil level to
settle for an accurate reading.
2. With the vehicle on a level surface, hold it upright for an accurate read-
ing.
3. Look at the check window located at the bottom-right side of the
crankcase.
TIPThe engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
1. Canister
2. Canister breather hose
1
2
Recommended engine oil: See page 8-1.
Oil quantity: Oil change:2.40 L (2.54 US qt, 2.11 Imp.qt)
With oil filter removal: 2.70 L (2.85 US qt, 2.38 Imp.qt)
1. Engine oil filler cap
2. Engine oil level check window
3. Maximum level mark
4. Minimum level mark
1
2
34
BAE-28199-E1.book 10 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Motorcycle care and storage
7-4
1
2
3
4
5
678
9
10
11
12
perform any outstanding mainte-
nance.
2. Follow all instructions in the Care section of this chapter.
3. Fill up the fuel tank, adding fuel stabilizer according to product in-
structions. Run the engine for 5
minutes to distribute treated fuel
through the fuel system.
4. For vehicles equipped with a fuel cock: Turn the fuel cock lever to
the off position.
5. For vehicles with a carburetor: To prevent fuel deposits from building
up, drain the fuel in the carburetor
float chamber into a clean contain-
er. Retighten the drain bolt and
pour the fuel back into the fuel
tank.
6. Use a quality engine fogging oil ac- cording to product instructions to
protect internal engine compo-
nents from corrosion. If engine fog-
ging oil is not available, perform
the following steps for each cylin-
der:
a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine
over.
[EWA10952]
e. Remove the spark plug capfrom the spark plug, and then
install the spark plug and the
spark plug cap.
7. Lubricate all control cables, pivots, levers and pedals, as well as the
sidestand and centerstand (if
equipped).
8. Check and correct the tire air pres- sure, and then lift the vehicle so
that all wheels are off the ground.
Otherwise, turn the wheels a little
once a month in order to prevent the tires from becoming degraded
in one spot.
9. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
10. Remove the battery and fully charge it, or attach a maintenance
charger to keep the battery opti-
mally charged. NOTICE: Confirm
that the battery and its charger
are compatible. Do not charge a
VRLA battery with a convention-
al charger.
[ECA26330]
TIP
If the battery will be removed,
charge it once a month and store it
in a temperate location between
0-30 C (32-90 F).

See page 6-29 for more informa-
tion on charging and storing thebattery.
BAE-28199-E1.book 4 ページ ２０１９年８月２３日　金曜日　午後３時５６分

8-1
1
2
3
4
5
6
78
9
10
11
12
Specifications
EAU84805
Dimensions:Overall length: 2075 mm (81.7 in)
Overall width: 815 mm (32.1 in)
Overall height: 1140 mm (44.9 in)
Seat height:
830 mm (32.7 in)
Wheelbase: 1440 mm (56.7 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius:
3.0 m (9.84 ft)Weight:Curb weight:195 kg (430 lb)Engine:Combustion cycle:4-stroke
Cooling system: Liquid cooled
Valve train:
DOHC
Cylinder arrangement: Inline
Number of cylinders: 3-cylinder
Displacement:
847 cm
3
Bore  stroke:
78.0  59.1 mm (3.07  2.33 in) Starting system:
Electric starter
Engine oil:Recommended brand:
SAE viscosity grades:10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change: 2.40 L (2.54 US qt, 2.11 Imp.qt)
With oil filter removal: 2.70 L (2.85 US qt, 2.38 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.93 L (2.04 US qt, 1.70 Imp.qt)Fuel:Recommended fuel:
Unleaded gasoline (E10 acceptable)
Octane number (RON): 95
Fuel tank capacity: 14 L (3.7 US gal, 3.1 Imp.gal)
Fuel reserve amount:
2.6 L (0.69 US gal, 0.57 Imp.gal)
Fuel injection:Throttle body:ID mark: B901 00Drivetrain:Gear ratio:
1st:2.667 (40/15)
2nd: 2.000 (38/19)
3rd: 1.619 (34/21)
4th:
1.381 (29/21)
5th: 1.190 (25/21)
6th: 1.037 (28/27)Front tire:Type:Tubeless
Size: 120/70 ZR17M/C(58W)
Manufacturer/model:
BRIDGESTONE/S20F MRear tire:Type:Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model: BRIDGESTONE/S20R M
BAE-28199-E1.book 1 ページ ２０１９年８月２３日　金曜日　午後３時５６分

10-1
1
2
3
4
5
6
7
8
91011
12
Index
AABS ...................................................... 3-15
ABS warning light ................................... 3-4
Air filter element.................................... 6-14
Auxiliary DC connector ......................... 3-26
Auxiliary light bulb, replacing ................ 6-34BBattery .................................................. 6-29
Brake and clutch levers, checking and lubricating ........................................... 6-26
Brake and shift pedals, checking and lubricating ........................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ........................................... 3-15
Brake lever free play, checking ............ 6-19
Brake light switches .............................. 6-20
Brake pedal .......................................... 3-15
Brake/tail light ....................................... 6-35CCables, checking and lubricating .......... 6-25
Canister ................................................ 6-10
Care ........................................................ 7-1
Catalytic converter ................................ 3-21
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-4DData recording, vehicle ........................... 9-2
Diagnostic connecto r .............................. 9-2
Dimmer switch ...................................... 3-13
D-mode (drive mode)............................ 3-12
Drive chain, cleaning and lubricating .... 6-24Drive chain slack ................................... 6-22
EEngine break-in ....................................... 5-1
Engine idling speed,
checking............... 6-15
Engine oil .............................................. 6-10
Engine overheating ............................... 6-39
Engine serial number ..............................9-1
Engine trouble warning light .................... 3-4FFront and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-22
Front fork, checking............................... 6-27
Fuel ....................................................... 3-18
Fuel consumption, tips for reducing ........5-3
Fuel tank cap......................................... 3-18
Fuel tank overflow hose ........................ 3-20
Fuses, replacing .................................... 6-30HHandlebar switches ............................... 3-12
Hazard switch........................................ 3-13
Headlight bulb, replacing....................... 6-33
High beam indicator light .........................3-3
Horn switch ........................................... 3-13IIdentification numbers .............................9-1
Ignition circuit cut-off system ................. 3-27
Immobilizer system ................................. 3-1
Immobilizer system indicator light ........... 3-5
Indicator lights and warning lights ........... 3-3LLicense plate light ................................. 6-36
Luggage strap holders .......................... 3-25MMain switch/steering lock ........................3-2 Maintenance and lubrication, periodic .... 6-5
Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5
NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-3PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13SSafety information ................................... 1-1
Seat ...................................................... 3-21
Shifting .................................................... 5-3
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-24
Sidestand .............................................. 3-26
Sidestand, checking and lubricating ..... 6-27
Spark plugs, checking ............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-2
Steering, checking ................................ 6-28
Stop/Run/Start switch ........................... 3-13
Storage ................................................... 7-3
Storage compartment ........................... 3-22
Supporting the motorcycle .................... 6-36
Swingarm pivots, lubricating ................. 6-27TThrottle grip and cable, checking and
lubricating ........................................... 6-25
Throttle grip free play, checking............ 6-15
BAE-28199-E1.book 1 ページ ２０１９年８月２３日　金曜日　午後３時５６分
