EAU86350
Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Try starting the engine.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug(s). Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.
DryWet
Try starting the engine.
Check the battery lead connections,
and charge the battery if necessary.
The engine does not start.
Check the ignition.
BAE-28199-E1.book 38 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Periodic maintenance and adjustment6-39
1
2
3
4
567
8
9
10
11
12
EAU86420
Engine overheating
WARNING
EWAT1041

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
BAE-28199-E1.book 39 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Motorcycle care and storage
7-3
1
2
3
4
5
67
8
9
10
11
12 operating the vehicle.
[EWA20650]
5. Treat rubber, vinyl, and unpainted
plastic parts with a suitable care
product.
6. Touch up minor paint damage caused by stones, etc.
7. Wax all painted surfaces using a non-abrasive wax or use a detail
spray for motorcycles.
8. When finished cleaning, start the engine and let it idle for several
minutes to help dry any remaining
moisture.
9. If the headlight lens has fogged up, start the engine and turn on the
headlight to help remove the mois-
ture.
10. Let the vehicle dry completely be- fore storing or covering it.NOTICE
ECA26320

Do not apply wax to rubber or
unpainted plastic parts.

Do not use abrasive polishing
compounds as they will wear
away the paint.

Apply sprays and wax sparing-ly. Wipe off excess afterwards.
WARNING
EWA20660
Contaminants left on the brakes or
tires can cause loss of control.
Make sure there is no lubricant
or wax on the brakes or tires.

If necessary, wash the tires with
warm water and a mild deter-
gent.

If necessary, clean the brake
discs and pads with brake
cleaner or acetone.

Before riding at higher speeds,
test the vehicle’s braking perfor-mance and cornering behavior.
EAU83472
StorageAlways store the vehicle in a cool, dry
place. If necessary, protect it against
dust with a porous cover. Be sure the
engine and the exhaust system are
cool before covering the vehicle. If the
vehicle often sits for weeks at a time
between uses, the use of a quality fuel
stabilizer is recommended after each
fill-up.NOTICE
ECA21170

Storing the vehicle in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long term storage
Before storing the vehicle long term (60
days or more): 1. Make all necessary repairs and
BAE-28199-E1.book 3 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Motorcycle care and storage
7-4
1
2
3
4
5
678
9
10
11
12
perform any outstanding mainte-
nance.
2. Follow all instructions in the Care section of this chapter.
3. Fill up the fuel tank, adding fuel stabilizer according to product in-
structions. Run the engine for 5
minutes to distribute treated fuel
through the fuel system.
4. For vehicles equipped with a fuel cock: Turn the fuel cock lever to
the off position.
5. For vehicles with a carburetor: To prevent fuel deposits from building
up, drain the fuel in the carburetor
float chamber into a clean contain-
er. Retighten the drain bolt and
pour the fuel back into the fuel
tank.
6. Use a quality engine fogging oil ac- cording to product instructions to
protect internal engine compo-
nents from corrosion. If engine fog-
ging oil is not available, perform
the following steps for each cylin-
der:
a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine
over.
[EWA10952]
e. Remove the spark plug capfrom the spark plug, and then
install the spark plug and the
spark plug cap.
7. Lubricate all control cables, pivots, levers and pedals, as well as the
sidestand and centerstand (if
equipped).
8. Check and correct the tire air pres- sure, and then lift the vehicle so
that all wheels are off the ground.
Otherwise, turn the wheels a little
once a month in order to prevent the tires from becoming degraded
in one spot.
9. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
10. Remove the battery and fully charge it, or attach a maintenance
charger to keep the battery opti-
mally charged. NOTICE: Confirm
that the battery and its charger
are compatible. Do not charge a
VRLA battery with a convention-
al charger.
[ECA26330]
TIP
If the battery will be removed,
charge it once a month and store it
in a temperate location between
0-30 C (32-90 F).

See page 6-29 for more informa-
tion on charging and storing thebattery.
BAE-28199-E1.book 4 ページ ２０１９年８月２３日　金曜日　午後３時５６分

8-1
1
2
3
4
5
6
78
9
10
11
12
Specifications
EAU84805
Dimensions:Overall length: 2075 mm (81.7 in)
Overall width: 815 mm (32.1 in)
Overall height: 1140 mm (44.9 in)
Seat height:
830 mm (32.7 in)
Wheelbase: 1440 mm (56.7 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius:
3.0 m (9.84 ft)Weight:Curb weight:195 kg (430 lb)Engine:Combustion cycle:4-stroke
Cooling system: Liquid cooled
Valve train:
DOHC
Cylinder arrangement: Inline
Number of cylinders: 3-cylinder
Displacement:
847 cm
3
Bore  stroke:
78.0  59.1 mm (3.07  2.33 in) Starting system:
Electric starter
Engine oil:Recommended brand:
SAE viscosity grades:10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change: 2.40 L (2.54 US qt, 2.11 Imp.qt)
With oil filter removal: 2.70 L (2.85 US qt, 2.38 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.93 L (2.04 US qt, 1.70 Imp.qt)Fuel:Recommended fuel:
Unleaded gasoline (E10 acceptable)
Octane number (RON): 95
Fuel tank capacity: 14 L (3.7 US gal, 3.1 Imp.gal)
Fuel reserve amount:
2.6 L (0.69 US gal, 0.57 Imp.gal)
Fuel injection:Throttle body:ID mark: B901 00Drivetrain:Gear ratio:
1st:2.667 (40/15)
2nd: 2.000 (38/19)
3rd: 1.619 (34/21)
4th:
1.381 (29/21)
5th: 1.190 (25/21)
6th: 1.037 (28/27)Front tire:Type:Tubeless
Size: 120/70 ZR17M/C(58W)
Manufacturer/model:
BRIDGESTONE/S20F MRear tire:Type:Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model: BRIDGESTONE/S20R M
BAE-28199-E1.book 1 ページ ２０１９年８月２３日　金曜日　午後３時５６分

9-1
1
2
3
4
5
6
7
89
10
11
12
Consumer information
EAU53562
Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUM-
BER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401

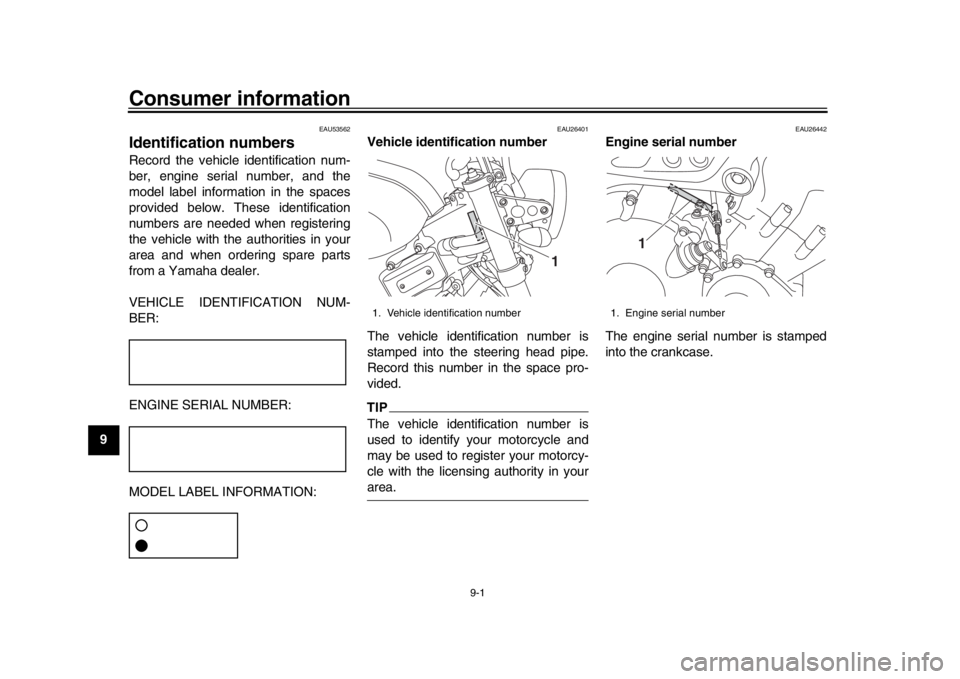

Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26442
Engine serial number
The engine serial number is stamped
into the crankcase.
1. Vehicle identification number
1
1. Engine serial number
1
BAE-28199-E1.book 1 ページ ２０１９年８月２３日　金曜日　午後３時５６分

Consumer information
9-2
1
2
3
4
5
6
7
8910
11
12
EAU26481
Model label
The model label is affixed to the frame
under the seat. (See page 3-21.) Re-
cord the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
EAU69910
Diagnostic connectorThe diagnostic connector is located as
shown.
EAU85300
Vehicle data recordingThis model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research, statisti-
cal analysis and development purpos-
es.
Although the sensors and recorded
data will vary by model, the main data
points are:
Vehicle status and engine perfor-
mance data

Fuel-injection and emission-relat-
ed data
This data will be uploaded only when a
special Yamaha diagnostic tool is at-
tached to the vehicle, such as when
maintenance checks or service proce-
dures are performed.
Vehicle data uploaded will be handled
appropriately according to the following
Privacy Policy.
Privacy Policy
Yamaha will not disclose this data to a
third party except in the following cas-
1. Model label
1
1. Diagnostic connector
1
https://www.yamaha-motor.eu/eu/
privacy/privacy-policy.aspx
BAE-28199-E1.book 2 ページ ２０１９年８月２３日　金曜日　午後３時５６分

10-1
1
2
3
4
5
6
7
8
91011
12
Index
AABS ...................................................... 3-15
ABS warning light ................................... 3-4
Air filter element.................................... 6-14
Auxiliary DC connector ......................... 3-26
Auxiliary light bulb, replacing ................ 6-34BBattery .................................................. 6-29
Brake and clutch levers, checking and lubricating ........................................... 6-26
Brake and shift pedals, checking and lubricating ........................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ........................................... 3-15
Brake lever free play, checking ............ 6-19
Brake light switches .............................. 6-20
Brake pedal .......................................... 3-15
Brake/tail light ....................................... 6-35CCables, checking and lubricating .......... 6-25
Canister ................................................ 6-10
Care ........................................................ 7-1
Catalytic converter ................................ 3-21
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-4DData recording, vehicle ........................... 9-2
Diagnostic connecto r .............................. 9-2
Dimmer switch ...................................... 3-13
D-mode (drive mode)............................ 3-12
Drive chain, cleaning and lubricating .... 6-24Drive chain slack ................................... 6-22
EEngine break-in ....................................... 5-1
Engine idling speed,
checking............... 6-15
Engine oil .............................................. 6-10
Engine overheating ............................... 6-39
Engine serial number ..............................9-1
Engine trouble warning light .................... 3-4FFront and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-22
Front fork, checking............................... 6-27
Fuel ....................................................... 3-18
Fuel consumption, tips for reducing ........5-3
Fuel tank cap......................................... 3-18
Fuel tank overflow hose ........................ 3-20
Fuses, replacing .................................... 6-30HHandlebar switches ............................... 3-12
Hazard switch........................................ 3-13
Headlight bulb, replacing....................... 6-33
High beam indicator light .........................3-3
Horn switch ........................................... 3-13IIdentification numbers .............................9-1
Ignition circuit cut-off system ................. 3-27
Immobilizer system ................................. 3-1
Immobilizer system indicator light ........... 3-5
Indicator lights and warning lights ........... 3-3LLicense plate light ................................. 6-36
Luggage strap holders .......................... 3-25MMain switch/steering lock ........................3-2 Maintenance and lubrication, periodic .... 6-5
Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5
NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-3PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13SSafety information ................................... 1-1
Seat ...................................................... 3-21
Shifting .................................................... 5-3
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-24
Sidestand .............................................. 3-26
Sidestand, checking and lubricating ..... 6-27
Spark plugs, checking ............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-2
Steering, checking ................................ 6-28
Stop/Run/Start switch ........................... 3-13
Storage ................................................... 7-3
Storage compartment ........................... 3-22
Supporting the motorcycle .................... 6-36
Swingarm pivots, lubricating ................. 6-27TThrottle grip and cable, checking and
lubricating ........................................... 6-25
Throttle grip free play, checking............ 6-15
BAE-28199-E1.book 1 ページ ２０１９年８月２３日　金曜日　午後３時５６分
