Periodic maintenance an d a djustment
7-20
7
EAU22762
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU82990To check the drive chain slack
1. Place the motorcycle on the side- stand.
TIP
When checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.
2. Shift the transmission into the neutral position.
3. Remove the lower chain cover by removing the bolts.
4. Measure the drive chain slack as shown. 5. Install the lower chain cover by in-
stalling the bolts.
6. If the drive chain slack is incorrect, adjust it as follows. NOTICE: Im-
proper drive chain slack will
overloa d the en gine as well as
other vital parts of the motorcy-
cle an d can lead to chain slip-
pa ge or b reakag e. To prevent
this from occurrin g, keep the
d rive chain slack within the
specified limits. [ECA10572]
EAU83000
To adjust the d rive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack. 1. Remove the lower chain cover by removing the bolts.
2. Loosen the brake pedal free play adjusting nut, axle nut, and lock-
nut at each end of the swingarm.
1. Bolt
2. Lower chain cover
1. Drive chain slack
1
2
1
Drive chain slack: 35.0–45.0 mm (1.38–1.77 in)
1. Brake pedal free play adjusting nut
2. Drive chain slack adjusting nut
3. Locknut
1
2
3
UBEG80E0.book Page 20 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-21
7
3. To tighten the drive chain, turn the
drive chain slack adjusting nut at
each end of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting nut at each end
of the swingarm in direction (b),
and then push the rear wheel for-
ward.TIP
Using the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the same
position for proper wheel alignment.
4. Tighten the axle nut and bothlocknuts to the specified torques. 5. Adjust the brake pedal free play.
(See page 7-18.)
6. Make sure that the drive chain pullers are in the same position,
the drive chain slack is correct,
and the drive chain moves
smoothly.
7. Install the lower chain cover by in- stalling the bolts.
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
1. Alignment marks
2. Drive chain puller
3. Drive chain slack adjusting nut
231
(b)(a)
321
Ti
ghtenin g torques:
Axle nut: 60 N·m (6.0 kgf·m, 44 lb·ft)
Locknut:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
UBEG80E0.book Page 21 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-22
7
EAU23018
Cleanin g an d lu bricatin g the
d rive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
NOTICE
ECA10584
The drive chain must b e lubricated
after washin g the motorcycle, ri din g
in the rain or ri din g in wet areas.
1. Remove all dirt and mud from the
drive chain with a brush or cloth.
TIP
For a thorough cleaning, have a
Yamaha dealer remove the drive chain and soak it in solvent.
2. Spray Yamaha chain lubricant or other suitable chain lubricant on
the entire chain, making sure that
all side plates and rollers have
been sufficiently oiled.
EAU23098
Checkin g an d lu bricatin g the
ca bles
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Dama ge to the
outer housin g of cab les may result
in internal rustin g an d cause inter-
ference with cab le movement. Re-
place damag ed cab les as soon as
possi ble to prevent unsafe con di-
tions.
[EWA10712]
Recommen ded lu bricant:
Yamaha cable lubricant or other
suitable cable lubricant
UBEG80E0.book Page 22 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-23
7
EAU23115
Checkin g an d lu bricatin g the
throttle grip an d cab le
The operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from wa-
ter entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
EAU43623
Checkin g an d lu bricatin g the
b rake lever
The operation of the brake lever should
be checked before each ride, and the
lever pivot should be lubricated if nec-
essary.
Recommen ded lu bricant:
Lithium-soap-based grease
UBEG80E0.book Page 23 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-24
7
EAU23185
Checkin g an d lu bricatin g the
b rake pe dal
The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU23203
Checkin g an d lu bricatin g the
si destan d

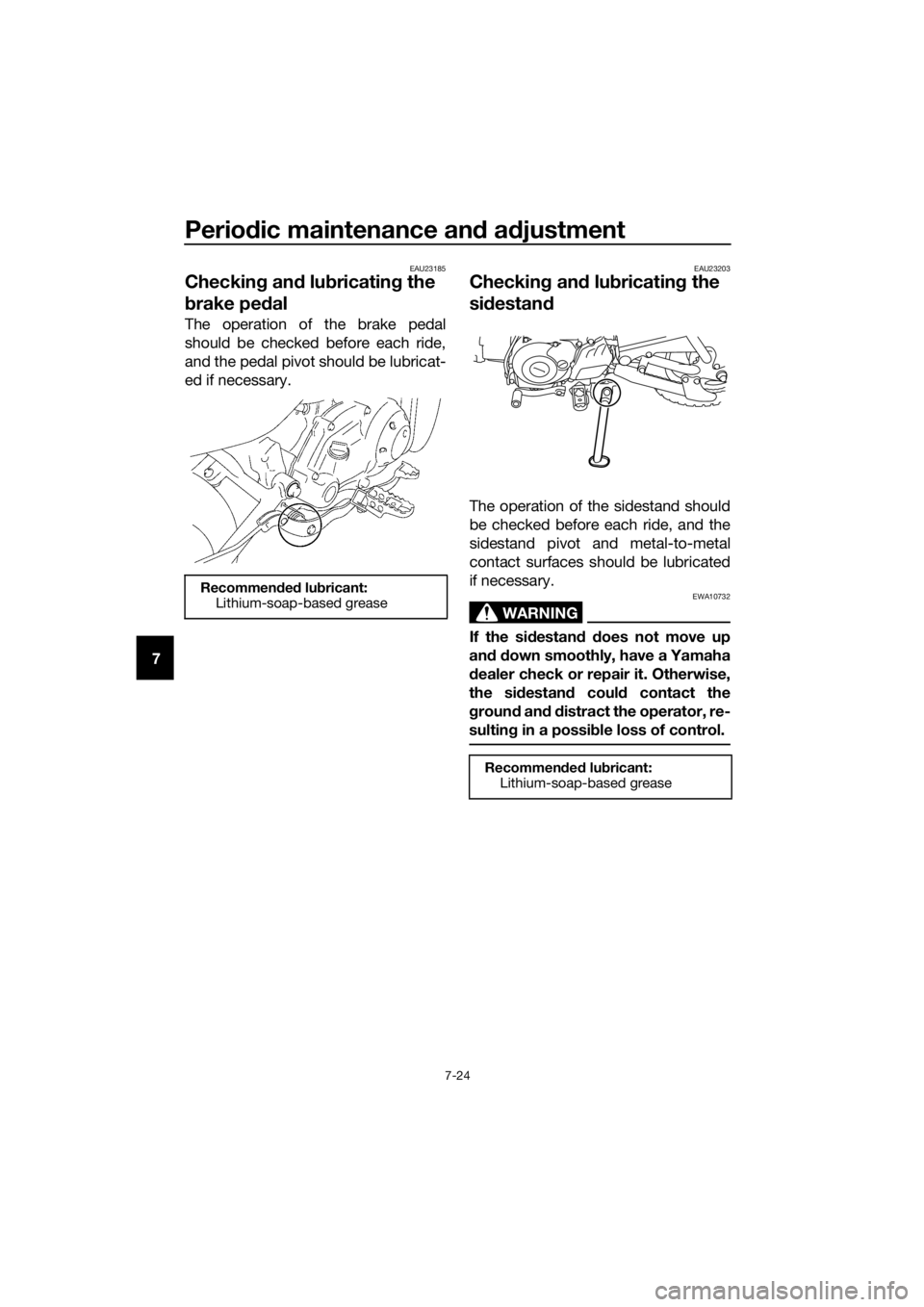

The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
WARNING
EWA10732
If the si destan d d oes not move up
an d d own smoothly, have a Yamaha
d ealer check or repair it. Otherwise,
the si destan d coul d contact the
g roun d an d d istract the operator, re-
sultin g in a possi ble loss of control.
Recommen ded lu bricant:
Lithium-soap-based grease
Recommen ded lu bricant:
Lithium-soap-based grease
UBEG80E0.book Page 24 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-25
7
EAUM2701
Lub ricatin g the swin garm piv-
ots
The swingarm pivots must be lubricat-
ed at the intervals specified in the peri-
odic maintenance and lubrication
chart.
EAU23273
Checkin g the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the con dition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation 1. Place the vehicle on a level surfa- ce and hold it in an upright posi-
tion. WARNING! To avoi d injury,
securely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
NOTICE
ECA10591
If any damag e is foun d or the front
fork does not operate smoothly,
have a Yamaha d ealer check or re-
pair it.
Recommen ded lu bricant:
Molybdenum disulfide grease
UBEG80E0.book Page 25 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-26
7
EAU23285
Checkin g the steerin g
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Raise the front wheel off the ground. (See page 7-29.)
WARNING! To avoi d injury, se-
curely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
EAU23292
Checkin g the wheel b earings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
UBEG80E0.book Page 26 Friday, May 24, 2019 6:49 PM

Periodic maintenance an d a djustment
7-27
7
EAU40447
Battery
The battery is located under the seat.
(See page 4-8.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery coupler connection needs
to be checked to make sure that it is
securely connected.
WARNING
EWA10761
 Electrolyte is poisonous an d
d an gerous since it contains sul-
furic aci d, which causes severe
b urns. Avoi d any contact with
skin, eyes or clothin g an d al-
ways shiel d your eyes when
workin g near b atteries. In case
of contact, ad minister the fol-
lowin g FIRST AID.
EXTERNAL: Flush with plenty of water.
INTERNAL: Drink lar ge quan-
tities of water or milk an d im-
me diately call a physician.
EYES: Flush with water for 15 minutes an d seek prompt
me dical attention. 
Batteries pro duce explosive hy-
d ro gen gas. Therefore, keep
sparks, flames, ci garettes, etc.,
away from the battery an d pro-
vi de sufficient ventilation when
char gin g it in an enclose d
space.
 KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To char ge the b attery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quick-
ly if the vehicle is equipped with op-
tional electrical accessories.
NOTICE
ECA16522
To char ge a VRLA (Valve Re gulate d
Lea d Aci d) battery, a special (con-
stant-volta ge) battery char ger is re-
quire d. Usin g a conventional battery
char ger will d amage the battery.
To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removin g the
b attery, be sure the key is
turne d to “OFF” b efore discon-
nectin g the coupler.
[ECA16323]
2. If the battery will be stored for
more than two months, check it at
least once a month and fully char-
ge it if necessary.
1. Battery
2. Battery coupler
12
