2020 VOLVO XC90 TWIN ENGINE fuse box diagram

MAINTENANCE AND SERVICE
}}
619
Fuses and fuseboxes All electrical functions and components are protected by a number of fuses in order toprotect the vehicle's electrical system fromdamage by short circuiting or overloading.
WARNING
Never use a foreign object or a fuse with a higher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possi-bly lead to a fire.
WARNING
Orange wiring may only be handled by qualified personnel.
WARNING
A number of electrical components in Twin Engine Plug-in Hybrid vehicles use high-voltage current and can be extremely dan-gerous if handled incorrectly. Do not touch anything that is not clearly described in the vehicle's Owner's Manual.
If any electrical component or function is not responding, the component may have blown a fuse due to temporary overload. If the same fuse blows repeatedly, there may be a prob-lem with the component. Volvo recommendscontacting an authorized Volvo workshop tohave the component checked.
Location of fuseboxes
The illustration is generic - appearance may vary according to vehicle model.
Engine compartment
Under the glove compartment
Trunk/cargo compartment
Related information
Replacing fuses (p. 619)
Fuses in the cargo compartment (p. 634)
Fuses in the engine compartment (p. 621)
Fuses under the glove compartment(p. 628)
Replacing fuses
All electrical functions and components are protected by a number of fuses in order toprotect the vehicle's electrical system fromdamage by short circuiting or overloading.
1. Refer to the fuse diagram to locate the fuse.
2. Pull out the fuse and examine it from the side to determine if the curved metal wire in the fuse is intact.
3. If the wire is broken, replace the fuse with a new fuse of the same color and amper-age.
WARNING
Never use a foreign object or a fuse with a higher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possi-bly lead to a fire.
WARNING
Contact an authorized Volvo workshop for assistance replacing fuses not listed in theOwner's Manual. If fuse replacement isperformed incorrectly, significant damagecan be caused to the electrical system.

||
MAINTENANCE AND SERVICE
622Fuse pliers are provided on the inside of the fuse box cover to assist in removing andinserting fuses.
There are also spaces for several extra fuses inthe fusebox.
PositionsThere is a decal with a diagram of the loca-tions of the fuses on the inside of the cover.
Function
Ampere Type
– – Micro
–– Micro
–– Micro
Control module for actuator for engaging/changing gears, automatic transmission 5 Micro
High-voltage coolant heater control module5 Micro
Control module for A/C; heat exchanger cut-off valve; cut-off valve for coolant through the climate system 5 Micro
Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500 V– 12 V voltage converter5 Micro
–
– Micro
Converter for controlling feed to rear axle electric motor10 Micro
Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500 V– 12 V voltage converter10 Micro
Charge module
5 Micro
Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery15 Micro
Coolant pump for electric drive system15 Micro

MAINTENANCE AND SERVICE
}}
629

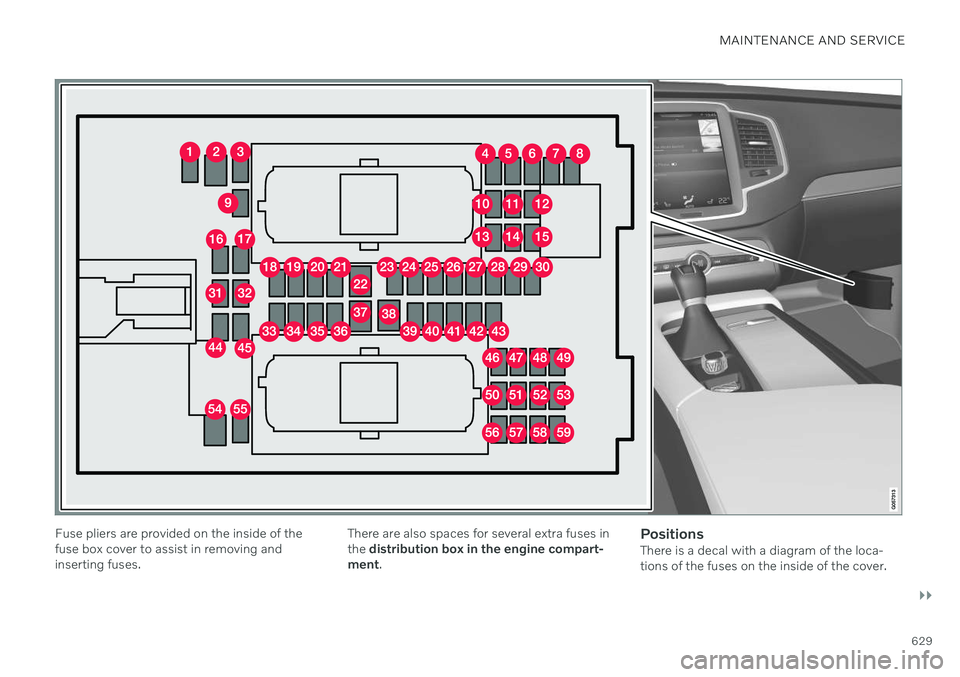

Fuse pliers are provided on the inside of the fuse box cover to assist in removing andinserting fuses.There are also spaces for several extra fuses inthe
distribution box in the engine compart-
ment .PositionsThere is a decal with a diagram of the loca-tions of the fuses on the inside of the cover.
