2020 VOLVO V60 TWIN ENGINE maintenance

VÄLKOMMEN!
We hope your Volvo will give you many years of happy motoring. The vehicle is designed for the safety and comfort of you and yourpassengers. Volvo strives to design one of the world's safest pas-senger vehicles. Your Volvo is also designed to meet applicablesafety and environmental requirements. To increase your enjoyment of your Volvo, we recommend that you read the instructions and maintenance information contained in thisowner's manual. The owner's manual is also available as a mobileapp (Volvo Manual) and on Volvo Cars support page(support.volvocars.com). We also encourage everyone to always use seat belts in this and other vehicles. You should also not drive if you are under the influ-ence of alcohol or medicines or if your ability to drive is for someother reason impaired.

8

Passing assistance304
Using passing assistance 304
Radar sensor 305
Radar sensor type approval 306
Camera 308
Camera/radar sensor limitations 309
Recommended camera and radar sensor maintenance 313
City Safety ™
314
City Safety sub-functions 315
Setting a warning distance forCity Safety 317
Detecting obstacles with City Safety 318
City Safety in crossing traffic 320
Limitations of City Safety in cross-ing traffic 321
City Safety steering assistance forevasive maneuver 322
City Safety steering assistancelimitations during evasive maneuvers 322
Automatic braking during delayedevasive maneuvers with City Safety 323
City Safety braking for oncomingvehicles 323
City Safety limitations 324
City Safety messages 327
Rear Collision Warning *
328

Rear Collision Warning * limitations
328
BLIS *
329
Activating or deactivating BLIS 330
BLIS limitations 331
BLIS messages 332
Cross Traffic Alert *
333
Activating or deactivating Cross Traffic Alert * 334
Cross Traffic Alert * limitations
334
Cross Traffic Alert * messages
336
Road Sign Information *
337
Activating or deactivating RoadSign Information * 338
Road Sign Information * display
338
Road Sign Information andSensus Navigation * 339
Speed limit and speed camerawarnings from Road Sign Information *339
Activating or deactivating warn-ings from Road Sign Information *340
Road Sign Information * limitations
341
Driver Alert Control 342
Activating or deactivating Driver Alert Control 343
Selecting guidance to a rest area ifthe Driver Alert Control warninghas been given 343

Driver Alert Control limitations
344
Lane Keeping Aid 344
Activating or deactivating Lane Keeping Aid 346
Selecting type of assistance forLane Keeping Aid 346
Lane Keeping Aid limitations 347
Lane Keeping Aid symbols andmessages 348
Lane Keeping Aid display 350
Steering assistance at risk of collision 351
Activating or deactivating steeringassistance during collision risks 352
Run-Off Mitigation with steeringassistance 352
Steering assistance during colli-sion risks from oncoming traffic 353
Steering assistance during colli- sion risks from behind *354
Steering assistance during colli- sion risks limitations 355
Symbols and messages for steer-ing assistance during collision risks 356
Park Assist *
357
Park Assist front, rear and sides *
358
Activating or deactivating Park Assist *
359
Park Assist limitations 359
Park Assist symbols and messages 361

9

Park Assist Camera*
362
Location and field of vision of Park Assist Cameras * 363
Park Assist Camera trajectory lines *
365
Park Assist sensor field 367
Activating Park Assist Camera 368
Park Assist Camera symbols and messages 370
Park Assist Pilot *
371
Types of parking with Park Assist Pilot * 372
Using Park Assist Pilot *
373
Leaving a parallel parking spacewith Park Assist Pilot *376
Park Assist Pilot * limitations
376
Park Assist Pilot * messages
379
HYBRID INFORMATION
General information about Twin Engine 382
Charging the hybrid battery 383
Charging current 385
Charge cable 385
Charging cable residual current device 387
Charging cable temperature moni-toring 388
Opening and closing the chargingsocket cover 388
Initiating hybrid battery charging 388
Charging status in the vehicle'scharging socket 390
Charging status in the chargingcable's charging module 391
Charging status in the instrumentpanel 392
Stopping hybrid battery charging 394
Twin Engine symbols and mes-sages in the instrument panel 395
Long-term storage of vehicleswith hybrid batteries 397
STARTING AND DRIVING
Starting the vehicle
400
Switching off the vehicle 402
Ignition modes 403
Selecting ignition mode 404
Brake functions 405
Brakes 405
Brake Assist System 407
Braking on wet roads 407
Braking on salted roads 408
Maintenance of the brake system 408
Parking brake 408
Activating and deactivating the parking brake 409
Settings for automatically activat-ing the parking brake 410
Parking on a hill 411
Parking brake malfunction 411
Auto-hold brakes 412
Activating and deactivating Auto-hold at a standstill 413
Hill Start Assist 413
Braking assist after a collision 414
Transmission 414
Automatic transmission 414
Gear selector positions for auto-matic transmissions 415

13
LOADING, STORAGE AND PASSENGER COMPARTMENT
Passenger compartment interior558
Tunnel console 559
Electrical outlets 560
Using the electrical outlets 562
Using the glove compartment 563
Sun visors 565
Cargo compartment 565
Loading recommendations 565
Roof loads and load carriers 566
Grocery bag holders 567
Load anchoring eyelets 568
Rear seat ski hatch 568
Installing and removing the cargo compartment cover * 569
Operating the cargo compartmentcover * 569
Installing and removing the steelcargo grid * 571
Installing and removing the cargo net *
572
MAINTENANCE AND SERVICE
Volvo's service program
576
Data transfer between vehicle and workshop over Wi-Fi 579
Download Center 579
Handling system updates viaDownload Center 580
Vehicle status 581
Scheduling service and repairs 581
Sending vehicle information to theworkshop 582
Hoisting the vehicle 583
Climate control system service 585
Replacing a windshield with head- up display * 585
Opening and closing the hood 585
Engine compartment overview 587
Engine oil 588
Checking and filling engine oil 589
Refilling coolant 590
Replacing bulbs 592
Start battery 593
Hybrid battery 597
Battery symbols 598
Battery recycling 598
Fuses and fuseboxes 599
Replacing fuses 599

Fuses in the engine compartment 601
Fuses under the glove compartment 608
Fuses in the cargo compartment 614
Cleaning the interior 619
Cleaning the center display 619
Cleaning the head-up display *
620
Cleaning fabric upholstery and ceiling liner 621
Cleaning the seat belt 621
Cleaning floor mats and inlay mats 621
Cleaning leather upholstery *
622
Cleaning the leather steering wheel 623
Cleaning interior plastic, metal andwood surfaces 623
Cleaning the exterior 624
Polishing and waxing 624
Hand washing 625
Automatic car washes 627
High-pressure washing 628
Cleaning the wiper blades 628
Cleaning exterior plastic, rubberand trim components 629
Cleaning rims 630
Corrosion protection 630
Paintwork 631

YOUR VOLVO
28
Drive-E ‒ purer driving pleasure
Volvo is committed to the well-being of its customers. As a natural part of this commit-ment, we care about the environment inwhich we all live. Concern for the environ-ment means an everyday involvement inreducing our environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider theoverall environmental impact of a productthroughout its complete life cycle. In this con-text, design, production, product use, andrecycling are all important considerations. Inproduction, Volvo has partly or completelyphased out several chemicals including CFCs,lead chromates, asbestos, and cadmium; andreduced the number of chemicals used in ourplants 50% since 1991. Volvo was the first in the world to introduce into production a three-way catalytic converterwith a Lambda sond, now called the heatedoxygen sensor, in 1976. The current version ofthis highly efficient system reduces emissionsof harmful substances (CO, HC, NOx) from theexhaust pipe by approximately 95 - 99% andthe search to eliminate the remaining emis-sions continues. Volvo is the only automobilemanufacturer to offer CFC-free retrofit kits forthe air conditioning system of all models as farback as the 1975 model 240. Advanced elec-tronic engine controls and cleaner fuels arebringing us closer to our goal. In addition to continuous environmental refinement of con-ventional gasoline-powered internal combus-tion engines, Volvo is actively looking atadvanced technology alternative-fuel vehicles. When you drive a Volvo, you become our part- ner in the work to lessen the vehicle's impacton the environment. To reduce your vehicle'senvironmental impact, you can:
Maintain proper air pressure in your tires.Tests have shown decreased fuel econ-omy with improperly inflated tires.
Follow the recommended maintenanceschedule in your Warranty and ServiceRecords Information booklet.
Drive at a constant speed whenever possi-ble.
See a trained and qualified Volvo servicetechnician as soon as possible for inspec-tion if the check engine (malfunction indi-cator) light illuminates, or stays on afterthe vehicle has started.
Properly dispose of any vehicle-relatedwaste such as used motor oil, used batter-ies, brake pads, etc.
When cleaning your vehicle, please usegenuine Volvo car care products. All Volvocar care products are formulated to beenvironmentally friendly.
Twin Engine vehicles
If possible, precondition the vehicle withthe charging cable before driving.
If preconditioning is not possible in coldweather, use the seat and steering wheelheating primarily. Avoid heating the entirepassenger compartment, which reducesthe hybrid battery's charge level.
Choose the
Pure drive mode to help mini-
mize electric power consumption.
In hilly terrain, put the gear selector in mode
B to utilize the electric motor's
braking function when the acceleratorpedal is released. This helps charge thehybrid battery.
Related information
Economical driving (p. 429)
Starting and stopping preconditioning(p. 222)
The Owner's Manual and the environment(p. 23)
Air quality (p. 202)

YOUR VOLVO
}}
33

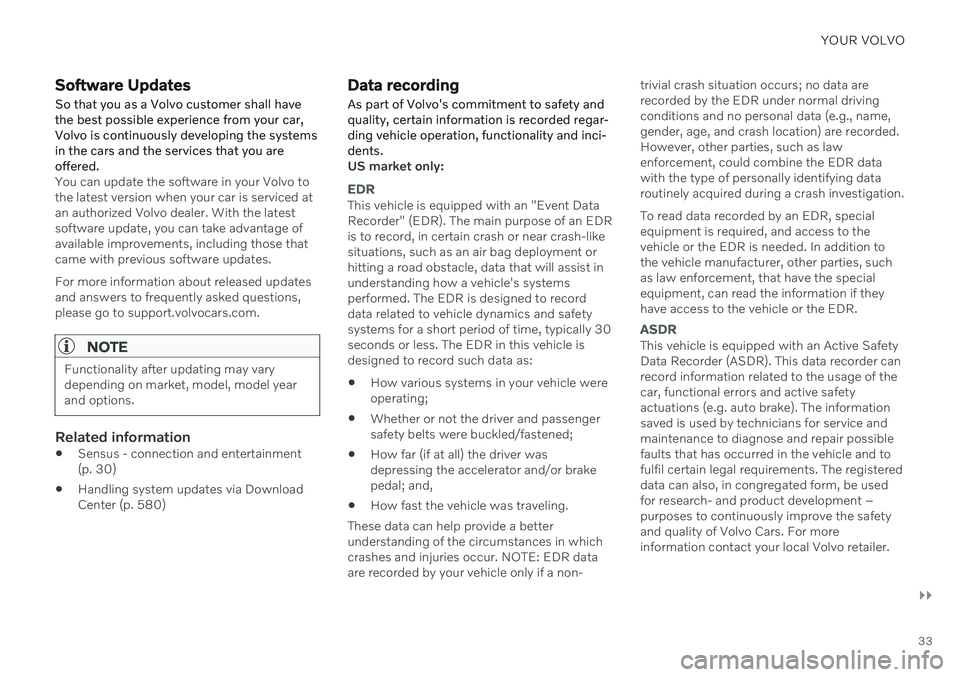

Software Updates
So that you as a Volvo customer shall have the best possible experience from your car,Volvo is continuously developing the systemsin the cars and the services that you areoffered.
You can update the software in your Volvo to the latest version when your car is serviced atan authorized Volvo dealer. With the latestsoftware update, you can take advantage ofavailable improvements, including those thatcame with previous software updates. For more information about released updates and answers to frequently asked questions,please go to support.volvocars.com.
NOTE
Functionality after updating may vary depending on market, model, model yearand options.
Related information
Sensus - connection and entertainment (p. 30)
Handling system updates via DownloadCenter (p. 580)
Data recording As part of Volvo's commitment to safety and quality, certain information is recorded regar-ding vehicle operation, functionality and inci-dents.
US market only:
EDR
This vehicle is equipped with an "Event Data Recorder" (EDR). The main purpose of an EDRis to record, in certain crash or near crash-likesituations, such as an air bag deployment orhitting a road obstacle, data that will assist inunderstanding how a vehicle's systemsperformed. The EDR is designed to recorddata related to vehicle dynamics and safetysystems for a short period of time, typically 30seconds or less. The EDR in this vehicle isdesigned to record such data as:
How various systems in your vehicle wereoperating;
Whether or not the driver and passengersafety belts were buckled/fastened;
How far (if at all) the driver wasdepressing the accelerator and/or brakepedal; and,
How fast the vehicle was traveling.
These data can help provide a betterunderstanding of the circumstances in whichcrashes and injuries occur. NOTE: EDR dataare recorded by your vehicle only if a non- trivial crash situation occurs; no data arerecorded by the EDR under normal drivingconditions and no personal data (e.g., name,gender, age, and crash location) are recorded.However, other parties, such as lawenforcement, could combine the EDR datawith the type of personally identifying dataroutinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to thevehicle or the EDR is needed. In addition tothe vehicle manufacturer, other parties, suchas law enforcement, that have the specialequipment, can read the information if theyhave access to the vehicle or the EDR.
ASDR
This vehicle is equipped with an Active Safety Data Recorder (ASDR). This data recorder canrecord information related to the usage of thecar, functional errors and active safetyactuations (e.g. auto brake). The informationsaved is used by technicians for service andmaintenance to diagnose and repair possiblefaults that has occurred in the vehicle and tofulfil certain legal requirements. The registereddata can also, in congregated form, be usedfor research- and product development –purposes to continuously improve the safetyand quality of Volvo Cars. For moreinformation contact your local Volvo retailer.

||
YOUR VOLVO
34Canadian market only: This vehicle is equipped with an “Event Data Recorder” (EDR). The main purpose of theEDR is to register and record data in trafficaccidents or accident-like situations, e.g. if anairbag deploys or if the vehicle hits an obstaclein the road. This data is recorded in order tohelp understand how the vehicle's systemsperform in these types of situations. The EDRis designed to record data related to vehicledynamics and safety systems for a shortperiod of time, usually 30 seconds or less. The EDR in this vehicle is designed to record data in traffic accidents or accident-like situa-tions such as:
How the various systems in the vehicleperformed;
Whether the driver and passenger seatbelts were tightened/buckled;
The driver's use of the accelerator/brakepedal;
How fast the vehicle was moving.
This data can help provide a better under-standing of the circumstances in which trafficaccidents and injuries occur. The EDR records data only if a non-trivial accident situation occurs. EDR does not record any data duringnormal driving conditions. The system alsonever registers data on who is driving the vehi-cle or the geographical location of the acci- dent or near-accident. However, other parties,such as law enforcement, could combine theEDR data with the type of personally identifia-ble information that is routinely acquired dur-ing an accident investigation. Special equip-ment and access to either the vehicle or theEDR is required to read this recorded data. In addition to the EDR, the vehicle is equipped with a number of computers that continuouslycontrol and monitor the vehicle's performance.These computers may record data during nor-mal driving conditions, particularly if theydetect a fault relating to the vehicle's opera-tion and functionality or upon activation of thevehicle's active driver support functions (e.g.City Safety or the auto-brake function). Some of this recorded data is required by technicians performing service and mainte-nance in order to diagnose and rectify anyfaults that may have occurred in the vehicle.The recorded information is also needed toenable Volvo to fulfill legal and other regula-tory requirements. Information registered inthe vehicle is stored in its computers until thevehicle is serviced or repaired. In addition to the above, the recorded informa- tion may be used in aggregated form forresearch and product development purposesin order to continuously improve the safetyand quality of Volvo vehicles.
Volvo will not provide this information to anythird parties without the vehicle owner's con-sent. However, national legislation and regula-tions may require Volvo to disclose this type ofinformation to law enforcement or otherauthorities that can claim a legal right to theinformation. Special technical equipment,which Volvo and workshops that have enteredagreements with Volvo have access to, isrequired to read and interpret the recordeddata. Volvo is responsible for ensuring thatinformation provided to Volvo in conjunctionwith service and maintenance is stored andhandled securely and in compliance withapplicable legal requirements. For more infor-mation, please contact a Volvo retailer.
Related information

Contacting Volvo (p. 26)
Volvo Structural Parts Statement (p. 39)

YOUR VOLVO
}}
35
Terms & Conditions for Services
Volvo offers services that help enhance the vehicle's safety and comfort.
These services comprise everything from assistance in emergencies to navigation andvarious maintenance services. Before using the services, it is important to read support information about terms andconditions for the services atwww.volvocars.com.
Related information
Customer Privacy Policy (p. 35)
Customer Privacy Policy
Volvo respects and safeguards the personal privacy of everyone who visits our websites.
This policy refers to the handling of customer data and personal information. The purpose isto give current, past and potential customers ageneral understanding of:
The circumstances in which we collectand process your personal data.
The types of personal data we collect.
Why we collect your personal data.
How we process your personal data.
For more information on the policy, search forsupport information on www.volvocars.com.
Related information
Terms of use and data sharing (p. 510)
Terms & Conditions for Services (p. 35)
Data recording (p. 33)
Important information on accessories and extra equipment
Incorrectly connected or installed accessories or extra equipment may have an adverseeffect on the vehicle's electronics.
We strongly recommend that Volvo owners use only genuine, Volvo-approved accessories,and that accessory installations be performedonly by a trained and qualified Volvo servicetechnician. Certain accessories only workwhen the associated software is installed inthe vehicle's computer system. The equipment described in the Owner's Man- ual is not available in all vehicles. Vehicles maybe equipped differently depending on marketrequirements and national or local laws andregulations. Optional or accessory equipment may not be available in all countries or markets. Pleasenote that some vehicles may be equipped dif-ferently, depending on special legal require-ments. For more information on which equip-ment is standard and which is an option oraccessory, please contact your Volvo retailer.
