2020 VAUXHALL COMBO E Owner's Manual

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 45
Seat adjustment 3 46
Backrests inclination
Push the lever and adjust the
inclination. Do not lean on backrest
when adjusting.
Seat position 3 45
Seat adjustment 3 46
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 45
Seat adjustment 3 46

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 44.
Seat belt
Pull out the seat belt and fasten in
seat belt buckle. The seat belt must not be twisted and must fit close
against the body. The backrest must
not be tilted back too far (maximum
approx. 25°).
To unfasten seat belt, press red
button on belt buckle.
Seat position 3 45.
Seat belts 3 54.
Airbag system 3 57.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 38.
Automatic anti-dazzle interior mirror 3 39.

In brief9Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 37.
Electric adjustment 3 37.
Folding mirrors 3 37.
Heated mirrors 3 38.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 45.
Ignition positions 3 143.

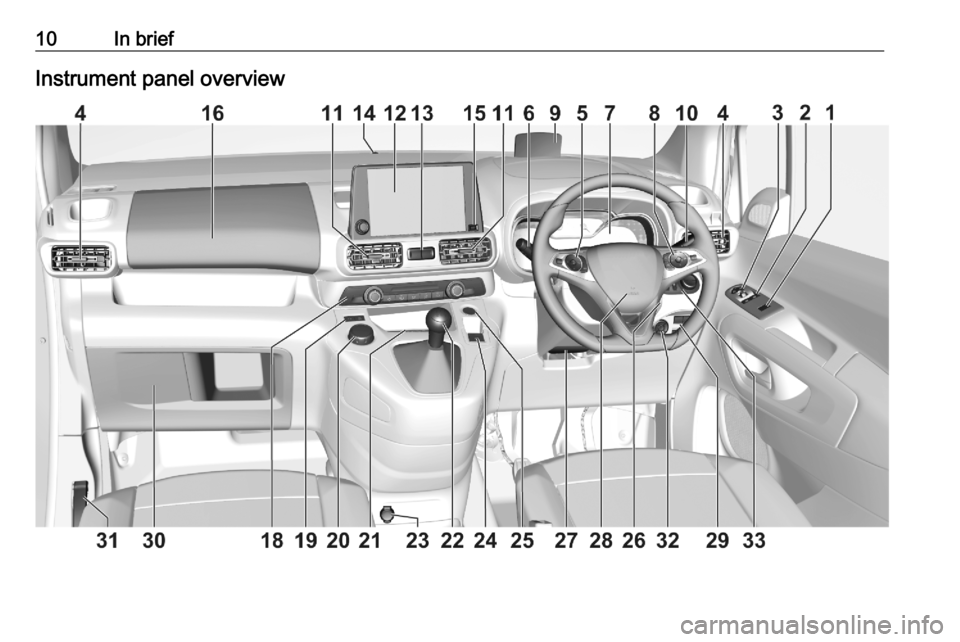

10In briefInstrument panel overview

In brief111Electric child locks ................. 27
Unlocking tailgate .................31
Child safety system for
rear windows ......................... 40
2 Power windows .....................40
3 Exterior mirrors .....................37
4 Side air vents ...................... 140
5 Cruise control .....................167
Speed limiter ....................... 169
Adaptive cruise control .......167
6 Turn lights ........................... 125
Headlight flash ....................123
High beam ........................... 122
High beam assist ...............122
Exit lighting ......................... 128
Parking lights ...................... 126
Buttons for Driver
Information Centre ..............108
7 Instruments .......................... 97
Driver Information Centre .... 108
8 Infotainment controls9Head-up display ..................112
10 Windscreen wiper and
washer, rear wiper and
washer ................................. 90
11 Air vents ............................. 140
12 Info Display ........................ 110
13 Hazard warning flashers ....124
Central locking system ..........24
14 Anti-theft alarm system
status LED ........................... 34
15 USB charging port ................ 93
16 Storage ................................. 69
18 Climate control system ........ 131
19 Electronic Stability Control
and Traction Control ...........163
Eco mode ............................ 157
Descent control system ....... 164
20 Selective ride control ..........165
21 Inductive charging .................94
22 Manual transmission ..........158
Automatic transmission ......155
23 Power outlet .......................... 93
24 Electric parking brake .........16025Power button ....................... 144
26 Ignition switch .....................143
27 Steering wheel adjustment ..89
28 Horn ..................................... 90
29 Parking assist / Advanced
parking assist .....................183
Electric child locks ................. 27
Eco button for stop-start
system ................................. 147
Lane keep assist .................198
Tyre deflation detection
system ................................. 233
Parking heater ....................138
30 Fuse box ............................ 229
31 Bonnet release lever ..........213
32 Head-up display ..................112
33 Light switch ........................ 121
Front / rear fog lights ..........125
Instrument illumination .......126

12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 122.
Front fog lights 3 125.
Rear fog light 3 125.
Headlight flash and high beampull:headlight flashpush:high beam
High beam 3 122.
High beam assist 3 122.
Headlight flash 3 123.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 125.
Parking lights 3 126.

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 124.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wipingOFF:off
For single wipe when the wiper is off,press down to position 1x.
Windscreen wiper 3 90.

14In briefWindscreen washer
Pull.
Windscreen washer system 3 90.
Washer fluid 3 216.
Wiper blade replacement 3 219.
Rear window wiperOFF:offINT:intermittent operationRear window washer
Push.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 92.
