2020 TOYOTA SEQUOIA Owners Manual (in English)

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Parking brake
Set: Depress
Release: Depress again
Cup holders
Front consoleBack of the front console
Rear console box (if equipped)Rear side trim
FRONT
REAR

16
FEATURES & OPERATIONS
POWER SEAT
MANUAL SEAT
Seat adjustments-Front
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback angle Seatback angle
Seat height (driver’s side only)
Seat cushion front angle (driver’s side only) Lumbar support (if equipped)
Driver’s seat leg
support (if equipped)
Door locks
LockUnlock

17
Seat adjustments-Rear
Seatback angle/
lock release and slide
Separate seatBench seat
Manual seat Power seat
THIRD ROW
SECOND ROW
Seatback angle
Seatback angleSeatback angle
Seatback
angle
Seatback folding/
returning
Seat position
(forward/backward)Seat position
(forward/backward)
Seatback angle/
lock release and slide
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more details.

18
FEATURES & OPERATIONSSeats-Head restraints
Front
Third row (center)
Lock release button
Lock release button
Second row
Lock release button
Middle head restraint in 8-passenger models only.
Third row (outside)
Seats-Folding 2nd row seats
Lower the head restraints. Stow the seat belt buckles.
(1)
(3)
(2)
(4)
Pull Pull
Separated seat
Bench seat
Fold down the seatback. Fold down the seatback.
Fold out the board (if equipped) from the seatback.

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Seats-Folding 3rd row seats
Release the center seat belt tab. Stow the center seat belt tab.
Stow the seat belt buckles.
Fold the head restraint.
Fold the seats.
(1)
(6)
(3)
(2)
(4)
Power seat
Pull
Insert
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
(5)
Lower the head restraint.

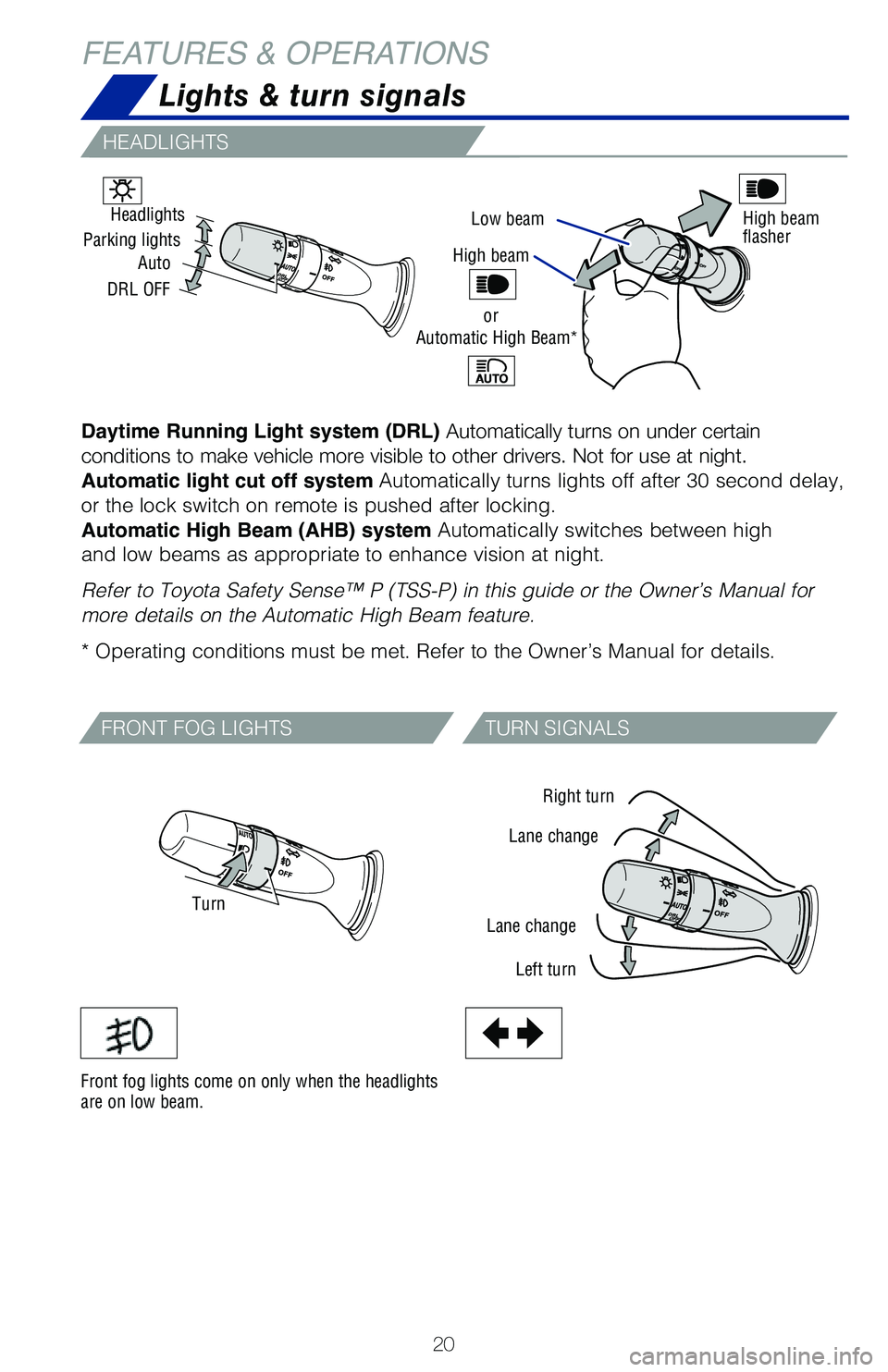

20
FEATURES & OPERATIONS
Low beam
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night. Automatic light cut off system Automatically turns lights off after 30 second delay,
or the lock switch on remote is pushed after locking. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Front fog lights come on only when the headlights
are on low beam. Right turn
Lane change
Lane change Left turn High beam
flasher
Turn
Auto
Headlights
Parking lights
DRL OFF
HEADLIGHTS
FRONT FOG LIGHTS TURN SIGNALS
High beam
orAutomatic High Beam*
Lights & turn signals

21
Windshield wipers & washers
Windows-Power
FRONT
REAR
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Wash and wipeWipe Wipe
Interval wipe Interval wipe
Wash and wipe
Window lock
switch
Automatic operation (front windows only) Push the switch completely down or
pull it completely up and release to fully open or close. To stop window\
partway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
Up
Down
Adjust frequency*
*
Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency. Type A
Type B
Interval wipe
Single wipe
Slow
Fast
Adjust frequency*
Type AWash and wipe
Wash and wipeType B

22
FEATURES & OPERATIONSWindow-Back door
Power back door (if equipped)
OPERATING FROM INSIDE
OPERATING FROM OUTSIDE
Automatic operation Push the switch completely in or pull it completely out and
release to fully open or close. To stop window midway, lightly push the \
switch in the
opposite direction.
Open
Close
Open
Close
Push and hold
Push and hold
Back door (close only)
Open: Push and hold
Close: Push and hold again
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Instrument panel
NOTE: Door will stop closing if obstructed, or to
manually stop door closing, push button again.
The power back door can be opened when the engine switch is in “IGNIT\
ION ON”,
and the shift lever is in P/the engine switch is in “ACCESSORY” or\
“OFF”.
Push and hold
