2020 TOYOTA PROACE VERSO navigation system

.
.
Driving recommendations 192Starting-switching off the engine, manual key, remote control 195Starting and switching off the engine, 198"Smart Entry & Start System" 198Parking brake 201Hill start assist control (HAC) 2025 -speed manual gearbox 2036 -speed manual gearbox 203Gear shift indicator 204Automatic gearbox 205Electronic gearbox 210Stop & Start 214Head-up display 218Adjustable Speed Limiter (ASL) 220Road Sign Assist 221Speed limiter 225Cruise control 228Adaptive cruise control 232Forward collision warning and Autonomous emergency braking system with Pedestrian Detection 239Lane Departure Alert 245Driver Attention Alert 247Blind spot monitoring system 249Parking sensors 252Reversing camera, interior mirror 254180° rear vision 255Tyre Pressure Warning System (TPWS) 258
Fuel tank 261Diesel misfuel prevention 262Snow chains 264Towing a trailer 265Energy economy mode 266Accessories 267Roof bars / Roof rack 268Changing a wiper blade 269B o nn et 271Diesel engine 272Checking levels 273Checks 276AdBlue® and SCR system (Diesel) 278
Warning triangle (stowing) 282Tool box 282Temporary puncture repair kit 285Changing a wheel 291Changing a bulb 298Changing a fuse 31112 V battery 316To w i n g 3 2 0Running out of fuel (Diesel) 322
Dimensions 323Engines 324Weights 324Identification markings 327
DrivingPractical information
In the event of a breakdown
Technical data
Emergency or assistance 328Toyota Pro Touch with navigation system 331To y o t a P r o To u c h 367Toyota Radio Bluetooth 387
Audio and telematics
Alphabetical index
Contents

6
Instruments and
controls
Courtesy lamps 140Interior mood lighting 153- courtesy lamp
- panoramic roof
Rear view mirror 143Reversing camera on interior mirror 254ERA-GLONASS emergency call system 158, 328 -329
12 V accessory socket 113USB port 113Deactivating the passenger front airbag 170, 176
5/6 -speed manual gearbox 203Gear efficiency indicator 204Automatic gearbox 205-209Electronic gearbox 210 -213Stop & Start 214-217Hill start assist control 202
Manual air conditioning 125-126Dual-zone air conditioning 127-130Rear heating, air conditioning 136Air recirculation 125, 130Front demist - defrost 131Rear screen demist - def rost 13 3
Parking brake 201
Opening the bonnet 271
Dashboard fuses 311-314
Touch screen (Toyota Pro Touch withnavigation system) 41, 331-366Touch screen (Toyota ProTouch) 41, 367-386
Toyota Radio Bluetooth 44, 387- 409Air vents 134
Setting the date and time 44
Over view

41
Use this button to confirm.
Use this button to quit.
Use the buttons on either side of the touch screen for access to the menus, then press the virtual buttons in the touch screen.
Menus
Driving/Vehicle.Allows certain functions to be switched on and off and their settings adjusted.
Telephone.
Radio Media.
Connected navigation.
Settings.Allows configuration of the display and the system.
Applications.
Adjust volume/Mute.On/Off.
Touch screen
As a safety measure, the driver must only carry out operations requiring sustained attention with the vehicle stationary.
For more information on the touch screen, refer to the Audio and telematics section.
1
Instruments

44
Setting the time and date
You can choose to synchronise the time and date with the GPS navigation system (if fitted to your vehicle) so that these settings are adjusted automatically.
With the audio system
F Press the MENU button for access to the main menu.
F Press the "7" or "8" button to select the Personalisation-configuration menu, then confirm by pressing the "OK" button.
F Press the "5" or "6" and "7" or "8" buttons to set the date and time, then confirm by pressing the "OK" button.
F Press the "5" or "6" button to select the Display configuration menu then confirm by pressing the "OK" button.
With Toyota Pro TouchWith Toyota Pro Touch with
navigation systemSelect the Settings menu in the upper banner of the touch screen.
Select the Settings menu in the bar of the touch screen.F Select "Date and time".
F Select "Set time-date".
F Select "Date" or "Time".F Choose the display formats.F Change the date and/or time using the numeric keypad.F Confirm with "OK".
F Select "System configuration".
F Press the "OPTIONS" button to go to the secondary page.
F Setting of the time and date is only available if synchronisation with the GPS is deactivated.
F Select the "Date" or "Time" tab. Set the date and/or time using the numeric keypad.F Confirm with "OK".
Instruments

138
F Press and hold this button to stop the heating immediately.
F Press and hold this button to start the heating immediately.
The indicator lamp in the remote control comes
on in red for about 2 seconds to confirm that the signal has been received by the vehicle.
The indicator lamp in the remote control comes on in green for about 2 seconds to confirm that the signal has been received by the vehicle.
Switching off
Switching on
Long range remote control
The range of the remote control is about 0.6 miles (1 km), in open country.
The indicator lamp in the remote control flashes for about 2 seconds if the vehicle has not received the signal.You should then move to a different location and repeat the command.
Changing the battery
If the indicator lamp in the remote control becomes orange, the state of charge of the battery is low.If the indicator lamp is not on, the battery is discharged.
F Use a coin to unscrew the cap and replace the bulb.
With Toyota Pro Touch with navigation system
F Press the "Applications" menu.
F Press "Temperature programming".
F Press the "Vehicle Apps" tab.
F Press the "Status" tab to activate/deactivate the system.F Press the "Parameters" tab to select "Heating" mode to heat the engine and passenger compartment or "Ventilation" mode to ventilate the passenger compartment.F Then set /save the activation time for each selection.F Press "OK" to confirm.
Ease of use and comfort

218
1. On.2. Off (long press).3. Brightness adjustment.4. Display height adjustment.
Once the system has been activated, the following information is grouped together in the head-up display:A. The speed of your vehicle.B. Cruise control/speed limiter information.C. If your vehicle is so equipped, inter-vehicle distance information, automatic emergency braking alerts and navigation instructions.D. If your vehicle is so equipped, speed limit information.
System which projects various information onto a smoked blade in the driver's field of vision so that they do not have to take their eyes off the road.
Buttons
Displays during operation
Head-up display
For more information on Navigation, refer to the Audio and telematics section.
F With the engine running, press button 1 to activate the system and deploy the blade.
Activation / Deactivation
F Press and hold button 2 to deactivate the system and retract the blade.
The activated/deactivated state is saved and retained on restarting the engine.
Driving

221

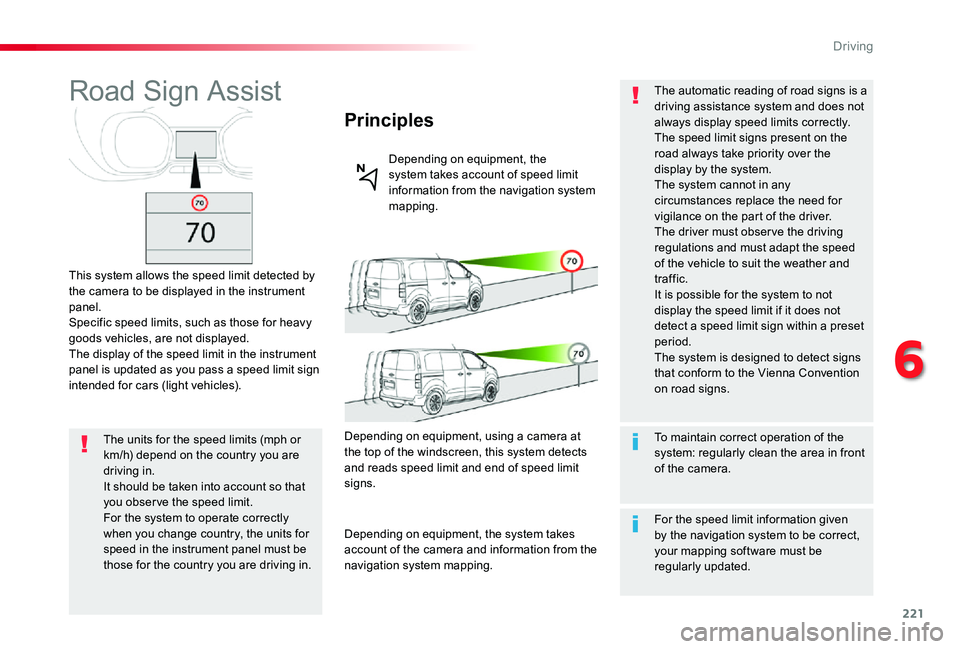

Road Sign Assist
This system allows the speed limit detected by the camera to be displayed in the instrument panel.Specific speed limits, such as those for heavy goods vehicles, are not displayed.The display of the speed limit in the instrument panel is updated as you pass a speed limit sign intended for cars (light vehicles).
Principles
Depending on equipment, the system takes account of speed limit information from the navigation system mapping.
The units for the speed limits (mph or km/h) depend on the country you are driving in.It should be taken into account so that you obser ve the speed limit.For the system to operate correctly when you change country, the units for
speed in the instrument panel must be those for the country you are driving in.
Depending on equipment, using a camera at the top of the windscreen, this system detects and reads speed limit and end of speed limit signs.
Depending on equipment, the system takes account of the camera and information from the navigation system mapping.
To maintain correct operation of the system: regularly clean the area in front of the camera.
The automatic reading of road signs is a driving assistance system and does not always display speed limits correctly.The speed limit signs present on the road always take priority over the display by the system.The system cannot in any circumstances replace the need for vigilance on the part of the driver.The driver must obser ve the driving regulations and must adapt the speed of the vehicle to suit the weather and traffic.It is possible for the system to not display the speed limit if it does not detect a speed limit sign within a preset period.The system is designed to detect signs that conform to the Vienna Convention on road signs.
For the speed limit information given by the navigation system to be correct, your mapping software must be regularly updated.
6
Driving

268
By visiting a Toyota dealer, you can also obtain products for cleaning and maintenance (exterior and interior) - including ecological products in the "TECHNATURE" range, topping-up products (screenwash...), touch-up pens and paint aerosols for the exact colour of your vehicle, refills (cartridge for the temporary puncture repair kit...), ...
"Multimedia"
Smartphone support, table support or semi-integral navigation support, range of audio systems and portable navigation systems, driving recorder, Bluetooth hands-free kit, DVD player, multimedia support, driving aids, vehicle tracking system, ...
For any work on your vehicle, use a qualified workshop that has the technical information, skills and equipment required, all of which a Toyota dealer is able to provide.

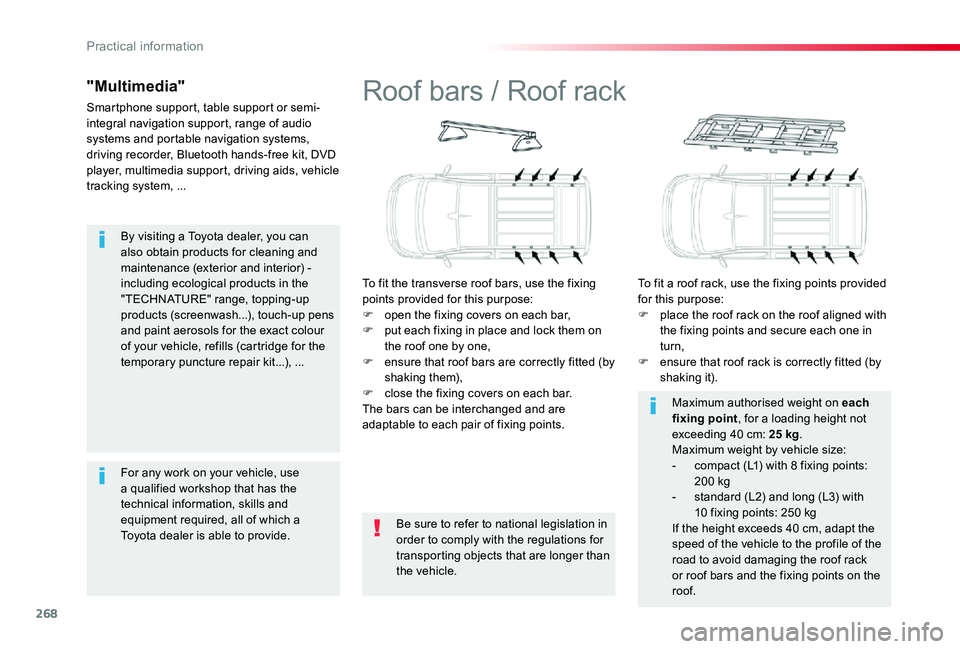

Roof bars / Roof rack
To fit the transverse roof bars, use the fixing points provided for this purpose:F open the fixing covers on each bar,F put each fixing in place and lock them on the roof one by one,F ensure that roof bars are correctly fitted (by shaking them),F close the fixing covers on each bar.The bars can be interchanged and are adaptable to each pair of fixing points.
To fit a roof rack, use the fixing points provided for this purpose:F place the roof rack on the roof aligned with the fixing points and secure each one in turn,F ensure that roof rack is correctly fitted (by shaking it).
Be sure to refer to national legislation in order to comply with the regulations for transporting objects that are longer than the vehicle.
Maximum authorised weight on each fixing point, for a loading height not exceeding 40 cm: 25 kg.Maximum weight by vehicle size:- compact (L1) with 8 fixing points: 200 kg- standard (L2) and long (L3) with 10 fixing points: 250 kgIf the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid damaging the roof rack or roof bars and the fixing points on the roof.
Practical information
