2020 TOYOTA GT86 bluetooth

Toyota Part Number: PT296-18190-20
Display Audio System
Base Audio Owner’s Manual
for /Apple CarPlay/ Android Auto™ / iPod/USB/
Bluetooth® Audio/AM/FM/
3791947_19_Toyota_Radio_OM_120418.indd 112/4/18 9:40 AM

TABLE OF CONTENTS
17BASIC OPERATION
431USB / IPOD
749ANDROID AUTO™
217SETTINGS
535BLUETOOTH®
853UPDATES
327AM AND FM RADIO
645APPLE CARPLAY
954CERTIFICATION
3791947_19_Toyota_Radio_OM_120418.indd 312/4/18 9:40 AM

TABLE OF CONTENTS
1BASIC OPERATION
1 Multimedia System .............................8
2 Home Screen .....................................9
3 Main System Controls ......................10
4 Steering Wheel Controls ..................13
2SETTINGS
1 Overview ..........................................18
2 Display Settings ...............................19
3 Audio Settings ..................................20
4 Bluetooth® Settings ..........................22
5 System Settings ...............................23
6 Android Auto™ Settings ....................24
7 Apple CarPlay Settings ....................25
3AM AND FM RADIO
1 Activating FM/AM Radio ...................28
2 Selecting a Radio Station .................29
4USB/IPOD
1 Connection .......................................32
2 Audio Playback ................................33
3 Compatible Extensions ....................34
5BLUETOOTH®
1 Overview ..........................................36
2 Compatible Devices .........................37
3 Device Pairing ..................................38
4 Voice Call .........................................39
5 Short Message Function ..................42
6 Playing Bluetooth® Audio Files .........43
6APPLE CARPLAY
1 Requirements ...................................46
2 Starting Apple CarPlay .....................47
3 Exiting Apple CarPlay Screen ..........48
7ANDROID AUTO™
1 Requirements ...................................50
2 Starting Android Auto™ .....................51
3 Exiting Android Auto™ .......................52
8UPDATES
Updates ............................................53
9CERTIFICATION
Certification ......................................54
3791947_19_Toyota_Radio_OM_120418.indd 512/4/18 9:40 AM

8
1. MULTIMEDIA SYSTEM
1. BASIC OPERATION
The Multimedia System is composed of the following systems:
•
AV (audio and video) playback and streaming using USB or Bluetooth®
• Hands-free telephony
•
Smartphone projection using Apple CarPlay and Android Auto™
•
Audio enhancement of digital sources using Clari Fi [].
3791947_19_Toyota_Radio_OM_120418.indd 812/4/18 9:40 AM

9
2. HOME SCREEN
1. BASIC OPERATION
The HOME screen of the Multimedia System displays soft keys to access va\
rious functions:
No.Function
1Hands-free Telephone [PHONE] [ ]
2Media Source Selection [MEDIA] [ ]: AM/FM radio, iPod, USB, Bluetooth®
3Projection Applications [APPS] [ ]: Android Auto™ or Apple CarPlay
4Device currently connected to Bluetooth Shortcut to Bluetooth® settings
5Shortcut to Media Source that is currently active
6Shortcut to Maps application (if available)
7Shortcut to Settings [ ]
8Toggle Display On/Off [ ]
9Mini-Player showing currently playing content and controls
NOTE: When an Android Auto™, Apple CarPlay enabled device is connected, the [APPS] icon will change to reflect the respective application type.
1
4
78
3
2
9
56
3791947_19_Toyota_Radio_OM_120418.indd 912/4/18 9:40 AM
1
BASIC OPERATION
1

1
11
1. BASIC OPERATION
BASIC OPERATION
1
POWER / HOME BUTTON
The table below summarizes the 1 POWER/HOME button functions:
Button ActionAction
Short Press
Go to HOME screenNo action if in active phone call or if the reverse camera is on
Long Press
Turn off Audio and DisplayNo action if in active phone call or if the reverse camera is on
Longer Press greater than 6 seconds
Option to restart the Multimedia System
VOLUME CONTROLS
BUTTONS
Press the button 2 to adjust the volume.
Refer to the table below for more information:
Button ActionAction
Short PressDecrease/Increase volume of current source* by one-step
Long Press
Decrease/Increase volume of current source* continuously until button release or until minimum/maximum volume is reached
*Current Source includes:
•
Audio Source (AM / FM / USB / iPod / MTP (Media Transfer Protocol) / Bluetooth® and Projection)
• Phone Ring
• Phone Call
•
Navigation prompts (Projection)
VOICE RECOGNITION
BUTTON
Press the button 3 [] for voice commands.
Refer to the table below for more information:
Button ActionAction
Short PressVoice recognition in projection and telephony modes
Long PressSame behavior as a short press
3791947_19_Toyota_Radio_OM_120418.indd 1112/4/18 9:40 AM

14
1. BASIC OPERATION
VOLUME UP/DOWN BUTTON
The Volume buttons 1 can be used to adjust the audio volume level for the Multimedia System.
Refer to the table below for more information:
Button ActionAction
Short Press
Decrease/Increase volume of current source by one-step
Long Press
Decrease/Increase volume of current source continuously until button release or until minimum/maximum volume is reached


SEEK UP / SEEK DOWN
The Seek Up/Down buttons: 2, can be used to change radio stations and active tracks
Refer to the table below for more information:
Button ActionAction
Short Press
Select next/previous preset station position for radio*Select next/previous track while playing back USB/iPod/Bluetooth® Audio, Projection mode content
Long Press
Perform seek up/seek down function for radioPerform fast forward/rewind of the current track for USB/iPod/Bluetooth® and Projection mode content
*This requires preset stations to be stored. Unassigned preset positions will be skipped.
3791947_19_Toyota_Radio_OM_120418.indd 1412/4/18 9:40 AM

1
15
1. BASIC OPERATION
BASIC OPERATION
1

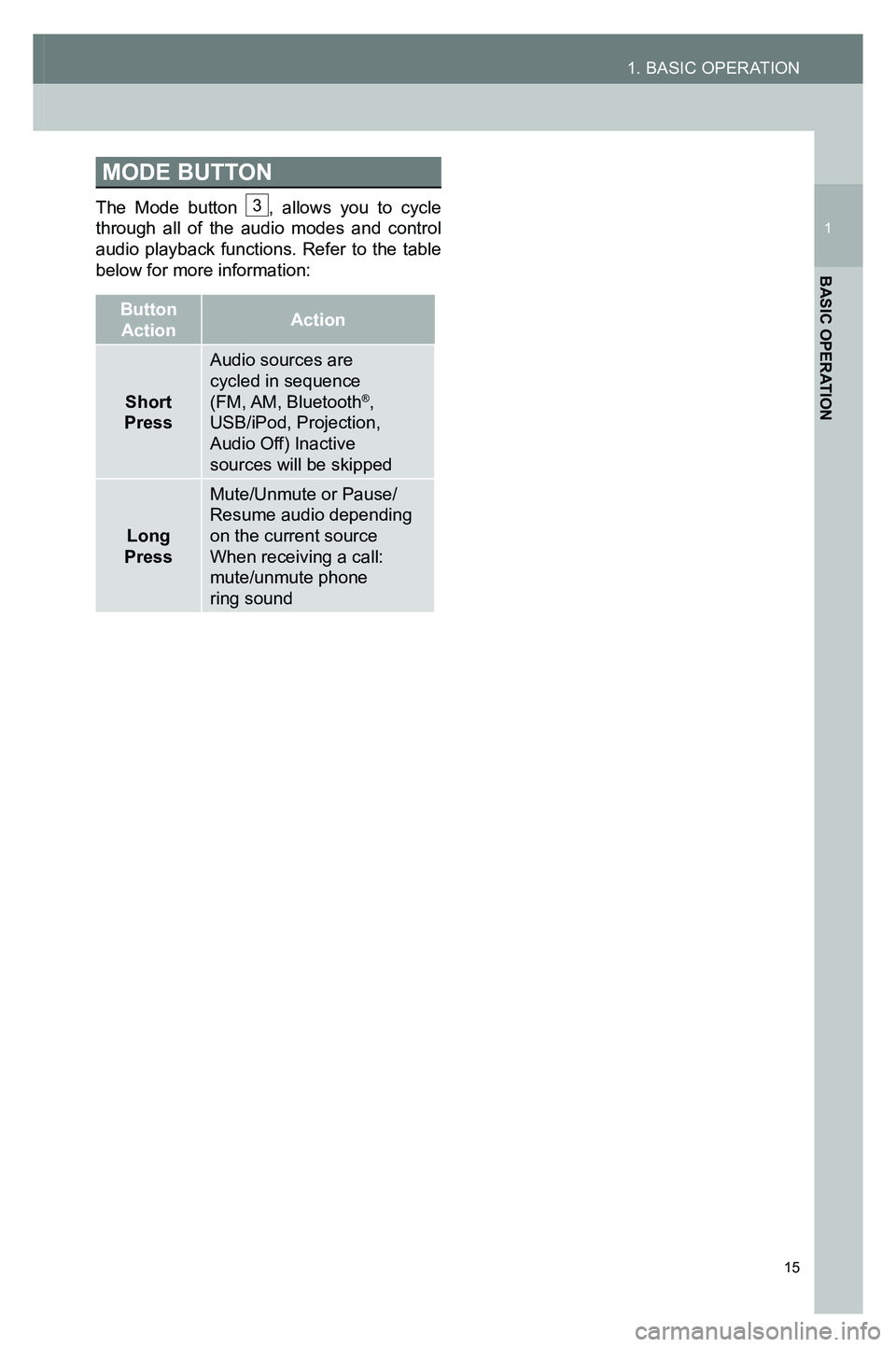

MODE BUTTON
The Mode button 3, allows you to cycle through all of the audio modes and control audio playback functions. Refer to the table below for more information:
Button ActionAction
Short Press
Audio sources are cycled in sequence (FM, AM, Bluetooth®, USB/iPod, Projection, Audio Off) Inactive sources will be skipped
Long Press
Mute/Unmute or Pause/Resume audio depending on the current sourceWhen receiving a call: mute/unmute phone ring sound
3791947_19_Toyota_Radio_OM_120418.indd 1512/4/18 9:40 AM
