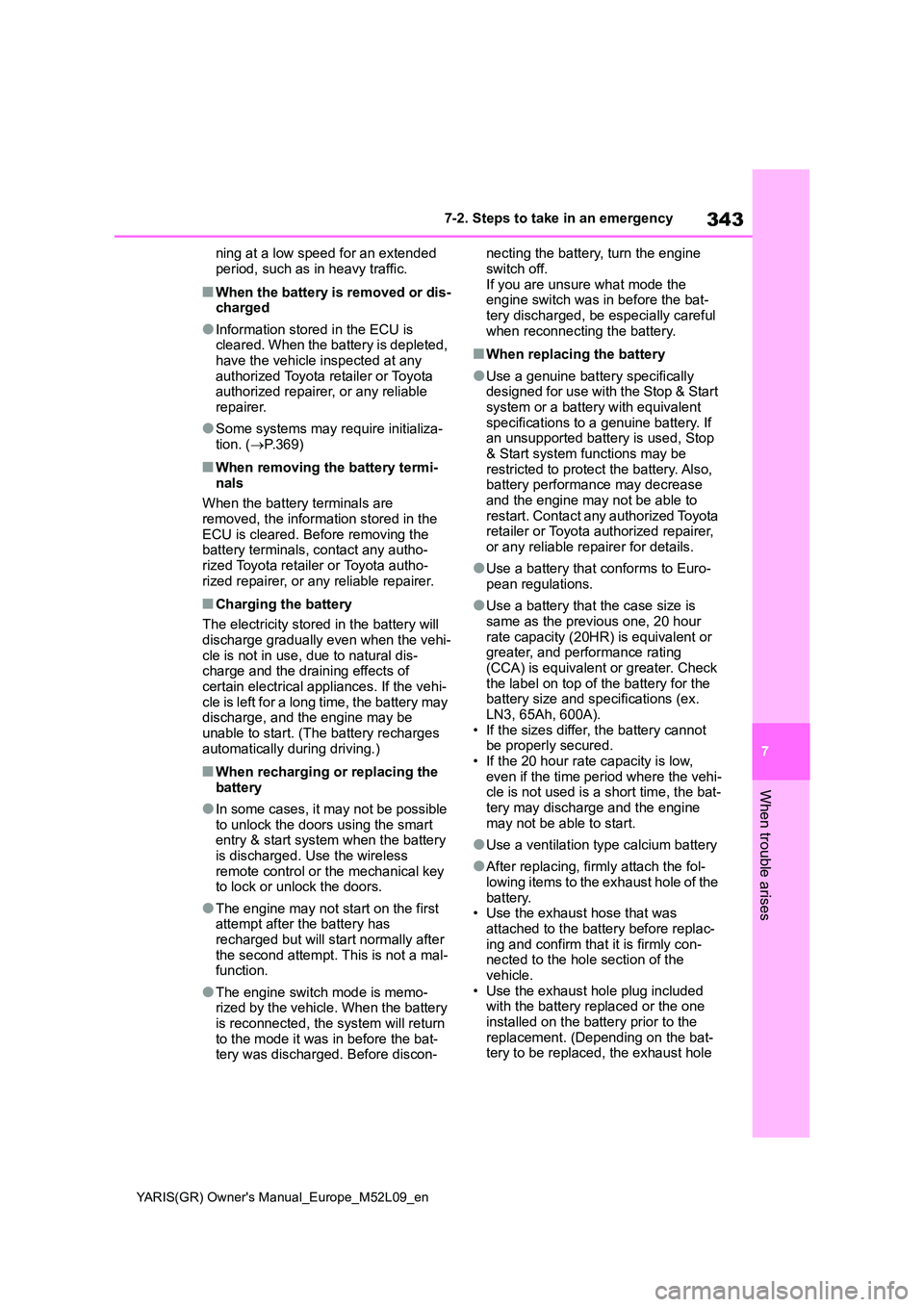

7-2. Steps to take in an emergency
When trouble arises
ning at a low speed for an extended
period, such as in heavy traffic.
■When the battery is removed or dis- charged
●Information stored in the ECU is cleared. When the battery is depleted, have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Some systems may require initializa-tion. ( →P.369)
■When removing the battery termi-
nals
When the battery terminals are removed, the information stored in the
ECU is cleared. Before removing the battery terminals, contact any autho-rized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehi-
cle is not in use, due to natural dis- charge and the draining effects of certain electrical appliances. If the vehi-
cle is left for a long time, the battery may discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to unlock the doors using the smart entry & start system when the battery
is discharged. Use the wireless remote control or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has
recharged but will start normally after the second attempt. This is not a mal-function.
●The engine switch mode is memo-rized by the vehicle. When the battery
is reconnected, the system will return to the mode it was in before the bat-tery was discharged. Before discon-
necting the battery, turn the engine
switch off. If you are unsure what mode the engine switch was in before the bat-
tery discharged, be especially careful when reconnecting the battery.
■When replacing the battery
●Use a genuine battery specifically designed for use with the Stop & Start system or a battery with equivalent
specifications to a genuine battery. If an unsupported battery is used, Stop & Start system functions may be
restricted to protect the battery. Also, battery performance may decrease and the engine may not be able to
restart. Contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for details.
●Use a battery that conforms to Euro-pean regulations.
●Use a battery that the case size is same as the previous one, 20 hour
rate capacity (20HR) is equivalent or greater, and performance rating (CCA) is equivalent or greater. Check
the label on top of the battery for the battery size and specifications (ex. LN3, 65Ah, 600A).
• If the sizes differ, the battery cannot be properly secured.• If the 20 hour rate capacity is low,
even if the time period where the vehi- cle is not used is a short time, the bat-tery may discharge and the engine
may not be able to start.
●Use a ventilation type calcium battery
●After replacing, firmly attach the fol- lowing items to the exhaust hole of the
battery. • Use the exhaust hose that was attached to the battery before replac-
ing and confirm that it is firmly con- nected to the hole section of the vehicle.
• Use the exhaust hole plug included with the battery replaced or the one installed on the battery prior to the
replacement. (Depending on the bat- tery to be replaced, the exhaust hole

344
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-2. Steps to take in an emergency
may be plugged.)
Exhaust hole plug
Exhaust hole
Exhaust hose
●For details, consult any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■When removing the battery ter-minals
Always remove the negative (-) termi-
nal first. If the positive (+) terminal contacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks and death or serious injury.
■Avoiding battery fires or explo-sions
Observe the following precautions to prevent accidentally igniting the flam-mable gas that may be emitted from
the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not unintentionally in
contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come into contact with
any other parts or metal surfaces in the area, such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into con-
tact with each other.
●Do not smoke, use matches, ciga-
rette lighters or allow open flame near the battery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following precautions when handling the bat-
tery:
●When working with the battery,
always wear safety glasses and take care not to allow any battery fluids (acid) to come into contact
with skin, clothing or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes
into contact with the skin or eyes, immediately wash the affected area with water and seek medical atten-
tion. Place a wet sponge or cloth over the affected area until medical attention can be received.
●Always wash your hands after han-dling the battery support, terminals,
and other battery-related parts.
●Do not allow children near the bat-
tery.

345
7
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-2. Steps to take in an emergency
When trouble arises
WARNING
■After recharging the battery
Have the battery inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon as possible.
If the battery is deteriorating, contin- ued use may cause the battery to emit a malodorous gas, which may be
detrimental to the health of passen- gers.
■When replacing the battery
●For information regarding battery replacement, contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●After replacing, securely attach the exhaust hose and exhaust hole
plug to the exhaust hole of the replaced battery. If not properly installed, gases (hydrogen) may
leak into the vehicle interior, and there is the possible danger of the gas igniting and exploding.
NOTICE
■When handling jumper cables
When connecting the jumper cables,
ensure that they do not become entangled in the cooling fan or engine drive belt.
■To prevent damaging the vehicle
The exclusive jump starting terminal
is to be used when charging the bat- tery from another vehicle in an emer-gency. It cannot be used to jump start
another vehicle.

346
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-2. Steps to take in an emergency
1Stop the vehicle in a safe place
and turn off the air conditioning
system, and then stop the
engine.
2 If you see steam: Carefully lift
the hood after the steam sub-
sides.
If you do not see steam: Care-
fully lift the hood.
3 After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Cooling fan
Radiator
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “MAX” or
“MIN” lines on the reservoir.
Reservoir
“MAX” line
“MIN” line
5 Add engine coolant if necessary.
Water can be used in an emergency if
If your vehicle overheats
The following may indicate that
your vehicle is overheating.
z The engine coolant tempera-
ture gauge ( →P.83) is in the
red zone or a loss of engine
power is experienced. (For
example, the vehicle speed
does not increase.)
z “Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” is shown on
the multi-information display.
z Steam comes out from under
the hood.
Correction procedures

347
7
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-2. Steps to take in an emergency
When trouble arises
engine coolant is unavailable.
6Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan
operate and to check for coolant
leaks from the radiator or hoses.
The fan operate when the air condition-
ing system is turned on immediately after a cold start. Confirm that the fan is operating by checking the fan sound
and air flow. If it is difficult to check these, turn the air conditioning system on and off repeatedly. (The fan may not
operate in freezing temperatures.)
7 If the fan is not operating: Stop
the engine immediately and
contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
If the fan is operating: Have the
vehicle inspected at the nearest
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam has subsided. The
engine compartment may be very hot.
●Keep hands and clothing (espe-cially a tie, a scarf or a muffler) away from the fan and belts. Failure
to do so may cause the hands or clothing to be caught, resulting in serious injury.
●Do not loosen the coolant reservoir caps while the engine and radiator
are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant
with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

348
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-2. Steps to take in an emergency
1Stop the engine. Set the parking
brake and shift the shift lever to
N.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some
other material under the front
wheels to help provide traction.
4 Restart the engine.
5 Shift the shift lever to 1 or R and
release the parking brake. Then,
while exercising caution,
depress the accelerator pedal.
■When it is difficult to free the vehi-
cle
Press the switch to turn off TRC.
The “TRC OFF” indicator light will come
on.
If the vehicle becomes
stuck
Carry out the following proce-
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding area is clear to avoid
striking other vehicles, objects or peo- ple. The vehicle may also lunge for-ward or lunge back suddenly as it
becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.This may lead to unexpected rapid
acceleration of the vehicle that may cause an accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmis-sion and other components
●Avoid spinning the front wheels and depressing the accelerator pedal more than necessary.
●If the vehicle remains stuck even
after these procedures are per- formed, the vehicle may require towing to be freed.

8
349
YARIS(GR) Owner's Manual_Europe_M52L09_en
8
Vehicle specifications
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 350
Fuel information ................ 359
8-2. Customization
Customizable features ...... 361
8-3. Initialization
Items to initialize ............... 369
8-4. Certifications
Certifications ..................... 370

350
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
8-1.Spec ific ations
*: Unladen vehicles
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.
This number is also stamped on the top left of the instrument panel.
This number is also on the manu-
facturer’s label.
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length3995 mm (157.3 in.)
Overall width1805 mm (71.1 in.)
Overall height*1445 mm (56.9 in.)
Wheelbase2560 mm (100.8 in.)
TreadFront1535 mm (60.4 in.)
Rear1565 mm (61.6 in.)
Gross vehicle mass1645 kg (3627 lb.)
Maximum permissible axle
capacityFront970 kg (2138 lb.)
Rear900 kg (1984 lb.)
Vehicle identification
