QUICK
REFERENCE
GUIDE

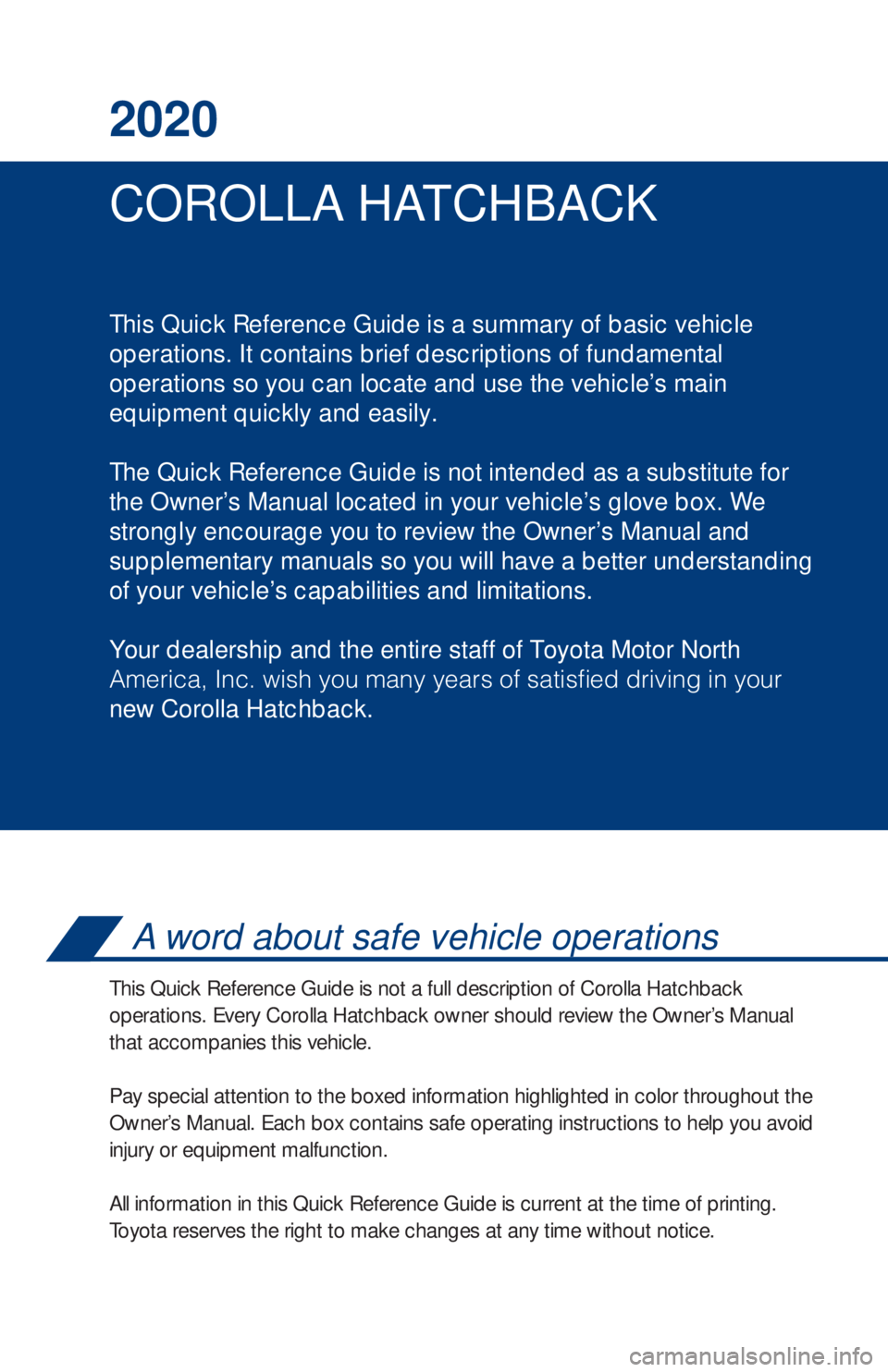

2020

COROLLA HATCHBACK 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Corolla Hatchback.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla Hatchback
operations. Every Corolla Hatchback owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout the
Owner’s Manual. Each box contains safe operating instructions to help you avoid
injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 21
Audio 18
Auto lock/unlock
1,2 12
Blind Spot Monitor 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet-12V DC 19
Qi Wireless charger 19
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Folding rear 16
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15Vehicle Stability Control (VSC)/
TRAC OFF switch 22
USB charge-port 18
USB media port 20
Windows-Power 14
Windshield wipers & washers 12
Floor mat installation 47
Rear door child safety locks 41
Safety Connect 43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™ 46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC 36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ 2.0 (TSS 2.0) 24
Road Sign Assist (RSA) 40

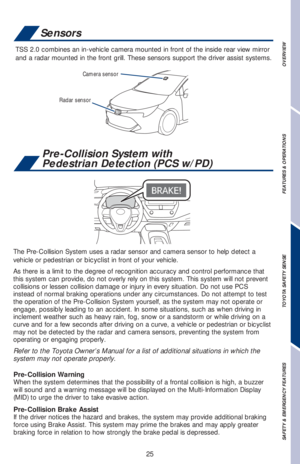

Sensors 25
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 48-50
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

2
OVERVIEW
Instrument panel
Steering wheel controls
Windshield wiper and washer control
Tilt and telescopic steering
lock release lever (below the
steering wheel)
Audio volume control
switches2
Audio control switches2
Meter control switches
Instrument panel
light control dial
“ENGINE START STOP” switch
Hood lock release lever
Meters/Multi-Information Display (MID)
Automatic High Beam
(AHB) switchPaddle shifters
1
Telephone switch2
Voice command switch2
&ULL
3PEED2ANGE$YNAMIC2ADAR
Cruise Control/Dynamic Radar
Cruise Control vehicle-to-vehicle
distance switch
LTA (Lane Tracing Assist)
1/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Full-Speed Range
Dynamic Radar Cruise
Control/Dynamic Radar
Cruise Control switch
Headlights/turn signals/fog lights1 control

3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Emergency flasher switch
Brake hold switch
Seat heater switch1
Parking brake switch Brake hold switchVSC OFF switch
VSC OFF switch “SPORT” mode
switch
1
“iMT” (Intelligent
Manual Transmission)
switch
1
Qi Wireless charger switch1Seat heater switch1
With a continuously
variable transmission
With a manual
transmission
Parking brake switch
1
If equipped.2
For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Audio system1,2/
Navigation system1,2
Air conditioning/heating
controls

4
OVERVIEW
Instrument cluster
Tachometer
Tachometer
TachometerSpeedometer
Speedometer
Speedometer Outside temperature
Outside temperature
Outside temperature Engine coolant temperature gauge
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button Odometer and trip meter display
Odometer and trip meter displayShift position
indicator
Shift position indicator
Shift position indicatorFuel gauge
Fuel gauge
Fuel gaugeClock
Clock
Clock Multi-Information Display (MID)
Multi-Information Display (MID)
Multi-Information Display (MID)Odometer and
trip meter display
Engine coolant
temperature gauge
Engine coolant
temperature gauge 4.2-inch display
7-inch display (Analog speedometer)
7-inch display (Digital speedometer)
Service indicators and reminders

5
Security indicator
Smart Key system indicator
SPORT mode indicator4
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
For details, refer to “Indicators and warning lights,” Section 2, 2020 Owner’s Manual.
Airbag SRS warning1
iMT indicator (orange/green)1,4
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Malfunction/Check engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Lane Tracing Assist (LTA)4/
Lane Departure Alert (LDA) indicator
(white/green/orange
3)
High coolant temperature warning
Auto EPB OFF indicator1,4
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators1,4
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow indicator)1
Charging system warning1
ECO driving indicator light1,4
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is over
12 mph)
Electric power steering system warning
(red/yellow indicator)1
Front fog light indicator4
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Override System/Drive-Start
Control warning
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1
Slip indicator1,3
Indicator symbols

6
Keyless entry
Push
ONCE: Driver door
TWICE: All doors
Push
Push and hold
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
TouchCarry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remote
Grasp
Front door unlock*
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only,
or all doors. In some models, grasping front passenger door handle will unlock all
doors. Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Unlock
Lock
