15Your Warranties in Detail
WARR ANT Y
NEW VEHICLE LIMITED WARRANTY
Maintenance Expense
Normal maintenance services such as:
• Engine tune-ups
• Replacement of fluids and filters
• Lubrication
• Cleaning and polishing
• Replacement of spark plugs and fuses
• Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles with Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law, or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply to
the emission control warranties, including
Emission Control Warranty Enhancements
or any open Safety Recalls/SSCs/LSCs.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra
Expenses and Damages
The performance of necessary repairs
and adjustments is the exclusive remedy
under this warranty or any implied
warranty. Toyota does not authorize
any person to create for it any other
obligation or liability in connection with
this vehicle. Toyota shall not be liable
for incidental or consequential damages
resulting from breach of this written
warranty or any implied warranty. Any
implied warranty of merchantability or
fitness for a particular purpose is limited
to the duration of this written warranty,
except in states where this limitation
is not allowed.

53Maintenance Log
MAINTENANCE LOG
MAINTENANCE
120,000 miles or 144 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect vacuum pump for brake booster
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs4
Rotate tires
Inspect the following:
_
Automatic transmission for
signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
5
_
Drive belts
_
Drive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
7
Replace automatic transmission fluid
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace automatic transmission fluid
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
_
Engine coolant6
_
Exhaust pipes and mountings
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator and condenser
_
Steering gear
_
Steering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.4
Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty. 5
Inspect thickness measurement and disc runout.6
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.

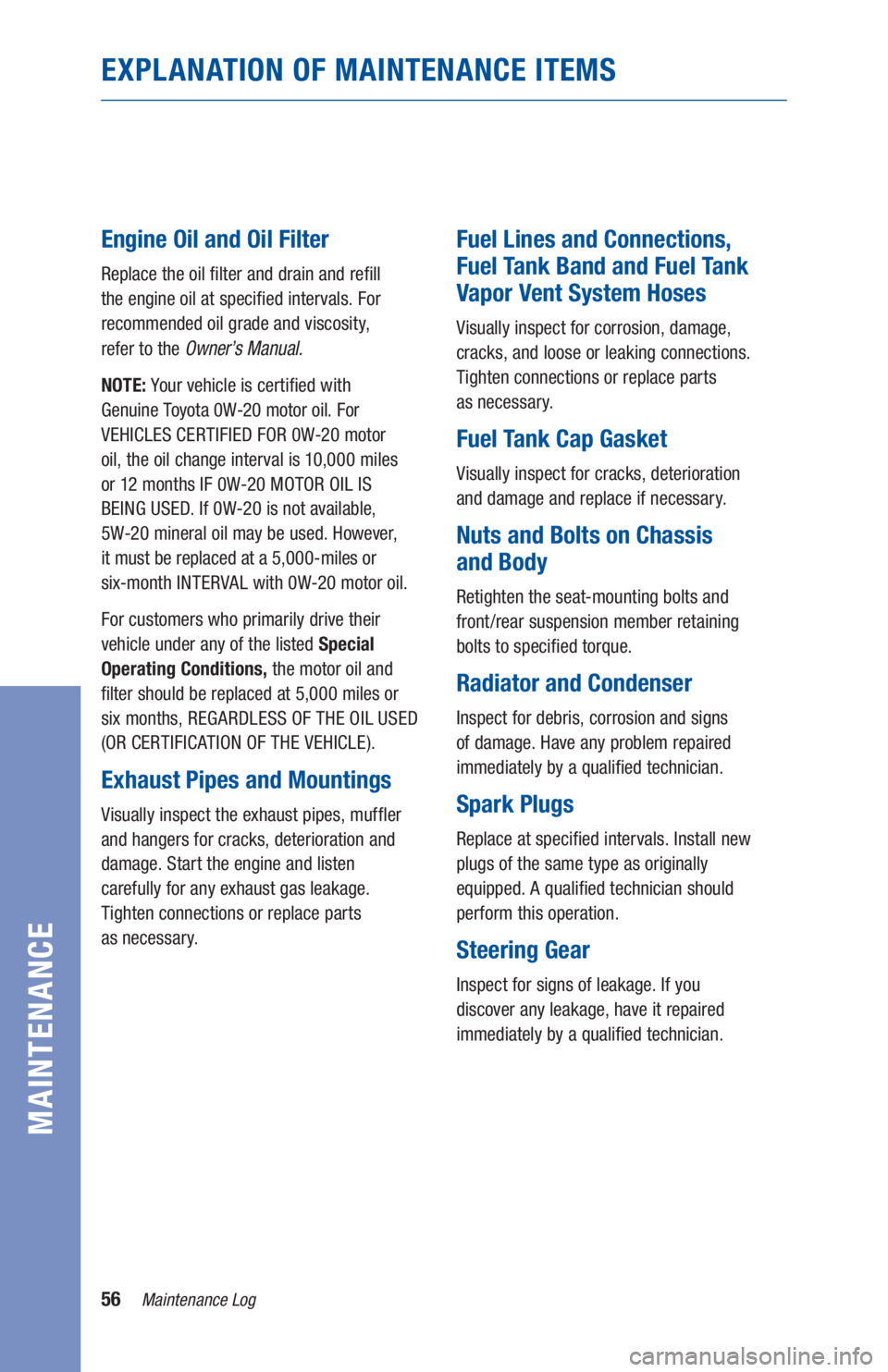

56Maintenance Log
MAINTENANCE
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-20 motor oil. For
VEHICLES CERTIFIED FOR 0W-20 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-20 MOTOR OIL IS
BEING USED. If 0W-20 is not available,
5W-20 mineral oil may be used. However,
it must be replaced at a 5,000-miles or
six-month INTERVAL with 0W-20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
six months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
EXPLANATION OF MAINTENANCE ITEMS
