2020 TOYOTA AVALON Owners Manual (in English)

Quick Reference Guide 2020
Printed in U.S.A. 8/19
19 - M KG -13 4 8 2toyota\fcom
QUICK
REFERENCE
GUIDE
2020

AVALON 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Avalon.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Avalon operation\
s.
Every Avalon owner should review the Owner’s Manual that accompanies \
this
vehicle.
Pay special attention to the boxed information highlighted in color thro\
ughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
17
Audio 19
Auto lock/unlock
2 9
Automatic transmission 9
Bird’s Eye View Camera
with Perimeter Scan function 23
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 22
Clock 26
Cup holders 26
Door locks 26
Driving mode select 16

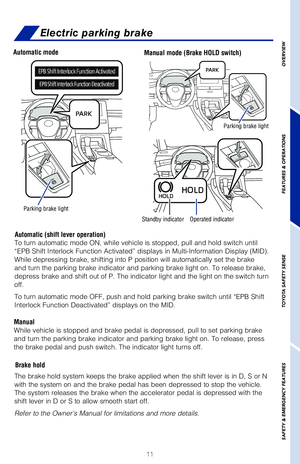

Electric parking brake 11

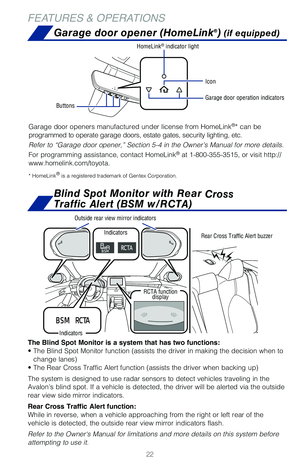

Garage door opener (HomeLink
®)3 22
Head-up display 15
Intelligent Clearance Sonar with Rear
Cross Traffic Braking (ICS w/RCTB) 24- 25
Lights
1 & turn signals 14
Moonroof 10
Multi-Information Display (MID)
2 15
Power outlets-12V DC 21
Qi Wireless charger 21
Rear view monitor system 24
Seat adjustments-Front 12
Seat folding-Rear 13
Seat heaters/ventilators 18
Seats-Head restraints 13
Steering lock release 10Steering wheel switches &
telephone controls (Bluetooth
®) 20
Steering wheel-Heater 14
Tilt & telescopic steering wheel 12
USB charge-ports 18
USB media/AUX port 19
Vehicle Stability Control (VSC)/
TRAC OFF Switch 17
Windows-Power 10
Windshield wipers & washers 13

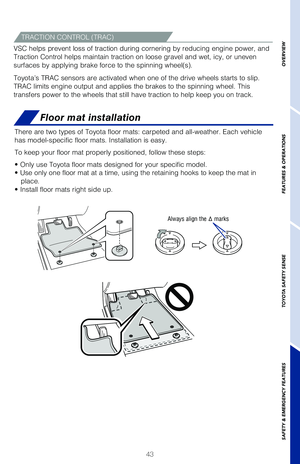

Floor mat installation 43
Rear door child safety locks 38
Safety Connect 38
Seat belts 39
Seat belts-Shoulder belt anchor 39
Spare tire & tools 40
Star Safety System
™ 42-43
Tire Pressure Monitoring
(warning) System (TPMS) 41
Trunk-Internal release 41
BLUETOOTH® DEVICE
PAIRING SECTION 44-46
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 37
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 34-36
Lane Departure Alert with
Steering Assist (LDA w/SA) 30-33
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 28-30
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 27
Sensors 27

2
OVERVIEWInstrument panel
Steering wheel controls
Audio volume control
switch2
Audio control switches2
Meter control switches Paddle shifters
1
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle distance switch
Tilt and telescopic
steering lock
release lever
1
Power tilt and
telescopic steering
control switch
1
Bird’s Eye View Camera ON/OFF switch1,2“ODO/TRIP” switch
Instrument panel light control switch
Automatic High Beam (AHB) switch
Heated steering
wheel switch
1
VSC OFF switch
Fuel tank door release switch
Trunk opener
Hood lock
release lever
Meters/Multi-Information Display (MID)
Windshield wiper and washer control
“ENGINE START STOP” switch
Lane Departure Alert with Steering
Assist (LDA w/SA) switch Full-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
Headlights/turn signals control

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

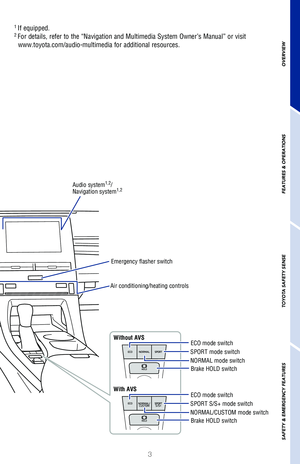

Emergency flasher switch
Audio system
1,2/
Navigation system1,2
Air conditioning/heating controls
ECO mode switch
ECO mode switch
Without AVS
With AVS
NORMAL mode switch
NORMAL/CUSTOM mode switch SPORT mode switch
SPORT S/S+ mode switchBrake HOLD switch
Brake HOLD switch
1
If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.

4
OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
20 20 Owner’s
Manual.
Tachometer Speedometer
Multi-Information Display
Engine coolant temperature gauge Outside temperature display Odometer and trip meter display
Shift position and shift range display Fuel gauge
Airbag SRS warning1
Arrow direction indicates fuel
tank door position
Automatic High Beam (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
“AIR BAG ON/OFF” indicator1
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Blind Spot Monitor (BSM) indicator
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake Overrride System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4 warning
Brake system warning (yellow)1
Charging system warning
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Indicator symbols
Service indicators and reminders

5
CUSTOM mode indicator4
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Electric power steering system
warning (red/yellow)1
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Security indicator
Smart Key system indicator
SPORT mode indicator
SPORT S mode indicator4
SPORT S+ mode indicator4
Slip indicator1,3
Headlight low/high beam
indicators
ECO driving indicator1
Driver’s and front passenger ’s seat
belt reminder (alarm will sound if
speed is over 12 mph)
ECO MODE indicator
High coolant temperature warning
Open door warning
Malfunction/Check Engine indicator1
Master warning1,2
Low engine oil pressure warning
Low outside temperature indicator
Low Tire Pressure Warning1
Low fuel level warning
Pre-Collision System (PCS)
warning1,2
Parking brake indicator2
Lane Departure Alert (LDA) with
steering assist indicator
(white/green/amber
3)
Rear passengers’ seat belt
reminder indicator
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Intuitive parking assist indicator4
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

6
Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push
ONCE: Driver door TWICE: All doors
All-door lock
Touch Carry Smart
Key remote
Carry Smart
Key remote Carry Smart
Key remote
Grasp
Front door unlock*
Push
Push and hold
Push and hold
LOCKING OPERATION
PANIC BUTTON
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors.
Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
