2020 Seat Tarraco check engine

Practical tips

Flashes
Fault in the diesel engine management.
Hav e the engine check
ed as soon as possible by a
specialised workshop. Note
While the control lamps , ;,  or  are
on, ther
e might be faults in the engine, fuel
consumption may go up and the engine
might lose power. Catalytic converter
To maintain the useful life of the catalytic
conv
er

ter

Practical tips
Checking levels Fig. 240
Diagram for the location of the various
el ements. From time to time, the levels of the different
fluids in the v
ehicl
e must be checked. Never
fill with incorrect fluids, otherwise serious
damage to the engine may be caused.
Coolant expansion tank ››› page 343
Engine oil level dipstick ››› page 342
Engine oil filler cap ››› page 342
Brake fluid reservoir ››› page 346
Battery (under the cover) 1)
››› page 347
1 2
3
4
5 Windscreen washer reservoir
› ›
› page 346 Note
The layout of parts may vary depending on
the engine . 6
Engine oil
Gener al not
es The engine comes with a special, multi-grade
oil that can be used all year r
ound.
Because the use of high-qualit

y oil is essen-
tial for the correct operation of the engine
and its long useful life, when topping up or
changing oil, use only those oils that comply
with VW standards. 1)
In hybrid vehicles the battery can be found in
the l eft hand side of the luggage compartment
›

›› page 350.
340

Checking and refilling levels
We recommend that the oil change be done
by a t echnical service or specialised w
ork-
shop.
If the engine oil level is too low
You can get information about the correct en-
gine oil for your vehicle at your workshop.
If the recommended engine oil is not availa-
ble, in the event of an emergency you can
change the oil once with a maximum of 0.5 L
of the next oil until the next oil change:
Petrol engines: standard VW 504 00,
VW 502 00, VW 508 00, ACEA C3 or
API SN.
Diesel engines: standard VW 507 00,
VW 505 01, ACEA C3 or API CK-4.
Have the oil changed by a specialised work-
shop.
SEAT recommends using original SEAT oil to
guarantee high SEAT engine performance.
Engine oil additives
No type of additive should be mixed with the
engine oil. The deterioration caused by these
additives is not covered by the warranty. CAUTION
Take the following into account if you have
r efill

ed with an engine oil different to those –
– specified in the aforementioned standards,
or by your SEAT t
echnical service centr

e:

Practical tips
WARNING
Observe the safety warnings ››
› in Con-
tr ol and w

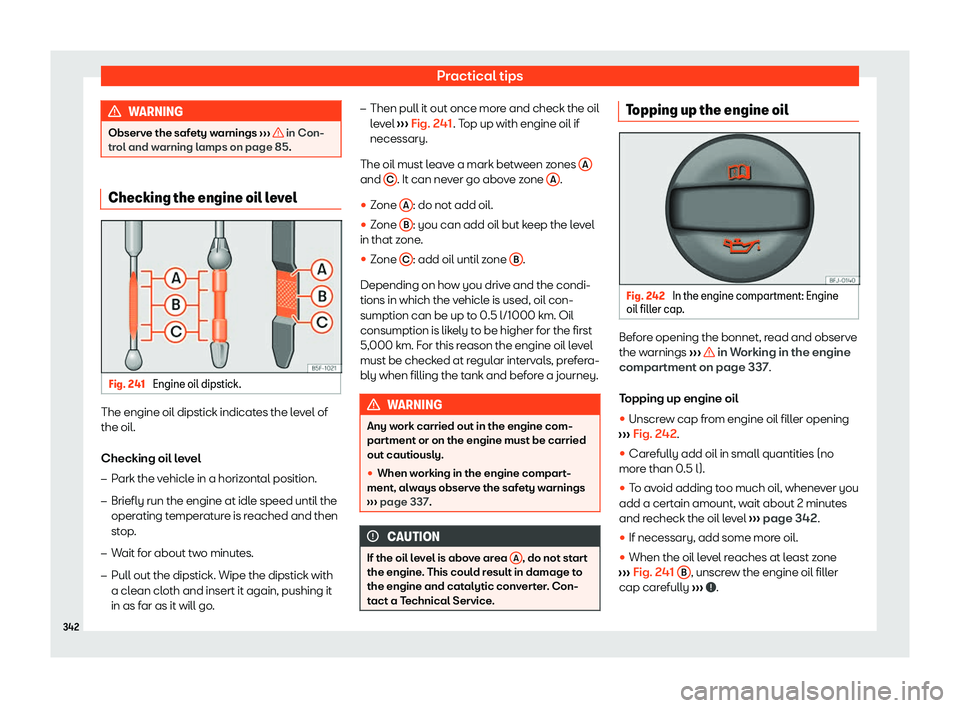

arning lamps on page 85. Checking the engine oil level
Fig. 241
Engine oil dipstick. The engine oil dipstick indicates the level of
the oil.
Checking oil l
e

vel

Checking and refilling levels
The position of the oil filler opening is shown
in the corr esponding engine compartment il
-
lustration ››› page 340
.
Engine oil specification ››› page 340
. WARNING
Oil is highly inflammable! Ensure that no oil
comes int o cont

act with hot engine compo-
nents when topping up. CAUTION
If the oil level is above area ››

› Fig. 241
A ,
do not st ar
t the engine. This could result in
damage to the engine and catalytic con-
verter. Contact a specialised workshop. For the sake of the environment
The oil level must never be above zone
› ›

› Fig. 241
A . Otherwise oil can be drawn in
thr ough the cr
ankcase breather and leak
into the atmosphere via the exhaust sys-
tem. Note
Before a long trip, we recommend finding
an engine oil that conf orms t

o the corre-
sponding VW specifications and recom-
mend keeping it in the vehicle. This way, the
correct engine oil will always be available
for a top-up if needed. Engine oil change
We recommend that you have the engine oil
changed by a T
echnical Service

. WARNING
Only change the engine oil yourself if you
hav e the specialist kno

wledge required!

Checking and refilling levels
Refilling coolant Fig. 244
In the engine compartment: marking
on cool ant e
xpansion tank. Fig. 245
Engine compartment: coolant expan-
sion t ank cap

. The coolant tank is located in the engine
compartment
››

› page 340
.
Top up coolant when the level is below the 
(minimum) mark. Checking coolant level

Practical tips

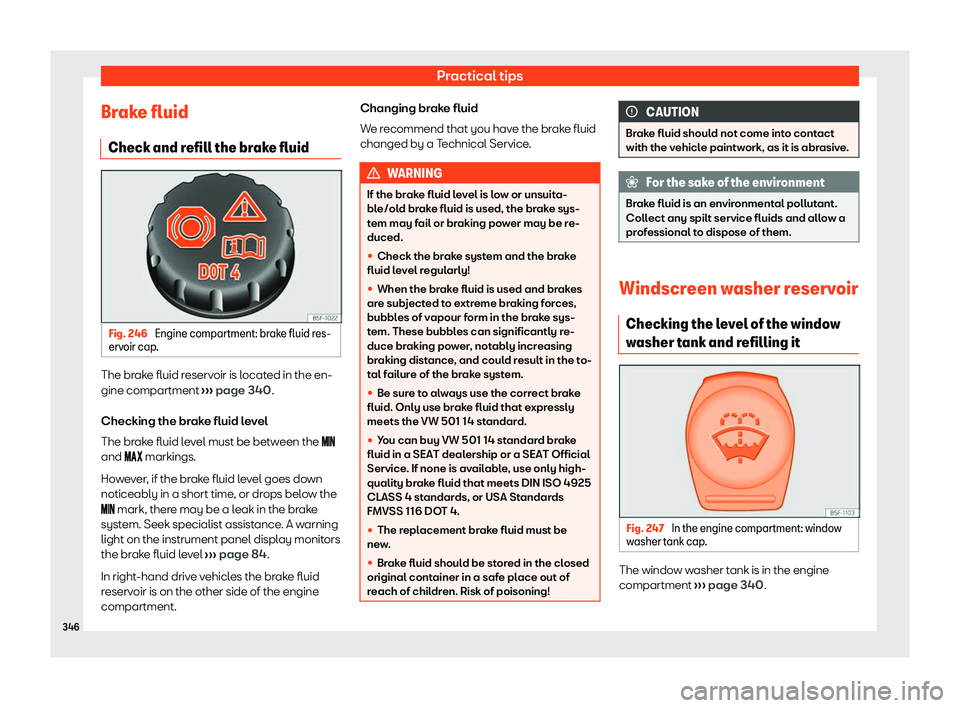

Brake fluid Check and r efill the br
ake fluidFig. 246
Engine compartment: brake fluid res-
erv oir cap

. The brake fluid reservoir is located in the en-
gine compartment
››

› page 340
.
Checking the brake fluid level
The brake fluid level must be between the 
and  markings.
However, if the brake fluid level goes down
noticeably in a short time, or drops below the mark, there may be a leak in the brake system. Seek specialist assistance. A warning
light on the instrument panel display monitors
the brake fluid level ››› page 84
.
In right-hand drive vehicles the brake fluid
reservoir is on the other side of the engine
compartment. Changing brake fluid
We r

ecommend that you have the brake fluid
changed by a Technical Service. WARNING
If the brake fluid level is low or unsuita-
bl e/ol

d brake fluid is used, the brake sys-
tem may fail or braking power may be re-
duced.
