Instruments and warning/control lamps
Digital dashboard (SEAT Digital Cockpit) Fig. 54
SEAT Digital Cockpit on the instrument
panel (cl assic vie
w). Details of the instruments:
Engine cool ant t
emperature display
››› page 80
Revolution counter. Revolutions per mi-
nute the engine is running ››› page 78
.
Gear engaged or position of the selec-
tor lever currently selected
Screen display ››› page 70
Speedometer
Digital speed display
Fuel gauge ››› page 79
.
Information Profile ››› page 67
.
1 2
3
4
5
6
7
8 The Digital SEAT Cockpit is an instrument
panel digit
al with monochr
ome screen in col-
our high resolution. It has a 3 views accessi-
ble using the button of the multifunction
st eering wheel. By sel
ecting different infor-
mation profiles, indications other than the
classic circular instruments can be displayed,
such as navigation data, multimedia informa-
tion or travel data.
The 3 views are:
Instruments and warning/control lamps

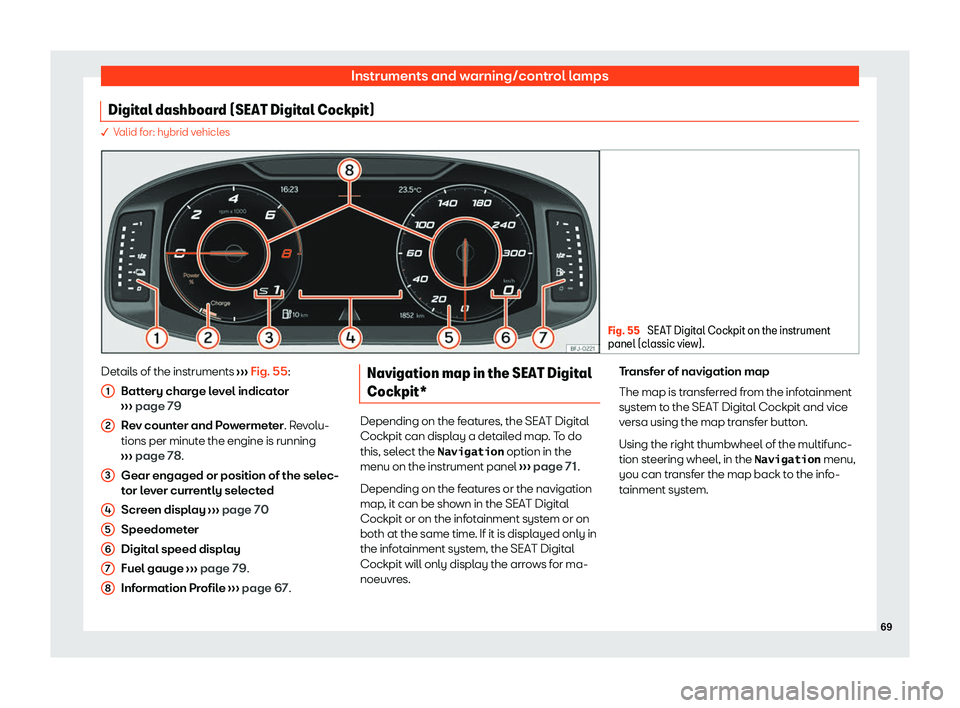

Digital dashboard (SEAT Digital Cockpit) V
alid for: hybrid vehicles Fig. 55
SEAT Digital Cockpit on the instrument
panel (cl assic vie
w). Details of the instruments
››
› Fig. 55
:
Battery charge level indicator
››› page 79
Rev counter and Powermeter. Revolu-
tions per minute the engine is running
››› page 78.
Gear engaged or position of the selec-
tor lever currently selected
Screen display ››› page 70
Speedometer
Digital speed display
Fuel gauge ››› page 79
.
Information Profile ››› page 67
.
1 2
3
4
5
6
7
8 Navigation map in the SEAT Digital
Cockpit*
Depending on the features, the SEAT Digital
Cockpit can displ
ay a det
ailed map. To do
this, select the N a v i g a t i o n option in the
menu on the instrument panel ››› page 71
.
Depending on the features or the navigation
map, it can be shown in the SEAT Digital
Cockpit or on the infotainment system or on
both at the same time. If it is displayed only in
the infotainment system, the SEAT Digital
Cockpit will only display the arrows for ma-
noeuvres. Transfer of navigation map
The map is tr
ansf
erred from the infotainment
system to the SEAT Digital Cockpit and vice
versa using the map transfer button.
Using the right thumbwheel of the multifunc-
tion steering wheel, in the N a v i g a t i o n menu,
you can transfer the map back to the info-
tainment system.
69
