2020 Seat Tarraco warning

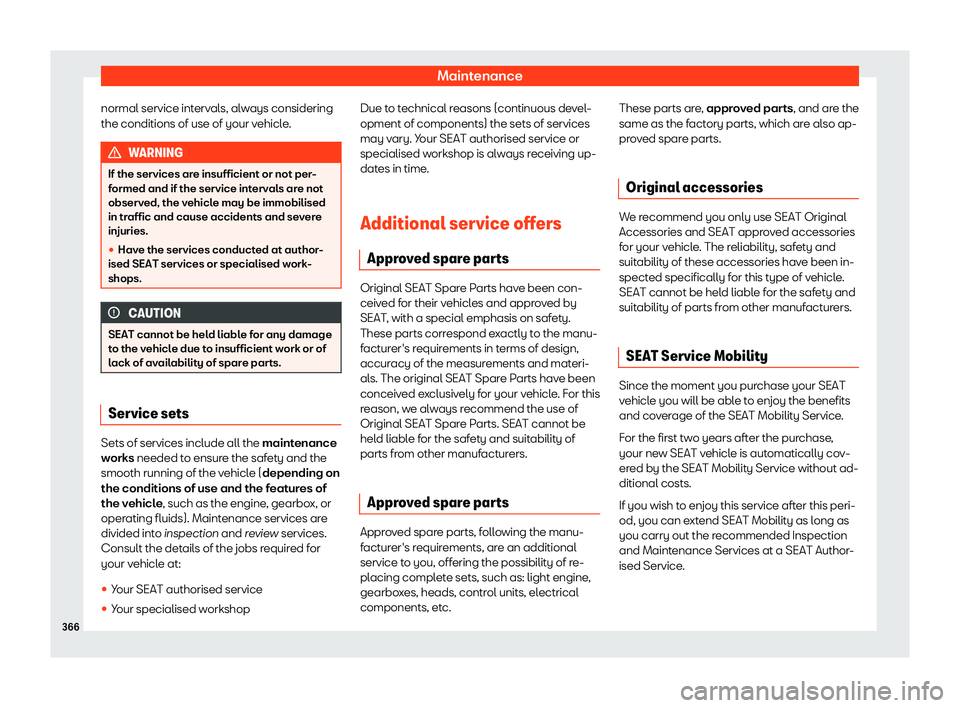

Maintenance
normal service intervals, always considering
the conditions of use of your v ehicl
e.WARNING
If the services are insufficient or not per-
f ormed and if the service int

ervals are not
observed, the vehicle may be immobilised
in traffic and cause accidents and severe
injuries.

Vehicle maintenance
If your SEAT vehicle is immobilised due to a
f ault or an accident, our assist
ance services
will help you keep moving.
Take into account that the SEAT Mobility
Service differs depending on the country in
which the vehicle was purchased. For further
information ask your SEAT dealership or the
SEAT website in your country.
Warranty
Fault
-free operation warranty SEAT Authorised Services ensure the perfect
condition of ne
w v

ehicles. Check the pur-
chase agreement or complementary addi-
tional documentation provided by your Tech-
nical Service to see the conditions and the
terms of the warranty. Consult further infor-
mation in this regard in your SEAT Official
Service.
Commercial warranty for the high-
volt
age battery of electric and hy-
brid vehicles of SEAT S.A. 1. Compl
ementing the aforementioned war-
r
anties, the seller SEAT dealer grants the
high-voltage batteries of the vehicles that it
has sold an 8-year or 160,000-km warranty, whichever comes first, for any material or fin-
ish defect.
2.

The reduction of the battery’s capacity
over time is conditioned by the component it-
self and does not represent a defect from a
warranty point of view.
3. The warranty for high-voltage batteries will
be invalidated when the defect is due to use,
handling or maintenance not in accordance
with the content of the instruction manual.
This is particularly applicable the battery
charge.
4. In addition, except for the duration of the
warranty, all conditions relating to the legal
warranty of the SEAT dealer (requirements,
criteria for assessing the absence of defects,
exclusion grounds, processing of entitlements
to benefits, entry into force, start and scope
of the warranty validity period, etc.) shall ap-
ply in relation to the high-voltage battery. Vehicle maintenance
Maint enance and cl
eaning
Basic observations Regular and careful care helps to maintain
the v
alue of your v

ehicle. In addition, it may
become a prerequisite to demand the war-
ranty in the event of corrosion damage and
deficiencies in the paint coat of the body-
work.
Specialised workshops have the necessary
care products. Please follow the instructions
for application on the packaging. WARNING

Maintenance
Washing the vehicle The longer you take to clean the tanks, e.g.
r
emains of insects, bir
d excrements, tree resin
or anti frost salt adhered to your vehicle, the
more damage it can cause to the surface.
High temperatures, for instance strong sun-
light, further intensify the damage.
Before washing the car, soften the dirt using
plenty of water.
To remove encrusted dirt such as insects, bird
droppings or tree resin, use a lot of water and
a microfibre cloth.
Have the underside of the vehicle washed af-
ter the end of the anti frost salts in winter.
High pressure cleaning equipment
When washing the vehicle with a high-pres-
sure cleaner, always follow the operating in-
structions for the equipment. This applies
particularly to the operating pressure and the
distance between the spraying water. Do not
aim the jet directly to the side window gas-
kets, doors, covers or the panoramic sun-
roof*; the same applies to tyres, rubber ho-
ses, soundproofing material, sensors* or
camera lenses*. Keep a distance of at least
40 cm.
Do not remove snow and ice with a high-
pressure cleaner. Do not use a nozzle that sprays the water out
in a dir
ect str

eam or one that has a rotating
jet for forcing off dirt.
The water temperature must not exceed
60°C.
Automatic car washes
Spray the vehicle before starting the car
wash.
Make sure that the windows and the panor-
amic sunroof* are closed and the windscreen
wipers are deactivated. Bear in mind the in-
structions of the car wash tunnel operator,
especially if your vehicle has detachable
parts.
Use of car washes without brushes if possible.
Washing by hand
Clean your vehicle from top to bottom with a
soft sponge or with a brush. Only use clean-
ing products that do not contain solvents.
Washing vehicles with a matte paint by
hand
To prevent damage to the vehicle when
washing it, first remove the thicker dust and
dirt. To remove traces of insects, grease and
fingerprints, it is best to use a special cleaner
for matte paint. Apply the product with a microfibre cloth. To
avoid damaging the surf
ace of the paint, do
not apply too much pressure.
Rinse with plenty of water. Then clean it with
a neutral cleaning product and a soft microfi-
bre cloth.
Rinse the vehicle again with plenty of water
and then leave it to dry. Remove traces of
water with a leather cloth. WARNING

Accessories and modifications to the vehicle
Accessories and modifi-
cations t o the v
ehicle
Accessories, spare parts and
repair work Introduction Always ask your dealer or specialist retailer
f
or advice bef

ore purchasing accessories
and replacement parts.
Your vehicle is designed to offer a high stand-
ard of active and passive safety. For this rea-
son, we recommend that you ask a SEAT Offi-
cial Service for advice before fitting accesso-
ries or replacement parts. Your SEAT Official
Service has the latest information from the
manufacturer and can recommend accesso-
ries and replacement parts which are suita-
ble for your requirements. They can also an-
swer any questions you might have regarding
official regulations.
We recommend only using SEAT accesso-
ries and genuine SEAT parts®. SEAT has
tested these parts and accessories for suita-
bility, reliability and safety. SEAT Official
Services have the necessary experience and
facilities to ensure that the parts are installed
correctly and professionally. Any r
etro-fitted equipment which has a di-
r
ect effect on the vehicle and/or the way it is
driven, such as a cruise control system or
electronically-controlled suspension, must
be approved for use in your vehicle and bear
the e mark (the European Union's authorisa-
tion symbol).
If any additional electrical devices are fit-
ted which do not serve to control the vehicle
itself (for instance a refrigerator box, laptop
or ventilator fan, etc.), they must bear the &
sign (manufacturer conformity declaration in
the European Union). WARNING
Accessories, for example telephone hold-
ers or cup hol ders, shoul

d never be fitted
on the covers, or within the working range
of the airbags. Otherwise, there is a danger
of injury if the airbag is triggered in an acci-
dent. Technical modifications
Unauthorised modifications to the electronic
components, softw
ar

e, wiring or data transfer
in the vehicle may cause malfunctioning.
You will appreciate that your SEAT dealership
cannot be held liable for any damage
caused by modifications and/or work per-
formed incorrectly. For this reason we recommend asking official
SEAT service centres t

o do any necessary
work using genuine SEAT parts®. WARNING
Incorrectly performed modifications or
other w ork on your v

ehicle can lead to mal-
functions and cause accidents. Radio telephones and office equip-
ment
Radio transmitters (fixed installation)
Any r
etr

ofit installations of radio transmitters
in the vehicle require prior approval. SEAT
generally authorises in-vehicle installations
of approved types of radio transmitters provi-
ded that:

Indications about the technical data
Empty weight, total weight, axle loads
The empt y w
eight of the vehicle with driver
(75 kg) was calculated according to the (EU)
1230/2012 standard. Optional equipment can
increase the empty weight, which means that
the possible useful load decreases propor-
tionally.
Trailer weight
The maximum permitted drawbar load on the
ball head of the towing bracket is 80 kg. WARNING
The values indicated for the maximum per-
mitt ed w

eights must not be exceeded.
There is a risk of accident and damage! 381

Index
Index
Numbers and Symbol s
12-v
olt battery
assisted start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
charge level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
disconnect and connect . . . . . . . . . . . . . . 82, 347
electrolyte level . . . . . . . . . . . . . . . . . . . . . . . . . . 350
energy management . . . . . . . . . . . . . . . . . . . . . . 351
replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
winter operations . . . . . . . . . . . . . . . . . . . . . . . . . 347
4Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
A
ABS see Anti-lock brake system . . . . . . . . . . . . . . . . 278
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Access aid for the third row . . . . . . . . . . . . . . . . . . 134
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155, 373
Activating SEAT CONNECT . . . . . . . . . . . . . . . . . . 183
Active cylinder management (ACT) status indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Adapting the playback volume . . . . . . . . . . . . . . 178
Adaptive Cruise Control . . . . . . . . . . . . . . . . . . . . 254 control and warning lamp . . . . . . . . . . . . . . . . . 256
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
special driving situations . . . . . . . . . . . . . . . . . . 257
status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
system limitations . . . . . . . . . . . . . . . . . . . . . . . . . 259 AdBlue
control and w arning lamps . . . . . . . . . . . . . . . . 333
information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
minimum filling capacity . . . . . . . . . . . . . . . . . . 333
specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Additional heating see Auxiliary heating . . . . . . . . . . . . . . . . . . . . . . 166
Adjust fold down the front passenger’s backrest . . 135
front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
seat with memory . . . . . . . . . . . . . . . . . . . . . . . . . 132
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Adjusting the seat belt . . . . . . . . . . . . . . . . . . . . . . . . 21
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
activating and deactivating . . . . . . . . . . . . . . . . 28
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
for the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
for the knees . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
deactivation of the front airbag . . . . . . . . . . . . 28
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
how it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Air conditioning
air recir culation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
manual air conditioning . . . . . . . . . . . . . . . . . . . 160
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Alternator warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Android Auto™ Disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
establish connection . . . . . . . . . . . . . . . . . . . . . . 190
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
special characteristics . . . . . . . . . . . . . . . . . . . . 190
Anti-lock brake system . . . . . . . . . . . . . . . . . . . . . . 278
Anti-puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44, 45
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . . . 43, 44 check after 10 minutes . . . . . . . . . . . . . . . . . . . . . 46
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
inflating the tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
sealing the tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Anti-puncture set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . 101 trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309, 310
Anti-trap function sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
sunshade blind (glass roof) . . . . . . . . . . . . . . . . 114
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Apple CarPlay Disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
establish connection . . . . . . . . . . . . . . . . . . . . . . 189
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
387

Index
requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
special char act
eristics . . . . . . . . . . . . . . . . . . . . 189
Applications (apps) . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Aspects to think about before starting the ve- hicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ASR see Traction control system . . . . . . . . . . . . . . . 278
Assistance systems adaptive cruise control . . . . . . . . . . . . . . . . . . . 254
assisted parting system (Park Assist) . . . . . . 282
Auto Hold function . . . . . . . . . . . . . . . . . . . . . . . . . 277
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
driver alert system . . . . . . . . . . . . . . . . . . . . . . . . . . 74
driving assist (Travel Assist) . . . . . . . . . . . . . . . 264
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . 267
emergency braking (Front Assist) . . . . . . . . . . 251
front camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
front radar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
general notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
hill descent control (HDC) . . . . . . . . . . . . . . . . 235
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
lane departure warning (Side Assist) . . . . . . 268
parking aid Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
peripheral view system (Top View Cam- era) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
PreCrash system . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
proactive speed adjustment . . . . . . . . . . . . . . 260
rear camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
rear cross traffic alert (RCTA) . . . . . . . . . 268, 272
rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
rear radar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
road sign detection system messages . . . . . . 75
safety advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243 speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
system limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
44
Trailer assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Tyre pressure monitor indicator . . . . . . . . . . . 360
Tyre pressure monitoring . . . . . . . . . . . . . . . . . . 360
ultrasound sensors . . . . . . . . . . . . . . . . . . . . . . . . 246
Assisted start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Audible warning control and warning lamps . . . . . . . . . . . . . . . . . 84
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
unbuckled seat belt . . . . . . . . . . . . . . . . . . . . . . . . . 17
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Auto Hold Function . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Auto Lock (central locking) . . . . . . . . . . . . . . . . . . . 95
Automatic car wash . . . . . . . . . . . . . . . . . . . . . . . . . 368 disconnecting the Auto Hold function . . . . . . 277
Automatic dipped beam headlight control . . . 115
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 228 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
downhill assistant . . . . . . . . . . . . . . . . . . . . . . . . . 233
driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
emergency release of the selector lever. . . 234
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
launch-control program . . . . . . . . . . . . . . . . . . . 232
operating fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
parking lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
selector lever lock . . . . . . . . . . . . . . . . . . . . . . . . . 229
selector lever positions . . . . . . . . . . . . . . . . . . . . 228
steering wheel with shift paddles . . . . . . . . . 230
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228, 230
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Auxiliary heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167electricity consumers . . . . . . . . . . . . . . . . . . . . . 166
progr
amming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
radio-operated remote control . . . . . . . . . . . . 169
remote control range . . . . . . . . . . . . . . . . . . . . . . 169
special characteristics . . . . . . . . . . . . . . . . . . . . 166
Average fuel consumption . . . . . . . . . . . . . . . . . . . . 67
B Backrest of the rear seat folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
raise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Bag hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146, 154
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 change on the remote control (independ-ent heating) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Battery Manager Menu . . . . . . . . . . . . . . . . . . . . . . 319
Before starting the vehicle . . . . . . . . . . . . . . . . . . . . . 12
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Bicycle carrier fitting onto the coverable tow hook . . . . . . . . 314
max. load rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Blown bulbs change a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337, 340
opening and closing . . . . . . . . . . . . . . . . . . . . . . 338
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274 brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
braking assistant . . . . . . . . . . . . . . . . . . . . . . . . . . 278
electronic parking brake . . . . . . . . . . . . . . . . . . 275
388

Index
emergency brake function . . . . . . . . . . . . . . . . 276
ne w br
ake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Braking assistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Braking system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
C Camera cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Care see Cleaning the vehicle . . . . . . . . . . . . . . . . . . 367
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . 336
Central armrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
central locking switch . . . . . . . . . . . . . . . . . . . . . . 97
emergency lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
remote control key . . . . . . . . . . . . . . . . . . . . . . . . . 96
selective unlocking system . . . . . . . . . . . . . . . . . 96
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
unlock and lock the vehicle (Keyless Ac- cess) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Cetane index (diesel fuel) . . . . . . . . . . . . . . . . . . . 333
Change a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Change the wiper blades . . . . . . . . . . . . . . . . . . . . . 51
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
subsequent work . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
wheel nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Changing parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Charging cable for charging stations (AC) . . . . . . . . . . . . . . . . . 327
for sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Charging socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322 Charging the high-voltage battery
charging cabl e . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
charging modes . . . . . . . . . . . . . . . . . . . . . . . . . . 320
charging process display . . . . . . . . . . . . . . . . . 324
charging socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
emergency unlocking . . . . . . . . . . . . . . . . . . . . . 325
programmed charging . . . . . . . . . . . . . . . . . . . . 319
settings in the infotainment system . . . . . . . . 319
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . . 340
Check lists requirements for Android Auto™ . . . . . . . . . . . 189
requirements for Apple CarPlay . . . . . . . . . . . 188
requirements for MirrorLink® . . . . . . . . . . . . . . 190
reverse assist (Rear View) . . . . . . . . . . . . . . . . . 304
Childproof locks electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Child seats group classification . . . . . . . . . . . . . . . . . . . . . . . . 32
ISOFIX/i-Size system . . . . . . . . . . . . . . . . . . . . . . . 38
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 33
securing with the seat belt . . . . . . . . . . . . . . . . . 40
Top Tether system . . . . . . . . . . . . . . . . . . . . . . 36, 39
Cleaning the vehicle high pressure cleaning equipment . . . . . . . . 368
special care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
vehicle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
vehicle interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
wash the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Climate control auxiliary heating . . . . . . . . . . . . . . . . . . . . . . . . . . 166
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 setting the temperature . . . . . . . . . . . . . . . . . . . 162
windscreen heating . . . . . . . . . . . . . . . . . . . . . . .
165
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Clocks set the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
sunshade blind (glass roof) . . . . . . . . . . . . . . . . 113
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Clutch (lamp) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 WLAN access point . . . . . . . . . . . . . . . . . . . . . . . . 191
Connectivity Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Connectors faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Control and warning lamps . . . . . . . . . . . . . . . . . . 84 adaptive cruise control . . . . . . . . . . . . . . . . . . . 256
adBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
anti-lock brake system ABS . . . . . . . . . . . . . . . 278
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278, 280
audible warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
cruise control (GRA) . . . . . . . . . . . . . . . . . . . . . . . 247
diesel preheating system . . . . . . . . . . . . . . . . . 335
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
electric drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
electromechanical steering . . . . . . . . . . . . . . . 237
electronic parking brake . . . . . . . . . . . . . . . . . . 273
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . 268
389
