Driving

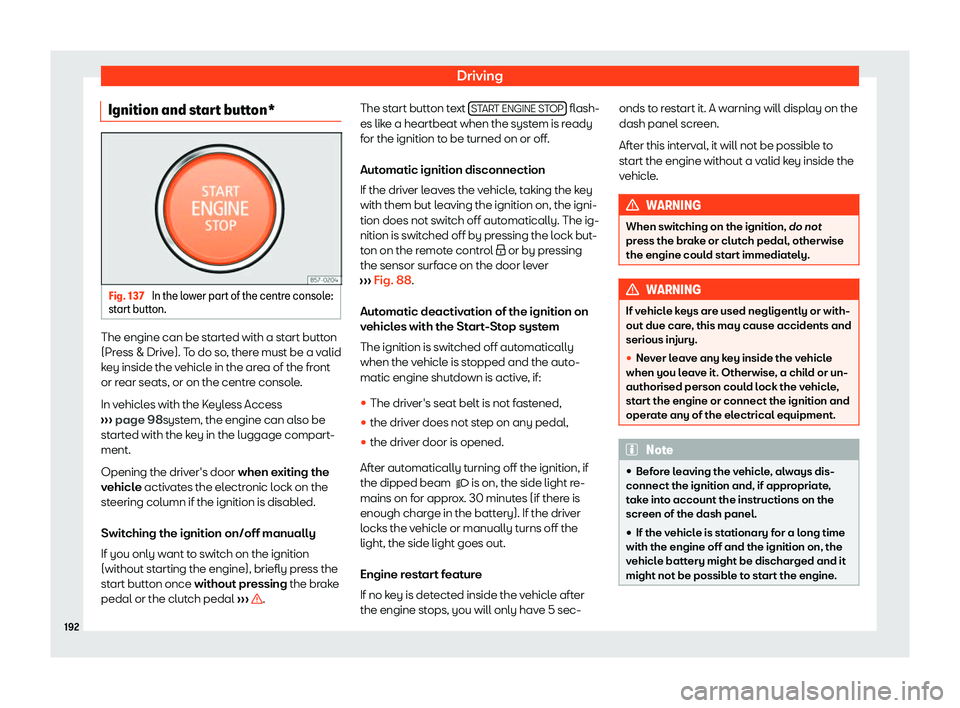

Ignition and start button* Fig. 137
In the lower part of the centre console:
st art butt
on. The engine can be started with a start button
(Pr
ess & Driv

e). To do so, there must be a valid
key inside the vehicle in the area of the front
or rear seats, or on the centre console.
In vehicles with the Keyless Access
››› page 98system, the engine can also be
started with the key in the luggage compart-
ment.
Opening the driver's door when exiting the
vehicle activates the electronic lock on the
steering column if the ignition is disabled.
Switching the ignition on/off manually
If you only want to switch on the ignition
(without starting the engine), briefly press the
start button once without pressing the brake
pedal or the clutch pedal ››› .The start button text
ST

ART ENGINE STOP flash-
es lik e a heartbeat when the syst
em is ready
for the ignition to be turned on or off.
Automatic ignition disconnection
If the driver leaves the vehicle, taking the key
with them but leaving the ignition on, the igni-
tion does not switch off automatically. The ig-
nition is switched off by pressing the lock but-
ton on the remote control  or by pressing
the sensor surface on the door lever
››› Fig. 88.
Automatic deactivation of the ignition on
vehicles with the Start-Stop system
The ignition is switched off automatically
when the vehicle is stopped and the auto-
matic engine shutdown is active, if:

Driver assistance systems
Ultrasound sensors The bumpers are fitted with ultrasound sen-
sors t
o perf
orm the following functions:

Driver assistance systems
Radar sensors
The ACC uses the fr ont r
adar technology.
Read its maintenance instructions and infor-
mation about its limitations ››› page 211
. WARNING
The ACC’s technology cannot overcome
the syst em's inher

ent limitations or change
the laws of physics. If used negligently or
involuntarily, it may cause serious acci-
dents and injuries. The system is not a re-
placement for driver awareness.

Driving
Electronic differential lock (EDL)*
When the EDL det ects wheel
spin, it brakes
the spinning wheel and directs the power to
the other driven wheel. This function is active
up to approximately 100 km/h (62 mph).
To prevent the disc brake of the braked wheel
from overheating, the EDL cuts out automati-
cally if subjected to excessive loads. The ve-
hicle can still be driven. The EDL will switch on
again automatically when the brake has
cooled down.
Tractor-trailer sway mitigation*
If the vehicle is pulling a trailer, it will control
the following: tractor-trailers tend to sway.
When the swaying of the trailer is felt by the
vehicle and detected by the ESC, it will auto-
matically brake the towing vehicle within the
limits of the system and mitigate the sway.
Tractor-trailer sway mitigation is not available
in all countries ››› page 248
.
Electronic engine torque management
(XDS)*
When taking a curve, the driveshaft differen-
tial allows the outer wheel to turn at a higher
speed than the inner wheel. In this way, the
wheel that is turning faster (outer wheel) re-
ceives less drive torque than the inner wheel.
This may mean that in certain situations the
torque delivered to the inner wheel is too
high, causing the wheels to spin. On the other hand, the outer wheel is receiving a lower
drive t
orque than it could transmit. This can
cause a loss of grip on the drive axle, in this
case the front axle, which results in under-
steer or “lengthening” of the trajectory.
The XDS can detect and correct this effect
via the sensors and signals of the ESC.
Via the ESC, the XDS will brake the inside
wheel and counter the excess driving torque
of that wheel. This means that the requested
trajectory is much more precise.
XDS works in combination with the ESC and is
always active, even when ASR is disconnec-
ted, or when the ESC is in Sport mode or dis-
connected.
Multi-collision brake
The multi-collision brake consists of automat-
ic braking activated by the Airbag control
unit. It is activated when, in the event of an
accident, the Airbag control unit detects de-
celerations above the activation level, and
braking is managed by the ESC system.
In the event of an accident, the multi-collision
brake can help the driver by braking to avoid
the risk of skidding during the accident and
causing other collisions.
The following actions control automatic brak-
ing during the accident:

Driving
Parking System Plus* Description Fig. 164
Parking aid view on the Infotainment
syst em displ
ay. Parking aid plus assists the driv
er by giving
visual and audio w
arnings about obstacles
detected in front of and behind the vehicle.
The bumpers are fitted with sensors. When an
obstacle is detected, it is indicated by audible
signals and in the Infotainment system
››› Fig. 164.
When moving close to an obstacle, it is possi-
ble to know if the obstacle is in front of the ve-
hicle or behind it by choosing different
sounds.
The approximate measurement range of the
sensors is:
1.20 m
A 0.60 m
1.
60 m
0.

60 m
As you approach the obstacle, the frequency
of the audible signals will increase. The signal
will sound continuously at around 0.30 m:
Stop!
If the separation is maintained, the warning
volume is reduced after about 4 seconds.
Parking Aid operation Fig. 165
Centre console: parking aid button
(depending on the v ersion). Manually connecting and disconnecting
the parking aid

Vehicle maintenance
special questions or parts that are not listed.
T ak
e he general considerations into account
››› in Take special care with... on
page 294.
Cleaning the exterior Windscreen wipers
Problem Solution
Dirt Soft cloth with wipersHeadlights / Tail lights
Problem Solution
Dirt Soft sponge with neutral soap
solutiona) a)
Neutral soap solution: two tablespoons maximum in
1 litr e of w

ater
Sensors / Camera lenses Problem Solution
Dirt Sensors: soft cl
oth with a sol
-
vent-free cleaning product
Camera lenses: soft cloth with
an alcohol-free cleaning prod-
uct
Snow/ice Hand brush/Anti frost spray
with no sol
v

ents Wheels
Problem Solution
Antifreeze salt Water
Brake abrasion
dust Acid-free special cleaning
product End exhausts
Problem Solution
Antifreeze salt Water, if a steel cleaning prod- uct is requir

ed Covers / Trims
Problem Solution
Dirt Neutral soap solutiona)
, if a
st eel cl

eaning product is re-
quired a)
Neutral soap solution: two tablespoons maximum in
1 litr e of w

ater
Paint Problem Solution
Paint flaws Check the paint

Information for the user
Radioelectrical
equipment fitt
ed
in the v
ehicle Addresses of the
manufact
urers
Radar sensors for as-
sist ance syst

ems ADC Automotive Distance
Contr
ol Syst

ems GmbH
Peter-Dornier-Stra
