In the event of a breakdown

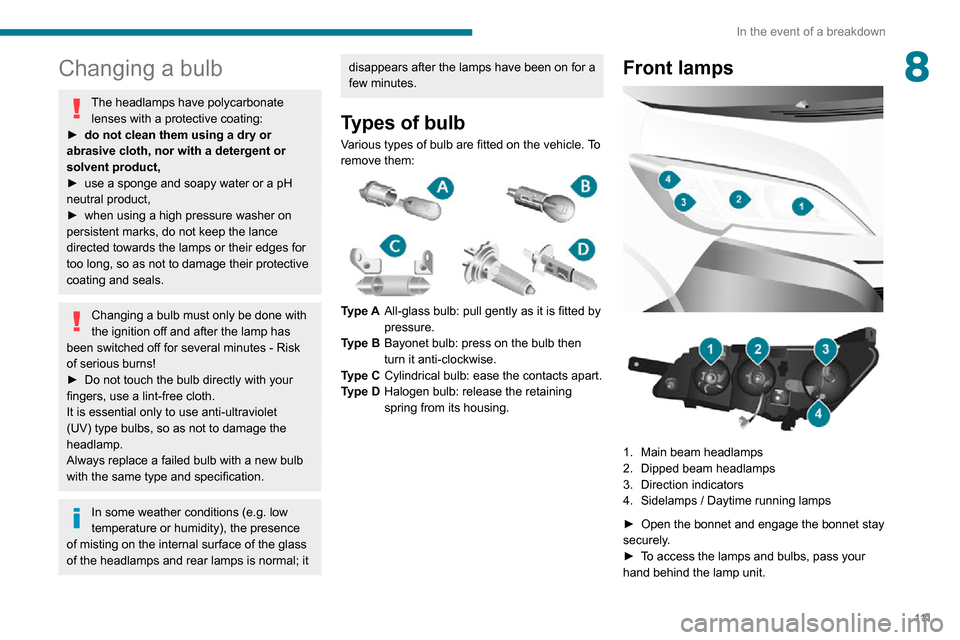

8Changing a bulb
The headlamps have polycarbonate lenses with a protective coating:
► do not clean them using a dry or
abrasive cloth, nor with a detergent or
solvent product,
► use a sponge and soapy water or a pH neutral product,► when using a high pressure washer on persistent marks, do not keep the lance
directed towards the lamps or their edges for
too long, so as not to damage their protective
coating and seals.
Changing a bulb must only be done with
the ignition off and after the lamp has
been switched off for several minutes - Risk
of serious burns!
► Do not touch the bulb directly with your fingers, use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb
with the same type and specification.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the glass
of the headlamps and rear lamps is normal; it
disappears after the lamps have been on for a
few minutes.
Types of bulb
Various types of bulb are fitted on the vehicle. To
remove them:
Type A All-glass bulb: pull gently as it is fitted by
pressure.
Type B Bayonet bulb: press on the bulb then
turn it anti-clockwise.
Type C Cylindrical bulb: ease the contacts apart.
Type D Halogen bulb: release the retaining
spring from its housing.
Front lamps
1.Main beam headlamps
2. Dipped beam headlamps
3. Direction indicators
4. Sidelamps / Daytime running lamps
► Open the bonnet and engage the bonnet stay securely.► To access the lamps and bulbs, pass your hand behind the lamp unit.
11 2
In the event of a breakdown
If necessary, you can remove the lamp unit:
► Depending on the country of sale, remove the winter protection foam by sliding it sideways
towards the outside.
► Disconnect the electrical connector by removing its locking ring.► Remove the two fixing screws of the lamp unit.► Move the lamp unit towards the centre of the vehicle to extract it from its slides. Pay attention
to the bonnet stay on the left-hand side.
Main beam headlamps
Type D, H7 - 55W► Remove the cover by pulling on the rubber
tab.► Disconnect the electrical connector.
► Release the locking spring by pressing the central clamp.► Change the bulb taking care to align the metal part with the groove on the lamp.
Dipped beam headlamps
Type D, H7 - 55W► Remove the cover by pulling on the rubber tab.► Disconnect the electrical connector.► Release the locking spring by pressing the central clamp.► Change the bulb taking care to align the metal part with the grooves on the lamp.
Direction indicators
Type A, WY21W - 21W► Remove the cover by pulling on the rubber tab.► Turn the bulb holder a quarter turn anti-clockwise.► Change the bulb.
Sidelamps/Daytime running lamps
Type B, W21/5W - 21W and 5W► Remove the cover by pulling on the rubber tab.► Turn the bulb holder a quarter turn anti-clockwise.► Change the bulb.
LED daytime running lamps
These light-emitting diodes (LEDs) are used both
as daytime running lamps and as sidelamps.
If your vehicle is equipped with LED daytime
running lamps, contact a PEUGEOT dealer.
Front foglamps
Type D, H11-55W► Completely turn the wheel inwards.
