2020 PEUGEOT 5008 brake sensor

3
Contents


bit.ly/helpPSA


Lane positioning assist 143
Active Safety Brake with Distance Alert and
Intelligent emergency braking assistance
146
Distraction detection 149
Lane Departure Warning System 150
Active Lane Keeping Assistance 150
Blind Spot Monitoring System 154
Active Blind Spot Monitoring System 155
Parking sensors 155
Visiopark 1 - Visiopark 2 157
Park Assist 161
7Practical information
Compatibility of fuels 166
Refuelling 166
Misfuel prevention (Diesel) 167
Hybrid system 167
Charging the traction battery (Hybrid) 171
Towing device 173
Towing device with quickly detachable
towball
174
Roof bars 176
Snow chains 177
Very cold climate screen 178
Energy economy mode 179
Bonnet 179
Engine compartment 180
Checking levels 181
Checks 183
AdBlue® (BlueHDi) 185
Free-wheeling 187
Advice on care and maintenance 187
8In the event of a breakdown
Warning triangle 190
Running out of fuel (Diesel) 190
Tool kit 191
Temporary puncture repair kit 193
Spare wheel 196
Changing a bulb 201
Changing a fuse 205
12

V battery 210
Accessory batteries (Hybrid) 213
Towing the vehicle 215
9Technical data
Engine technical data and towed loads 219
Petrol engines 220
Diesel engines 222
Hybrid engines 225
Dimensions 226
Identification markings 227
10Bluetooth® audio system
First steps 228
Steering mounted controls 229
Menus 229
Radio 230
DAB (Digital Audio Broadcasting) radio 231
Media 232
Telephone 234
Frequently asked questions 237
11PEUGEOT Connect Radio
First steps 240
Steering mounted controls 241
Menus 242
Applications 243
Radio 243
DAB (Digital Audio Broadcasting) radio 245
Media 245
Telephone 247
Settings 250
Frequently asked questions 252
12PEUGEOT Connect Nav
First steps 254
Steering mounted controls 255
Menus 255
Voice commands 257
Navigation 260
Connected navigation 263
Applications 265
Radio 268
DAB (Digital Audio Broadcasting) radio 269
Media 270
Telephone 271
Settings 274
Frequently asked questions 275
 ■
Alphabetical index
Access to additional videos

24
Instruments
For more information on the "Multimedia"
application, refer to the "Audio equipment and
telematics" section.
"Telephone" menu
With the audio system switched on, this
menu allows you to make a call, view the
calls log or the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.
"Connections" menu
With the audio system on, this menu
allows a Bluetooth device (telephone,
media player) to be paired and the connection
mode
 
to   be   defined   (hands-free,   playing   audio  
files).
For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section.
"Personalisation-
configuration" menu
This menu gives access to the following functions:
–  "Define
  the   vehicle   parameters",
–

"Choice of language",
– 

"Display   configuration".
Defining the vehicle parameters
This menu allows the activation or deactivation
of the following equipment, depending on
version:
–
"Access to the vehicle" :
•


"Plip action".
For more information on the Remote control

,
and in particular the selective unlocking of the
driver's door, refer to the "Access" section.
–

"Comfort"
:
•  “Rear
  wipe   in   reverse   gear".
•  “Parking
  assistance".
•

"Fatigue Detection System".
For more information on the


W
iper control
stalk,
  refer   to   the   “Lighting   and   visibility”   section.
For more information on the

Parking sensors

or the Fatigue detection system, refer to the
“Driving”
  section.
–

"Driving assistance" :
•


"Auto. emergency braking" (Active Safety
Brake).
•


"Speed recommendation" (Road signs
recognition).
• 

"Tyre   inflation"   (Tyre   under-inflation  
detection).
For more information on the


Active Safety
Brake ,

the Road signs recognition or the
Tyre
under-inflation detection ,
  refer   to   the   “Driving”  
section.
Choice of language
This menu allows selection of the language used
by the screen and the instrument panel.
Display configuration
This menu gives access to the following settings:
– "Choice of units",
–

"Date and time adjustment",
–


"Display parameters",
–

"Brightness".
Adjusting the date and time
►  Press
  the   "7" or "8" button to display the
"Display
  configuration"   menu,   then   press  
OK
.
►  Press
  the   "5" or "6" button to select the
"Date and time adjustment" button, then press
OK.
►  Press
  the   "7" or "8" button to select the
setting
  to   modify.   Confirm   by   pressing  
OK
, then
modify
  the   setting   and   confirm   again   to   save   the  
modification.
► 

Adjust   the   settings   one   by   one,   confirming  
with the

OK button.
►  Press
  the   "5" or "6" button, then the OK
button to select the OK
  box   and   confirm   or   the  
Back button to cancel.
As a safety measure, the driver must only
carry out operations that require
sustained attention when stationary.
Touch screen
This system gives access to the following elements:
–

Permanent display of the time and the exterior
temperature (a blue warning lamp appears if
there is a risk of ice).

11 4
Driving
Once the state of charge of the battery drops to
the reserve level, the system switches to energy
economy mode : the power supply is cut off
automatically to preserve the remaining battery
charge.
Starting the engine
With the parking brake applied:
► With a manual gearbox, place the gear lever
in neutral then fully depress the clutch pedal.
► With an automatic gearbox, place the gear
selector in mode N or P then fully depress the
brake pedal.
► Insert the key into the ignition switch; the
system recognises the code.
► Unlock the steering column by simultaneously
turning the steering wheel and the key.
In certain cases, you may have to apply
significant force to move the steering
wheel (wheels on full lock, for example).
► With a petrol engine , operate the starter
motor by turning the key to position 3 without
pressing the accelerator pedal, until the engine
starts. Once the engine starts, release the key.
With petrol engines , after a cold start,
preheating the catalytic converter can
cause noticeable engine vibrations for
anything up to 2 minutes while stationary with
the engine running (accelerated idle speed).

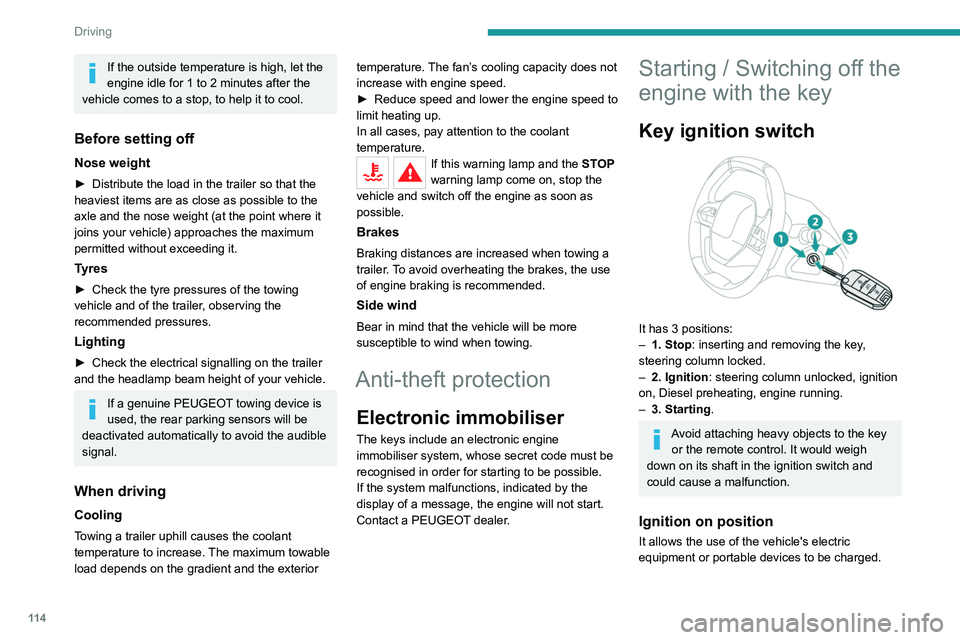

If the outside temperature is high, let the
engine idle for 1 to 2 minutes after the
vehicle comes to a stop, to help it to cool.
Before setting off
Nose weight
► Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle and the nose weight (at the point where it
joins your vehicle) approaches the maximum
permitted without exceeding it.
Tyres
► Check the tyre pressures of the towing
vehicle and of the trailer , observing the
recommended pressures.
Lighting
► Check the electrical signalling on the trailer
and the headlamp beam height of your vehicle.
If a genuine PEUGEOT towing device is
used, the rear parking sensors will be
deactivated automatically to avoid the audible
signal.
When driving
Cooling
Towing a trailer uphill causes the coolant
temperature to increase. The maximum towable
load depends on the gradient and the exterior temperature. The fan’s cooling capacity does not
increase with engine speed.
►

Reduce speed and lower the engine speed to
limit heating up.
In all cases, pay attention to the coolant
temperature.
If this warning lamp and the STOP
warning lamp come on, stop the
vehicle and switch off the engine as soon as
possible.
Brakes
Braking distances are increased when towing a
trailer. To avoid overheating the brakes, the use
of engine braking is recommended.
Side wind
Bear in mind that the vehicle will be more
susceptible to wind when towing.
Anti-theft protection
Electronic immobiliser
The keys include an electronic engine
immobiliser system, whose secret code must be
recognised in order for starting to be possible.
If the system malfunctions, indicated by the
display of a message, the engine will not start.
Contact a PEUGEOT dealer.
Starting / Switching off the
engine with the key
Key ignition switch

It has 3 positions:
– 1. Stop: inserting and removing the key ,
steering column locked.
–

2. Ignition : steering column unlocked, ignition
on, Diesel preheating, engine running.
–


3. Starting
.
Avoid attaching heavy objects to the key or the remote control. It would weigh
down on its shaft in the ignition switch and
could cause a malfunction.
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.

129
Driving
6Restarting the engine (START mode)
The engine automatically restarts as soon as the
driver indicates the intention of moving off again.
–
W
ith a manual gearbox: with the clutch pedal
fully depressed.
–

W
ith an automatic gearbox:
•

With the selector in position D

or M: with the
brake pedal released.
•

With the selector in position N

and the brake
pedal released: with the selector at D or M.
•

With the selector in position P

and the brake
pedal depressed: with the selector at R, N,
D or M.
Special cases
The engine will restart automatically if all
conditions for operation are met again and in the
following cases.
–

V
ehicle speed exceeds 16 mph (25 km/h) on
2.0 BlueHDi versions with automatic gearbox in
mode D, or 2 mph (3 km/h) on other versions.
–

The electric parking brake is being applied.
In these cases, this indicator lamp flashes
for a few seconds, then goes off.
Malfunctions
In the event of a malfunction, this warning
lamp flashes for a few moments, then
remains on, accompanied by an onscreen
message.
Have the vehicle checked by a PEUGEOT
dealer or a qualified workshop.
The vehicle stalls in STOP mode
All of the instrument panel warning lamps come
on if there is a fault.
►

Switch off the ignition then start the engine
again with the key or the " ST

ART/STOP" button.
The Stop & Start system requires a 12 V
battery of specific technology and
specification.
All work concerning the battery must be
carried out only by a PEUGEOT
dealer or a
qualified workshop.
Under-inflation detection
This system automatically checks the pressures of the tyres while driving.
It compares the information given by the wheel
speed sensors with reference values, which
must be reinitialised every time the tyre
pressures are adjusted or a wheel changed.
The system triggers an alert as soon as it
detects a drop in the inflation pressure of one or
more tyres.
Under-inflation detection does not
replace the need for vigilance on the part
of the driver.
This system does not avoid the need to
regularly check the tyre pressures (including
the spare wheel), especially before a long
journey.
Driving with under-inflated tyres, particularly
in adverse conditions (heavy load, high
speed, long journey):
–

worsens road-holding.
–


lengthens braking distances.
–


causes premature wear of the tyres.
–


increases energy consumption.
The inflation pressures defined for the vehicle can be found on the tyre pressure
label.
For more information on the Identification
markings, refer to the corresponding section.
Checking tyre pressures
This check should be done when the
tyres are "cold" (vehicle stopped for 1 hour or
after a journey of less than 6 miles (10
km) at
moderate speeds).
Otherwise, add 0.3 bar to the pressures
shown on the label.
Snow chains
The system does not have to be
reinitialised after fitting or removing snow
chains.
Under-inflation alert
This is signalled by the fixed illumination of this warning lamp, accompanied by an

161
Driving
6180° view

The 180° view assists with exiting from a parking
space in forward gear, making it possible to
see the approach of vehicles, pedestrians and
cyclists.
This view is not recommended for carrying out a
complete manoeuvre.
It consists of 3 areas: left A, centre B and right
C.
This view is available only from the view
selection menu.
Park Assist
Refer to the General recommendations on the
use of driving and manoeuvring aids .
This system provides active parking assistance:
it detects a parking space then operates the
steering system to park in this space.
With a
manual gearbox, the driver manages the
accelerator, brakes, gears and clutch.
With an automatic gearbox (EAT6/EAT8), the
driver manages the accelerator, brakes and
gears.
During phases of entry into and exit from a
parking space, the system provides visual and
audible information to the driver in order to make
the manoeuvres safe. Several forward and
reverse manoeuvres may be required.
At any time, the driver can take back control by
holding the steering wheel.


The Park Assist system provides assistance for
the following manoeuvres:
A. Entry into a "parallel" parking space
B. Exit from a "parallel" parking space
C. Entry into a "bay" parking space
The Park Assist system cannot operate
with the engine switched off.
When Park Assist is activated, it prevents
Stop & Start from going into STOP mode. In
STOP mode, activation of Park Assist restarts
the engine.
The Park Assist system takes control of the steering for a maximum of 4
manoeuvring cycles. It is deactivated after
these 4 cycles. If the vehicle is not positioned
correctly, take back control to complete the
manoeuvre.
The sequence of manoeuvres and the driving instructions are displayed in the
instrument panel.
The assistance is activated: the display of this symbol and a speed limit
indicate that the steering manoeuvres are
controlled by the system: do not touch the
steering wheel.
The assistance is deactivated: the display of this symbol indicates that the
steering manoeuvres are no longer controlled
by the system: take over the steering.
Activation of Park Assist deactivates the Blind Spot Monitoring System.
The Parking sensors function is not available during parking space
measurement. It intervenes later when
manoeuvring to warn that the vehicle is
approaching an obstacle: the audible signal

187
Practical information
7The system only registers AdBlue® top-ups of
5

litres or more.
If the AdBlue® tank is completely empty
– which is confirmed by the message
"Top up

AdBlue: Starting impossible" – it is
essential to add at least 5 litres.
Free-wheeling
In certain situations, you must allow the vehicle
to free-wheel (while being towed, on a rolling
road, in an automatic car wash, or being
transported by rail or sea freight, etc.).
The procedure varies according to the type of
gearbox and parking brake.
With a manual gearbox and
electric parking brake
/
Release procedure
► With the engine running and while depressing
the brake pedal, move the gear selector to the
neutral position.
►

While depressing the brake pedal, switch off
the ignition.
►


Release the brake pedal, then switch on the
ignition again.
►


While depressing the brake pedal, press the
control lever to release the parking brake. ►


Release the brake pedal, then switch off the
ignition.
Reverting to normal operation
► While depressing the brake pedal, start the
engine.
With an automatic gearbox
and electric parking brake
/
Release procedure
► With the vehicle stationary and the engine
running, select mode N and switch off the
ignition.
Within 5
seconds:
►

Switch on the ignition again.
►


While depressing the brake pedal, move the
push selector forwards or backwards to confirm
mode

N.
►

While depressing the brake pedal, press the
control lever to release the parking brake.
►


Release the brake pedal, switch off the
ignition.
If the 5-second time limit is exceeded, the
gearbox engages mode P

; it is then necessary to
restart the procedure.
Reverting to normal operation
► While depressing the brake pedal, restart the
engine.
Keyless Entry and Starting
You must not depress the brake pedal
while switching the ignition on or off. If you do,
the engine will start, requiring you to restart
the procedure.
Advice on care and maintenance
General recommendations
Observe the following recommendations to avoid
damaging your vehicle.
Exterior
Never use a high-pressure jet wash in
the engine compartment, due to the risk
of damaging electrical components.
Do not wash the vehicle in strong sunshine or
extremely cold conditions.
When washing the vehicle at an
automatic roller-brush car wash, be sure
to lock the doors and, depending on version,
remove the electronic key and deactivate the
“hands-free” function (“Hands-Free Tailgate
Access”).
When using a pressure washer, hold the
lance at least 30 cm from the vehicle
(particularly when cleaning areas containing
chipped paint, sensors or seals).

279
Alphabetical index
180° rear vision 159
A
ABS 90
Accelerated charging unit (Wallbox)
169
Accessories

87
Active Safety Brake

146–148
AdBlue®

18, 185
AdBlue® tank

186
Additive, Diesel

182–183
Adjusting headlamps

80
Adjusting head restraints

46
Adjusting seat

45, 47, 52–54
Adjusting the air distribution

60, 62–63
Adjusting the air flow

62–63
Adjusting the date

23–24, 251, 275
Adjusting the height and reach of
the steering wheel

49
Adjusting the lumbar support

45, 47
Adjusting the seat belt height

95
Adjusting the temperature

60–61
Adjusting the time

23–24, 251, 275
Advanced Grip Control

92
Advice on care and maintenance

168, 187
Advice on driving

7, 113
Airbags

97–101
Airbags, curtain

99–100
Airbags, front

98–99, 102
Airbags, lateral

98–99
Air conditioning

58–60, 63
Air conditioning, automatic 64
Air conditioning, digital
61, 64
Air conditioning, dual-zone automatic

61, 64
Air conditioning, manual

59, 64
Air conditioning, mono-zone

59, 64
Air intake

62, 64
Air vents

58
Alarm

34–35
Amplifier, audio

67
Android Auto connection

266
Anti-lock braking system (ABS)

90
Antitheft / Immobiliser

29
Apple CarPlay connection

247, 265
Applications

266
Armrest, front

68
Armrest, rear

71
Assistance call

88
Assistance, emergency braking

90, 148
Audible warning

88
Audio streaming (Bluetooth)

234, 246, 270
B
Backrest, folding 46
Battery
179
Battery, 12 V

183, 210–214
Battery, ancillaries

213
Battery, charging

167, 171, 211, 214
Battery (Hybrid)

168, 171
Battery, remote control

33–34
Blanking screen (snow shield)

178
Blind 42–43
Blind spot monitoring system, active
155
Blind spot sensors

154–155
Blinds, side

72
BlueHDi

18, 20, 182, 190
Bluetooth (hands-free)

234–235,
248–249, 271–272
Bluetooth (telephone)

248–249, 271–272
Bodywork

188
Bonnet

179–180
Boot

36–37, 40, 77
Boot (fittings)

73
Brake discs

184
Brake lamps

204
Brakes

184
Braking

125
Braking assistance system

90
Braking, automatic emergency

146–148
Braking, dynamic emergency

119–120
Brightness

250
Bulbs

203
Bulbs (changing)

201–202, 204–205
C
Cable, audio 270
Cable, Jack
270
Capacity, fuel tank

166
Cap, fuel filler

166
Care of the bodywork

188
CD

233, 246

283
Alphabetical index
Mirrors, door 49–50, 65, 154
Mirror, vanity
66
Misfuel prevention

167
Modularity, seats

57
Motor, electric

126, 167, 225
Motorised tailgate

37–38, 40
Mountings, ISOFIX

105
MP3 CD

233
N
Navigation 260–262
Navigation, connected
263–265
Net

73–74
Net, high load retaining

75–76
Number plate lamps

205
O
Obstacle detection 155
Oil change
181
Oil consumption

181
OIl, engine

181
On-board tools

76, 191–193
Opening the bonnet

179–180
Opening the boot

30, 36
Opening the doors

30, 36
Opening the windows

28
P
Pads, brake 184
Paint
188, 227
Paint colour code

227
Paint, matt

188
Parcel shelf, rear

71, 73
Park Assist

161–162
Parking brake, electric

118–120, 184
Parking sensors, audible and visual

155
Parking sensors, front

156
Parking sensors, rear

155
Personalisation

10
Plates, identification

227
Player, Apple®

234, 246, 270
Player, MP3 CD

233
Player, USB

232, 245, 270
Port, USB

67, 232, 245, 265, 270
Power

20
Power indicator

20
Pressures, tyres

184, 196, 227
Pre-tensioning seat belts

97
Priming pump

191
Priming the fuel system

190
Profiles

250, 274
Protecting children

98, 100–103,
105, 107, 110–111
Puncture

193–194, 196
Q
Quiet vehicle warning sound 88
R
Radar (warnings) 131
Radio
230–231, 243–244, 246, 268
Radio, digital (Digital Audio
Broadcasting - DAB)

231, 245, 269
Range, AdBlue®

18, 182
RDS

244, 268–269
READY lamp

179
Rear air blower

63
Rear screen, demisting

65
Rechargeable hybrid system

5, 26, 116, 126,
167
Recharging the battery

211, 214
Recirculation, air

62, 64
Recorder, total distance

20
Recovery

215–218
Recovery of the vehicle

216
Reduction of electrical load

179
Regeneration of the particle filter

183
Regenerative braking (deceleration
by engine braking)

125
Reinitialisation of the under-inflation
detection system

130
Reinitialising the remote control

34
Reminder, key in ignition

11 6
Reminder, lighting on

79
