2020 NISSAN ALTIMA display

[x] Cancel search: display

Page 219 of 559

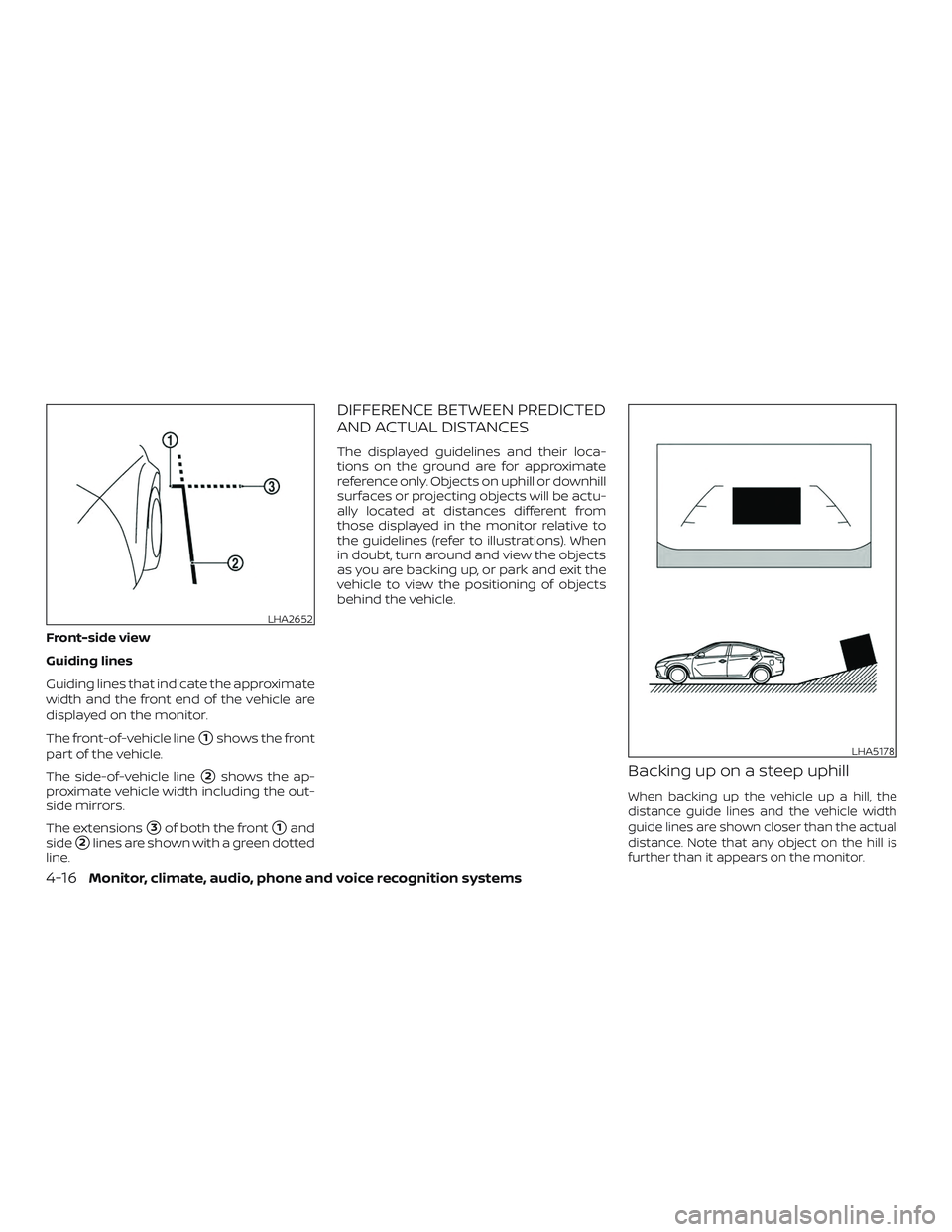

NISSAN ALTIMA 2020  Owner´s Manual Front-side view
Guiding lines
Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.
The front-of-vehicle line
1shows the front
part of the v

Page 220 of 559

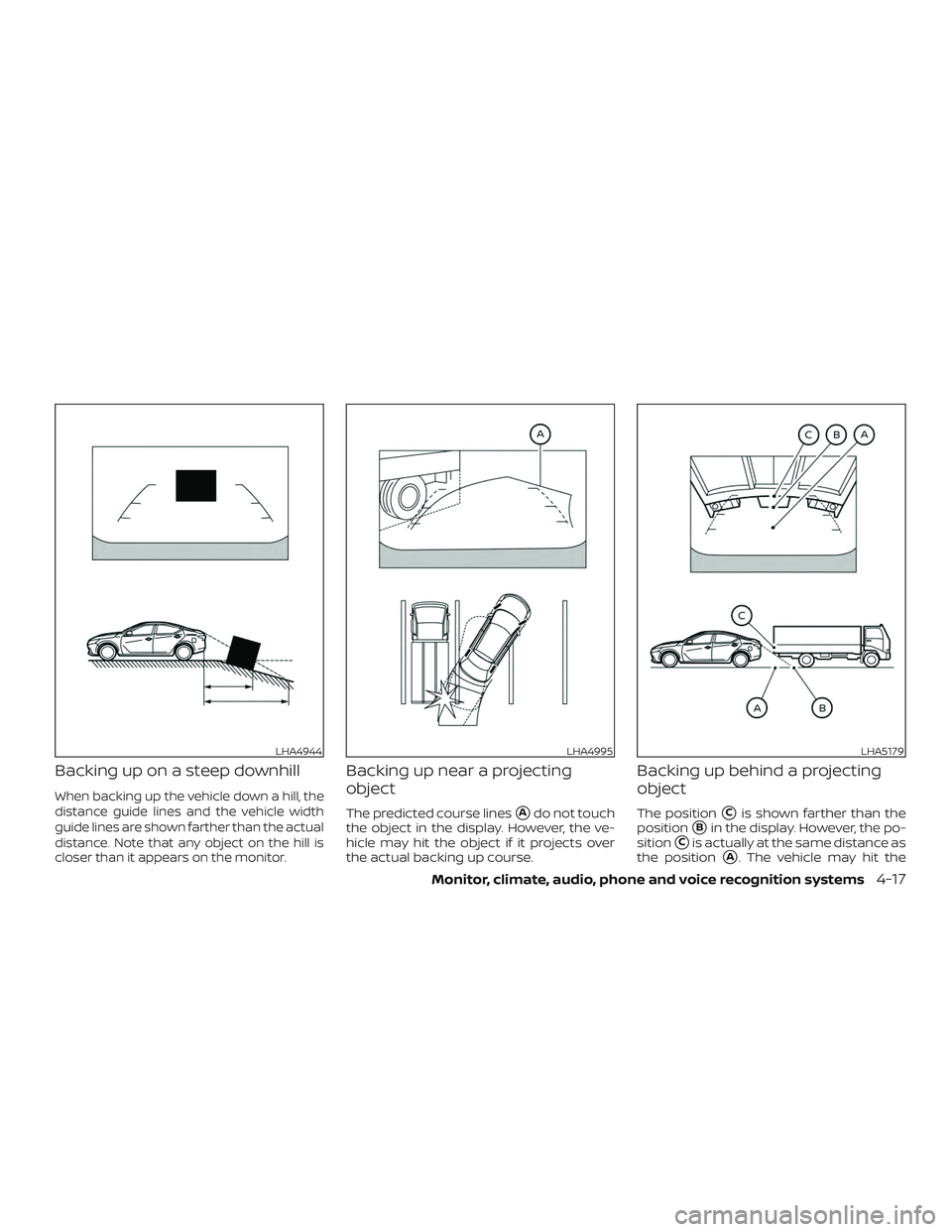

NISSAN ALTIMA 2020  Owner´s Manual Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on t

Page 221 of 559

NISSAN ALTIMA 2020  Owner´s Manual object when backing up to the positionA
if the object projects over the actual back-
ing up course.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
∙ If the tires are replaced with differentsized t

Page 222 of 559

NISSAN ALTIMA 2020  Owner´s Manual 4. Maneuver the steering wheel to makethe vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space complete

Page 223 of 559

NISSAN ALTIMA 2020  Owner´s Manual NOTE:
Do not adjust any of the display settings
of the Intelligent Around View Monitor
while the vehicle is moving. Make sure
the parking brake is firmly applied.
INTELLIGENT AROUND VIEW
MONITOR SYSTE

Page 224 of 559

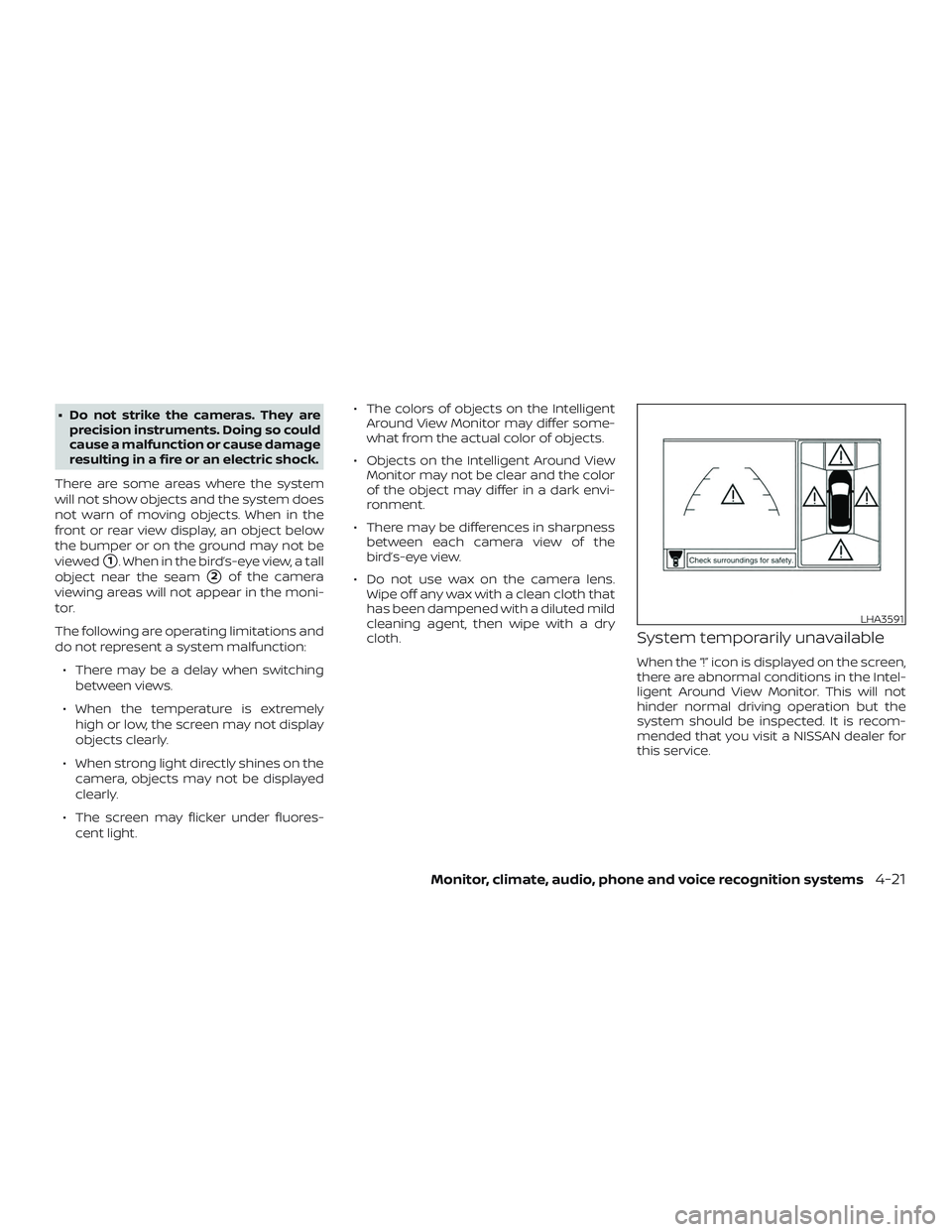

NISSAN ALTIMA 2020  Owner´s Manual ∙ Do not strike the cameras. They areprecision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.
There are some areas where the system
will no

Page 225 of 559

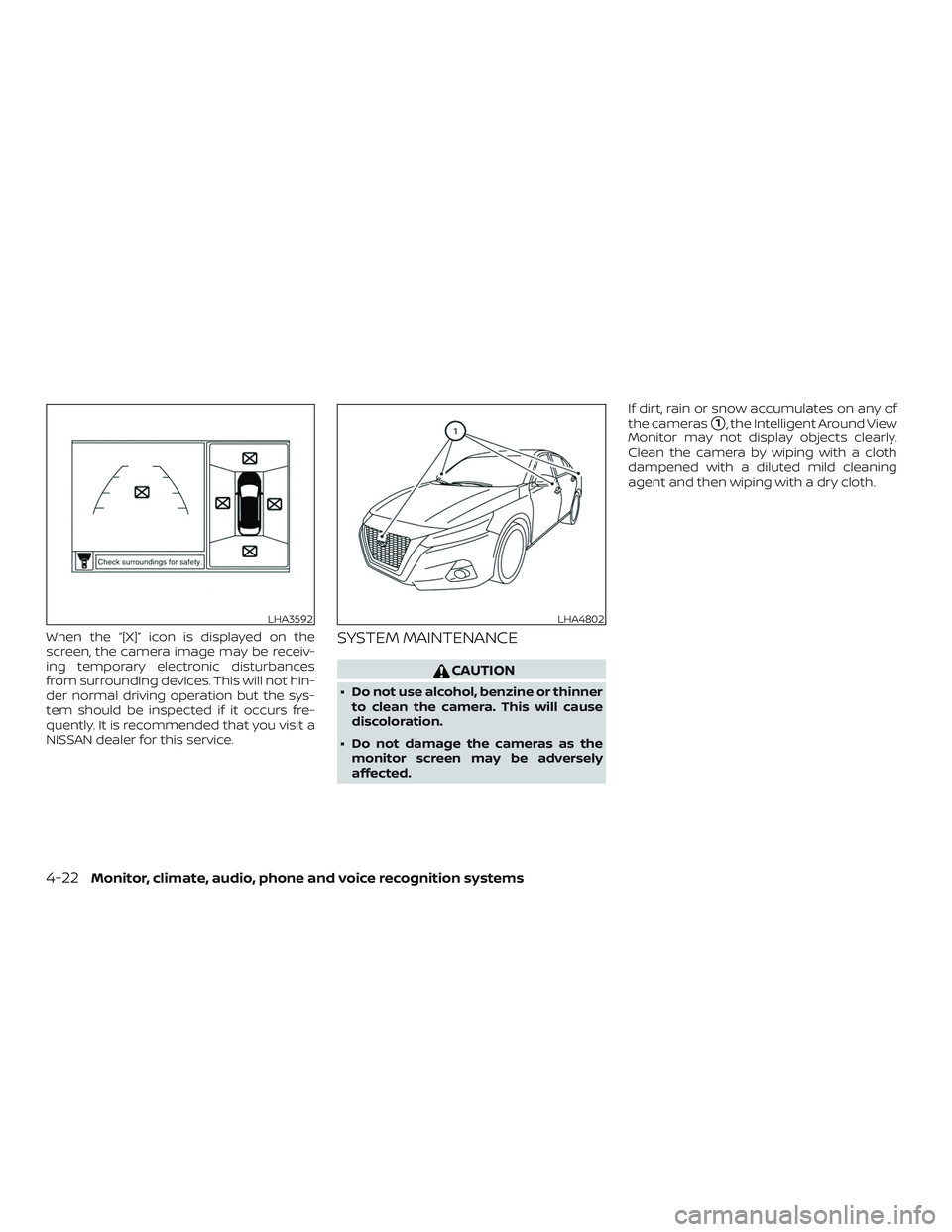

NISSAN ALTIMA 2020  Owner´s Manual When the “[X]” icon is displayed on the
screen, the camera image may be receiv-
ing temporary electronic disturbances
from surrounding devices. This will not hin-
der normal driving operation but

Page 227 of 559

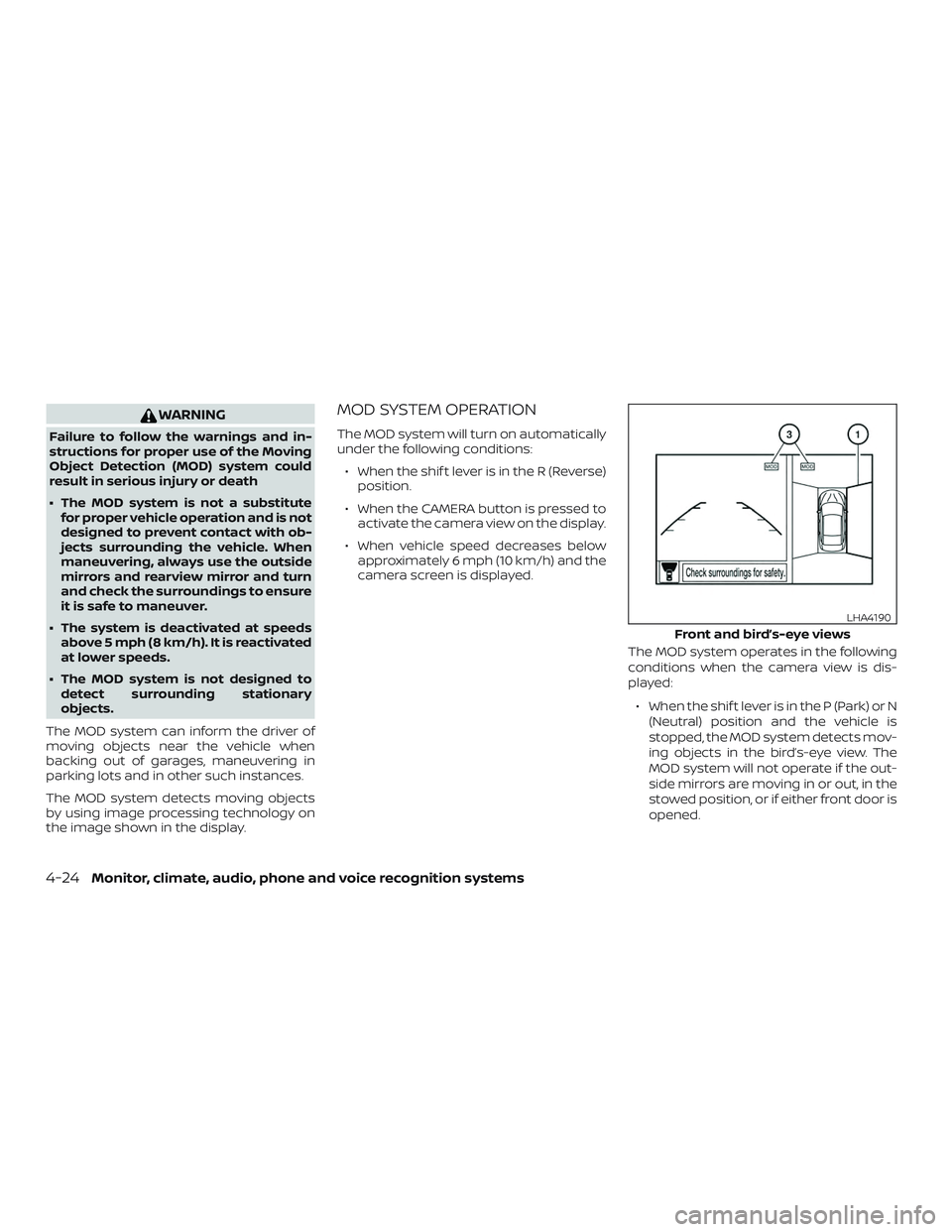

NISSAN ALTIMA 2020  Owner´s Manual WARNING
Failure to follow the warnings and in-
structions for proper use of the Moving
Object Detection (MOD) system could
result in serious injury or death
∙ The MOD system is not a substitutefor p
