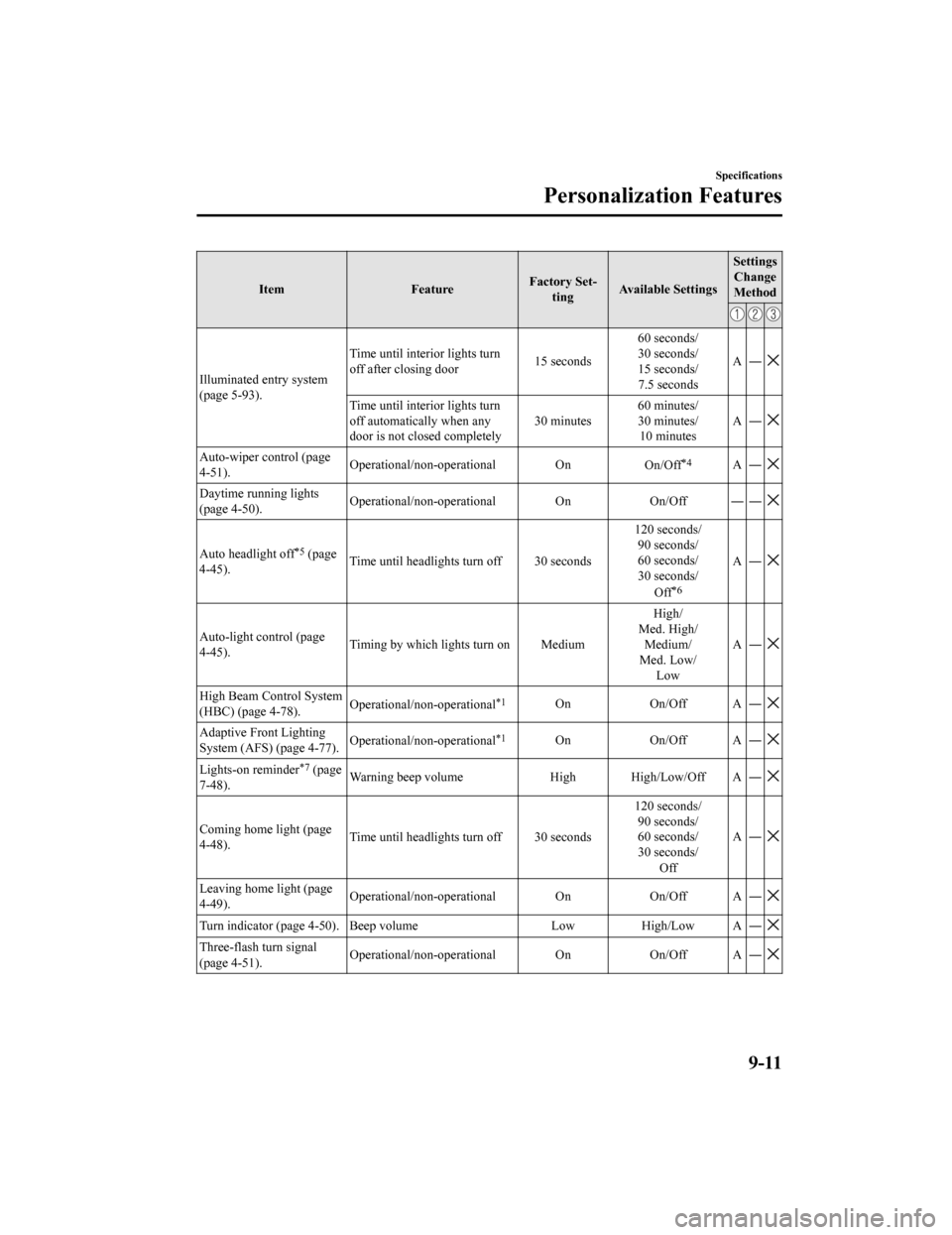

2020 MAZDA MODEL MX-5 Owners Manual (in English)

ItemFeatureFactory Set‐
ting Available Settings Settings
Change
Method
Illuminated entry system
(page 5-93). Time until interior lights turn
off after closing door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A―
Time until interior lights turn
off automatically when any
door is not closed completely
30 minutes60 minutes/
30 minutes/
10 minutes A―
Auto-wiper control (page
4-51).
Operational/non-operational On
On/Off*4A―
Daytime running lights
(page 4-50).Operational/non-operational On
On/Off ― ―
Auto headlight off*5 (page
4-45). Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
Off
*6
A―
Auto-light control (page
4-45). Timing by which lig
hts turn on Medium High/
Med. High/ Medium/
Med. Low/ Low A―
High Beam Control System
(HBC) (page 4-78).
Operational/non-operational*1On
On/Off A ―
Adaptive Front Lighting
System (AFS) (page 4-77). Operational/non-operational*1On
On/Off A ―
Lights-on reminder*7 (page
7-48). Warning beep volume
High High/Low/Off A ―
Coming home light (page
4-48).Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A―
Leaving home light (page
4-49).
Operational/non-operational On
On/Off A ―
Turn indicator (page 4-50). Beep volume LowHigh/Low A ―
Three-flash turn signal
(page 4-51). Operational/non-operational On
On/Off A ―
Specifications
Personalization Features
9-11
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

ItemFeatureFactory Set‐
ting Available Settings Settings
Change
Method
System
Language Language indicated in display English
Depends on market
*8A―
TemperatureTemperature unit indicated in
display °F
°F/°C A F
Distance Distance unit indicated in dis‐
play mi/km
mi/km A ―
Fuel Economy Monitor (page 4-69).
Ending display On/off OffOn/Off B ―
Fuel economy resetting
procedure*
Linkage/non-linkage with fuel
economy reset and trip meter A
reset Off
On/Off B ―
*1 Though these systems can be turned Off, doing so will defeat t he purpose of the system and Mazda
recommends that these systems remain On.
*2 Only the volume of the warning beep during Blind Spot Monitori ng (BSM) operation can be changed. The
volume of the warning beep durin g Rear Cross Traffic Alert (RCTA) operation cannot be changed.
*3 This system functions only when the navigation system is functioning.*4 If the auto-wiper control is set to Off, the wiper lever position is set to in termittent operation.*5 If the setting is changed to O ff, the following operation is performed according to the headlight switch
position:
At position: Headlights turn off immediately after the ignition is switched off.At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page
4-45
*6 When set to Off, the lights-on reminder is operable.*7 The setting of the lights-on re minder can be changed with the time setting of auto headlight off function set to
Off.
Refer to Lights-On Rem inder on page 7-48.
*8 Available only in display from the center display.
Specifications
Personalization Features
9-12*Some models.
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

10Index
10-1
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

Index
A
Accessory Socket.............................. 5-93
Adaptive Front Lighting System
(AFS)................................................. 4-77
Add-On Non-Genuine Parts and
Accessories........................................ 8-19
Advanced KeyAdvanced keyless entry system... 3-11
Operational range........................ 3-12
Air Bag Systems............................... 2-36
Air Bag/Seat Belt Pr etensioner System
Warning Beep.................................... 7-48
Ambient Temperature Display.......... 4-17
Antilock Brake System (ABS).......... 4-65
Audio Control Switch
Adjusting the Volume.................. 5-14
Seek Switch................................. 5-14
Audio Set Android Auto™........................... 5-43
Apple CarPlay™......................... 5-40
Applications................................. 5-78
AUX.............................................5-33
Bluetooth®.................................. 5-47
Radio............................................5-25
Satellite Radio............................. 5-29
Settings........................................ 5-76
Troubleshooting........................... 5-79
USB............................................. 5-34
Voice Recognition....................... 5-74
Volume/Display/Sound
Controls....................................... 5-23
Audio System
Antenna........................................5-17
Appendix..................................... 5-85
Audio Control Switch................. 5-14
Audio Set..................................... 5-18
AUX/USB mode..........................5-15
Before Using the Audio
System......................................... 5-14
Automatic Transmission
Active Adaptive Shift (AAS)...... 4-37
Automatic transmission
controls........................................ 4-35
Direct mode................................. 4-43
Driving tips..................................4-44
Manual shift mode.......................4-38
Shift-lock system......................... 4-36
Transmission ranges.................... 4-36
B
Back Trim Storage Box.................. 5-100
Battery............................................... 6-32 Maintenance.................................6-34
Replacement................................ 6-34
Specifications.................................9-4
Battery Runs Out.............................. 7-23 Jump-starting............................... 7-23
Blind Spot Monitoring (BSM).......... 4-87 Canceling operation of Blind Spot
Monitoring (BSM).......................4-91
Blind Spot Monitoring (BSM) System
Warning Beep.................................... 7-50
Bluetooth® Bluetooth® Audio....................... 5-53
Bluetooth® Hands-Free...............5-64
Bluetooth® Preparation............... 5-50
Body Lubrication.............................. 6-28
Brakes Brakes assist................................ 4-63
Foot brake....................................4-61
Pad wear indicator....................... 4-63
Parking brake...............................4-62
Warning light............................... 4-62
Break-In Period................................. 3-51
C
Capacities............................................ 9-5
Carbon Monoxide......... .................... 3-27
Cell Phones....................................... 8-20
Child Restraint
10-2
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Index
Categories of child-restraint
systems.........................................2-25
Child-restraint precautions.......... 2-21
Child-restraint system
installation................................... 2-25
Child-restraint system suitability for
various seat positions table..........2-27
Installing child-restraint
systems.........................................2-29
Climate Control System...................... 5-2
Fully automatic type....................5-10
Gas specifications.......................... 9-6
Manual type................................... 5-5
Operating tips................................ 5-2
Vent operation................................5-3
Collision warning.............................. 7-51
Coming Home Light......................... 4-48
Console Box...................................... 5-99
Convertible Top
Hardtop........................................ 3-41
Convertible Top (Soft Top)............... 3-36
Cruise Control................................. 4-111
Cruise control switch................. 4-111
Cruise main indication (white)............
....................................................4-111
Cruise set indication (green)/indicator
light (green)............................... 4-111
Cruise Control Set Vehicle Speed
Display.............................................. 4-17
Cup Holder........................................ 5-95
Customer Assistance.... ....................... 8-2
D
Dashboard Illumination. ....................4-16
Daytime Running Lights................... 4-50
Defogger Mirror...........................................4-55
Rear window.......................... ..... 4-55
Dimensions.......................................... 9-5
Door Locks........................................3-13
Drive Selection..................................4-72
Driving In Flooded Ar ea...................3-55
Driving on Uneven Road.................. 3-57
Driving Tips
Automatic transmission............... 4-44
Break-in period............................ 3-51
Driving in flooded a rea............... 3-55
Driving on uneven road...............3-57
Floor mat..................................... 3-52
Hazardous driving.. ..................... 3-52
Overloading............. .................... 3-56
Rocking the vehicle. .................... 3-53
Saving fuel and protection of the
environment................................. 3-51
Winter driving............................. 3-53
Dynamic Stability Control (DSC)..... 4-67
DSC OFF indicator light............. 4-68
DSC OFF switch......................... 4-68
TCS/DSC indicator light............. 4-67
E
Emergency StartingPush-starting................................ 7-26
Starting a flooded engine............ 7-26
Emergency Towing Tiedown hooks....................... ..... 7-31
Towing description...................... 7-30
Emission Control System..................3-26
Ending Screen Display......................4-70
Engine Coolant.........................................6-25
Engine compartment overview.... 6-22
Exhaust gas..................................3-27
Hood release................................ 6-20
Oil................................................ 6-23
Starting...........................................4-5
Engine Coolant Temperature
Gauge................................................ 4-15
Essential Information.......................... 6-2
Event Data Recorder......................... 8-21
10-3
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Index
Excessive Speed Warning................. 7-51
Exhaust Gas...................................... 3-27
Exterior Care..................................... 6-57Aluminum wheel maintenance.... 6-62
Bright-metal maint enance........... 6-61
Convertible Top (Retractable
Hardtop) Maintenance................. 6-64
Convertible Top (Soft Top)
Maintenance.................................6-62
Maintaining the finish................. 6-58
Plastic part maintenance.............. 6-67
F
Flasher Hazard warning........................... 4-57
Headlights.................................... 4-45
Flat Tire............................................... 7-3 Mounting the tire.... ..................... 7-21
Removing a tire........................... 7-17
Floor Mat.......................................... 3-52
Fluid Brake/Clutch................................ 6-26
Washer......................................... 6-27
Fluids Classification................................. 9-4
Foot Brake.........................................4-61
Forward Sensing Camera (FSC)..... 4-105
Fuel Filler lid and cap......................... 3-28
Gauge........................................... 4-15
Requirements............................... 3-25
Tank capacity.................................9-5
Fuel Consumption Display............... 4-70
Fuel Economy Monitor..................... 4-69 Ending screen display................. 4-70
Fuel consumption display............4-70
Fuel-Filler Lid When fuel-filler lid cannot be
opened..........................................7-29
Fuses.................................................. 6-52
Panel description......................... 6-54
Replacement................................ 6-52
G
Gauges............................................... 4-12
H
Hardtop.............................................. 3-41
When the roof cannot be
closed........................................... 7-57
Hazardous Driving............................ 3-52
Hazard Warning Flasher....................4-57
Headlights Coming home light......................4-48
Control......................................... 4-45
Flashing....................................... 4-48
High-low beam............................ 4-48
Leaving home light..................... 4-49
Leveling....................................... 4-50
Head Restraint................................... 2-11
High Beam Control System
(HBC)................................................ 4-78 High Beam Control System (HBC)
indicator light (green)..................4-79
Hill Launch Assist (HLA)............ .... 4-64
HomeLink Wireless Control
System............................................... 4-57
Hood Release.................................... 6-20
Horn...................................................4-56
I
If a Warning Light Turns On or
Flashes............................................... 7-33
Ignition Switch............................................ 4-4
Ignition Not Switched Off (STOP)
Warning Beep.................................... 7-49
Illuminated Entry System................. 5-93
Immobilizer System..... ..................... 3-47
Indicator Lights................................. 4-29
10-4
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Index
Low engine coolant
temperature.................................. 4-31
Wrench......................................... 4-31
Inside Trunk Release Lever.............. 3-24
Inspecting Brake/Clutch Fluid
Level.................................................. 6-26
Inspecting Coolant Leve l.................. 6-25
Inspecting Engine Oil Level............. 6-24
Inspecting Washer Fluid Level......... 6-27
Instrument Cluster...... ....................... 4-12
Traffic Sign Recognition System
(TSR) Display..............................4-25
Interior Care...................................... 6-67
Cleaning the floor mats............... 6-70
Cleaning the window interiors.....6-70
Instrument panel top
maintenance................................. 6-69
Leather upholstery
maintenance................................. 6-68
Panel maintenance....................... 6-69
Plastic part maintenance.............. 6-69
Seat belt maintenance..................6-67
Upholstery and synthetic leather
maintenance................................. 6-68
Vinyl upholstery maintenance..... 6-68
Interior Lights Overhead light............................. 5-92
i-ACTIVSENSE................................ 4-75
Active safety tec hnology............. 4-75
Adaptive Front Lighting System
(AFS)........................................... 4-77
Blind Spot Monitoring (BSM).....4-87
Camera and sensors..................... 4-76
Forward Sensing Camera
(FSC)......................................... 4-105
High Beam Control System
(HBC).......................................... 4-78
Lane Departure Warning System
(LDWS)....................................... 4-81
Pre-crash safety technology.........4-75
Radar sensors (rear)...................4-109Rear Cross Traffic Alert
(RCTA)........................................ 4-98
Smart City Brake Support
(SCBS)....................................... 4-101
Traffic Sign Recognition System
(TSR)........................................... 4-92
J
Jack...................................................... 7-4
Jump-Starting.................................... 7-23
K
Keyless Entry System......................... 3-4
Keys.....................................................3-2
Key suspend function.................. 3-10
Transmitter.....................................3-5
Key Left-in-trunk compartment Warning
Beep (With the advanced keyless
function)............................................ 7-50
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-50
Key Removed from Vehicle Warning
Beep...................................................7-49
Key Suspend Function...................... 3-10
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-51
Lane Departure Warning System
(LDWS)............................................. 4-81 LDWS switch.............................. 4-84
Lane-Change Signals........................ 4-51
Leaving Home Light......................... 4-49
Lighting Control................................4-45
Lights-on Reminder.......................... 7-48
Light Bulbs Replacement................................ 6-42
Specifications.................................9-7
Lubricant Quality.............................. .. 9-4
10-5
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

Index
M
MaintenanceInformation.................................... 6-2
Scheduled.......................................6-4
Maintenance Monitor........................ 6-15
Manual Transmission Operation....... 4-32
Message Indicated in Multi-information
Display.............................................. 7-45
Message Indicated on Display.......... 7-46
Meters and Gauges............................4-12
Mirrors
Outside mirrors............................ 3-30
Rearview mirror.......................... 3-31
Mirror Defogger................................ 4-55
Multi-information Disp lay................ 4-19
Average fuel econom y.................4-24
Compass Display......................... 4-26
Cruise control set vehicle speed
display..........................................4-25
Current fuel economy..................4-24
Distance-to-empty....................... 4-23
Engine Coolant Temperature
Gauge........................................... 4-22
Fuel gauge................................... 4-22
Lane Departure Warning System
(LDWS) Display..........................4-25
Maintenance monitor...................4-24
Odometer and trip meter............. 4-21
Outside temperatur e display........ 4-23
Roof Operation Display.............. 4-26
Warning (display indication)....... 4-26
O
Odometer and Trip Meter................. 4-13
Outside Mirrors................................. 3-30
Outside Temperature Display............4-17
Overhead Light................................. 5-92
Overheating....................................... 7-27
Overloading....................................... 3-56
Owner Maintenance Closing the hood......................... 6-21
Engine compartment overview.... 6-22
Key battery replacement..............6-34
Opening the hood........................ 6-20
Owner maintenance
precautions................................... 6-18
P
Parking Brake....................................4-62
Personalization Features..................... 9-9
Power Steering.................................. 4-74
Power Steering Warning Buzzer....... 7-50
Power Windows................................ 3-33
R
Radar Sensors (Rear)...................... 4-109
Rearview Mirror................................3-31
Rear Cross Traffic Alert (RCTA)...... 4-98
Rear View Monitor......................... 4-120Displayable range on the
screen......................................... 4-122
Picture quality adjustment......... 4-127
Rear view monitor operation..... 4-123
Rear view parking camera
location...................................... 4-121
Switching to the rear view monitor
display........................................4-121
Variance between actual road
conditions and displayed
image......................................... 4-125
Viewing the display................... 4-123
Rear Window Defogger.................... 4-55
Recommended Oil.............................6-23
Recording of Vehicle Data................ 8-22
Recreational Towing......................... 3-58
Registering Your Vehicle in A Foreign
Country.............................................. 8-18
Replacement Fuse..............................................6-52
10-6
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
