Interior Equipment (View A)
ƒDoor-lock knob..................................................................................................... page 3-21
„ Turn and lane-change sig nal..................................................................................page 4-50
… Lighting control.....................................................................................................page 4-45
† Wiper and washer lever......................................... ................................................ page 4-51
‡ DSC OFF switch................................................................................................... page 4-68
ˆ Lane Departure Warning System (LDWS) OFF switch........................................page 4-84
‰ Outside mirror switch.......................................... ..................................................page 3-30
Š Door-lock switch................................................................................................... page 3-18
‹ Power window lock switch................................................................................... page 3-33
ΠPower window switches........................................................................................ page 3-33
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

▼Unfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at an
Authorized Mazda Dealer.
Seat Belt Warning Systems
If it detects that the occupant seat belt is
unfastened, the warning light or beep
alerts the occupant.
Refer to Taking Action on page 7-40.
Refer to Seat Belt Wa
rning Beep on page
7-48.
Essential Safety Equipment
Seat Belt Systems
2-17
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Do not use an improper extender:
Using a seat belt extender that is for
another person or a different vehicle or seat
is dangerous. The seat belt will not provide
adequate protection and the user could be
seriously injured in an accident. Only use
the extender provided for you and for the
particular vehicle and seat. NEVER use the
extender in a different vehicle or seat. If you
sell your Mazda, do not leave your seat belt
extender in the vehicle. It could be used
accidentally by the new owner of the
vehicle. After removing the seat belt
extender, discard it. Never use the seat belt
extender in any other vehicle you may own
in the future.
Do not use an extender that is too long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accide nt, the seat belt will
not provide adequate protection and you
could be seriously injured. Do not use the
extender or choose one shorter in length if
the distance between the extender's buckle
and the center of the user's body is less
than 15 cm (6 in).Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected to
the buckle without using the seat belt is
dangerous. When the seat belt extender is
connected to the driver's seat belt buckle
(or passenger's seat belt buckle), the SRS
driver's (or passenger's) air bag system will
determine that the driver (or passenger) is
wearing the seat belt even if the driver (or
passenger) is not wearing it. This condition
could cause the driver's (or passenger's) air
bag to not activate correctly and result in
death or serious injury in the event of
collision. Always wear the seat belt with the
seat belt extender.
Do not use the seat belt extender when
installing a child-restraint system on the
passenger seat:
Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use a
seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged as it
will not retract with the rest of the seat belt
and can easily fall out of the door when
not in use and be damaged. In addition,
the seat belt warning light will not
illuminate and function properly.
Essential Safety Equipment
Seat Belt Systems
2-20
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place according to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Always make sure the passenger air bag deactivation indicator light is illuminated when
using a child-restraint system:
Seating a child in a child-restraint system that is installed on the passenger seat with the
passenger air bag deactivation indicator light not illuminated is extremely dangerous. In an
accident, an air bag could inflate and cause serious injuries or even death to the child seated
in the child-restraint system. Always make sure the passenger air bag deactivation indicator
light is illuminated.
Refer to Passenger Occupant Classification System on page 2-49.
(Except Mexico)
Vehicles with a passenger air bag have the fo llowing warning label. The warning label is
displayed in compliance with regulations.
Essential Safety Equipment
Child Restraint
2-22
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Do not operate a vehicle with damaged air bag/seat belt pretensioner system components:
Expended or damaged air bag/seat belt pretensioner system components must be replaced
after any collision which caused them to depl oy or damage them. Only a trained Authorized
Mazda Dealer can fully evaluate these systems to see that they will work in any subsequent
accident. Driving with an expended or damage d air bag or pretensioner unit will not afford
you the necessary protection in the event of any subsequent accident which could result in
serious injury or death.
Do not remove interior air bag parts:
Removing any components such as the seats, front dashboard, the steering wheel, containing
air bag parts or sensors is dangerous. These pa rts contain essential air bag components. The
air bag could accidentally activate and cause serious injuries. Always have an Authorized
Mazda Dealer remove these parts.
Properly dispose of the air bag system:
Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are foll owed, injury could result. Have an Authorized
Mazda Dealer safely dispose of the air bag sy stem or scrap an air bag equipped vehicle.
NOTE
If it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, contact an Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the text ure of the air bags may cause
light skin injuries on body parts not covered with clothing through friction.
Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and
that familiarization with all instructions about them, from the Owner's Manual, is
important.
Vehicles with a passenger air bag have a warning label attached as shown in the
following.
Essential Safety Equipment
SRS Air Bags
2-40
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

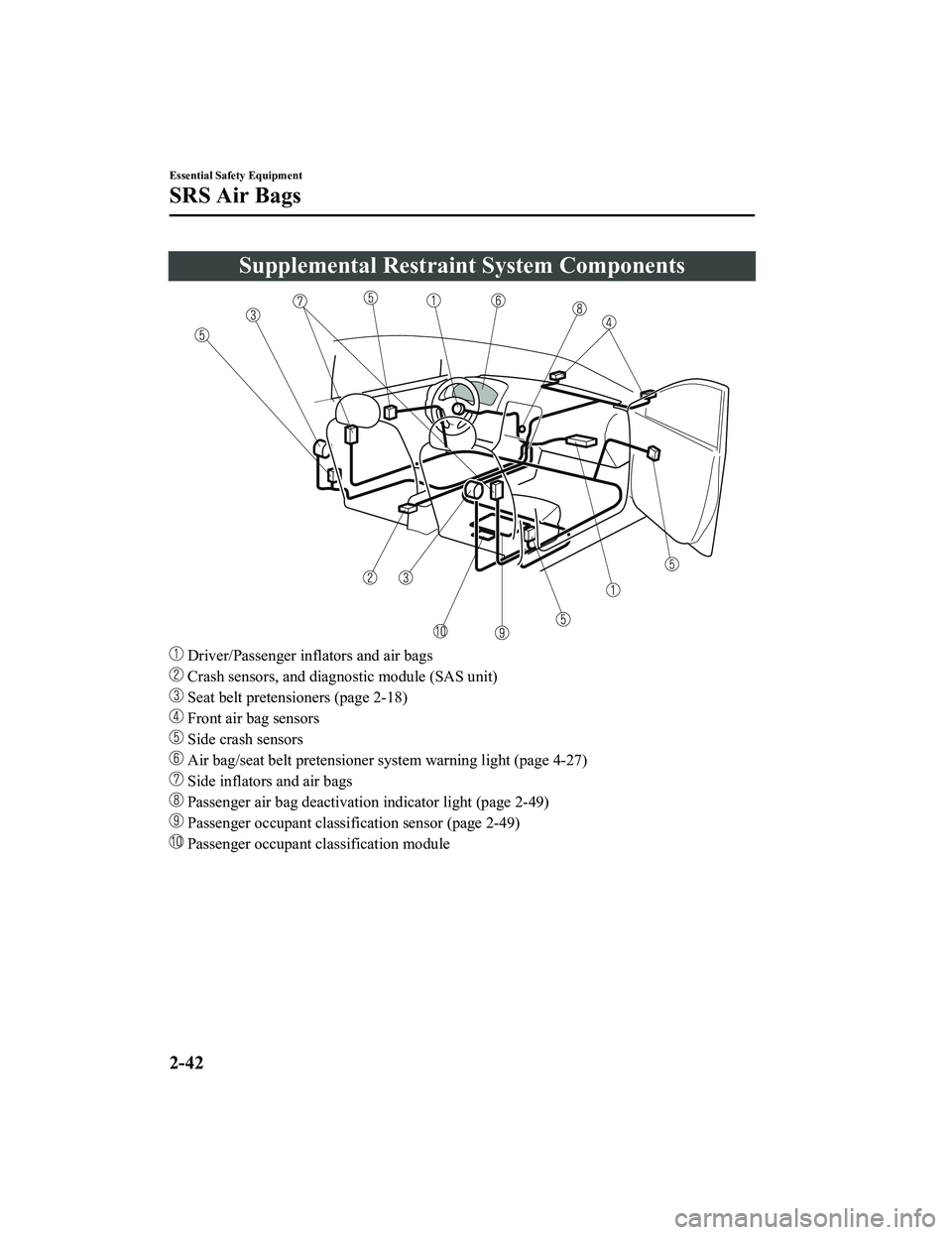

Supplemental Restraint System Components
Driver/Passenger inflators and air bags
Crash sensors, and diagnostic module (SAS unit)
Seat belt pretensioners (page 2-18)
Front air bag sensors
Side crash sensors
Air bag/seat belt pretensioner system warning light (page 4-27)
Side inflators and air bags
Passenger air bag deactivation indicator light (page 2-49)
Passenger occupant classification sensor (page 2-49)
Passenger occupant classification module
Essential Safety Equipment
SRS Air Bags
2-42
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

▼Warning Light/Beep
A system malfunction or operation conditions are indicated by a
warning.
Refer to Warning/Indicator Lights on page 4-27.
Refer to Warning Sound is Activated on page 7-48.
Essential Safety Equipment
SRS Air Bags
2-45
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Passenger Occupant Classification System
First, please read "Supplemental Restraint System (SRS) Precautions" (page 2-36) carefully.
▼Passenger Occupant Classification Sensor
Your vehicle is equipped with a passenger occupant classificati
on sensor as a part of the
supplemental restraint system. This sensor is equipped in the p assenger's seat cushion. This
sensor measures the electrostatic capacity of the passenger's s eat. The SAS unit is designed
to prevent the passenger front and side air bags and seat belt pretensioner system from
deploying if the passenger air b ag deactivation indicator light turns on.
To reduce the chance of injuries caused by deployment of the passenger air bag, the system
deactivates the passenger front and side air bags and also the seat belt pretensioner system
when the passenger air bag deactivation indicator light turns o n. Refer to the following table
for the passenger air bag deactivation indicator light illumina tion conditions.

This system shuts off the passenger front and side air bags and seat belt pretensioner system,
so make sure the passenger air bag deactivation indicator light turns on according to the
following table.

The air bag/seat belt pretension er system warning light flashes and the passenger air bag
deactivation indicator light illu minates if the sensors have a possible malfunction. If this
happens, the passenger front and side air bags and seat belt pr etensioner system will not
deploy.
Passenger air bag deactivation indicator light
This indicator light turns on to remind you that the passenger front and side air bags and seat
belt pretensioner will not deploy during a collision.
Ty p e A
If the passenger occupant classification sensor is normal, the indicator light turns on when
the ignition is switched ON. The light turns off after a few se conds. Then, the indicator light
turns on or is off under the following conditions:
Essential Safety Equipment
SRS Air Bags
2-49
