4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off............... 4-11
Instrument Cluster and Display ............
........................................................... 4-12 Meters and Gauges..................... 4-12
Multi-information Display and INFO
Switch
*....................................... 4-19
Warning/Indicator Lights............4-27
Manual Transmission
Operation......................................... 4-32 Manual Transmission Shift
Pattern......................................... 4-32
Automatic Transmission................. 4-35 Automatic Transmission
Controls...................................... 4-35
Shift-Lock System...................... 4-36
Transmission Ranges.................. 4-36
Manual Shift Mode..................... 4-38
Direct Mode
*.............................. 4-43
Driving Tips................................4-44
Switches and Controls..................... 4-45
Lighting Control......................... 4-45
Turn and Lane-Change
Signals........................................ 4-50
Windshield Wipers and
Washer........................................ 4-51
Rear Window Defogg er.............. 4-55
Horn............................................ 4-56
Hazard Warning Flasher............. 4-57
HomeLink Wireless Control
System
*.......................................4-57
Brake................................................ 4-61 Brake System.............................. 4-61
Hill Launch Assist (HLA)
*.........4-64
ABS/TCS/DSC................................. 4-65 Antilock Brake System
(ABS)..........................................4-65
Traction Control System
(TCS).......................................... 4-66
Dynamic Stability Control
(DSC)..........................................4-67
Fuel Economy Monitor................... 4-69 Fuel Economy Monito r...............4-69
Drive Selection................................. 4-72 Drive Selection
*..........................4-72
Power Steering................................. 4-74 Power Steering............................4-74
*Some models.4-1
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

i-ACTIVSENSE............................... 4-75i-ACTIVSENSE
*........................4-75
Adaptive Front Lighting System
(AFS)
*........................................ 4-77
High Beam Control System
(HBC)
*........................................4-78
Lane Departure Warning System
(LDWS)
*.................................... 4-81
Blind Spot Monitoring (BSM)
*.........
.................................................... 4-87
Traffic Sign Recognition System
(TSR)
*........................................ 4-92
Rear Cross Traffic Alert (RCTA)
*.....
.................................................... 4-98
Smart City Brake Support
(SCBS)
*.................................... 4-101
Forward Sensing Camera (FSC)
*......
.................................................. 4-105
Radar Sensors (Rear)
*.............. 4-109
Cruise Control................................ 4-111
Cruise Control
*......................... 4-111
Tire Pressure Monitoring
System............................................. 4-116 Tire Pressure Monitoring
System...................................... 4-116
Rear View Monitor....................... 4-120 Rear View Monitor
*................. 4-120
4-2*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-27).
NOTE
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indi cate an abnormality.
Starting the Engine
WA R N I N G
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key w ill affect the device.
NOTE
The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
The engine can be started when the push
button start is pressed from off, ACC, or
ON.
The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
When Driving
Start/Stop Engine
4-5
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.
This is for improved exhaust gas
purification and does not indicate any
parts defect.
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio
noise.
1. Make sure you are carrying the key.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal firmly until the engine has completely
started.
5. (Manual transmission)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the
clutch pedal is not depressed
sufficiently.
(Automatic transmission)
The starter will not operate if the
selector lever is not in P or N and the
brake pedal is not depressed
sufficiently.
6. Verify that the KEY indicator light (green) in the instr ument cluster and
the push button start indicator light
(green) illuminate.

Indicator light
Push button start
KEY indicator light
(green)/ KEY
warning light (red)
When Driving
Start/Stop Engine
4-6
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
If the push button start indicator
light (green) flashes, make sure that
the key is being carried (for vehicles
with a type A instrument cluster
(page 4-27), messages are
displayed in the instrument cluster).
If the push button start indicator
light (green) flashes with the key
being carried, touch the key to the
push button start and start the
engine (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Refer to Engine
Start Function When Key Battery is
Dead on page 4-8.
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.
NOTE
Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push
button start will not switch to ACC
even if it is pressed from off (for
vehicles with a type A instrument
cluster (page 4-27), messages are
displayed in the instrument cluster).
The key battery is dead.
The key is out of operational
range.
The key is placed in areas where it
is difficult for the system to detect
the signal (page 3-9).
A key from another manufacturer
similar to the key is in the
operational range.
When Driving
Start/Stop Engine
4-7
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

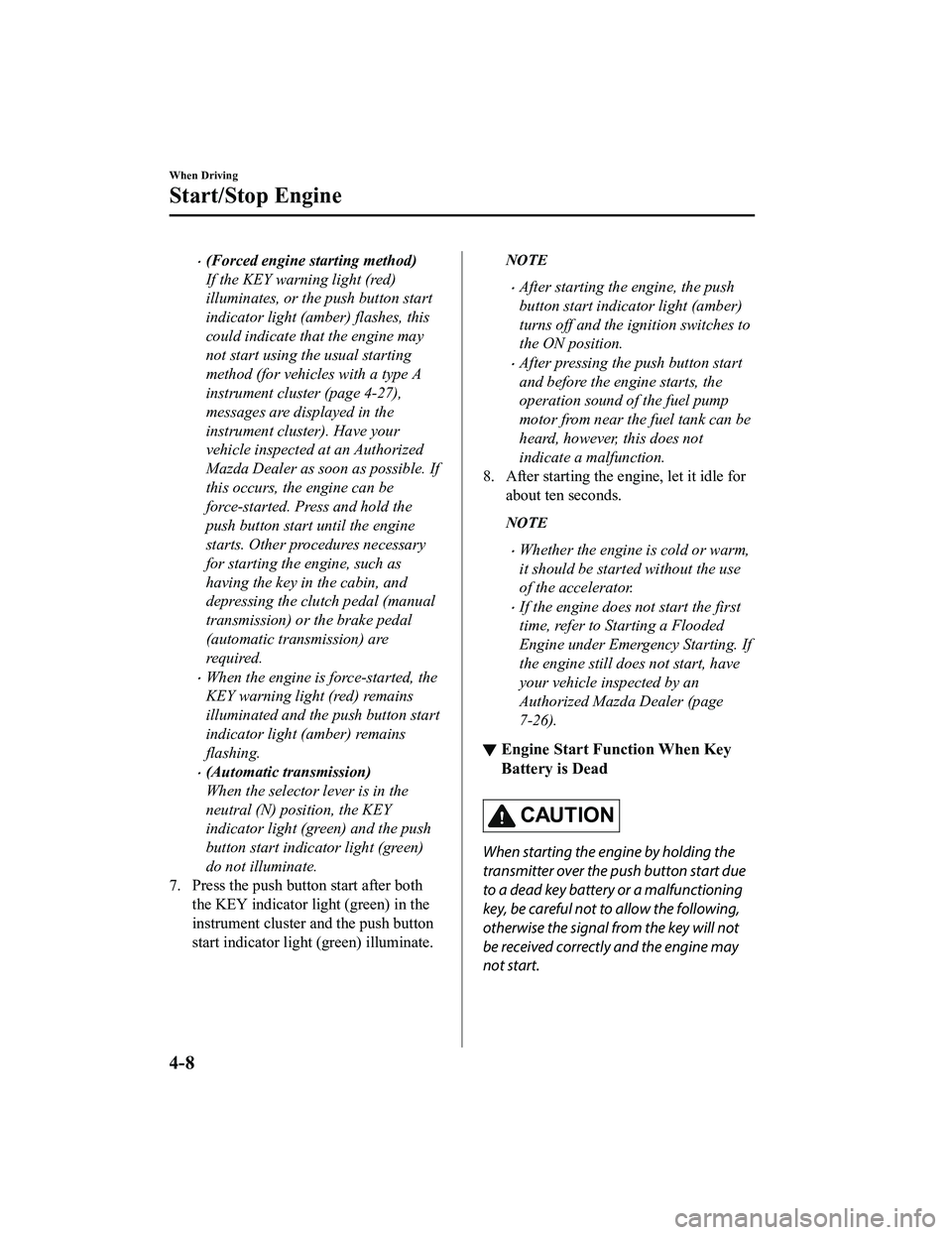

(Forced engine starting method)
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may
not start using the usual starting
method (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If
this occurs, the engine can be
force-started. Press and hold the
push button start until the engine
starts. Other procedures necessary
for starting the engine, such as
having the key in the cabin, and
depressing the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission) are
required.
When the engine is force-started, the
KEY warning light (red) remains
illuminated and the push button start
indicator light (amber) remains
flashing.
(Automatic transmission)
When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) and the push
button start indicator light (green)
do not illuminate.
7. Press the push button start after both
the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
NOTE
After starting the engine, the push
button start indica tor light (amber)
turns off and the ignition switches to
the ON position.
After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not
indicate a malfunction.
8. After starting the e ngine, let it idle for
about ten seconds.
NOTE
Whether the engine is cold or warm,
it should be started without the use
of the accelerator.
If the engine does not start the first
time, refer to Starting a Flooded
Engine under Emergency Starting. If
the engine still does not start, have
your vehicle inspected by an
Authorized Mazda Dealer (page
7-26).
▼ Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding the
transmitter over the push button start due
to a dead key battery or a malfunctioning
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.
When Driving
Start/Stop Engine
4-8
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06

5. Make sure that the push button startindicator light (green) turns on.
6. Press the push button start to start the
engine.
NOTE
The engine cannot be started unless
the clutch pedal is fully depressed
(manual transmission) or the brake
pedal is fully depressed (automatic
transmission).
If there is a malfunction with the
push button start function, the push
button start indica tor light (amber)
flashes. In this ca se, the engine may
start, however, have the vehicle
checked at an Authorized Mazda
Dealer as soon as possible.
If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.
To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual transmission) or brake pedal
(automatic transmission).
2. Press the push button start to
switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.
▼Emergency Operation for Starting
the Engine
If the KEY warning ligh
t (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that
the engine may not s tart using the usual
starting method (for vehicles with a type A
instrument cluster (page 4-27), messages
are displayed in the instrument cluster).
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs , the engine can be
force-started. Press and hold the push
button start until the engine starts. Other
procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission) are required.
When Driving
Start/Stop Engine
4-10
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Turning the Engine Off
WA R N I N G
Do not stop the engine while the vehicle is
moving:
Stopping the engine while the vehicle is
moving for any reason other than in an
emergency is dangerous. Stopping the
engine while the vehicle is moving will
result in reduced braking ability due to the
loss of power braking, which could cause
an accident and serious injury.
1. Stop the vehicle completely.
2.(Manual transmission)
Shift into neutral and set the parking
brake.
(Automatic transmission)
Shift the selector lever to the P
position and set the parking brake.
3. Press the push button start to turn off
the engine. The ignition position is off.
CAUTION
When leaving the vehicle, make sure the
push button start is off.
NOTE
The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.
If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-34.
(Vehicle equipped with Type A
instrument cluster)
A message is indicated in the display of
the instrument cluster.
(Vehicle equipped with Type B
instrument cluster)
The KEY indicator li ght (green) flashes
for approximately 30 seconds.
Refer to Warning/Indicator Lights on
page 4-27.
(Automatic transmission)
If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.
▼Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engi
ne is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
When Driving
Start/Stop Engine
4-11
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
