Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place according to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Always make sure the passenger air bag deactivation indicator light is illuminated when
using a child-restraint system:
Seating a child in a child-restraint system that is installed on the passenger seat with the
passenger air bag deactivation indicator light not illuminated is extremely dangerous. In an
accident, an air bag could inflate and cause serious injuries or even death to the child seated
in the child-restraint system. Always make sure the passenger air bag deactivation indicator
light is illuminated.
Refer to Passenger Occupant Classification System on page 2-49.
(Except Mexico)
Vehicles with a passenger air bag have the fo llowing warning label. The warning label is
displayed in compliance with regulations.
Essential Safety Equipment
Child Restraint
2-22
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

(Except Mexico)
This warning label is displayed in compliance with regulations.
(Mexico)
This warning label reminds you not to put a rear-facing child-restraint system on the
passenger seat at any time.

Essential Safety Equipment
SRS Air Bags
2-41
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the fuel-filler lid, and opens the trunk lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you s ignal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the fo llowing warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-27.
Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-49.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-49.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE
The keyless entry system operation may
vary due to local conditions.
The keyless entry system is fully
operational (door/fuel-filler lid lock/
unlock) when the ignition is switched
off. The system does not operate if the
ignition is switched to any position other
than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-34).
Before Driving
Keys
3-4
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster (for vehicles with a
type A instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Replacing the
battery about once a year is
recommended because the KEY warning
light/indicator light may not illuminate
or flash depending on the rate of battery
depletion.
Additional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys
can be used with the keyless functions
per vehicle. Bring all keys to an
Authorized Mazda Dealer when
additional keys are required.
▼Transmitter
Ty p e A
Operation
b
uttons
Operation indicator light
Ty p e B
Operation
b
uttons
Operation indicator light
NOTE
The headlights turn on/off by operating
the transmitter. Refer to Leaving Home
Light on page 4-49.
Before Driving
Keys
3-5
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06

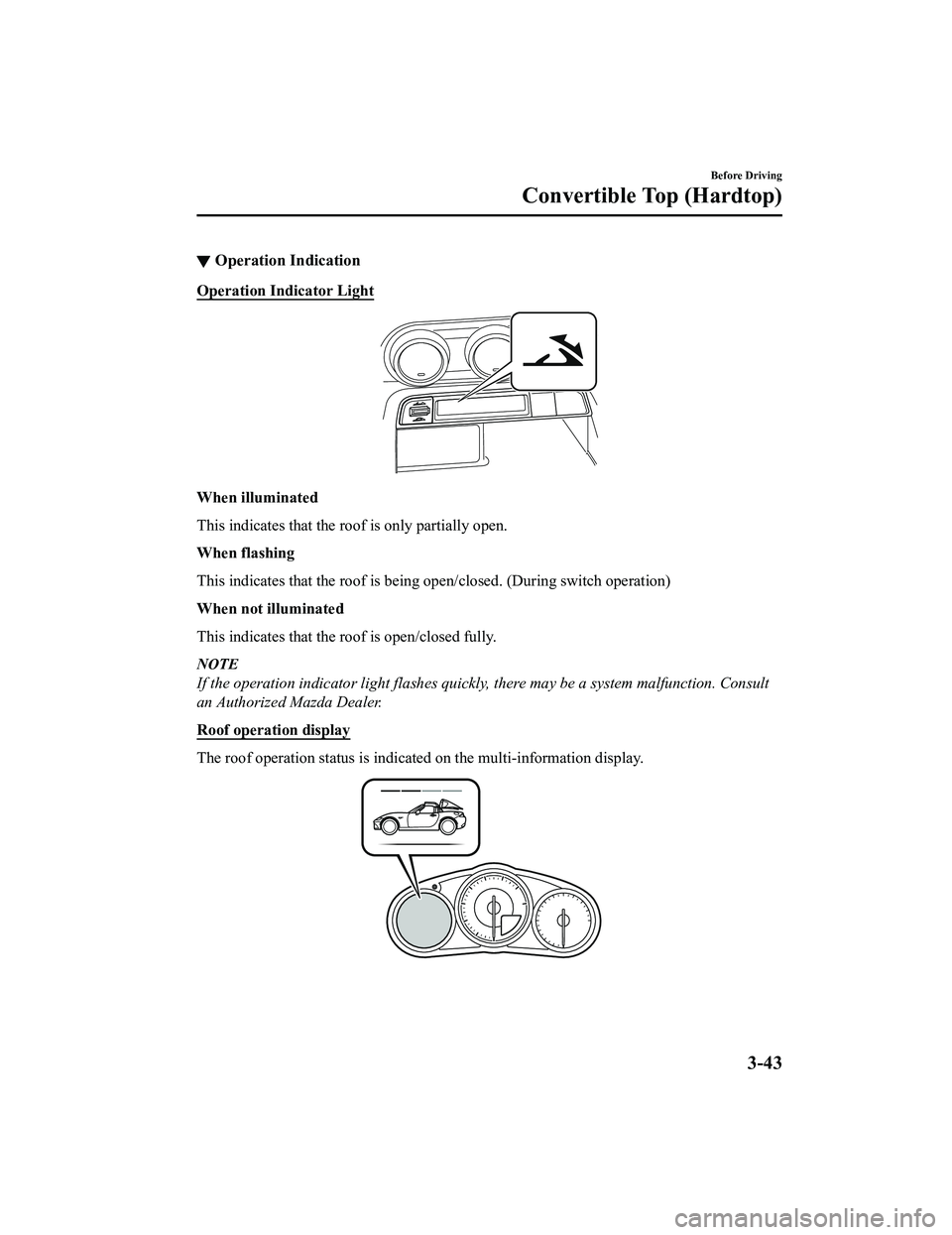

▼Operation Indication
Operation Indicator Light
When illuminated
This indicates that the roof is only partially open.
When flashing
This indicates that the roof is being open/closed. (During swit
ch operation)
When not illuminated
This indicates that the roof is open/closed fully.
NOTE
If the operation indicator light flashes quickly, there may be a system malfunction. Consult
an Authorized Mazda Dealer.
Roof operation display
The roof operation status is i ndicated on the multi-information display.
Before Driving
Convertible Top (Hardtop)
3-43
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off............... 4-11
Instrument Cluster and Display ............
........................................................... 4-12 Meters and Gauges..................... 4-12
Multi-information Display and INFO
Switch
*....................................... 4-19
Warning/Indicator Lights............4-27
Manual Transmission
Operation......................................... 4-32 Manual Transmission Shift
Pattern......................................... 4-32
Automatic Transmission................. 4-35 Automatic Transmission
Controls...................................... 4-35
Shift-Lock System...................... 4-36
Transmission Ranges.................. 4-36
Manual Shift Mode..................... 4-38
Direct Mode
*.............................. 4-43
Driving Tips................................4-44
Switches and Controls..................... 4-45
Lighting Control......................... 4-45
Turn and Lane-Change
Signals........................................ 4-50
Windshield Wipers and
Washer........................................ 4-51
Rear Window Defogg er.............. 4-55
Horn............................................ 4-56
Hazard Warning Flasher............. 4-57
HomeLink Wireless Control
System
*.......................................4-57
Brake................................................ 4-61 Brake System.............................. 4-61
Hill Launch Assist (HLA)
*.........4-64
ABS/TCS/DSC................................. 4-65 Antilock Brake System
(ABS)..........................................4-65
Traction Control System
(TCS).......................................... 4-66
Dynamic Stability Control
(DSC)..........................................4-67
Fuel Economy Monitor................... 4-69 Fuel Economy Monito r...............4-69
Drive Selection................................. 4-72 Drive Selection
*..........................4-72
Power Steering................................. 4-74 Power Steering............................4-74
*Some models.4-1
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
If the push button start indicator
light (green) flashes, make sure that
the key is being carried (for vehicles
with a type A instrument cluster
(page 4-27), messages are
displayed in the instrument cluster).
If the push button start indicator
light (green) flashes with the key
being carried, touch the key to the
push button start and start the
engine (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Refer to Engine
Start Function When Key Battery is
Dead on page 4-8.
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.
NOTE
Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push
button start will not switch to ACC
even if it is pressed from off (for
vehicles with a type A instrument
cluster (page 4-27), messages are
displayed in the instrument cluster).
The key battery is dead.
The key is out of operational
range.
The key is placed in areas where it
is difficult for the system to detect
the signal (page 3-9).
A key from another manufacturer
similar to the key is in the
operational range.
When Driving
Start/Stop Engine
4-7
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

(Forced engine starting method)
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may
not start using the usual starting
method (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If
this occurs, the engine can be
force-started. Press and hold the
push button start until the engine
starts. Other procedures necessary
for starting the engine, such as
having the key in the cabin, and
depressing the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission) are
required.
When the engine is force-started, the
KEY warning light (red) remains
illuminated and the push button start
indicator light (amber) remains
flashing.
(Automatic transmission)
When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) and the push
button start indicator light (green)
do not illuminate.
7. Press the push button start after both
the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
NOTE
After starting the engine, the push
button start indica tor light (amber)
turns off and the ignition switches to
the ON position.
After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not
indicate a malfunction.
8. After starting the e ngine, let it idle for
about ten seconds.
NOTE
Whether the engine is cold or warm,
it should be started without the use
of the accelerator.
If the engine does not start the first
time, refer to Starting a Flooded
Engine under Emergency Starting. If
the engine still does not start, have
your vehicle inspected by an
Authorized Mazda Dealer (page
7-26).
▼ Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding the
transmitter over the push button start due
to a dead key battery or a malfunctioning
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.
When Driving
Start/Stop Engine
4-8
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06
