2020 MAZDA MODEL MX-5 MIATA engine

Seat Warmer*
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
Low Mid
High
OFF
WA R N I N G
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
Essential Safety Equipment
Seat Warmer
2-12*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys.................................................... 3-2 Keys.............................................. 3-2
Keyless Entry System................... 3-4
Advanced Keyless Entry
System............................................... 3-11 Advanced Keyless Entry System
*.....
.................................................... 3-11
Operational Range...................... 3-12
Doors and Locks.............................. 3-13 Door Locks................................. 3-13
Trunk Lid................. ................... 3-22
Inside Trunk Release Lever
*...... 3-24
Fuel and Emission........................... 3-25 Fuel and Engine Exhaust
Precautions................................. 3-25
Fuel-Filler Lid and Cap.............. 3-28
Mirrors............................................. 3-30 Mirrors........................................ 3-30
Windows........................................... 3-33 Power Windows..........................3-33
Convertible Top (Soft Top)............. 3-36 Convertible Top (Sof t Top).........3-36
Convertible Top (Hardtop)............. 3-41
Convertible Top (Har dtop)......... 3-41
Security System............................... 3-47 Modification and Add-On
Equipment...................................3-47
Immobilizer System....................3-47
Theft-Deterrent System
*.............3-49
Driving Tips..................................... 3-51 Break-In Period.......................... 3-51
Saving Fuel and Protection of the
Environment............................... 3-51
Hazardous Driving.... ..................3-52
Floor Mat.................................... 3-52
Rocking the Vehicle....................3-53
Winter Driving............................3-53
Driving In Flooded A rea............ 3-55
Overloading................................ 3-56
Driving on Uneven Road............ 3-57
Towing.............................................. 3-58 Trailer Towing............................ 3-58
Recreational Towing................... 3-58
*Some models.3-1
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the fuel-filler lid, and opens the trunk lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you s ignal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the fo llowing warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-27.
Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-49.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-49.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE
The keyless entry system operation may
vary due to local conditions.
The keyless entry system is fully
operational (door/fuel-filler lid lock/
unlock) when the ignition is switched
off. The system does not operate if the
ignition is switched to any position other
than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-34).
Before Driving
Keys
3-4
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the following
will occur:
The horn sounds intermittently.
The hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
Power saving function (Type B)
By turning on the transmitter power saving
function, the advan ced keyless entry
*1 and
push button start system functions turn off
and the battery power consumption of the
transmitter is restricted.
The remote control function is operational
by operating the transmitter switch even
while the power saving function is turned
on. However, the operation indicator light
of the transmitter does not turn on/flash.
Turning on the power saving function
After you have turned on the power saving
function according to the following
procedure, the hazard warning lights and
sound operate
*1 one time.
1. Press the lock button on the transmitter 4 times within 3 seconds to turn on the
operation indicator light.
2. Press the lock button continuously for 1.5 seconds or longer while the
operation indicator light turns on (for 5
seconds).
3. Press any of the buttons on the
transmitter to make sure that the
operation indicator light does not turn
on/flash.
Turning off the power saving function
After you have turned off the power
saving function according to the following
procedure, the hazard warning lights and
sound operate
*1 one time.
1. Press any of the buttons on the
transmitter to make sure that the
operation indicator light does not turn
on/flash.
2. Press the lock button on the transmitter 4 times within 3 seconds to turn on the
operation indicator light.
3. Press the lock button continuously for 1.5 seconds or longer while the
operation indicator light turns on (for 5
seconds).
*1 With the advanced keyless function
▼Operational Range
The system operates only when the driver
is in the vehicle or
within operational
range while the key is being carried.
Starting the Engine
NOTE
Starting the engine may be possible even
if the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from
the driver's seat.
If the vehicle is started and the key is not
in the vehicle, the vehicle will not restart
after it is shut off and the ignition is
switched to off.
The trunk is out of the assured
operational range, however, if the key
(transmitter) is operable the engine will
start.
Before Driving
Keys
3-9
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

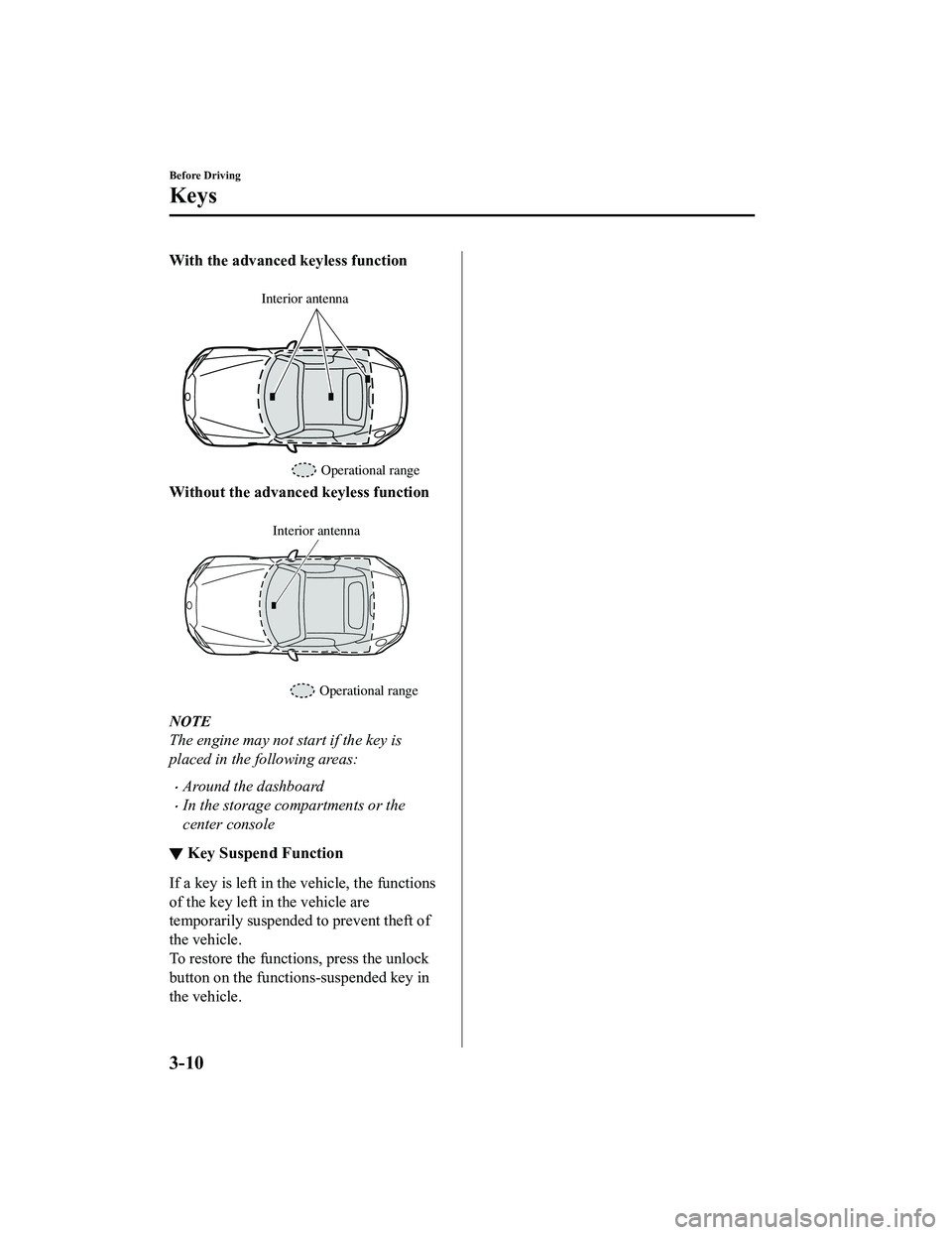

With the advanced keyless function

Interior antennaOperational range
Without the advanced keyless function

Operational range
Interior antenna
NOTE
The engine may not start if the key is
placed in the following areas:
Around the dashboard
In the storage compartments or the
center console
▼
Key Suspend Function
If a key is left in the v
ehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
Before Driving
Keys
3-10
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Advanced Keyless EntrySystem
*
WA R N I N G
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key will affect the device.
The advanced keyless function allows you
to lock/unlock the door and the fuel-filler
lid, or open the trunk lid while carrying
the key.

System malfunctions or warnings are
indicated by the foll owing warning beeps.
Request switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-50.
Key Left-in-trunk Compartment
Warning Beep
Refer to Key Left-in-trunk
Compartment Warning Beep (With the
advanced keyless function) on page
7-50.
Key Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-50.
NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated, you
will be unable to start the engine by
carrying the key. Consult an Authorized
Mazda Dealer for details. If the advanced
keyless entry system has been deactivated,
you can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-8.
Before Driving
Advanced Keyless Entry System
*Some models.3-11
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside the
cabin.
If the key is left in the following areas
and you leave the vehicle, the doors may
be locked depending on the radio wave
conditions even if the key is left in the
vehicle.
Around the dashboard
In the storage compartments such as
the console box
Next to a communication device such
as a mobile phone
When the ignition is switched to ACC or
ON, the vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
Both doors and the fuel-filler lid will
automatically unlock if they are locked
using the power door locks with any
door open.
If both the doors are closed even though
the trunk lid is open, both the doors and
the fuel-filler lid will lock.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened from the
outside while the key is inside the
vehicle, the closed doors are locked.
Both the doors are automatically
unlocked by closing the open door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key
has been left in the vehicle.
(Without the advanced keyless
function)
The horn sound is heard twice to notify
the driver that the key has been left in
the vehicle.
(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors and the fuel-filler lid in the event
the vehicle is involved in an accident to
allow passengers to get out of the
vehicle immediately and prevent being
trapped inside. While the ignition is
switched ON and in the event the vehicle
receives an impact strong enough to
inflate the air bags, both the doors and
the fuel-filler lid are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors and the fuel-filler lid may not
unlock depending on how an impact is
applied, the force of the impact, and
other conditions of the accident.
If door-related systems or the battery is
malfunctioning, the doors and the
fuel-filler lid will not unlock.
When opening a door, the power
windows open a little automatically.
When closing the door, the power
windows close automatically. This is a
function for improving the sealability,
and it does not mean there is a problem.
If the vehicle battery is disconnected for
vehicle maintenance or other reasons,
the power windows will not open or
close automatically. If the power
windows do not open or close, the
automatic open/close mechanism for the
windows must be reset.
Refer to Auto-opening on page 3-35.
Before Driving
Doors and Locks
3-14
MX-5_8JA4-EA-19K_Edition1_old2019-8-29 16:18:06

Trunk Lid
WA R N I N G
Never allow a person to ride in the trunk:
Allowing a person to ride in the trunk is
dangerous. The person in the trunk could
be seriously injured or killed during sudden
braking or a collision.
Do not drive with the trunk lid open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open trunk lid in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous, and it can
cause loss of consciousness and death.
Moreover, an open trunk lid could cause
occupants to fall out in an accident.
CAUTION
Before opening the trunk lid, remove any
snow and ice accumulation on it.
Otherwise, the trunk lid could close
under the weight of the snow and ice
resulting in injury.
 Be careful when opening/closing the
trunk lid during strong winds. If a strong
gust blows against the trunk lid, it could
close suddenly resulting in injury.
 Fully open the trunk lid and make sure
that it stays open. If the trunk lid is only
opened partially, it could slam shut by
vibration or wind gusts resulting in
injury.
When loading or unloading luggage in
the trunk, turn off the engine. Otherwise,
you could get burned by the heat of the
exhaust gas.
▼ Opening and Closing the Trunk Lid
Opening the trunk lid
Using the remote release button
Push the release button.

The remote release button function can be
disabled by locking the doors using the
transmitter, auxiliary key, or a request
switch to prevent an in
truder in the vehicle
from opening the trunk.
To enable the remote release button
operation, unlock the doors by using the
transmitter, auxiliary key, or a request
switch, or switch the ignition ON.
Before Driving
Doors and Locks
3-22
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
