2020 MAZDA MODEL 6 headlights

CAUTION
When removing the lens or lamp unit using
a flathead screwdriver, make sure that the
flathead screwdriver does not contact the
interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may
occur.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
▼Replacing Exterior Light Bulbs
The exterior lights have either LEDs or
normal bulbs.
Only the bulb for a parking light can be
replaced.
LED type
Headlights
Daytime running lights
Parking lights*
Front turn signal lights
Front side-marker lights
Side turn signal lights
High-mount brake light
Rear turn signal lights
Rear side-marker lights
Brake lights
Taillights
Reverse lights
License plate lights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.
Bulb type
Parking lights*
Double-filament light bulb, however, only
5 W filament bulb is used in the parking
lights.
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer and remove the retainers.
Removal
Installation
Maintenance and Care
Owner Maintenance
*Some models.6-53
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

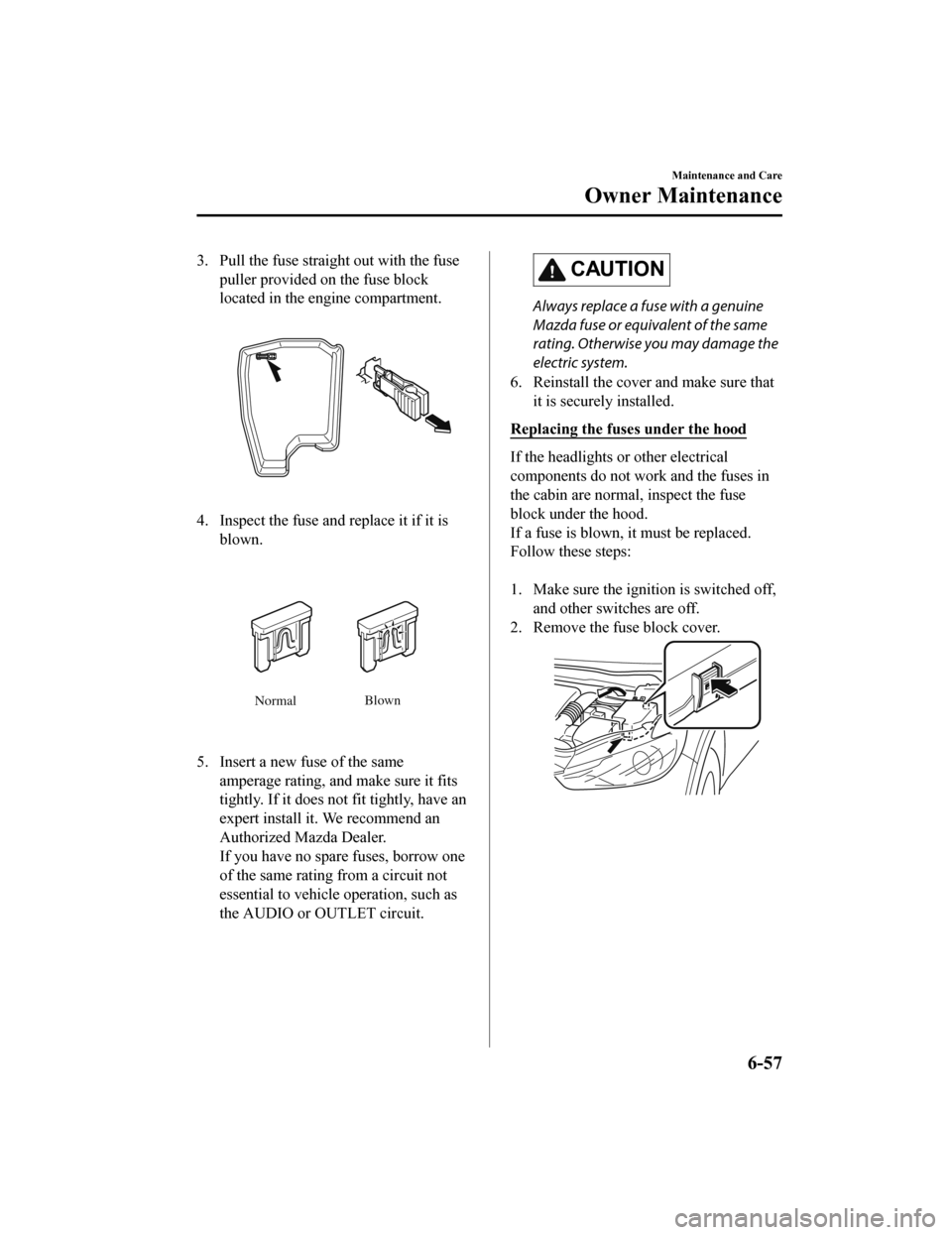

3. Pull the fuse straight out with the fusepuller provided on the fuse block
located in the eng ine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blown
5. Insert a new fu
se of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fu ses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
Maintenance and Care
Owner Maintenance
6-57
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a 24 V
motor generator set).
1. Move the booster vehicle so that its battery is as close as p ossible to your vehicle's
battery.
2. Make sure that the power such as for the headlights and air c onditioner is turned off.
3. Remove the battery cover.
If Trouble Arises
Battery Runs Out
7-16
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Mexico
SKYACTIV-G 2.5
ItemWeight
GVW (Gross Vehicle Weight) Total
2,032 kg (4,480 lbs)
Front 1,037 kg (2,286 lbs)
Rear 995 kg (2,194 lbs)
GAW (Permissible axle load) Front
1,072 kg (2,363 lbs)
Rear 1,061 kg (2,339 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,118 kg (4,669 lbs)
Front 1,121 kg (2,471 lbs)
Rear 997 kg (2,198 lbs)
GAW (Permissible axle load) Front
1,156 kg (2,549 lbs)
Rear 1,063 kg (2,344 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com‐
partment. Check the label before recharging the refrigerant. Refer to Climate Control Sys‐
tem on page 5-2.
Item Specification
Refrigerant Type HFC134a (R-134a)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UN-R*1 (SAE)
Headlights LED
*2
― (―)
Daytime running lights
LED*2
Parking lightsLED type
LED*2
Bulb type 21/5*3W21/5W (7444)
Specifications
Specifications
9-7
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Vehicle Equipment
You can change the function settings according to your preferen
ce.
Personalization features which can be changed differ depending on the vehicle specifica‐
tion.
Personalization features which can be changed may change withou t notice depending on
software updates.
The following personalization feat ures can be set or changed by the customer or an Author‐
ized Mazda Dealer. Consult an Authorized Mazda Dealer for detai ls.
Personalization features which can be changed differ depending on the specification.
Setting change method
1. Select on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you want to change.
Function and how it can be changed (underlined item is initial setting)
Illuminated entry system (page 5-87)
Time until interior lights turn o ff after closing door 60 second s/30 seconds/15 seconds
/7.5 seconds
Time until interior lights turn off automatically when any
door is not closed completely 60 minutes/30 minutes
/10 minutes
Auto-wiper control (page 4-84)
Operational/non-operational On
/Off*1
Auto headlight off*2 (page 4-78)
Time until headlights turn off 120 seconds/90 second
s/60 seconds/30 seconds
/
Off*3
Auto-light control (page 4-78)
Timing by which lights turn on Low/Med. Low/Medium
/Med. High/High
High Beam Control System (HBC) (page 4-124)
Operational/non-operational
*4On/Off
Adaptive Front Lighting System (AFS) (page 4-123)
Operational/non-operational
*4On/Off
Lights-on reminder
*5 (page 7-45)
Warning beep volume High
/Low/Off
Coming home light (page 4-81)
Time until headlights turn off 120 seconds/90 seconds/60 seconds/30 seconds
/Off
Leaving home light (page 4-82)
Operational/non-operational On
/Off
Turn signal indicator (page 4-83)
Beep volume High
/Low
Specifications
Personalization Features
9-14
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Function and how it can be changed (underlined item is initial setting)
Three-flash turn signal (page 4-83)
Operational/non-operational On
/Off
Ambient lights (page 4-83)
Ambient lights brightness
*6Bright/Medium/Dim/Off
*1 If the auto-wiper control is s et to Off, the wiper lever position is set to intermittent operation.*2 If the setting is changed to Of f, the following operation is performed according to the headlight switch
position:
At position: Headlights turn off i mmediately after the ignition i s switched off.At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page 4-78.
*3 When set to Off, the light s-on reminder is operable.*4 Though these systems can be tur ned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*5 The lights-on reminder settings c an be changed at anytime, however, the lights-on reminder only operates
when the auto headlight function is set to Off. Refer to Lights-On Reminder on page 7-45.
*6 Change the ambient light illumi nation level with the parking lights or headlights turned on.
▼Other Equipment/Functions
You can change t
he function settings acco rding to your preference.
Personalization features which c an be changed differ depending on the vehicle
specification.
Personalization features which can be changed may change withou t notice depending on
software updates.
The following personalization features can be set or changed by the customer or an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Personalization features which can be changed differ depending on the specification.

Door locks
Method for changing the auto loc k/unlock functions using the door-lock switch
NOTE
Function number 3 in the following table is the factory setting for your vehicle.
Specifications
Personalization Features
9-15
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Index
E
Electric parking brake (EPB)............ 4-99
Electric Parking Brake (EPB) Warning
Beep...................................................7-47
Emergency StartingPush-starting................................ 7-18
Running out of fuel (SKYACTIV-D
2.2)............................................... 7-19
Starting a Flooded Engine
(SKYACTIV-G 2.5 and SKYACTIV-
G 2.5T)........................................ 7-18
Emergency Towing Tiedown hooks......... ................... 7-23
Towing description...................... 7-22
Emission Control System (SKYACTIV-
D 2.2)................................................ 3-24
Emission Control System (SKYACTIV-
G 2.5, SKYACTIV-G 2.5T).............. 3-23
Ending Screen Display.................... 4-115
Engine Coolant.........................................6-29
Engine compartment overview.... 6-23
Exhaust gas.................................. 3-26
Hood release............................ .... 6-21
Oil................................................ 6-25
Starting...........................................4-5
Essential Information.......................... 6-2
Event Data Recorder......................... 8-22
Excessive Speed Warning................. 7-49
Exterior Care..................................... 6-63 Aluminum wheel maintenance.... 6-68
Bright-metal maint enance........... 6-67
Maintaining the finish................. 6-64
Plastic part maintenance.............. 6-68
F
Flasher Hazard warning........................... 4-89
Headlights.................................... 4-78
Flat Tire............................................... 7-3
Mounting the spare tire............... 7-12
Removing a flat tire...................... 7-8
Floor Mat.......................................... 3-45
Fluid
Brake/Clutch................................ 6-31
Washer......................................... 6-32
Fluids Classification................................. 9-5
Foot Brake.........................................4-98
Forward Sensing Camera (FSC)..... 4-210
Fuel Filler lid and cap......................... 3-27
Requirements (SKYACTIV-D
2.2)............................................... 3-22
Requirements (SKYACTIV-G 2.5,
SKYACTIV-G 2.5T)....................3-21
Tank capacity.................................9-5
Fuel Consumption Display..............4-114
Fuel Economy Monitor. .................. 4-113
Control Status Display...............4-115
Ending screen display................4-115
Ending Screen Display.............. 4-115
Fuel consumption display.......... 4-114
Fuel Consumption Display........ 4-114
Fuses.................................................. 6-56 Panel description......................... 6-58
Replacement................................ 6-56
G
Gauges............................................... 4-13
Glove Compartment.......................... 5-93
H
Hazardous Driving............................ 3-45
Hazard Warning Flasher....................4-89
HeadlightsComing home light......................4-81
Control......................................... 4-78
Flashing....................................... 4-81
