2020 LINCOLN CONTINENTAL AUX

Audible Warnings and Indicators
..............116
Information Displays
General Information ......................................
117
Information Messages ................................
125
Head Up Display ..........................................
144
Climate Control
Automatic Climate Control ........................
148
Hints on Controlling the Interior Climate .......................................................................
150
Rear Passenger Climate Controls .............
151
Heated Windshield ......................................
153
Heated Rear Window ..................................
153
Heated Exterior Mirrors ..............................
153
Cabin Air Filter ..............................................
154
Remote Start ..................................................
154
Seats
Sitting in the Correct Position ...................
155
Head Restraints ............................................
156
Power Seats ..................................................
159
Memory Function .........................................
165Rear Seats
......................................................
167
Heated Seats ................................................
168
Climate Controlled Seats ...........................
170
Garage Door Opener
Universal Garage Door Opener ...............
172
Auxiliary Power Points
Auxiliary Power Points ................................
176
Storage Compartments
Center Console .............................................
178
Overhead Console .......................................
178
Rear Seat Armrest ........................................
178
Starting and Stopping the Engine
General Information ....................................
180
Keyless Starting ............................................
180
Starting a Gasoline Engine .........................
181
Engine Block Heater ...................................
184Fuel and Refueling
Safety Precautions
.......................................
186
Fuel Quality ....................................................
187
Fuel Filler Funnel Location .........................
187
Running Out of Fuel ....................................
188
Refueling ........................................................
189
Fuel Consumption .......................................
192
Engine Emission Control
Emission Law .................................................
193
Catalytic Converter ......................................
194
Transmission
Automatic Transmission ..............................
197
All-Wheel Drive
Using All-Wheel Drive ................................
203
Brakes
General Information ....................................
212
Hints on Driving With Anti-Lock Brakes .......................................................................
213
Electric Parking Brake .................................
213
3
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Table of Contents

12 VDC Power Point
WARNING:
Do not plug optional
electrical accessories into the cigar lighter
socket. Incorrect use of the cigar lighter
can cause damage not covered by the
vehicle warranty, and can result in fire or
serious injury.
Note: When you switch the ignition on, you
can use the socket to power 12 V appliances
with a maximum current rating of
15 A.
Note: Do not hang any accessory from the
accessory plug.
Note: Do not use the power point over the
vehicle capacity of
12 V DC 15 A or a fuse
may blow.
Note: Always keep the power point caps
closed when not in use.
Do not insert objects other than an accessory
plug into the power point. This damages the
power point and may blow the fuse. Run the
vehicle for full capacity use of the power
point. To prevent the battery from running out of
charge:
•
Do not use the power point longer than
necessary when the vehicle is not
running.
• Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.
Locations
Power points may be in the following
locations:
• On the instrument panel.
• Inside the center console.
• On the rear of the center console. 110 V
AC Power Point WARNING:
Do not keep electrical
devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design. Doing so may
cause the power point to overload due to
powering multiple devices that can reach
beyond the 150 watt load limit and could
result in fire or serious injury.
Note: The power point turns off when you
switch the ignition off, or when the battery
voltage drops below 11 volts.
You can use the power point for electric
devices that require up to 150 watts. It is on
the rear of the center console.
176
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Auxiliary Power Points

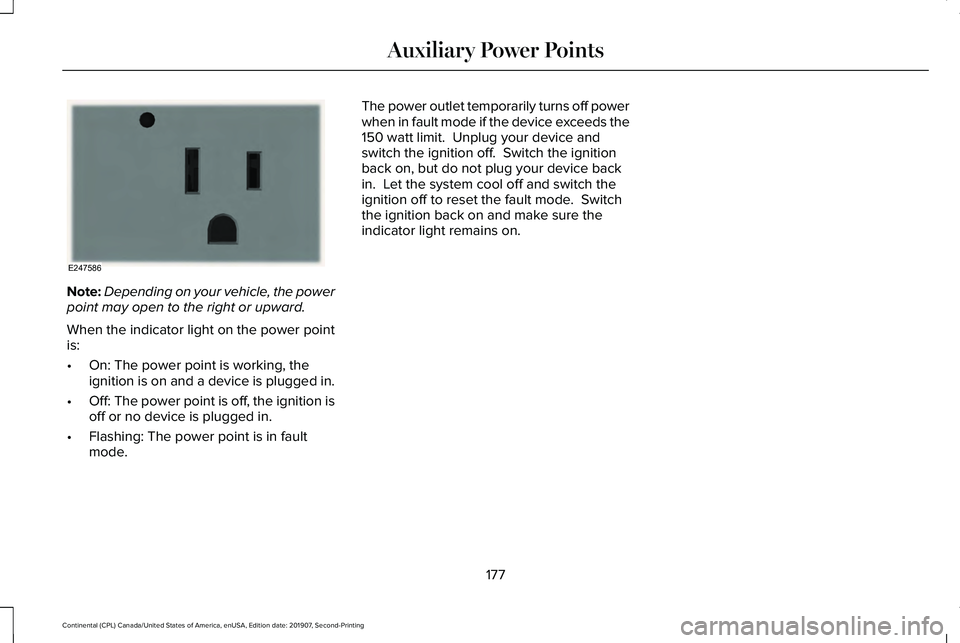

Note:
Depending on your vehicle, the power
point may open to the right or upward.
When the indicator light on the power point
is:
• On: The power point is working, the
ignition is on and a device is plugged in.
• Off: The power point is off, the ignition is
off or no device is plugged in.
• Flashing: The power point is in fault
mode. The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit. Unplug your device and
switch the ignition off. Switch the ignition
back on, but do not plug your device back
in. Let the system cool off and switch the
ignition off to reset the fault mode. Switch
the ignition back on and make sure the
indicator light remains on.
177
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Auxiliary Power PointsE247586

CENTER CONSOLE
Stow items in the cup holder carefully as
items may become loose during hard
braking, acceleration or crashes, including
hot drinks which may spill.
Available console features include:
Front storage compartment with
two USB ports, DC power point
and CD player (optional).
A
Cup holders with auxiliary storage
bin.
B Storage compartment with DC
power point.
C
Storage compartment, heated seat
controls, or rear climate controls.
D
Rear compartment with DC power
point or two USB ports and AC
power point.
E
OVERHEAD CONSOLE Press near the rear edge of the door to open
it.REAR SEAT ARMREST
Fold the armrest down to use the armrest
and cupholders.
The cupholders are inside the rear seat
armrest. To access the cupholders, push the
plastic panel on the front edge of the
armrest.
Push the panel again to close the
cupholders.
178
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Storage CompartmentsE221077 E266392 E221057

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
—
64
Fuel pump 2.
30A 2
65
Passenger power seat.
30A 2
66
Power point 1B.
20A 2
67
Auxiliary blower.
15A 2
68
Power point 1A.
20A 2
69
Not used.
—
70
Not used.
—
71
Driver power seat module.
30A 2
72
Not used.
—
73
Wiper motor.
25A 2
74
Not used.
—
75
Not used (spare).
20A 2
76
Not used.
—
77
307
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Starter.
30A 2
78
Auxiliary transmission pump (2.0L engine with
start-stop).
20A 2
79
Not used.
—
80
USB smart charge - passenger side.
5A 1
81
USB smart charge - console.
5A 1
82
Electronic door latch (left-hand rear).
20A 1
83
USB smart charge - driver side.
5A 1
84
Electronic door latch (right-hand front).
20A 1
85
Electronic door latch (right-hand rear).
20A 1
86
Transmission range control module.
15A 1
87
Rear recline.
5A 1
88
Electronic door latch (left-hand front).
20A 1
89
308
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Fuses

Auto Hold........................................................216
Using Auto Hold..................................................217
Autolamps.........................................................98 Windshield Wiper Activated Headlamps........98
Automatic Climate Control..........................148 Directing Air to the Footwell Air Vents..........148
Directing Air to the Instrument Panel Air
Vents..................................................................148
Setting the Blower Motor Speed.....................148
Setting the Temperature....................................148
Switching Auto Mode On and Off...................148
Switching Defrost On and Off..........................149
Switching Dual Zone Mode On and Off........150
Switching Maximum Air Conditioning On and Off.......................................................................150
Switching Maximum Defrost On and Off......150
Switching Recirculated Air On and Off..........150
Switching the Air Conditioning On and Off.......................................................................149
Switching the Climate Control On and Off.......................................................................149
Automatic High Beam Control...................103
Automatic High Beam Control Indicators......................................................104
Automatic Transmission...............................197 Automatic Transmission Adaptive
Learning...........................................................202
Brake-Shift Interlock Override.........................201 If Your Vehicle Gets Stuck In Mud or
Snow.................................................................202
Push Button Shift Transmission.......................197
SelectShift™ Automatic Transmission.............199
Understanding the Shift Positions of your Automatic Transmission................................197
Automatic Transmission Fluid Check............................................................333
Autowipers.......................................................95 Autowipers Settings.............................................95
Auxiliary Power Points
..................................176
AC Power Point....................................................176
DC Power Point....................................................176
Locations................................................................176
AWD See: All-Wheel Drive..........................................203
B
Battery See: Changing the 12V Battery.......................334
Blind Spot Information System.................257 Switching the System Off and On..................258
System Errors......................................................258
Using the Blind Spot Information
System..............................................................257
BLIS See: Blind Spot Information System..............257 Body Styling Kits............................................351
Bonnet Lock
See: Opening and Closing the Hood.............318
Booster Seats
..................................................32
Types of Booster Seats.......................................33
Brake Fluid Check........................................333 Brake Fluid Service Interval.............................334
Brakes..............................................................212 General Information............................................212
Breaking-In......................................................281
Bulb Specification Chart
.............................424
C
Cabin Air Filter
...............................................154
Capacities and Specifications - 2.7L........391 Air Conditioning System....................................
391
Alternative Engine Oil for Extremely Cold Climates...........................................................395
Automatic Transmission...................................392
Engine Coolant...................................................393
Engine Oil.............................................................394
Fuel Tank..............................................................397
Grease...................................................................397
Hydraulic Brake System...................................398
Locks.....................................................................398
Power Transfer Unit...........................................399
Rear Axle..............................................................400
594
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Index
