2020 LEXUS LX570 differential

5207-2. Steps to take in an emergency
LX570_OM_OM60R61U_(U)
Securely attach cables or chains to
the towing hooks.
Take care not to damage the vehicle
body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Shift the four-wheel drive control switch to “H4”. (The center differential is
unlocked.)
Change the vehicle height to N (norma l) mode and press the height control
OFF button to end the vehicle height control operation. (P. 305)
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 222
■While towing
If the engine is not running, the power assist for the brakes and steering will not function,
making steering and br aking more difficult.
Emergency towing procedure
1
2
3
4
5

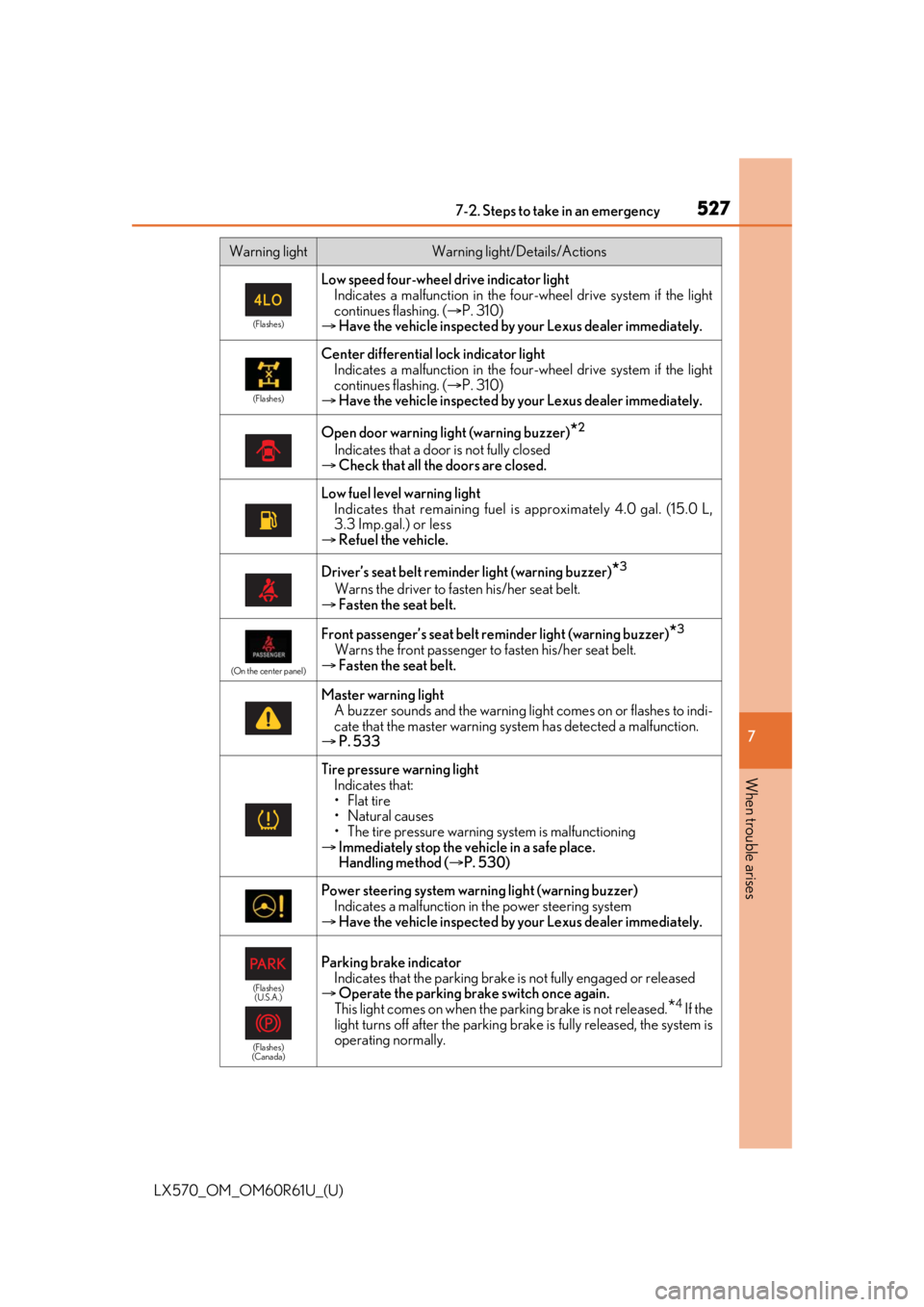

5277-2. Steps to take in an emergency
LX570_OM_OM60R61U_(U)
7
When trouble arises
(Flashes)
Low speed four-wheel drive indicator light Indicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 310)
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Center differential lock indicator light
Indicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 310)
 Have the vehicle inspected by your Lexus dealer immediately.
Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
 Check that all the doors are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 4.0 gal. (15.0 L,
3.3 Imp.gal.) or less
 Refuel the vehicle.
Driver’s seat belt reminder light (warning buzzer)*3
Warns the driver to fast en his/her seat belt.
 Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt re minder light (warning buzzer)*3
Warns the front passenger to fasten his/her seat belt.
 Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on or flashes to indi-
cate that the master warning system has detected a malfunction.
 P. 533
Tire pressure warning light
Indicates that:
•Flat tire
• Natural causes
• The tire pressure warnin g system is malfunctioning
 Immediately stop the vehicle in a safe place.
Handling method ( P. 530)
Power steering system warning light (warning buzzer)
Indicates a malfunction in the power steering system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
Parking brake indicator Indicates that the parking brake is not fully engaged or released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released.
*4 If the
light turns off after the parking brak e is fully released, the system is
operating normally.
Warning lightWarning light/Details/Actions

5297-2. Steps to take in an emergency
LX570_OM_OM60R61U_(U)
7
When trouble arises
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (rear), side imp act sensors (front door), safing sensor (rear), driver’s seat
belt buckle switch, driver’s se at position sensor, front passeng er’s seat belt buckle switch,
airbags, interconnecting wiring and power so urces, front passenger occupant classifica-
tion system, “AIR BAG ON” and “AIR BAG OFF” indicator lights, seat belt pretensioners
and force limiters. ( P. 38)
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sittin g in the seat.
●If a cushion is placed on the seat, the sens or may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fu el tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.
■If the low speed four-wheel driv e indicator light or the center differential lock indicator
light blinks
Take the specified steps. ( P. 312)
If the brake system warning light or the malf unction indicator light also comes on, or the
low speed four-wheel drive indicator light or the center differential lock indicator light
continues to blink afte r taking the specified steps, ther e may be a malfunction in the
engine, the brake system or the four-wheel dr ive system. In this case, you may not be able
to transfer between “H4” and “L4” modes, an d the center differential lock may not be
able to be locked or unlocked. Have the vehicle inspected by your Lexus dealer, immedi-
ately.

LX570_OM_OM60R61U_(U)
5698-1. Specifications
8
Vehicle specifications
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Ge nuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
The fluid capacity is the quantity of refe rence. If replacement is necessary, con-
tact your Lexus dealer.
Differential
Oil capacity
Front
Rear2.01 qt. (1.90 L, 1.67 Imp.qt.)
4.44 qt. (4.20 L, 3.70 Imp.qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Automatic transmission
Fluid capacity10.7 qt. (10.1 L, 8.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.

621Alphabetical index
LX570_OM_OM60R61U_(U)
Coolant..................................................... 568Capacity ................................................ 568
Checking................................................482
Preparing and checking before winter ................................... 389
Cooling system Engine overheating...........................557
Crawl Control .........................................314
Cruise control Cruise control..................................... 288
Dynamic radar cruise control with full-speed range .................... 276
Cup holders ..............................................431
Curtain shield airbags ........................... 38
Customizable features ....................... 586
Daytime running light system .......... 229
Defogger Outside rear view mirrors .............. 413
Rear window ......................................... 413
Windshield ............................................. 413
Differential ............................................... 569
Dimension ............................................... 564
Dinghy towing......................................... 210 Display
Crawl Control....................................... 314
Drive information.................................. 99
Dynamic radar cruise control with full-speed range ................... 276
Fuel consumption information ......... 111
Head-up display ................................. 105
Intuitive parking assist...................... 295
LDA (Lane Departure Alert)......... 271
Multi-information display.................. 96
Multi-terrain Monitor ....................... 323
Multi-terrain Select .............................319
Warning messages .......................... 533
Do-it-yourself maintenance.............. 474
Door courtesy lights Location ................................................. 425
Doors Automatic door locking and unlocking system.............................. 125
Back door................................................128
Door glasses ............................................ 171
Door lock...................................................121
Open door warning buzzer ........ 527
Open door warning light .............. 527
Outside rear view mirrors ............. 168
Rear door child-protectors ............ 124
Side doors .................................................121
D
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

623Alphabetical index
LX570_OM_OM60R61U_(U)
EngineAccessory mode.................................. 212
Air cleaner .............................................475
Compartment...................................... 477
Engine switch .......................................... 211
Exhaust gas precautions ................... 73
Hood ........................................................ 476
How to start the engine ..................... 211
Identification number ...................... 565
If the engine will not start............... 549
If your vehicle has to be stopped in an emergency ........... 515
Ignition switch (engine switch) ..................................................... 211
Overheating .........................................557
Engine compartment cover ............. 478
Engine coolant....................................... 482 Capacity ................................................ 568
Checking................................................482
Preparing and checking before winter ................................... 389
Engine coolant temperature gauge ........................................................ 92
Engine immobilizer system ................. 80
Engine oil ................................................. 479 Capacity ................................................ 566
Checking................................................ 479
Preparing and checking before winter ................................... 389 Engine switch (ignition switch) ...........211
Engine switch light
(ignition switch light)........................ 425
Event data recorder (EDR)................... 10
Exhaust gas precautions ....................... 73
First-aid kit holder ................................ 436
Flat tire .......................................................537
Floor mats....................................................26
Fluid Automatic transmission ..................569
Brake........................................................ 570
Steering .................................................. 570
Washer ...................................................489
Fog lights...................................................236 Replacing light bulbs ......................... 512
Switch ...................................................... 236
Footwell lights .........................................425
Four-wheel AHC (Active Height Control Suspension) ....................... 302 Easy access mode ............................304
Disabling the height control .........305
Selecting vehicle height.................. 302
Four-wheel drive system Center differential lock/unlock ...........................................311
Four-wheel drive control switch .................................................... 310
Warning light ....................................... 527
Front automatic air conditioning system .....................................................407
Front doors .................................................121
F
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

627Alphabetical index
LX570_OM_OM60R61U_(U)
Multi-information display ..................... 96Crawl Control ...................................... 314
Display contents ....................................96
Drive information ..................................99
Dynamic radar cruise control with full-speed range .................... 276
Fuel consumption information ......... 111
Intuitive parking assist ......................295
Language ...............................................597
LDA (Lane Departure Alert) .........271
Multi-information display ..................96
Switching the display...........................98
Multi terrain ABS.................................. 384
Multi-terrain Monitor ......................... 323
Multi-terrain Select................................319
Navigation system
*
Noise from under vehicle ....................... 8
Odometer .................................................. 93
Off road precautions .......................... 393
Oil Engine oil............................................... 566
Front differential oil........................... 569
Rear differential oil ............................ 569
Transfer oil ............................................ 570
Opener Back door ............................................... 129
Fuel filler door ......................................248
Hood ........................................................ 476 Outside rear view mirrors ..................168
Adjusting and folding ....................... 168
Blind Spot Monitor ........................... 370
Driving position memory................. 157
Linked mirror function when reversing...............................................169
Mirror position memory .................. 157
Outside rear view mirror defoggers............................................. 413
Outside temperature display ............................................100, 107
Overheating, Engine ...........................557
Paddle shift switches............................. 219
Panic mode .................................................117
Parking assist sensors (Intuitive parking assist)...................294
Parking brake .........................................225 Operation.............................................. 225
Parking brake engaged warning buzzer ...............................528
Parking lights ......................................... 228 Light switch........................................... 228
Replacing light bulbs ......................... 512
PCS (Pre-Collision system) ............ 256 Enabling/disabling the system.... 260
Function .................................................. 256
Warning light ....................................... 526
Personal lights ........................................425 Switch .......................................................427
Power back door ...................................130
Power easy access system ................. 157
Power outlet ........................................... 440
N
O
P
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

630Alphabetical index
LX570_OM_OM60R61U_(U)
Snow tires ................................................ 389
“SOS” button..............................................74
Spare tireInflation pressure ................................. 571
Storage location .................................537
Spark plug ............................................... 568
Specifications ......................................... 564
Speedometer ............................................ 92
SRS airbags................................................ 38
Steering Column lock release ..........................213
Fluid.......................................................... 570
Steering wheel .........................................164 Adjustment ............................................. 164
Audio switches
*
Meter control switches ......................98
Power easy access system ............ 157
Telephone switches
*
Stop/tail lightsReplacing light bulbs ......................... 512
Storage feature ..................................... 428
Stuck If the vehicle becomes stuck ....... 560
Sun visors ................................................. 439
Sunshade Roof............................................................ 175
Rear door...............................................452 Switch
Audio remote control switches
*
Automatic High Beam switch ..... 232
Center differential lock/unlock switch .......................................................311
Climate concierge switch .............406
Cruise control switch ..........276, 288
Door lock switch.................................. 123
Driving mode select switch ............ 291
Driving position memory switches ............................................... 158
Emergency flashers switch .............514
Engine switch ..........................................211
Fog light switch ................................... 236
Four-wheel drive control switch .................................................... 310
Garage door opener switches .............................................. 454
Headlight cleaner switch ............... 245
Interior light switch............................ 426
Intuitive parking assist...................... 294
Ignition switch..........................................211
LDA (Lane Departure Alert)....... 270
Light switches ...................................... 228
Meter control switches ...................... 98
Moon roof switches ........................... 174
Outside rear view mirror switches ............................................... 168
Paddle shift switches.......................... 219
Personal light switch .........................427
Power back door switch................. 130
Power door lock switch ................... 123
Power window switch ......................... 171
