3457-2. Steps to take in an emergency
7
When trouble arises
*: This light illuminates on the multi-information display.
■Hybrid system overheat warning light (warning buzzer)* (LC500h)
*: This light illuminates on the multi-information display.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (door), side impa ct sensors (front), side impact sensors (rear), driver’s seat
position sensor, driver’s seat belt buckle switch, front passeng er occupant classification sys-
tem (ECU and sensors), “AIR BAG ON” indicat or light, “AIR BAG OFF” indicator light,
front passenger’s seat be lt buckle switch, seat belt preten sioners, airbags, interconnecting
wiring and power sources. ( P.29)
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sensor may
cause the warning light to flash and the warning buzzer to sound even if a passenger is not
sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off af ter several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon as pos-
sible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily drops, the
electric power steering syst em warning light may come on and the warning buzzer may
sound.
■Tire pressure warning light
When a malfunction occurs in the tire pressure warning system, the tire pressure warning
light blinks to warn the driver . However, if the warning light blinks for 1 minute, and then
remains illuminated, making it difficult to determine whether the warning light is blinking,
turn the engine switch from off to IGNITION ON mode and
check if the warning light blinks.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire pres-
Warning lightDetails/Actions
Indicates that the hybrid system has overheated
This light may be displayed when dr iving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
 Stop the vehicle in a safe place.
Handling method. ( P.371)

3467-2. Steps to take in an emergency
sure warning reset switch will not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warnin g light may come on due to natural causes such as natural air leaks
and tire inflation pressure chan ges caused by temperature. In this case, adjusting the tire
inflation pressure will turn off the warning light (after a few minutes).
■Conditions that the tire pressure wa rning system may not function properly
 P.308
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning lig ht frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode , have it
checked by your Lexus dealer.
■Warning buzzer
In some cases, the buzzer may not be heard du e to being in a noisy location or audio sound.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features:  P.395)
WARNING
■If both the ABS and the brake sy stem warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The vehicle
will become extremely unstable during brakin g, and the ABS system may fail, which could
cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
When the light comes on in yellow, the assist to the power steering is restricted. When the
light comes on red, the assist to the power steering is lost and handling operations of the
steering wheel become extremely heavy. When steering wheel operations are heavier
than usual, grip the steering wheel firmly and operate it using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of vehi-
cle control and result in death or serious injury.
●Decelerate to the lowest appr opriate speed as soon as possible. Do not drive over 50
mph (80 km/h).
●Check and adjust the tire in flation pressure immediately.
●If the tire pressure warning lig ht comes on even after tire inflation pressure adjustment,
it is probable that you have a flat tire. Have the flat tire replaced by the nearest Lexus
dealer.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

3477-2. Steps to take in an emergency
7
When trouble arises
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the vehi-
cle placard or tire inflation pr essure label (tire and load info rmation label). (If your vehicle
has tires of a different size th an the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitor-
ing system (TPMS-tire pressure warning system) that illuminates a low tire pressure tell-
tale (tire pressure warning light) when one or more of your tires is significantly under-
inflated. Accordingly, when the low tire pressu re telltale (tire pressure warning light) illu-
minates, you should stop and check your tires as soon as possible, and inflate them to the
proper pressure. Driving on a si gnificantly under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation al so reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for proper
tire maintenance, and it is the driver’s respon sibility to maintain correct tire pressure, even
if under-inflation has not reac hed the level to trigger illumina tion of the TPMS low tire
pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS (tire
pressure warning system) malfunction indicator is combined with the low tire pressure
telltale (tire pressure warning light). When the system detect s a malfunction, the telltale
will flash for approximately one minute and th en remain continuously illuminated. This
sequence will continue upon subsequent vehi cle start-ups as long as the malfunction
exists. When the malfunction in dicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons,
including the installation of re placement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning sy stem) from functioning properly. Always
check the TPMS (tire pressure warning system ) malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensu re that the replacement or alternate tires and
wheels allow the TPMS (tire pr essure warning system) to cont inue to function properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with differ ent specifications or makers, as the tire pressure warning
system may not operate properly.

3487-2. Steps to take in an emergency

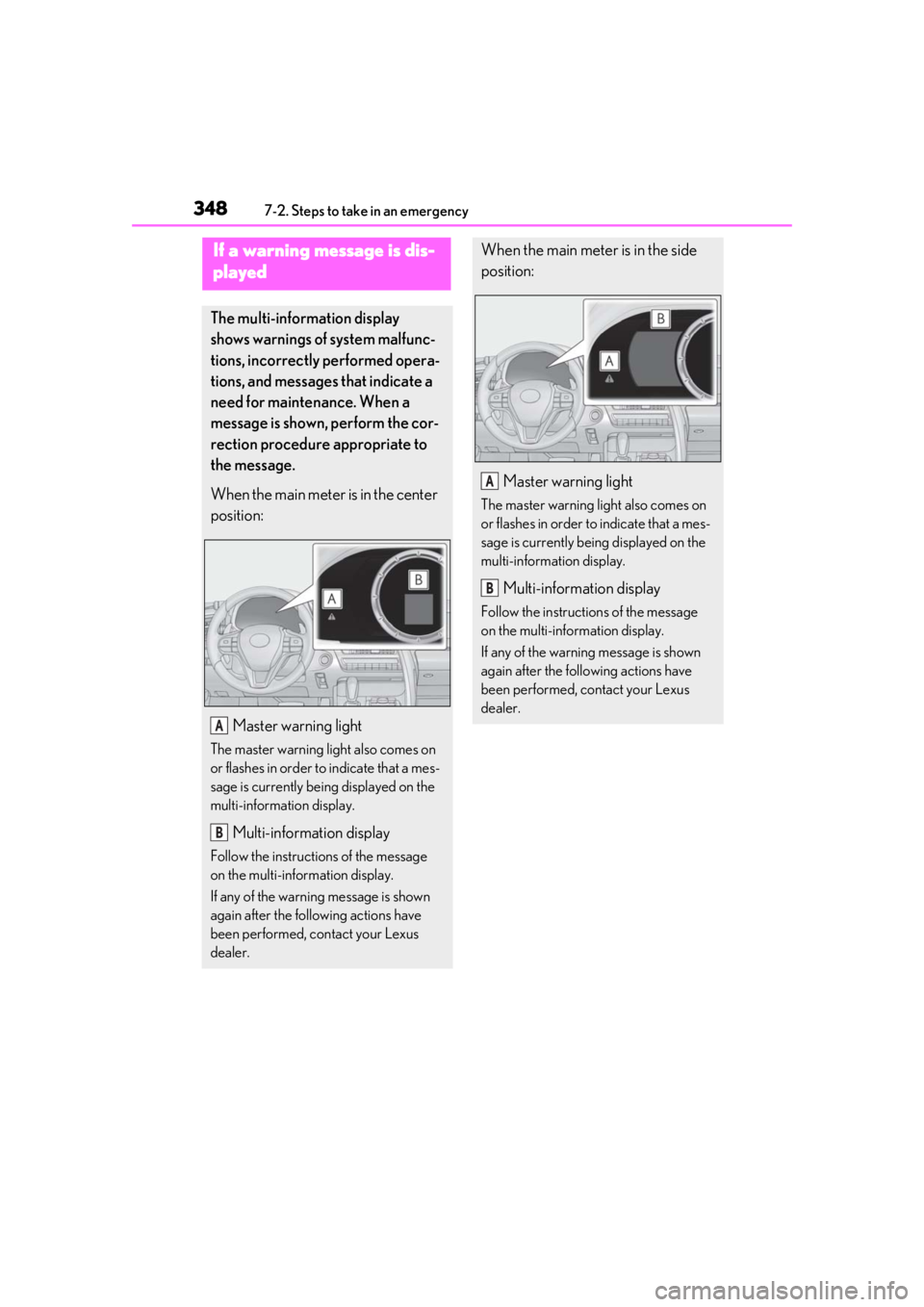

If a warning message is dis-
played
The multi-information display
shows warnings of system malfunc-
tions, incorrectly performed opera-
tions, and messages that indicate a
need for maintenance. When a
message is shown, perform the cor-
rection procedure appropriate to
the message.
When the main meter is in the center
position:Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.
Multi-information display
Follow the instructions of the message
on the multi-information display.
If any of the warnin g message is shown
again after the following actions have
been performed, contact your Lexus
dealer.
A
B
When the main meter is in the side
position:
Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently be ing displayed on the
multi-information display.
Multi-information display
Follow the instructions of the message
on the multi-information display.
If any of the warning message is shown
again after the following actions have
been performed, contact your Lexus
dealer.
A
B

3497-2. Steps to take in an emergency
7
When trouble arises
The warning lights and warning buzzers operate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi-information display.
■Warning messages
The warning messages explained below may differ from the actual messages according to
operation conditions and vehicle specifications.
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a sepa-
rate system warning light will come on along with a message or image shown on the multi-
information display.
●Malfunction in the ABS
The ABS warning light comes on. ( P.340)
●Malfunction in the charging system
The charging system warning light comes on. ( P.339)
●Malfunction in the brake system
The brake system warning light comes on. ( P.339)
Messages and warnings
System warn-
ing lightWarning
buzzer
*Warning
Comes onComes onSoundsIndicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the cor-
rection procedure is not performed
Comes onSounds
Comes on or flashesSounds
Indicates an important situation, such as
when the systems shown on the multi-infor-
mation display may be malfunctioning
FlashesSoundsIndicates a situation, such as when damage
to the vehicle or danger may result
Comes onDoes not soundIndicates a condition, such as malfunction of
electrical components, their condition, or
indicates the need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an oper-
ation has been performed incorrectly, or
indicates how to perform an operation cor-
rectly

3507-2. Steps to take in an emergency
●Malfunction in the EPS (Electric Power Steering) system
The electric power steering sy stem warning light comes on. ( P.340)
●Malfunction in the tire pressure warning system
The tire pressure warn ing light comes on. ( P.344)
●Remaining fuel level is low
The low fuel level warning light comes on. ( P.343)
■If “Hybrid System Overheated Reduce d Output Power” is shown (LC500h)
This message may be displayed when driving under severe operating conditions. (For exam-
ple, when driving up a long steep hill.) Stop and check. ( P.370)
■If “Traction Battery Needs to be Protected Re frain from the Use of N Position” is shown
(LC500h)
This message may be displayed wh en the shift position is in N.
As the hybrid battery (traction battery) cannot be charged when the shift position is in N,
shift the shift position to P when the vehicle is stopped.
■If “Traction Battery needs to be Protected Shift into P to Restart” is shown (LC500h)
This message is displayed when the hybrid ba ttery (traction battery) charge has become
extremely low because the vehicle has been left with the N shift position selected for a cer-
tain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
■If “Shift to P Before Exiting Vehicle” is shown
The driver’s door is opened without turning the engine switch to off with the
shift lever in any position other than P. Shift the shift position to P.
■If “Shift Is in N Release Accelerator Before Shifting” is shown
The accelerator pedal has been depressed when th e shift position is in N. Release the accel-
erator pedal and shift the shift position to D or R.
■If “Depress Brake when Vehicle Is Stoppe d Hybrid System May Overheat” is shown
(LC500h)
The message may be displayed when the accelerator pedal is depressed to hold the vehicle
while the vehicle is stopped on an uphill etc. The hybrid system may overheat. Release the
accelerator pedal and de press the brake pedal.
■If “Shift system malfunction Driving unavailable” is shown
There is a malfunction in the shift control system. Have the vehicle inspected by your Lexus
dealer immediately.
■If “Auto Power Off to Conserve Battery” is shown
LC500:
Power was turned off due to the automatic power off function. Next time when starting the
engine, increase the engine speed slightly an d maintain that level for approximately 5 min-
utes to recharge the battery.
LC500h:
Power was turned off due to the automatic power off function. Next time when starting the
hybrid system, operate the hybrid system for approximately 5 minutes to recharge the 12-
volt battery.

3517-2. Steps to take in an emergency
7
When trouble arises
■If a message that indicates the need for the shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the vehicle from moving unex-
pectedly, a message that requires shifting the shift lever may be shown on the multi-informa-
tion display. In that case, follow the instruction of the me ssage and shift the shift lever.
■If “Front Camera Unavailable” or “Front Camera Unavailable Remove Debris On
Windshield” is shown
The following systems may be suspended un til the problem shown in the message is
resolved. ( P.198, 348)
●PCS (Pre-Collision system)
●LKA (Lane-Keeping Assist)
●Dynamic radar cruise control with full-speed range
●Automatic High Beam
■If “Engine Stopped Steering Power Low” (LC500) or “H ybrid System Stopped Steer-
ing Power Low” (LC500h) is shown
The steering wheel may become extremely heavy. If the steering wheel becomes heavier
than usual when operating, hold firmly and operate using more force than usual.
■If “Warming Up Maximum Vehicle Speed: 65MPH” is shown (LC500h)
The transmission is being warmed up and the ve hicle is unable to be driven over 65 mph
(110 km/h). Wait until th e transmission warms up.
■If “Stop the vehicle in a safe place Shift to P position” is shown (LC500h)
There may be a malfunction in th e hybrid system or the shift position may be shifted to N for
a long time. Immediately stop the vehicle and contact your Lexus dealer.
■If “Oil Maintenance Required Soon” is shown (LC500h)
The engine oil is scheduled to be changed. Check the engine oil, and change if necessary.
After changing the engine oil, the message should be reset. (P.287)
■If “Maintenance Required Soon” is shown
Indicates that all maintenance according to th e driven distance on the maintenance sched-
ule
* should be performed soon. The message is shown approximately 4500 miles (7200
km) after the message has been reset. If necessary, perform maintenance.
*: Refer to the separate “Sched uled Maintenance” or “Owner’s Manual Supplement” for the
maintenance interval app licable to your vehicle.
■If “Engine Oil Level Low Add or Replace” is shown
The engine oil level is low. Chec k the level of engine oil, and add if necessary. This message
may appear if the vehicle is stopped on a slope. Move the vehicle to a level surface and
check to see if the message disappears.
■If a message that indicates the need for referring to Owner’s Manual is shown
●If any of the following messages is shown on the multi-information display, follow the
instructions.
• “Engine Coolant Temp High” ( P.368, 370)
•“Battery low” ( P.361)
• “Transmission Fluid Temp High” ( P.158, 164)
●If any of the following messages is shown on the multi-information di splay, it may indicate
a malfunction. Have the vehicle inspected by your Lexus dealer immediately.

3527-2. Steps to take in an emergency
• “Access System with Elec. Key Malfunction”
• “Shift system malfunction”
• “P switch malfunction”
• “Shift system unavailable”
●If any of the following messages is shown on the multi-information di splay, it may indicate
a malfunction in a system or part. Immediatel y have the vehicle inspected by your Lexus
dealer.
• “Hybrid System Malfunction” (LC500h)
•“Check Engine”
•“Hybrid Battery System Malfunction” (LC500h)
• “Accelerator System Malfunction”
• “Hybrid system stopped” (LC500h)
• “Engine stopped”(LC500h)
●If any of the following messages is shown on the multi-information di splay, it may indicate
a malfunction. Immediately stop the vehicle and contact your Lexus dealer.
• “Braking Power Low”
• “Charging System Malfunction”
• “Oil Pressure Low”
●If “Aux Battery Low” is shown, observe the following. (LC500h)
• If the message disappears in a few minutes*
Keep the hybrid system operating for more than approximately 15 minutes to charge the
12-volt battery.
• If the message does not disappear Refer to “If the 12-volt battery is discharged” ( P.361) to start the hybrid system
*: It is displayed for approximately 6 seconds.
●If “Battery low” is shown, the 12-volt battery charge is insufficient. Recharge or replace the
12-volt battery.
●If “Maintenance Required for Traction battery Cooling Parts” is shown, the filters may be
clogged, the air intake vents may be blocked, or there may be a gap in the duct. There-
fore, perform the following correction procedure. (LC500h)
• If the air intake vents and filters of the hybrid battery (traction battery) are dirty, perform the procedure on P.283 to clean them.
• If the warning message is shown when the air intake vents and filters of the hybrid battery
(traction battery) are not dirty, have th e vehicle inspected by your Lexus dealer.
■If a message that indicates the need fo r visiting your Lexus dealer is shown
The system or part shown on the multi-information display is malfunctioning. Have the vehi-
cle inspected by your Lexus dealer immediately.
■Warning buzzer
In some cases, the buzzer may not be heard du e to being in a noisy location or audio sound.
NOTICE
■While the engine oil level warning message is displayed
Continued engine operation with low engine oil will damage the engine.
