Page 89 of 94
What to do if...
89
ES350_QG_OM06176U_(U)
See the “OWNER’S MANUAL”
Turn signal indicatorBSM outside rear view mirror
indicators
Headlight indicator (U.S.A.)BSM indicator
Tail light indicator (Canada)Intuitive parking assist OFF
indicator (if equipped)
Headlight high beam indicator
RCTA OFF indicator (if
equipped)
Automatic High Beam
indicatorRCD OFF indicator (if
equipped)
Cruise control indicatorPKSB OFF indicator (if
equipped)
Dynamic radar cruise control
indicatorBrake hold standby indicator
Cruise control “SET” indicatorBrake hold operated
indicator
(White or green)LTA indicatorSmart access system with
push-button start indicator
(Flashes in orange)LTA indicatorLow outside temperature
indicator
(Flashes)
Slip indicatorEco Driving Indicator Light
VSC OFF indicator(U.S.A.)Parking brake
indicator
PCS warning light(Canada)
For further information, refe r to the “OWNER’S MANUAL”.

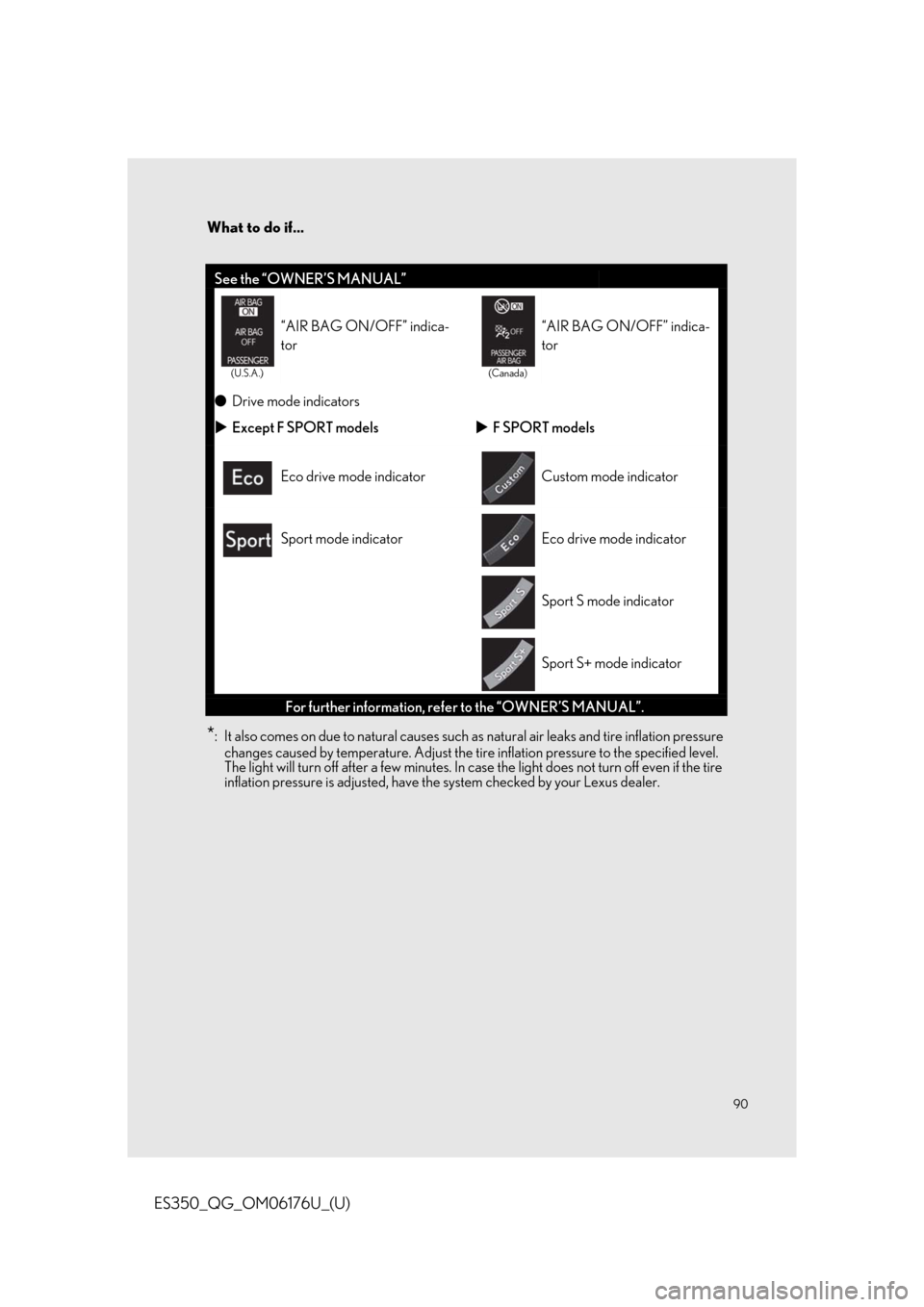

Page 90 of 94
90
What to do if...
ES350_QG_OM06176U_(U)
*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.
See the “OWNER’S MANUAL”
(U.S.A.)
“AIR BAG ON/OFF” indica-
tor
(Canada)
“AIR BAG ON/OFF” indica-
tor
●Drive mode indicators
Except F SPORT modelsF SPORT models
Eco drive mode indicatorCustom mode indicator
Sport mode indicatorEco drive mode indicator
Sport S mode indicator
Sport S+ mode indicator
For further information, refe r to the “OWNER’S MANUAL”.

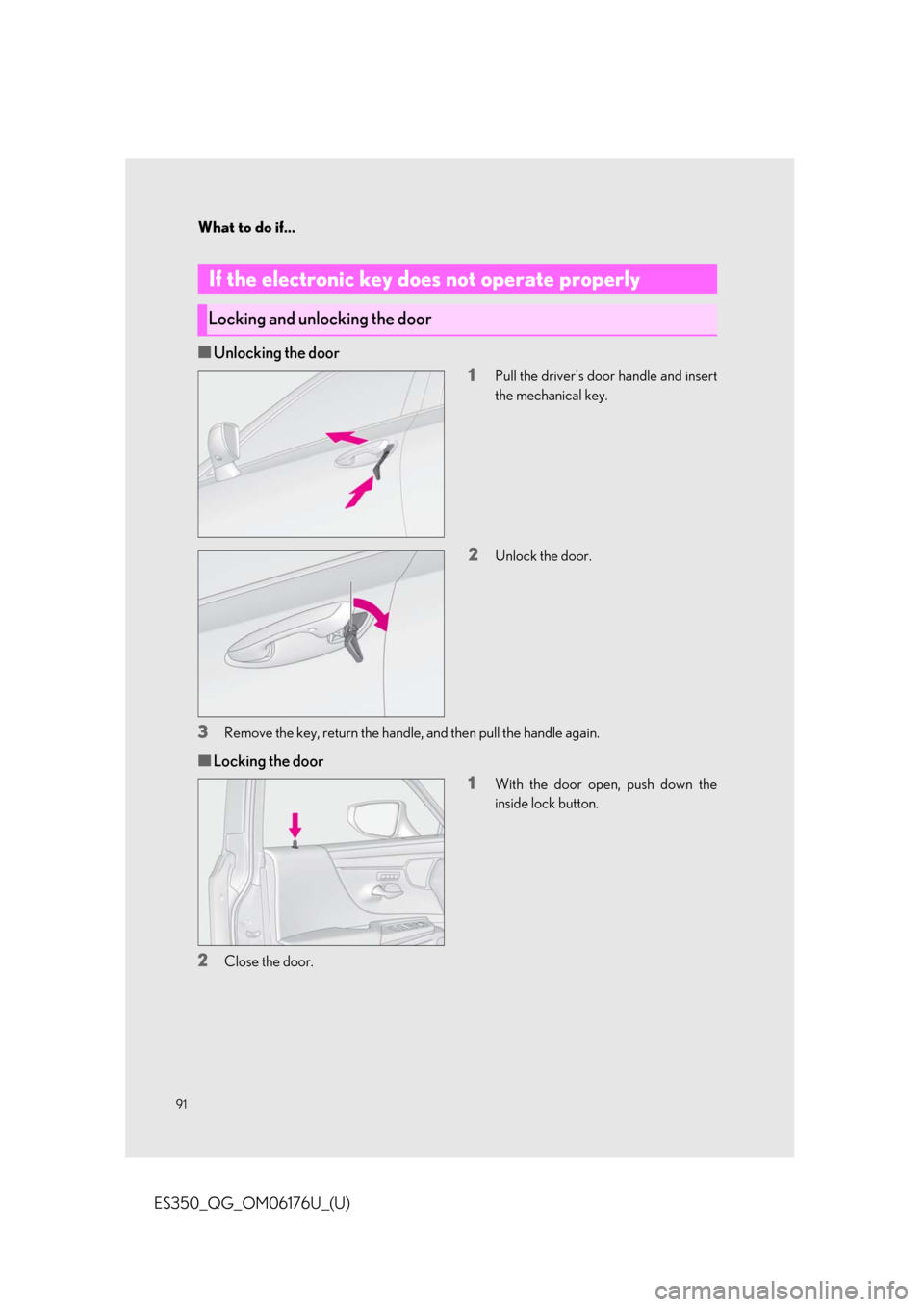

Page 91 of 94
What to do if...
91
ES350_QG_OM06176U_(U)
■Unlocking the door1
Pull the driver’s door handle and insert
the mechanical key.
2Unlock the door.
3Remove the key, return the handle, and then pull the handle again.
■Locking the door
1
With the door open, push down the
inside lock button.
2Close the door.
If the electronic key does not operate properly
Locking and unlocking the door
Page 92 of 94
92
What to do if...
ES350_QG_OM06176U_(U)
Turn the mechanical key clockwise to open.
1Ensure that the shift lever is in P and depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
pushbutton start is deactivated in cus-
tomization setting, the engine switch
will turn to ACCESSORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the engine switch shortly and firmly.
In the event that the engine still cannot be started, contact your Lexus dealer.
Opening the trunk
Starting the engine
If the electronic key battery becomes depleted, a warning message will be shown on the
multi-information display. Replace the battery wi th a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance , contact your Lexus dealer.

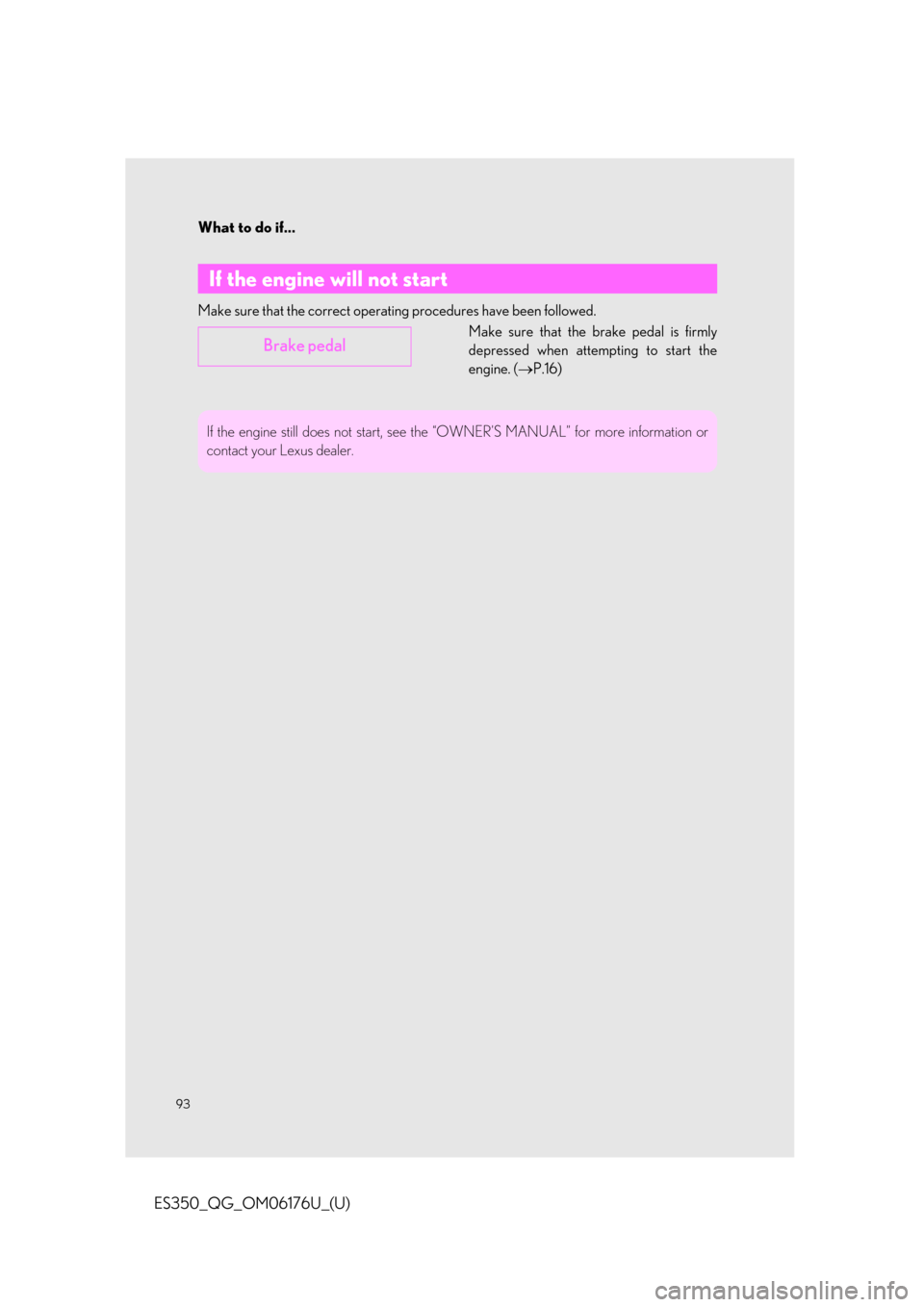

Page 93 of 94
What to do if...
93
ES350_QG_OM06176U_(U)
Make sure that the correct operating procedures have been followed.Make sure that the brake pedal is firmly
depressed when attempting to start the
engine. (P.16)
If the engine will not start
Brake pedal
If the engine still does no t start, see the “OWNER’S MA NUAL” for more information or
contact your Lexus dealer.

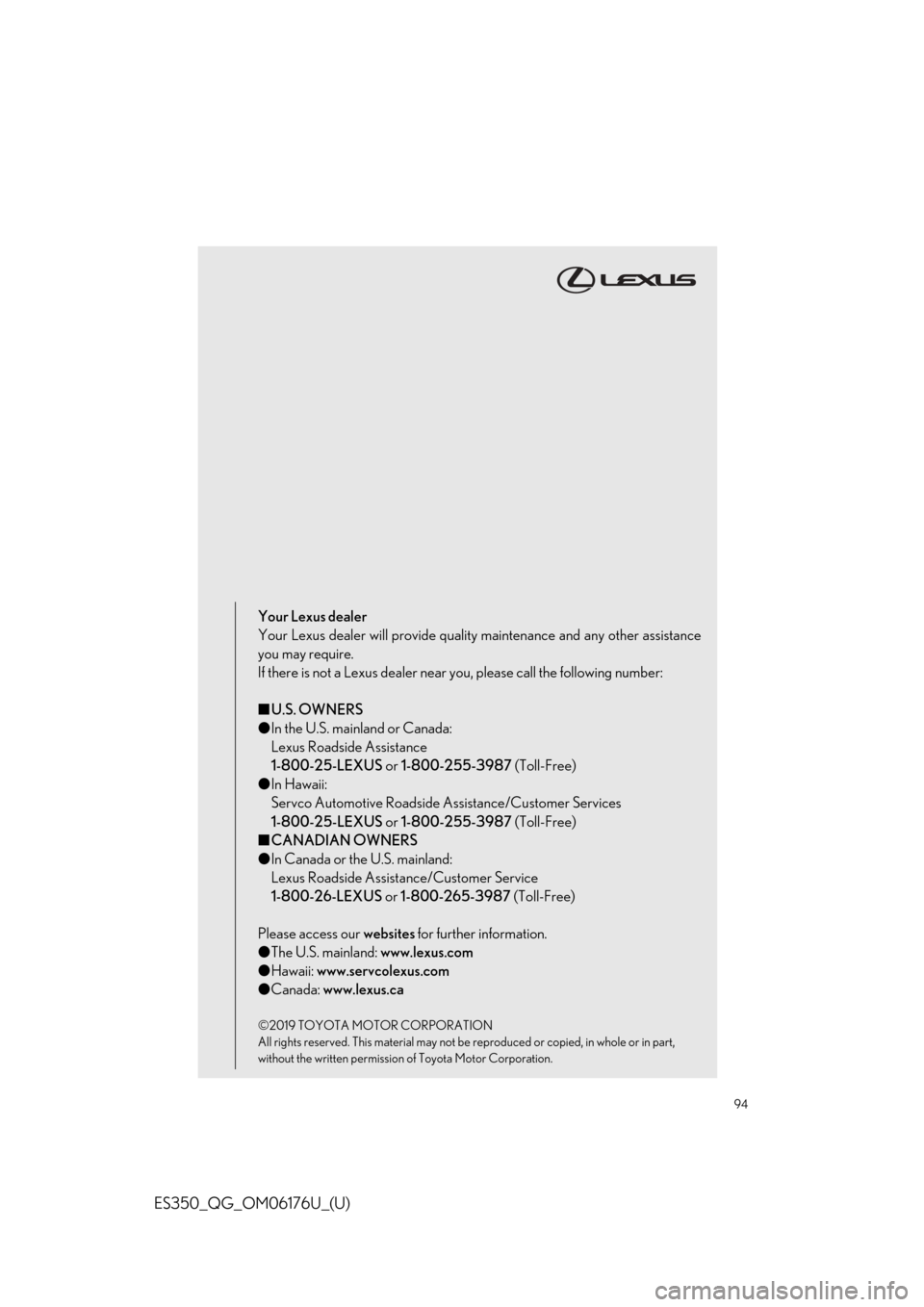

Page 94 of 94
94
ES350_QG_OM06176U_(U)
Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■ U.S. OWNERS
● In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
● In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■ CANADIAN OWNERS
● In Canada or the U.S. mainland:
Lexus Roadside Assist ance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
● The U.S. mainland: www.lexus.com
● Hawaii: www.servcolexus.com
● Canada: www.lexus.ca
