2020 KIA STINGER Owners Manual

Features of your vehicle
18
4
If a power door lock ever fails to func-
tion while you are in the vehicle, try
one or more of the following tech-
niques to exit :
Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the key to unlock the door from outside.With central door lock switch
Operate by pressing the central door
lock switch.
For Driver’s door:
When pushing down on the rightportion (1) of the switch, all vehicle
doors will lock. When pushing down on left portion
(2) of the switch, all vehicle doors
will unlock.
For Front Passenger’s door:
When pushing down on the front portion (1) of the switch, all vehicle
doors will lock.
When pushing down on the rear portion (2) of the switch, all vehicle
doors will unlock.
If the smart key is in the vehicle and any front door is opened, the
doors will not lock even though the
right portion(1, driver`s door) of the
central door lock switch is pressed.
OCK047014
OCK047064N
■ Driver side
■Passenger side

419
Features of your vehicle
Door lock/unlock features
Impact sensing door unlock sys-tem
All doors will automatically unlock
when an impact causes the air bags
to deploy.
Speed sensing door lock system
All doors will automatically lock after
the vehicle speed exceeds 15 km/h
(9 mph).
You can activate or deactivate the
auto door lock/unlock features in the
vehicle. Refer to “User setting” in this
chapter.
Child-protector rear door lock
The child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1. Open the rear door.
2. Turn the child safety lock (1) locat- ed on the rear edge of the door to
the lock ( ) position. When the
child safety lock is in the lock posi-
tion, the rear door will not open
even when the inner door handle
is pulled.
WARNING - Doors
The doors should always be
fully closed and locked while the
vehicle is in motion to prevent
accidental opening of the door.
WARNING - Unattended
children/animals
Never leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended
children or animals who cannot
escape the vehicle.
OCK047015

Features of your vehicle
20
4
3. Close the rear door.
To open the rear door, pull the out-
side door handle (2).
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle until
the rear door child safety lock is
unlocked.
WARNING- Rear door
locks
Use the rear door safety locks
whenever children are in the
vehicle. If a child accidently
opens the rear doors while the
vehicle is moving, they may fall
out.

421
Features of your vehicle
Non-Powered Liftgate
Opening the liftgate
The liftgate is locked or unlockedwhen all doors are locked or
unlocked with the smart key or cen-
tral door lock/unlock switch.
Only the liftgate is unlocked if the lift- gate unlock button on the smart key
is pressed for approximately 1 sec-
ond.
If unlocked, the liftgate can be opened by pressing the handle and
pulling it up. Once the liftgate is opened and then
closed, the liftgate locks automati-
cally. (All doors must be locked.)
✽ ✽ NOTICE
In cold and wet climates, liftgate
lock and liftgate mechanisms may
not work properly due to freezing
conditions.
LIFTGATE
WARNING- Exhaust
fumes
The liftgate should always be
kept completely closed while
the vehicle is in motion. If it is
left open or ajar, exhaust gases
may enter the car and serious
illness or death may result.
WARNING
The liftgate swings upward.
Make sure no objects or people
are near the rear of the vehicle
when opening the liftgate.
OCK047016

Features of your vehicle
22
4
Closing the liftgate
Lower and push down the liftgate
firmly. Make sure that the liftgate is
securely latched.
WARNING
Make sure your hands, feet and
other parts of your body are
safely out of the way before
closing the liftgate.
CAUTION
Make sure nothing is near the
liftgate latch and striker whileclosing the liftgate. It may dam-age the liftgate's latch.
WARNING- Exhaust
fumes
If you drive with the liftgate
open, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury
or death to vehicle occupants. If
you must drive with the liftgate
open, keep the air vents and all
windows open so that addition-
al outside air comes into the
vehicle.
OCK047053
CAUTION
Make certain that you close the liftgate before driving your vehi-cle. Possible damage may occurto the liftgate lift cylinders andattached hardware if the liftgateis not closed prior to driving.
WARNING- Riding in
cargo area
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an acci-
dent or sudden stops, occu-
pants should always be proper-
ly restrained.

423
Features of your vehicle
Power liftgate (if equipped)
✽ ✽NOTICE
Do not put heavy objects on the
power liftgate when you operate.
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power liftgate which
could result in injury to them-
selves or others, or damage the
vehicle.
OCK047017L
OCK047016L
OCK047018L
(1) Power liftgate open/close button
(2) Power liftgate handle switch
(3) Power liftgate close button
✽ ✽NOTICE
If the engine start/stop button is
ON, the power liftgate can operate
when the automatic transmission is
in P (Park).

Features of your vehicle
24
4

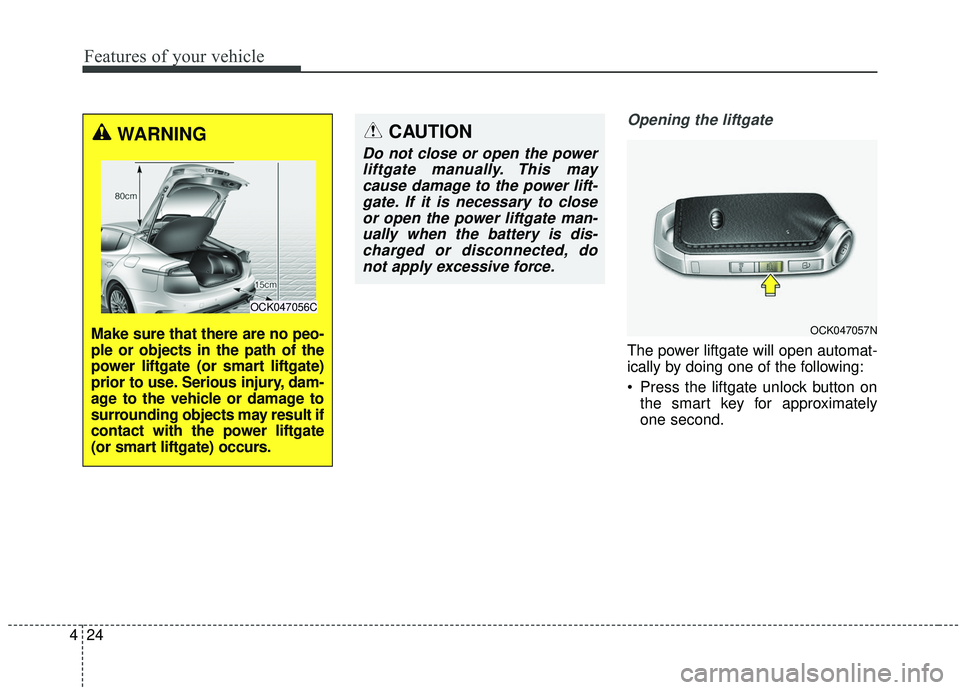

Opening the liftgate
The power liftgate will open automat-
ically by doing one of the following:
Press the liftgate unlock button on
the smart key for approximately
one second.
OCK047057N
WARNING
Make sure that there are no peo-
ple or objects in the path of the
power liftgate (or smart liftgate)
prior to use. Serious injury, dam-
age to the vehicle or damage to
surrounding objects may result if
contact with the power liftgate
(or smart liftgate) occurs.
OCK047056C
CAUTION
Do not close or open the powerliftgate manually. This maycause damage to the power lift-gate. If it is necessary to closeor open the power liftgate man-ually when the battery is dis-charged or disconnected, donot apply excessive force.

425
Features of your vehicle
Press the power liftgate open but-ton for approximately one second. Press the liftgate handle switch
carrying the smart key with you.
Closing the liftgate
Press the power liftgate close but-ton for approximately one second
when the liftgate is opened.
The liftgate will close and lock
automatically.
OCK047062LOCK047016
OCK047062L
