2020 KIA SPORTAGE headlamp

Maintenance
80
7

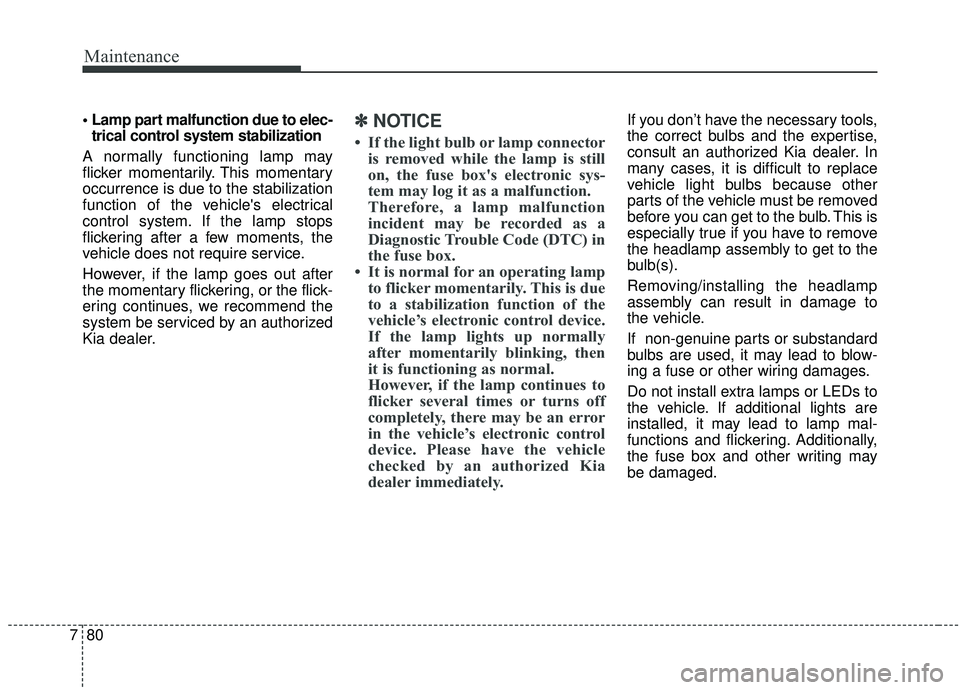

trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.

781
Maintenance
Light bulb position (Front)
(1) Headlamp (Low/High)
(2) Front turn signal lamp (Bulb type)
(3) Day time running lamp/ Position lamp (Bulb type)
(4) Side marker (Bulb type)
(5) Front turn signal lamp (LED type)
(6) Day time running lamp/ Position lamp (LED type)
(7) Side marker (LED type)
(8) Fog lamp (Bulb type)
(9) Fog lamp (LED type)
OQL078087N
OQL078039N
■ Head lamp - Type A
■Head lamp - Type BOQL078052N
OQL078053N
■Fog lamp - Type A
■Fog lamp - Type B

783
Maintenance

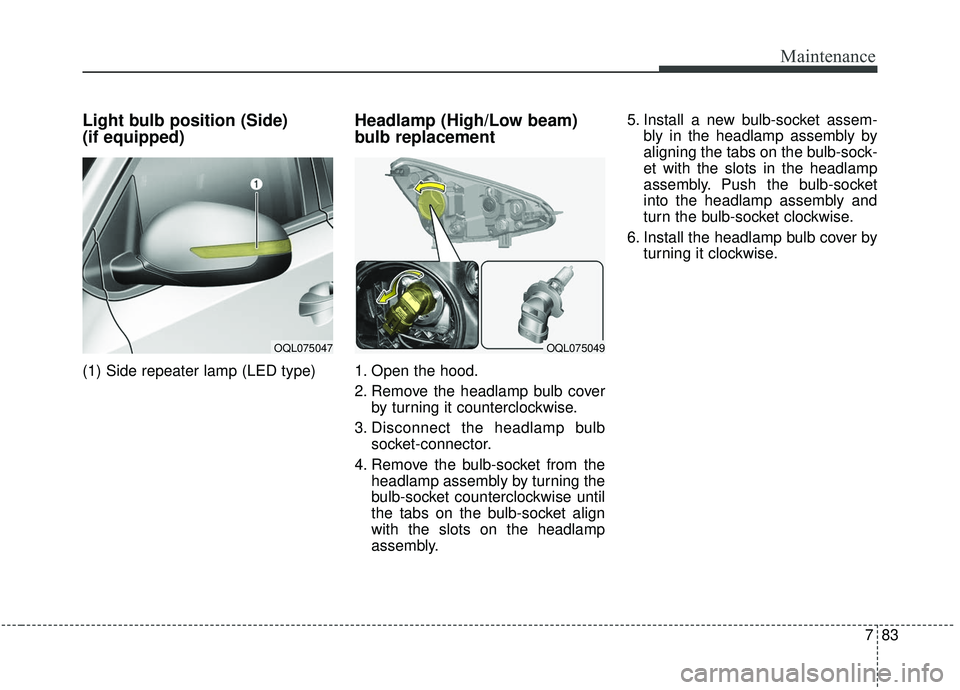

Light bulb position (Side)
(if equipped)
(1) Side repeater lamp (LED type)
Headlamp (High/Low beam)
bulb replacement
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
OQL075047OQL075049

Maintenance
84
7

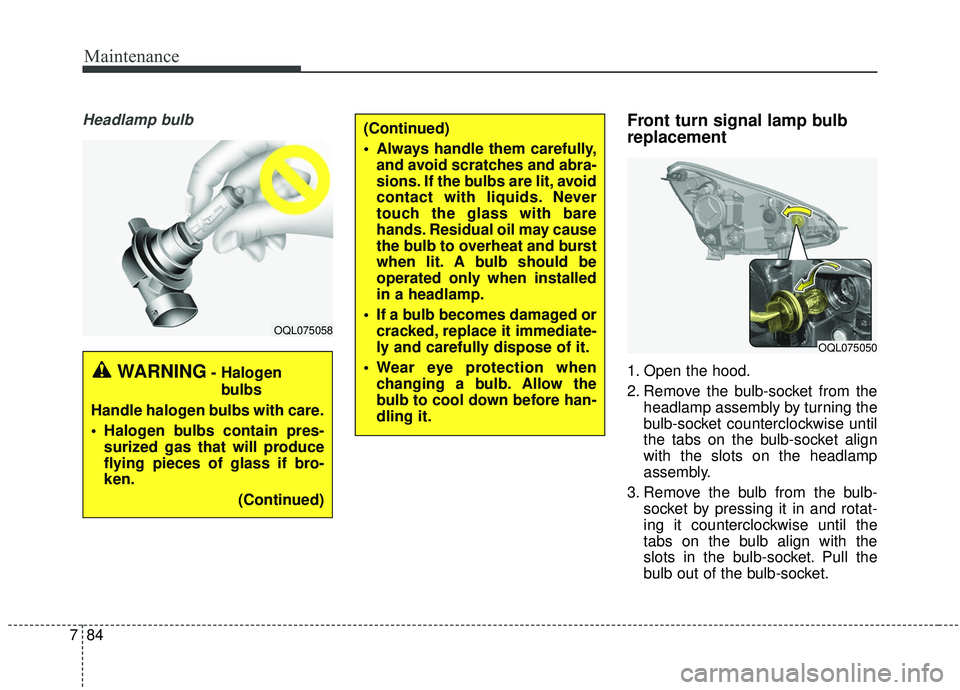

Headlamp bulbFront turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket.
OQL075058
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlamp.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
OQL075050

785
Maintenance
4. Insert a new bulb by inserting itinto the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly

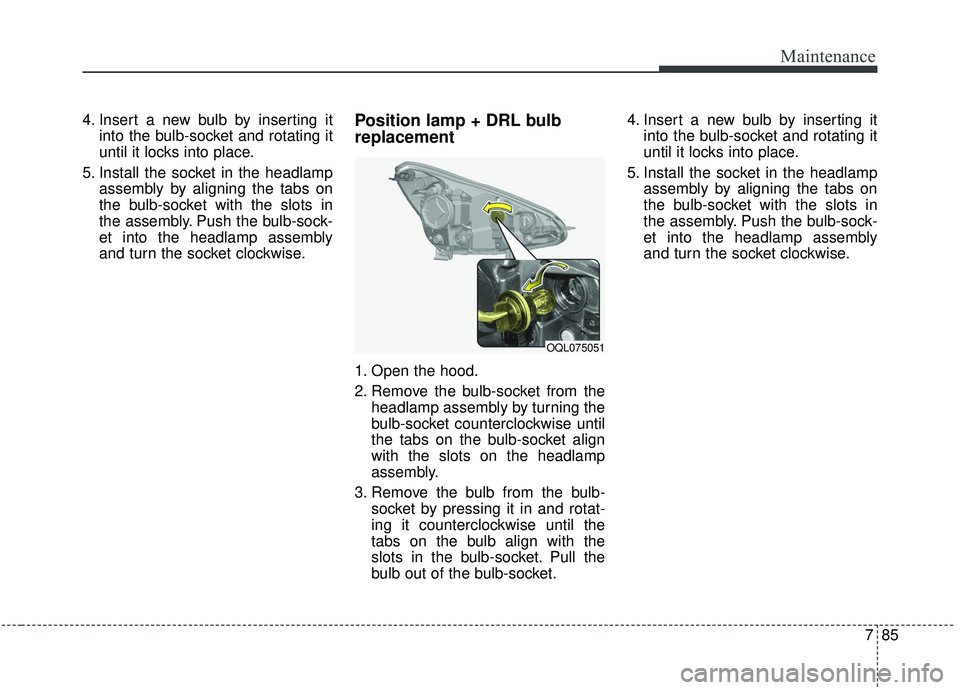

and turn the socket clockwise.Position lamp + DRL bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket. 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
OQL075051

83
BULB WATTAGESpecification & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps (Low)
Bulb type 60
HB3
LED type LED LED
Headlamps (High) Bulb type 60
HB3
LED type LED LED
Front turn signal lamps Bulb type 21
PY28/8W
LED type LED LED
Position lamps Bulb type 5
P21/5W
LED typeLEDLED
Daytime running light*Bulb type21P21/5W
LED typeLEDLED
Front fog lamps*Bulb type51HB4
LED typeLEDLED
Side markerBulb type5W5W
LED typeLEDLED
Rear Rear Stop/Tail lamps (Outside)
Bulb type 28/8 P28/8W
LED type LED LED
Rear tail lamps (Inside) Bulb type 5 P21/5W
LED type LED LED
Rear turn signal lamps 21 PY21W
Back-up lamps 21 P21W
Side marker Bulb type 5 W5W
LED type LED LED
High mounted stop lamp LED LED
License plate lamps 5 W5W
* If equipped(Continued)
