9-18
Import Address Book from USB Device
You can import the location data on a USB device to the system.
A
The previous location data on the system is to be deleted.
A
While importing from a navigation system that uses a
diff erent coordinate system, the locations may appear
diff erently.
Export Address Book to USB Device
You can export the location data on the system to a USB device.
A
The location data on the USB device is deleted.
Extend Rear Camera Use (if equipped)
You can set to display the rear camera display even when you
change the shift position other than “R” (Reverse) after reversing.
A
When you shift to "P" (Park) or drive at a predetermined
speed or faster, the rear view display disappears to display the
previous screen.
Confi guring the sound settings
You can change the sound settings such as speaker volume and
sound eff ects.
A
Available settings may diff er depending on the vehicle model
and specifi cations.
A
Some functions may not be available depending on the
infotainment system and amplifi er specifi cations on the
vehicle.
1 On the All Menus screen, touch Setup >
Sound.
The sound settings screen appears.
2 Confi gure the settings required:
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00120019> ß
1 ß
1
Page 194 of 243
9-24

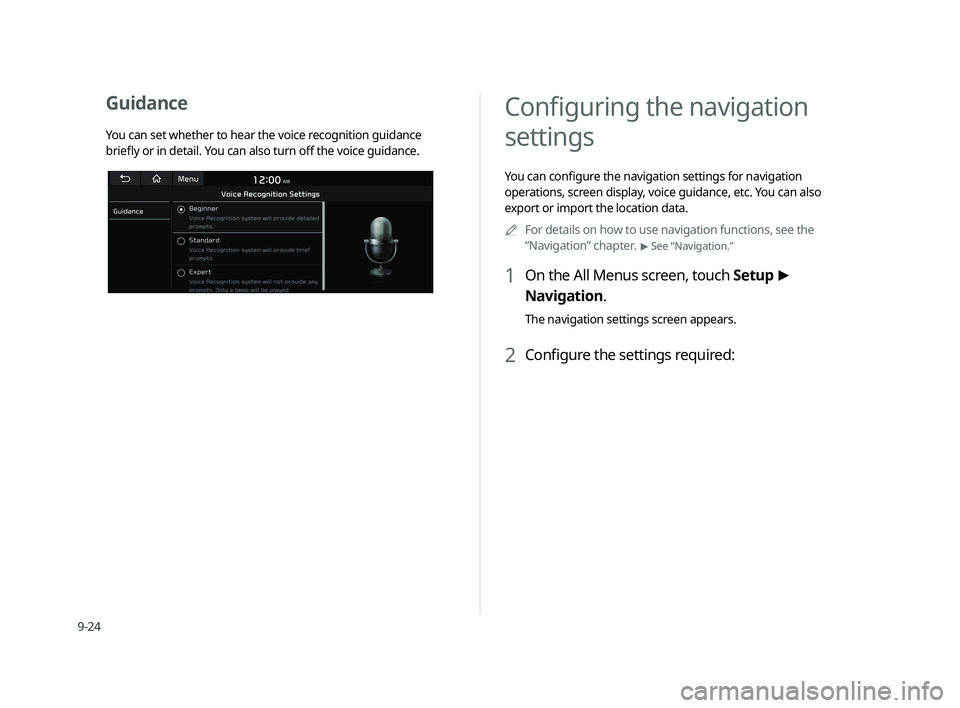

Confi guring the navigation
settings
You can confi gure the navigation settings for navigation
operations, screen display, voice guidance, etc. You can also
export or import the location data.
A
For details on how to use navigation functions, see the
“Navigation” chapter.
> See “Navigation.”
1 On the All Menus screen, touch Setup >
Navigation.
The navigation settings screen appears.
2 Confi gure the settings required:
Guidance
You can set whether to hear the voice recognition guidance
briefl y or in detail. You can also turn off the voice guidance.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00130015> ß
1 ß
1
Page 195 of 243
9-25
000dDisplay Traffi c: Displays nearby traffi c information on the
map.
000d3D Buildings: Displays major buildings on the map in
three dimensions.
000dAuto-scale: Automatically changes the scale of the map.
000ePOI Display: You can specify the icon type to display nearby
places on the map.
A
Touch on the right side of Gas/LPG Station to select display
options for fuel prices.
000dGas and LPG stations on the Map screen will also show their
fuel prices if they are lower than the set price.
000dSelect Display Fuel Price Info on Map to view
recommended fuel prices based on the prices off ered in
the area.
000dFuel prices on the map may diff er from actual ones.
Information
You can specify the information to display on the navigation map
screen while driving.
000eRoute Guide Line: Used to display the route guide line in
diff erent colors depending on the traffi c conditions. To display
the route color with a fi xed one, uncheck Show Traffi c Colors
on Route and select a color.
000eVehicle Symbol: You can specify the icon type to display your
current location on the map.
000eUnit: You can set the distance unit of the navigation map to
Kilometers (km) or Miles (mi) (if equipped).
000eShow Vehicle Speed: Displays the vehicle speed on the map.
Display
You can specify the information to display on the navigation map
screen.
A
The screen may diff er depending on the vehicle model and
specifi cations.
Map
You can specify the items to display on the map.
000eMap Font Size: You can set the size of the screen font on the
navigation map.
000eMap Color: You can set the navigation map background color.
000eMap Display: You can specify the items to display on the map.
000dMap View: Set the navigation map display mode. To
automatically rotate the map screen based on the driving
direction, select 2D Heading Up. To fi x the top of the map
screen to north, select 2D North Up. If you select 3D Map,
the map screen is displayed in 3D mode and automatically
rotates based on the driving direction.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00130016> ß
1 ß
1
Page 196 of 243
9-26
Guidance
You can confi gure the navigation guidance settings.
A
The screen may diff er depending on the vehicle model and
specifi cations.
Show Guidance Distance
You can confi gure settings for displaying the distance to the
destination during guidance.
000eInterval Distance: Displays the distance as the one between
diff erent zones.
000eCumulative Distance: Displays the distance as the one
between the current position and target position.
Border Crossing Info.
You can set whether or not to display the border crossing
information on the screen. 000eDetailed Guidance View: You can set to display detailed
information on the Map screen, such as moving directions
and lane change.
000eSpeed Limits: Sets whether or not to display the speed limits
on the screen.
Map Auto-scale Settings
You can set the scales for each vehicle speed zone.
A
For example, when you select “100 m” for the “21–50 km/h”
zone and “200 m” for the “51–80 km/h” zone, the unit interval
for the map scale on the navigation screen becomes 100
m when the vehicle speed is 50 km/h and 200 m when the
vehicle speed is 51 km/h.
Return to Map: Set Time
You can set the system to automatically display the map screen
after a specifi ed period of time when switched to the Radio/Media
mode screen while using the navigation.
> See “Return to Map: Set
Time.”
A
This function works while driving once a destination has been
set.
A
This feature is not available on the phone projection screen.
Auto Re-center Map
You can set the system to automatically display the current
position when the specifi ed period of time elapses after changing
to another position on the map.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00130017> ß
1 ß
1
Page 197 of 243
9-27
Fuel Price Information (if equipped)
When displaying gas stations or LPG charging stations on the
map, the fuel prices below a specifi c range can be displayed.
A
Select Display Fuel Price Info on Map to view recommended
fuel prices based on the prices off ered in the area.
A
Fuel prices on the map may diff er from actual ones.
User Data
You can import location data from a USB device to the system, or
export the data on the system to a USB device.
A
When importing or exporting the location data, you can uses
only the USB device formatted in exFAT, FAT16/32, or NTFS.
000eImport Address Book from USB Device: You can import the
location data on a USB device to the system.
A
The previous location data on the system is to be deleted.
A
While importing from a navigation system that uses a
diff erent coordinate system, the locations may appear
diff erently.
000eExport Address Book to USB Device: You can export the
location data on the system to a USB device.
A
The location data on the USB device is deleted.
Show Route Overview While Stopped.
You can set to display the route overview from the start point to
the destination when the vehicle is stationary.
Others
You can confi gure navigation options, e.g., turning on or off fuel
prices, exporting or importing places from and to Address Book.
A
The screen may diff er depending on the vehicle model and
specifi cations.
Previous Destinations Settings
You can set to automatically save the previous destination and
display the previous destinations when the navigation system
starts.
000eSave Previous Destinations: The previous destination is
automatically saved.
000eShow Previous Destinations after Navigation Start-
up: When the navigation system starts, the list of recent
destinations appear on a pop-up window.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00130018> ß
1 ß
1
Page 201 of 243
9-31
Name
You can specify the name of the user to display on the profi le.
Profi le Image
You can specify the image to display on the user profi le.
Link UVO Account (if equipped)
You can use various services and convenient management
features when linked to the registered UVO service.
A
Subscribe to UVO to check the function. > See “Subscribing to
the service.”
Link Bluetooth Devices
You can connect any registered Bluetooth device.
> See “Connecting a Bluetooth device.”
Reset User Account
You can initialize all account settings.
Confi guring the general
system settings
You can confi gure general settings for date, time, language, and
the like. You can also check information of the system.
1 On the All Menus screen, touch Setup >
General.
The general settings screen appears.
2 Confi gure the settings required:
Date/Time
You can set the system date and time automatically or manually.
You can also set the time display mode.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00140012> ß
1 ß
1
Page 202 of 243
9-32
Language
You can set the system display language.
A
Once the language has been changed, it takes a while to
apply the new language to the system. The notifi cation pop-
up window appears as soon as the new language is applied to
the system. When you wait a while or touch anywhere outside
the pop-up window, the window automatically disappears.
A
When you change the system language, it does not aff ect the
display of other unique data such as MP3 music fi le name.
A
Depending on the system language, the Bluetooth phone
message view and voice recognition may not be supported.
GPS Time
After receiving the time from GPS, it sets the system date and
time automatically.
A
To manually set the date and time, uncheck GPS Time, touch
the current date and time below GPS Time, and then set the
date and time.
24 Hours
The system time is displayed in the 24-hour format.
A
For example, when 24 Hours is checked and the current time
is 01:08 pm, the system screen displays the time as “13:08.”
When the checkbox is deselected, the time display changes to
“01:08 PM.”
Daylight Saving Time
Displays the system time in the format of Daylight Saving Time.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00140013> ß
1 ß
1
Page 203 of 243
9-33
Units (if equipped)
You can specify the units to display on the system screen.
Distance and Speed
You can select the units for distance and vehicle speed to display
on the screen.
Temperature
You can select the temperature unit to display on the screen.
Fuel Effi ciency
You can select the unit for fuel economy to display on the screen.
Tire Pressure
You can select the unit for tire pressure to display on the screen.
Keyboard
You can change the keyboard type for each language to use when
entering the text.
English Keyboard
You can select the keyboard type to use when entering the
English text.
Default Keyboard
You can select the default keyboard type.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00140014> ß
1 ß
1
