This Owner’s Manual illustrates and describes the operation of features and equipment that are either standard or optional on this
vehicle. This manual may also include a description of features and equipment that are no longer available or were not ordered on
this vehicle. Please disregard any features and equipment described in this manual that are not on this vehicle. FCA US LLC reserves
the right to make changes in design and specifications, and/or make additions to or improvements to its products without imposing
any obligation upon itself to install them on products previously manufactured.
With respect to any vehicles sold in Canada, the name FCA US LLC shall be deemed to be deleted and the name FCA Canada Inc.
used in substitution therefore.
If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Warranty Booklet by
calling 1-877-426-5337 (U.S.) or 1- 800 -387-1143 (Canada) or by contacting your dealer.
This Owner’s Manual is intended to familiarize you with the important features of your vehicle. Your most up-to-date Owner’s
Manual, Navigation/Uconnect manuals and Warranty Booklet can be found by visiting the website on the back cover. U.S.
residents can purchase replacement kits by visiting www.techauthority.com and Canadian residents can purchase replacement
kits by calling 1- 800 -387-1143.
The driver’s primary responsibility is the safe operation of the vehicle. Driving while distracted can result in loss of vehicle control,
resulting in an accident and personal injury. FCA US LLC strongly recommends that the driver use extreme caution when using
any device or feature that may take their attention off the road. Use of any electrical devices, such as cellular telephones,
computers, portable radios, vehicle navigation or other devices, by the driver while the vehicle is moving is dangerous and could
lead to a serious accident. Texting while driving is also dangerous and should never be done while the vehicle is moving. If you
find yourself unable to devote your full attention to vehicle operation, pull off the road to a safe location and stop your vehicle.
Some states or provinces prohibit the use of cellular telephones or texting while driving. It is always the driver’s responsibility to
comply with all local laws.
This Owner’s Manual has been prepared to help you get acquainted with your new Jeep® brand vehicle and to provide a
convenient reference source for common questions.
Not all features shown in this manual may apply to your vehicle. For additional information, visit www.mopar.com (U.S.),
www.mopar.ca (Canada) or your local Jeep® brand dealer.
WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway
motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the State of California to cause cancer and
birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust,
do not idle the engine except as necessary, service your vehicle in a well-ventilated area
and wear gloves or wash your hands frequently when servicing your vehicle. For more
information go to www.P65Warnings.ca.gov/passenger-vehicle.
Drunk driving is one of the most frequent causes of accidents. Your driving ability can
be seriously impaired with blood alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking driver, call a cab, a friend or
use public transportation.
DRIVING AND ALCOHOL
Driving after drinking can lead to an accident. Your perceptions are less sharp, your
reflexes are slower and your judgment is impaired when you have been drinking.
Never drink and then drive.
WARNING!
Page 12 of 412
W $ 5N ,N *
$ Q \ Po G L I L Fat Lo Q V o U a Ote Uat Lo Q V to t K L V Ye K L F Oe Fo X O G Ve U Lo X V O \ a I Ie Ft Lt V
Uoa G Zo Ut K L Qe V V a Q G Va Iet \ a Q G Pa \ Oea G to a Fo O O L V Lo Q Ue V X Ot L Qg L Q
Ve U Lo X V L Q M X U \ o U Geat K.
5e G Wa U Q L Qg / Lg Kt V
$ L U %ag Wa U Q L Qg / Lg Kt Úpage 88
Brake Warning Light Úpage 88
Battery Charge Warning Light Úpage 89
Door Open Warning Light
Úpage 89
Electric Power Steering (EPSyf ) D X O W Warning Light
Ú page 89
Electronic Throttle Control (ETCyf Warning Light
Ú page 89
Engine Coolant Temperature Warning Light
Ú page 90
Hood Open Warning Light Úpage 90
Liftgate Open Warning Light Úpage 90
Oil Pressure Warning Light Úpage 90
Red Warning Lights
Page 21 of 412
W $ 5N ,N *
When exiting the vehicle, always remove
the key fob from the vehicle and lock your
vehicle.
Never leave children alone in a vehicle, or
with access to an unlocked vehicle.
Allowing children to be in a vehicle unat-
tended is dangerous for a number of
reasons. A child or others could be seriously
or fatally injured. Children should be
warned not to touch the parking brake,
brake pedal or the gear selector.
Do not leave the key fob in or near the
vehicle, or in a location accessible to chil-
dren, and do not leave the ignition of a
vehicle equipped with Keyless Enter-N-Go
in the ON/RUN mode. A child could operate
power windows, other controls, or move the
vehicle.
Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury or
death.
CAUTION!
An unlocked vehicle is an invitation for
thieves. Always remove key fob from the
vehicle and lock all doors when leaving the
vehicle unattended.
WARNING!
Do not start or run an engine in a closed
garage or confined area. Exhaust gas
contains Carbon Monoxide (COyf Z K L F K L V
odorless and colorless. Carbon Monoxide is
poisonous and can cause serious injury or
death when inhaled.
Keep key fobs away from children. Opera -
tion of the Remote Start system, windows,
door locks or other controls could cause
serious injury or death.
2
21_WK_OM_EN_USC_t.book Page 19
Page 22 of 412
W $ 5N ,N *
Do not start or run an engine in a closed
garage or confined area. Exhaust gas
contains Carbon Monoxide (COyf Z K L F K L V
odorless and colorless. Carbon Monoxide is
poisonous and can cause serious injury or
death when inhaled.
Keep key fobs away from children. Opera-
tion of the Remote Start system, windows,
door locks or other controls could cause
serious injury or death.
Page 82 of 412
W $ 5N ,N *
$ Kot e Qg L Qe Foo O L Qg V \ Vte P L V Ga Qge Uo X V.
o Ye U Keat V Úpage 346.
CAUTION!
Driving with a hot engine cooling system
could damage your vehicle. If the
temperature gauge reads “H” pull over and
stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops
back into the normal range. If the pointer
remains on the “H”, turn the engine off
immediately and call an authorized dealer for
service.
1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen
Page 104 of 412
t Kat \o X U Ye K L F Oe
L V L Q P $ 5K b \ Oook L Qg Io U t Ke P L Q t Ke
L Q Vt U X Pe Qt F O X Vte U G L V S Oa \ a Q G o Q t Ke V K L Ite U. $ V
a Q a G Ge G S Ue Fa Xt Lo Q a O Za \ V a S S O \ t Ke Sa Uk L Qg
b Uake Z Ke Q e [ Lt L Qg t Ke Ye K L F Oe.
IF ENGINE FAILS TO START
If the engine fails to start after you have
followed the "Normal Starting" or "Extreme Cold
Weather" procedure, it may be flooded. Push
the accelerator pedal all the way to the floor and
hold it there. Crank the engine for no more than 15 seconds. This should clear any excess fuel in
case the engine is flooded. Leave the ignition
key in the RUN position, release the accelerator
pedal and repeat the “Normal Starting”
procedure.
COLD WEATHER OPERATION (BELOW
–22°F O
R −30°Cyf
To ensure reliable starting at these
temperatures, use of an externally powered
electric engine block heater (available from an
authorized dealeryf L V U H F R P P H Q G H G .
AFTER STARTING
The idle speed is controlled automatically, and
it will decrease as the engine warms up.
ENGINE B \f
Page 261 of 412
W $ 5N ,N *

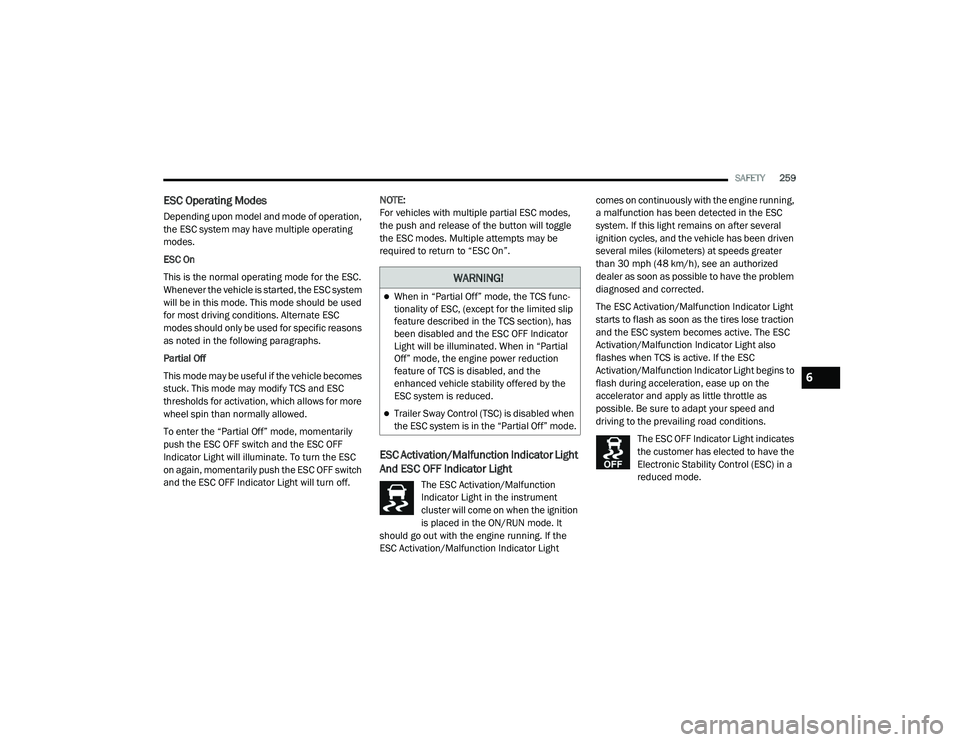

When in “Partial Off” mode, the TCS func-
tionality of ESC, (except for the limited slip
feature described in the TCS sectionyf K D V
been disabled and the ESC OFF Indicator
Light will be illuminated. When in “Partial
Off” mode, the engine power reduction
feature of TCS is disabled, and the
enhanced vehicle stability offered by the
ESC system is reduced.
Trailer Sway Control (TSCyf L V G L V D E O H G Z K H Q
the ESC system is in the “Partial Off” mode.
6
21_WK_OM_EN_USC_t.book Page 259
Page 309 of 412
WARNING!
Exhaust gases can injure or kill. They contain
carbon monoxide (COyf Z K L F K L V F R O R U O H V V D Q G
odorless. Breathing it can make you
unconscious and can eventually poison you. To
avoid breathing (COyf I R O O R Z W K H V H V D I H W \ W L S V :
Do not run the engine in a closed garage or
in confined areas any longer than needed
to move your vehicle in or out of the area.
If you are required to drive with the trunk/
liftgate/rear doors open, make sure that all
windows are closed and the climate control
BLOWER switch is set at high speed. DO
NOT use the recirculation mode.
If it is necessary to sit in a parked vehicle
with the engine running, adjust your
heating or cooling controls to force outside
air into the vehicle. Set the blower at high
speed.
WARNING!
Carbon monoxide (COyf L Q H [ K D X V W J D V H V L V
deadly. Follow the precautions below to
prevent carbon monoxide poisoning:
Do not inhale exhaust gases. They contain
carbon monoxide, a colorless and odorless
gas, which can kill. Never run the engine in
a closed area, such as a garage, and never
sit in a parked vehicle with the engine
running for an extended period. If the
vehicle is stopped in an open area with the
engine running for more than a short
period, adjust the ventilation system to
force fresh, outside air into the vehicle.
Guard against carbon monoxide with
proper maintenance. Have the exhaust
system inspected every time the vehicle is
raised. Have any abnormal conditions
repaired promptly. Until repaired, drive with
all side windows fully open.
6
