ture. The driving mode may change to
2-Wheel Drive (2WD). If this warning is dis-
played, stop the vehicle with the engine idling,
as soon as it is safe to do so. Then if the
warning turns off, you can continue driving.
Tire Size Incorrect: See Owner’s Manual (if
so equipped)
This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes are the same, that the tire
pressure is correct and that the tires are not
excessively worn.
Door Open
This warning illuminates when a door has
been opened.
Liftgate Open
This warning illuminates when the liftgate
has been opened.
Timer Alert — Have a break?
This indicator appears when the set time is
reached. The time can be set up to six hours.
For additional information, refer to “Settings”
in this section.Low Outside Temperature
This warning appears if the outside tempera-
ture is below 37°F (3°C). The temperature
can be changed to display in Celsius or Fahr-
enheit. For additional information, refer to
“Settings” in this section.
Power will turn off to save the battery
This message appears in the vehicle informa-
tion display after a period of time if the igni-
tion switch is in the ACC or the ON position
and if the vehicle is in P (Park). For additional
information, refer to “Push-button ignition
switch positions” in the “Starting and driving”
section of this manual.
Reminder: Turn OFF headlights
This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the OFF
or AUTO position. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.
Parking Sensor Error: See Owner’s Manual
This warning illuminates when there is an
error with the system. For additional infor-
mation, refer to “Front and rear sonar sys-
tem” in the “Starting and driving” section of
this manual.Predictive Forward Collision Warning
(PFCW) indicator
This indicator shows when the PFCW system
is engaged.
For additional information, refer to “Warning
systems switch” in this section and “Predic-
tive Forward Collision Warning (PFCW)” in
the “Starting and driving” section of this
manual.
Lane Departure Warning (LDW)/Lane De-
parture Prevention (LDP) indicator (if so
equipped)
This indicator shows when the LDW/LDP
system is engaged.
For additional information, refer to ”Warning
systems switch” in this section and “Lane De-
parture Warning (LDW)” and “Lane Depar-
ture Prevention (LDP)” in the “Starting and
driving” section of this manual.
Blind Spot Warning (BSW) and Rear Cross
Traffic Alert (RCTA) (if so equipped) indicator
This indicator shows when the following sys-
tems (if so equipped) are engaged:
∙ Blind Spot Intervention® (BSI)
∙ Blind Spot Warning (BSW)
∙ Rear Cross Traffic Alert (RCTA)
Instruments and controls2-29

∙ Using the steering wheel switch, a drivercan select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.
WARNING
Selecting “Dismiss Message” during a stop
within a trip temporarily dismisses the mes-
sage for that stop without turning the sys-
tem off. Alerts can be provided for other
stops during the trip. Selecting “Disable
Alert” turns off the Rear Door Alert system
for the remainder of a trip and no audible
alert will be provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, refer to “How to use
the vehicle information display” in this sec-
tion.
For additional information, refer to “Rear
Door Alert” in this section.
Check Back Seat For All Articles
When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from the
D (Drive) position to P (Park) position, and the driver exits the vehicle. This message alerts
the driver, after a period of time, to check for
items in the rear seat after the audible alert
has been provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, refer to “How to use
the vehicle information display” in this sec-
tion.
For additional information, refer to “Rear
Door Alert” in this section.
Distance Control Assist (DCA) indicators (if
so equipped)
These indicators show the Distance Control
Assist (DCA) system status. For additional
information, refer to “Distance Control Assist
(DCA)” in the “Starting and driving” section of
this manual.
Power turned off to save the battery
This message appears after the ignition
switch is automatically turned off. For addi-
tional information, refer to “Push-button ig-
nition switch positions” in the “Starting and
driving” section of this manual.
Your vehicle has two types of security sys-
tems:
∙ Vehicle security system
∙ INFINITI Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual
and audible alarm signals if someone opens
the doors, liftgate or hood when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
LIC0661
SECURITY SYSTEMS
2-32Instruments and controls

CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time.
∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the lock but-
ton.
∙ The brake is pressed.
∙ The doors are not closed and locked.
∙ The liftgate is open.
∙ The I–Key System Error warning mes- sage appears in the vehicle information
display. ∙ The alarm sounds due to illegal entry into
the vehicle.
∙ Two Remote Engine Starts, or a single Remote Engine Start with an extension,
have already been used.
∙ The vehicle is not in P (Park).
∙ There is a detected registered key already inside of the vehicle.
∙ The Remote Engine Start feature has been switched to the OFF position using
the “Vehicle Settings” menu on the ve-
hicle information display. For additional
information, refer to “Vehicle information
display” in the “Instruments and controls”
section of this manual.
The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, refer
to “Vehicle information display” in the “Instru-
ments and controls” section of this manual.
Pre-driving checks and adjustments3-21

A warning chime will sound if the shift lever is
moved out of P (Park) and the vehicle is be-
ginning to move, during a power open opera-
tion.Power Close:
The power liftgate automatically moves from
the fully open position to the secondary po-
sition. When the liftgate reaches the second-
ary position, the cinching motor engages and
pulls the liftgate to its primary latch position.
Power close takes approximately7–10sec-
onds. The power close feature can be acti-
vated by the button on the Intelligent Key, the
instrument panel switch or the liftgate close
switch
Bon the liftgate. A chime sounds to
indicate the power close sequence has been
started. ∙ If the liftgate opener switch
Ais acti-
vated while the cinching motor is en-
gaged, the cinching motor will disengage
and release the latch.
∙ The Intelligent Key button must be held for 1 second before the liftgate closes.
Stop - Reverse:
During the open/close movement, the lift-
gate can be stopped if the Intelligent Key,
instrument panel or liftgate switch (
AorB)
is pressed. The liftgate can be reversed if the
Intelligent Key, instrument panel or liftgate
switch (
AorB) is pressed again.
Auto Reverse:
If an obstacle is detected during power open
or power close, a warning chime will sound
and the liftgate will reverse direction and re-
turn to the full open or full close position. If a
second obstacle is detected, the liftgate mo-
tion will stop and the liftgate will enter
manual mode.
A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will re-
verse direction and return to the full open
position.
Liftgate close switch
LPD2722
3-24Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available. To engage the memorized settings, perform
the following:
1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key.
3. Place the ignition switch in the ON posi- tion. The settings linked to the Intelligent
Key will start. .
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual in the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions:
∙ When the vehicle speed is above 4 mph (7 km/h). ∙ When any of the memory switches are
pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while the au-
tomatic drive positioner is operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

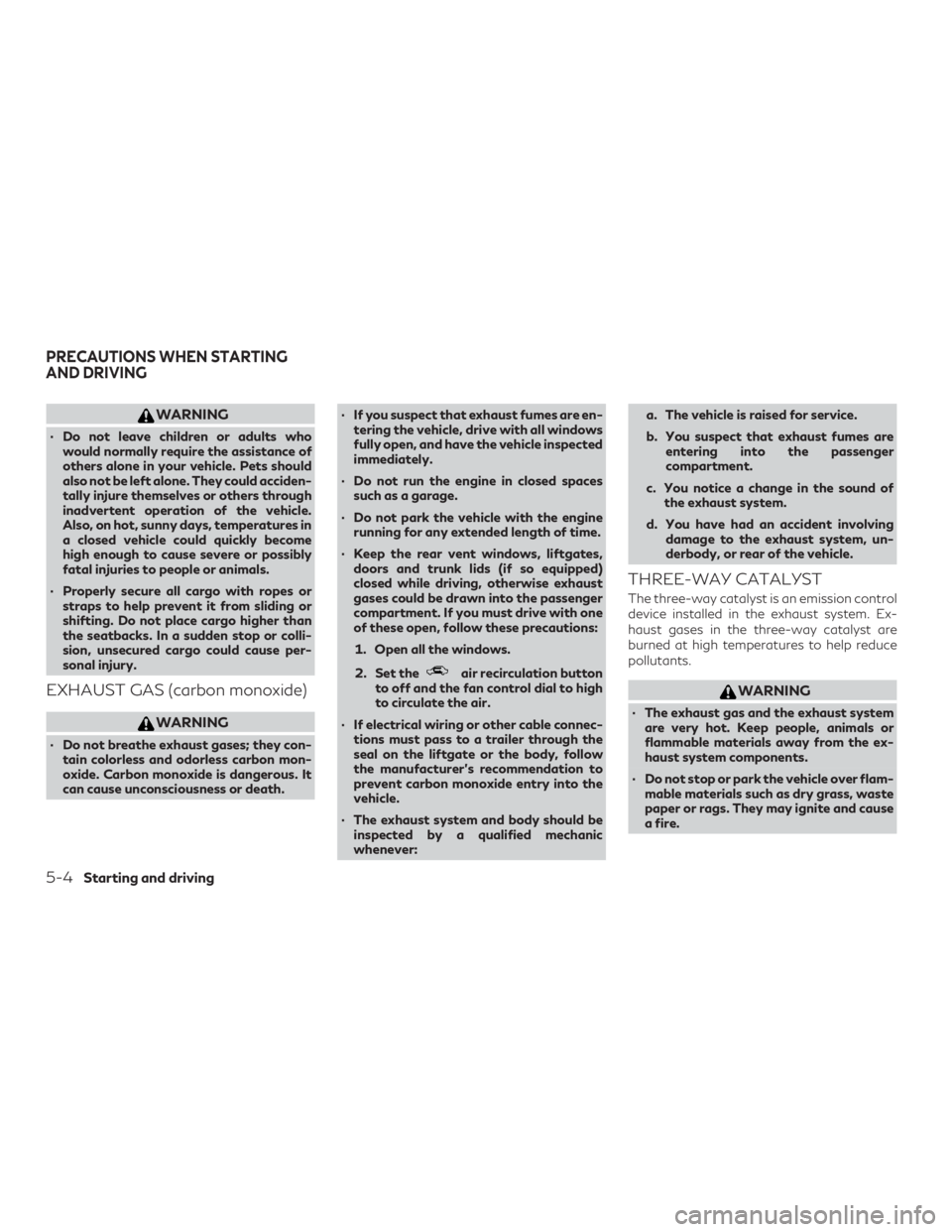

WARNING
∙ Do not leave children or adults whowould normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (carbon monoxide)
WARNING
∙ Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death. ∙ If you suspect that exhaust fumes are en-
tering the vehicle, drive with all windows
fully open, and have the vehicle inspected
immediately.
∙ Do not run the engine in closed spaces such as a garage.
∙ Do not park the vehicle with the engine running for any extended length of time.
∙ Keep the rear vent windows, liftgates, doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:
1. Open all the windows.
2. Set the
air recirculation button
to off and the fan control dial to high
to circulate the air.
∙ If electrical wiring or other cable connec- tions must pass to a trailer through the
seal on the liftgate or the body, follow
the manufacturer’s recommendation to
prevent carbon monoxide entry into the
vehicle.
∙ The exhaust system and body should be inspected by a qualified mechanic
whenever: a. The vehicle is raised for service.
b. You suspect that exhaust fumes are entering into the passenger
compartment.
c. You notice a change in the sound of the exhaust system.
d. You have had an accident involving damage to the exhaust system, un-
derbody, or rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.
WARNING
∙ The exhaust gas and the exhaust systemare very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.
∙ Do not stop or park the vehicle over flam- mable materials such as dry grass, waste
paper or rags. They may ignite and cause
a fire.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-4Starting and driving

INTELLIGENT ALL-WHEEL
DRIVE (AWD) DRIVING SAFETY
PRECAUTIONS (if so equipped)
WARNING
∙ Replacing tires with those not originallyspecified by INFINITI could affect the
proper operation of the TPMS.
∙ Always use tires of the same type, size, brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
∙ This vehicle is not designed for off-road (rough road) use. Do not drive on sandy or
muddy roads that tires may get stuck in.
∙ For AWD equipped vehicles, do not at- tempt to raise two wheels off the ground
and shift the transmission to any D
(Drive) or R (Reverse) position with the
engine running. Doing so may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury. ∙ Do not attempt to test an AWD equipped
vehicle on a 2-wheel dynamometer (such
as the dynamometers used by some
states for emissions testing), or similar
equipment even if the other two wheels
are raised off the ground. Make sure you
inform test facility personnel that your
vehicle is equipped with AWD before it is
placed on a dynamometer. Using the
wrong test equipment may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
∙ When a wheel is off the ground due to an unlevel surface, do not spin the wheel
excessively.
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except in an
emergency. (The engine will stop when the
ignition switch is pushed three consecutive
times in quick succession or the ignition
switch is pushed and held for more than
2 seconds.) If the engine stops while the
vehicle is being driven, this could lead to a
crash and serious injury.
PUSH-BUTTON IGNITION SWITCH
Starting and driving5-13

∙ Never shift to either the P (Park) or R(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.
CAUTION
∙ To avoid possible damage to your vehicle,when stopping the vehicle on an uphill
grade, do not hold the vehicle by depress-
ing the accelerator pedal. The foot brake
should be used for this purpose.
∙ Except in an emergency, do not shift to the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
Shifting
Press the button while depressing the
brake pedal
Press the button to shift
Shift without pressing the button
After starting the engine, fully depress the
brake pedal, press the shift lever button and
move the shift lever from the P (Park) position
to any of the desired shift positions.
WARNING
Apply the parking brake if the shift lever is
in any position while the engine is not run-
ning. Failure to do so could cause the vehicle
to move unexpectedly or roll away and re-
sult in serious personal injury or property
damage.
CAUTION
Use the P (Park) or R (Reverse) position
only when the vehicle is completely
stopped.
P (Park)
CAUTION
To prevent transmission damage, use the P
(Park) position only when the vehicle is
completely stopped.
Use the P (Park) shift lever position when the
vehicle is parked or when starting the engine.
Make sure the vehicle is completely stopped.
The brake pedal must be depressed and the
shift lever button pressed to move the shift
lever from N (Neutral) or any drive position
to P (Park). Apply the parking brake. When
parking on a hill, apply the parking brake first,
then move the shift lever to the P (Park)
position.
LSD2358
5-20Starting and driving
