Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has been stored inthe switch (1 or 2) then the indicator light
for the respective switch will stay on for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2) with
the following procedure.
1. Follow steps 1-3 in the “Memory storage function” section for storing the memory
position.
2. The indicator light for the pushed memory switch will come on. While the
indicator light is on for 5 seconds, press
the
button on the key fob. The
hazard lights will flash twice. The indica-
tor light of the linked memory switch will
blink and click twice. After the indicator
light goes off, the key fob is linked to that
memory setting. Once it is linked, when the ignition switch is in
the OFF position, pressing the
button
on the key fob will move the driver’s seat,
steering wheel and outside mirrors to the
linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob will
link the new position and overwrites the pre-
vious position.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when the shift
lever is in the P (Park) position. This allows the
driver to get into and out of the driver’s seat
more easily.
The driver’s seat will slide backward and the
steering column will move up:
∙ When the driver’s door is opened with the ignition switch placed in the OFF posi-
tion.
∙ When the ignition switch is changed from ACC to OFF with the driver’s door open. The driver’s seat and steering wheel will re-
turn to the previous position:
∙ When the ignition switch is changed from ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or
canceled through “Vehicle Settings” in the ve-
hicle information display by performing the
following: ∙ Switch the Exit Seat Slide from “On” to “Off”.
∙ Switch the Exit Steering Up from “On” to “Off”.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
3-38Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available. To engage the memorized settings, perform
the following:
1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key.
3. Place the ignition switch in the ON posi- tion. The settings linked to the Intelligent
Key will start. .
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual in the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions:
∙ When the vehicle speed is above 4 mph (7 km/h). ∙ When any of the memory switches are
pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while the au-
tomatic drive positioner is operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera aiding sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar system operation .....................4-25
Turning on and off the sonar function ........4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-27
Moving Object Detection (MOD)
(if so equipped) ................................. 4-28
MOD system operation ......................4-29
Turning MOD on and off ....................4-31
MOD system limitations .....................4-31
System maintenance ........................ 4-32
Vents .......................................... 4-33
Heater and air conditioner (automatic) ..........4-34
Automatic operation ........................ 4-35
Manual operation ........................... 4-36
Operating tips ............................... 4-37
CLIMATE setting screen .....................4-38
Rear automatic

air conditioning system ......4-41
Servicing air conditioner ........................ 4-44
USB/iPod® charging ports .....................4-44
Antenna ....................................... 4-45
Car phone or CB radio .......................... 4-45

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the RearView
Monitor system could result in serious in-
jury or death.
∙ RearView Monitor is a convenience fea- ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
∙ The system is designed as an aid to the driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
∙ The distance guide line and the vehicle width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera. The RearView Monitor system automatically
shows a rear view of the vehicle when the
shift lever is shifted into the R (Reverse) posi-
tion. When activating the RearView Monitor,
the guide lines, the icons and the messages
may not be displayed immediately. The radio
can still be heard while the RearView Monitor
is active.
To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion to operate the RearView Monitor. When
activating the RearView Monitor, the guide
lines, the icons and the messages may not be
displayed immediately.
LHA4293
4-4Monitor, climate, audio, phone and voice recognition systems

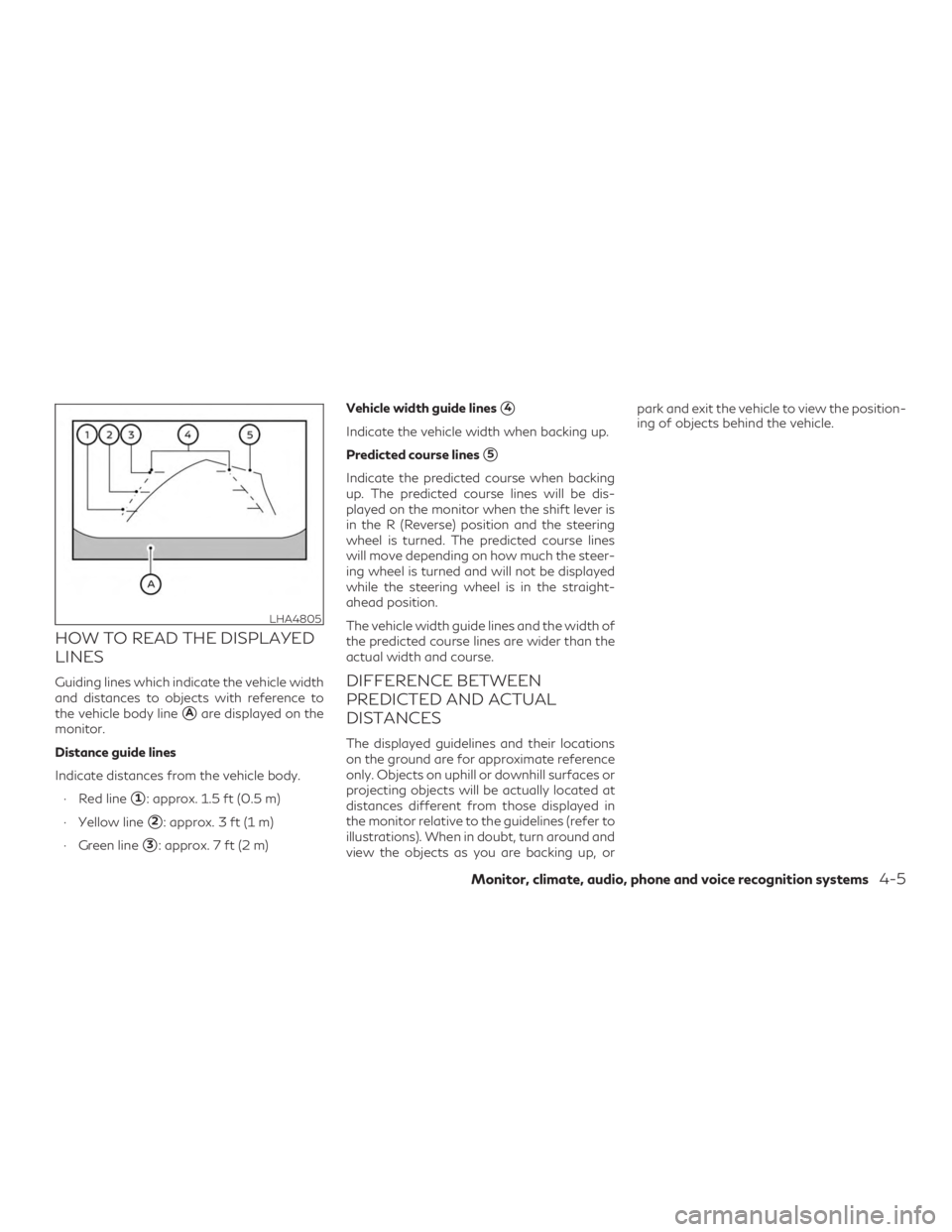

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to
the vehicle body line
Aare displayed on the
monitor.
Distance guide lines
Indicate distances from the vehicle body.
∙ Red line
1: approx. 1.5 ft (0.5 m)
∙ Yellow line
2: approx. 3 ft (1 m)
∙ Green line
3: approx. 7 ft (2 m) Vehicle width guide lines
4
Indicate the vehicle width when backing up.
Predicted course lines
5
Indicate the predicted course when backing
up. The predicted course lines will be dis-
played on the monitor when the shift lever is
in the R (Reverse) position and the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and will not be displayed
while the steering wheel is in the straight-
ahead position.
The vehicle width guide lines and the width of
the predicted course lines are wider than the
actual width and course.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or park and exit the vehicle to view the position-
ing of objects behind the vehicle.
LHA4805
Monitor, climate, audio, phone and voice recognition systems4-5

Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.
Backing up near a projecting object
The predicted course linesAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
LHA5197LHA5198LHA4995
4-6Monitor, climate, audio, phone and voice recognition systems

Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the object when backing up to the position
Aif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
∙ If the tires are replaced with different sized tires, the predicted course lines may
be displayed incorrectly.
∙ On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
∙ If the battery is disconnected or becomes discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to lock while the engine is running.
– Drive the vehicle on a straight road for more than 5 minutes.
∙ When the steering wheel is turned with the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly. 1. Visually check that the parking space is
safe before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is
moved to the R (Reverse) position. When
activating the RearView Monitor, the
LHA5199LHA5043
Monitor, climate, audio, phone and voice recognition systems4-7

guide lines, the icons and the messages
may not be displayed immediately.3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted
course lines
Benter the parking space
C. 4. Maneuver the steering wheel to make
the vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, move the shift lever to the P
(Park) position and apply the parking
brake.
LHA4770
4-8Monitor, climate, audio, phone and voice recognition systems
