2020 INFINITI QX50 key

– Do not bend, drop or strike it againstanother object.
– If the outside temperature is below 14°F (-10°C), the battery of the Intel-
ligent Key may not function properly.
– Do not place the Intelligent Key for an extended period in a place where tem-
peratures exceed 140°F (60°C).
– Do not change or modify the Intelli- gent Key.
– Do not use a magnet key holder.
– Do not place the Intelligent Key near an electric appliance such as a televi-
sion set or a personal computer.
– Do not allow the Intelligent Key to come into contact with water or salt
water, and do not wash it in a washing
machine. This could affect the system
function.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
Mechanical key
The Intelligent Key contains the mechanical
key.
To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
driver’s door and glove box if they are
equipped with a key cylinder.
CAUTION
Always carry the mechanical key installed
in the Intelligent Key slot.
For additional information, refer to “Doors” in
this section and “Storage” in the “Instruments
and controls” section of this manual.
Valet hand-off
When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedure
below. 1. Remove the mechanical key from the In- telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet and keep the mechanical key with you.
For additional information, refer to “Storage”
in the “Instruments and controls” section of
this manual.
LPD2849
Pre-driving checks and adjustments3-3

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the
Intelligent Keys which are registered to the
INFINITI Vehicle Immobilizer System compo-
nents in your vehicle.
The mechanical key can be used for all the
locks.
Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the
key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.Any key that is not given to the retailer at the
time of registration will no longer be able to
start your vehicle.CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt wa-
ter. This could affect system function.
When the doors are locked using one of the
following methods, the doors cannot be
opened using the outside door handles. The
doors must be unlocked to open the doors.WARNING
∙ Always have the doors locked while driv-
ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.
∙ Before opening any door, always look for and avoid oncoming traffic.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows and/or inadver-
tent door lock activation, do not leave
children, people who require the assis-
tance of others and/or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of in-
jury or death to people and pets.
DOORS
3-4Pre-driving checks and adjustments

LOCKING WITH KEY
To lock or unlock the driver’s door, turn the
key as shown.
Manual
To lock the driver’s door, turn the key toward
the front of the vehicle
1.
To unlock the driver’s door, turn the key to-
ward the rear of the vehicle
3, then return it
to the neutral position
2.
LOCKING WITH INSIDE LOCK
KNOB TYPE A (if so equipped)
To lock the door without the key, move the
inside lock to the lock position
1, then close
the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
LOCKING WITH INSIDE LOCK
KNOB TYPE B (if so equipped)
To lock the door without the key, move the
inside lock knob to the lock position
1, then
close the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
For front doors, the door can also be un-
locked by pulling on the inside handle lever
one time
3.
Driver’s door
LPD2750
Inside lock
LPD2714
Inside lock
LPD2713
Pre-driving checks and adjustments3-5

LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the lock position
1. When locking the
door this way, be certain not to leave the key
inside the vehicle.
To unlock all the doors without a key, push
the door lock switch (driver’s or front passen-
ger’s side) to the unlock position
2.
Lockout protection
When the power door lock switch is moved to
the lock position and any door is open, all
doors will lock. With the Intelligent Key left in
the vehicle and any door open, all doors will
unlock automatically and chime will sound
after the door is closed.
These functions help prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
∙ All doors lock automatically when the ve- hicle speed reaches 15 mph (24 km/h).
∙
All doors unlock automatically when the
transmission is placed in the P (Park) posi-
tion or when the ignition switch is placed in
the OFF position depending on the option
selected in the “Comfort & Convenience”
options of the “Settings” menu.
NOTE:
The Auto unlock features can be changed
using “Comfort & Convenience” options in
the “Settings” menu of the lower touch-
screen display. For additional information,
refer to the separate INFINITI InTouch™
Owner’s Manual.
CHILD SAFETY REAR DOOR
LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially
when small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
SPA2727LPD2753
3-6Pre-driving checks and adjustments

WARNING
∙ Radio waves could adversely affect elec-tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ The Intelligent Key transmits radio waves when the buttons are pressed. The
FAA advises the radio waves may affect
aircraft navigation and communication
systems. Do not operate the Intelligent
Key while on an airplane. Make sure the
buttons are not operated unintentionally
when the unit is stored for a flight.
∙
Before leaving the vehicle, engage the P
(Park) position and check that the elec-
tronic parking brake warning light is illumi-
nated to confirm that the electronic park-
ing brake is applied. The electronic parking
brake warning light will remain on for a pe-
riod of time after the driver’s door is locked.
∙ Make sure to engage the P (Park) posi- tion and apply the parking brake when
parking your vehicle, riding on or off the
vehicle or loading luggage. Failure to do
so could cause the vehicle to move or roll
away unexpectedly and result in serious
personal injury or property damage. The Intelligent Key system can operate all the
door locks using the remote control function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
∙ Be sure to carry the Intelligent Key with
you when operating the vehicle.
∙ Never leave the Intelligent Key in the ve- hicle when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions: ∙ When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station. ∙ When in possession of wireless equip-
ment, such as a cellular telephone, trans-
ceiver or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby.
∙ When the Intelligent Key is placed near an electric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, a
“Key Battery Low” indicator illuminates in the
vehicle information display. For additional in-
formation, refer to “Vehicle information dis-
play warnings and indicators” in the “Instru-
ments and controls” section of this manual.
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7

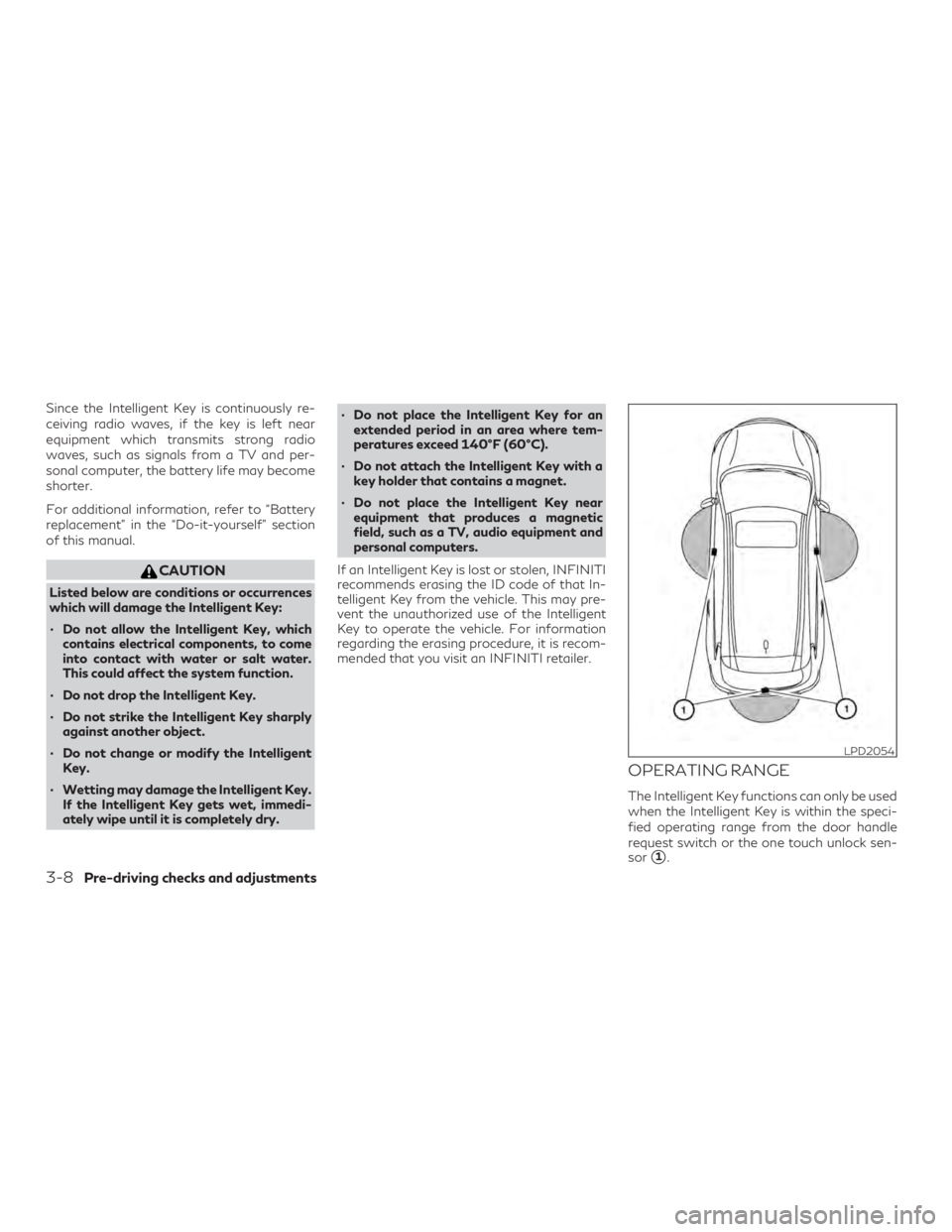

Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, whichcontains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object.
∙ Do not change or modify the Intelligent Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry. ∙ Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
∙ Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range from the door handle
request switch or the one touch unlock sen-
sor
1.
LPD2054
3-8Pre-driving checks and adjustments

When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower, and
the Intelligent Key may not function properly.
The operating range is within 31.5 in (80 cm)
from each request switch or one touch unlock
sensor
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches or the one touch unlock sensor may
not function.
If any of the front doors are recently closed
and locked, you must wait 2 seconds before
you can unlock the door with the one touch
unlock sensor. Pulling the handle within
2 seconds of locking the door will allow you
time to confirm that the door has been locked
without accidentally unlocking the door with
the one touch unlock sensor.
If you pull the door handle with your gloved
hand, the one touch unlock sensor operation
may not function. When the Intelligent Key is within the operat-
ing range, it is possible for anyone, even
someone who does not carry the Intelligent
Key, to push the request switch or the one
touch unlock sensor to lock/unlock the door
within range.
DOOR LOCKS/UNLOCKS
PRECAUTION
∙ Do not push the door handle request
switch with the Intelligent Key held in
your hand as illustrated. The close dis-
tance to the door handle will cause the
Intelligent Key system to have difficulty
recognizing that the Intelligent Key is
outside the vehicle.
∙ Within 2 seconds after the doors are locked using the door handle request
switch, make sure that the doors have
been securely locked by operating the
door handles.
LPD2716
Pre-driving checks and adjustments3-9

∙ To prevent the Intelligent Key from beingleft inside the vehicle, make sure you
carry the key with you before locking the
doors and liftgate.
∙ The Intelligent Key system (opening/closing doors with the door
handle request switch or the one touch
unlock sensor) can be set to remain inac-
tive. For additional information, refer to
the separate INFINITI InTouch™ Own-
er’s Manual.
∙ The door cannot be unlocked using the one touch unlock operation after locking
the door within 2 seconds. To unlock the
door, release the one touch unlock sensor
once and touch it again.
∙ If a large amount of water runs down on the door handle (for example, when
washing the vehicle or in heavy rain), the
door may unlock if the Intelligent Key is in
range of operation. To prevent the door
from being unlocked, the Intelligent Key
should be more than 7 ft (2 m) away from
the vehicle.
∙ Do not hold and pull the door handle quickly. The door will be unlocked but will
not open. Release the door handle once
and pull it again to open the door. ∙ If you pull the door handle with a gloved
hand, the one touch unlock operation
may not function.
INFINITI INTELLIGENT KEY
OPERATION
You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag.
LPD2717
3-10Pre-driving checks and adjustments
