2020 INFINITI QX50 display

2.DISTANCEswitch:
Changes the vehicle’s following distance:
∙ Long
∙ Middle
∙ Short
3. CANCEL switch:
Deactivates the system without erasing
the set speed.
4. ICC switch:
Master switch to activate the system.
5. SET- switch:
Sets desired cruise speed or reduces
speed incrementally.
Vehicle-to-vehicle distance control
mode display and indicators
The display is located between the speedom-
eter and tachometer.
1. This indicator indicates the ICC system status depending on a color:
∙ ICC system ON indicator (gray): Indi-
cates that the ICC switch is on.
∙ ICC system SET indicator (green): In-
dicates that the cruising speed is set.
∙ ICC system warning (yellow): Indi-
cates that there is a malfunction in the
ICC system. 2. Set vehicle speed indicator:
Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
3. Set distance indicator: Displays the selected distance between
vehicles set with the distance switch.
4. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in
front of you.
LSD2718
Starting and driving5-83

When the SET– switch is pushed under the
following conditions, the system cannot be
set.
A warning chime will sound and a message
will pop up:∙ When the VDC system is off (To use the ICC system, turn on the VDC system.
Push the ICC switch to turn off the ICC
system and reset the ICC switch by push-
ing the ICC switch again.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When VDC is operating
∙ When a wheel is slipping (To use the ICC system, make sure the wheels are no lon-
ger slipping.)
1System set display with vehicle ahead
2System set display without vehicle ahead
The driver sets the desired vehicle speed
based on the road conditions. The ICC sys-
tem maintains the set vehicle speed, similar to
standard cruise control, as long as no vehicle
is detected in the lane ahead. The ICC system
displays the set speed.
Vehicle detected ahead
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower vehicle ahead. The system then controls the vehicle
speed based on the speed of the vehicle
ahead to maintain the driver selected dis-
tance.
NOTE:
∙ The stop lights of the vehicle come on
when braking is performed by the ICC
system.
∙ When the brake operates, a noise may be
heard. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off.
If a vehicle ahead appears during accelera-
tion to the set vehicle speed or any time the
ICC system is in operation, the system con-
trols the distance to that vehicle.
LSD2719
Starting and driving5-85

Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and ICC sys-
tem display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:∙ The chime sounds.
∙ The vehicle ahead detection indicator blinks.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing.
∙ When the vehicle ahead is traveling faster and the distance between vehicles
is increasing.
∙ When a vehicle cuts in near your vehicle.
The warning chime will not sound when: ∙ The vehicle approaches other vehicles that are parked or moving slowly.
∙ The accelerator pedal is depressed, over- riding the system. NOTE:
The approach warning chime may sound and
the system display may blink when the ICC
sensor detects objects on the side of the ve-
hicle or on the side of the road. This may
cause the ICC system to decelerate or accel-
erate the vehicle. The ICC sensor may detect
these objects when the vehicle is driven on
winding roads, narrow roads, hilly roads, or
when entering or exiting a curve. In these
cases you will have to manually control the
proper distance ahead of your vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driv-
ing position in the lane) or traffic or vehicle
condition (for example, if a vehicle is being
driven with some damage).
Acceleration when passing
When the ICC system is engaged above
44 mph and following a slower vehicle (be-
low ICC set speed), and the turn signal is
activated to the left, the ICC system will au-
tomatically start to accelerate the vehicle to
help initiate passing on the left and will begin
to reduce the distance to vehicle directly
ahead. Only the left side turn signal operates
this feature. As the driver steers the vehicle
and moves into the passing lane, if no vehicle
is detected ahead the ICC system will con- tinue to accelerate to the ICC system set
speed. If another vehicle is detected ahead,
then the vehicle will accelerate up to the fol-
lowing speed of that vehicle. If the vehicle is
not steered into the left lane to pass, the
acceleration will stop after a short time and
regain the set following distance. Accelera-
tion can be stopped at any point by depress-
ing the brake pedal or the CANCEL switch on
the steering wheel.
WARNING
In order to reduce the risk of a collision that
may result in serious injury or death, please
be aware of the following:
∙ This function is only activated with the
left turn signal and will briefly accelerate
the vehicle even if a lane change is not
initiated. This can include non-passing
situations such as left side exits.
∙ Ensure that when passing another ve- hicle, the adjacent lane is clear before ini-
tiating the pass. Sudden changes in traf-
fic may occur while passing- always
manually steer or brake as needed- never
solely rely on the system.
5-88Starting and driving

∙ When the radar signal is temporarily in-terrupted
Action to take
When the conditions listed above are no lon-
ger present, turn the system off using the ICC
switch. Turn the ICC system back on to use
the system.
Condition B
When the radar sensor area of the front
bumper is covered with dirt or is obstructed,
the ICC system will automatically be can-
celed.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display. Action to take
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the ICC
system warning (yellow) and display the “Un-
available: Front Radar Blocked” message.
Action to take
When the conditions listed above are no lon-
ger present, turn the ICC system back on to
use the system.
Condition C
When the ICC system is not operating prop-
erly, a chime sounds and the ICC system
warning light (orange) will come on.
LSD2985
5-94Starting and driving

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:1. L’appareil ne doit pas produire de brouil- lage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Radio Frequency Radiation Exposure Infor-
mation:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.
The transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps. FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE
This mode allows driving at a speed between
25 to 90 mph (40 to 144 km/h) without
keeping your foot on the accelerator pedal.
WARNING
∙ In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
of the vehicle ahead nor the vehicle-to-
vehicle distance is detected.
∙ Pay special attention to the distance be- tween your vehicle and the vehicle ahead
of you or a collision could occur.
∙ Always confirm the setting in the ICC system display.
∙ Do not use the conventional (fixed speed) cruise control mode when driving under
the following conditions: – When it is not possible to keep the ve-
hicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads
– On slippery roads (rain, snow, ice, etc.)
– In very windy areas
∙ Doing so could cause a loss of vehicle con- trol and result in an accident.
5-96Starting and driving

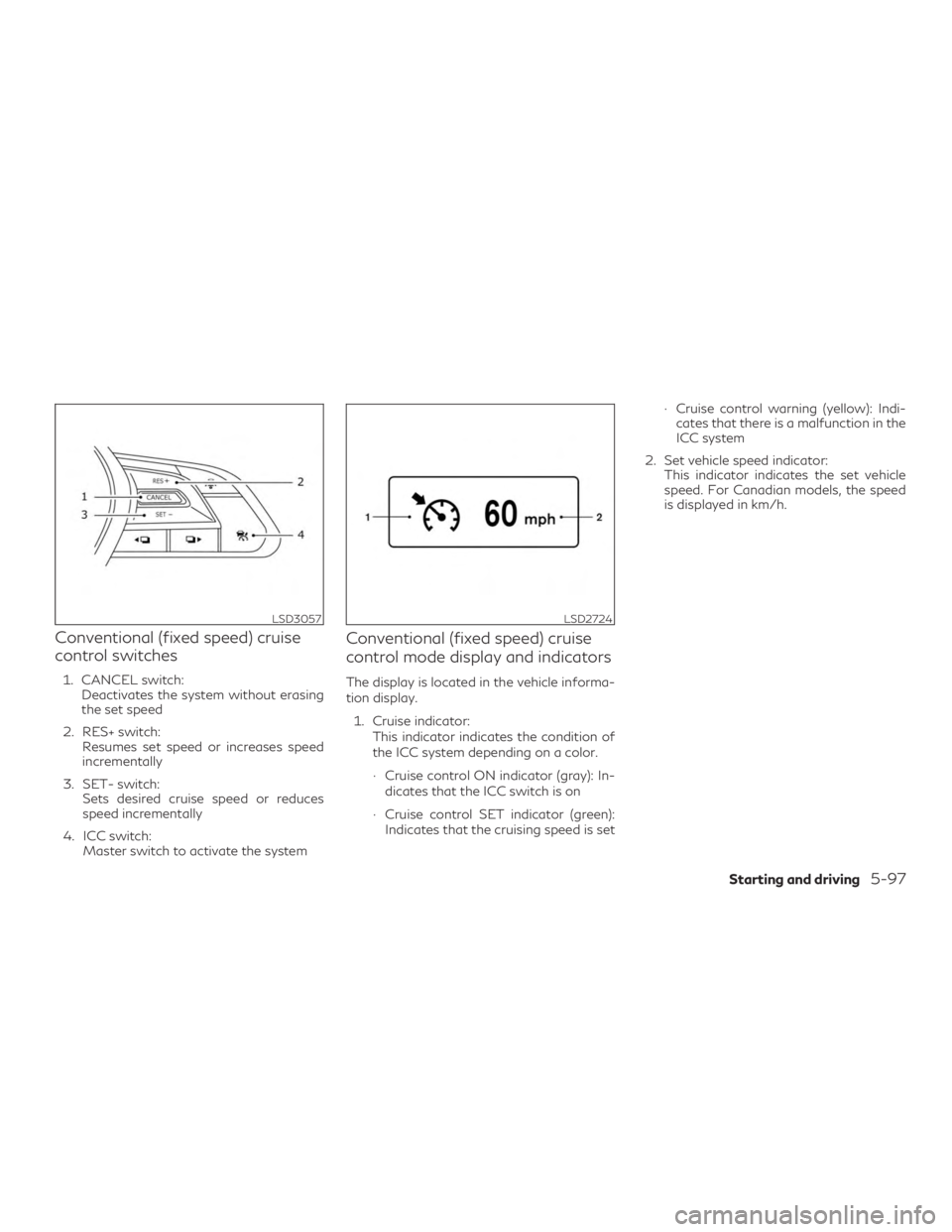

Conventional (fixed speed) cruise
control switches
1. CANCEL switch:Deactivates the system without erasing
the set speed
2. RES+ switch: Resumes set speed or increases speed
incrementally
3. SET- switch: Sets desired cruise speed or reduces
speed incrementally
4. ICC switch: Master switch to activate the system
Conventional (fixed speed) cruise
control mode display and indicators
The display is located in the vehicle informa-
tion display.
1. Cruise indicator: This indicator indicates the condition of
the ICC system depending on a color.
∙ Cruise control ON indicator (gray): In- dicates that the ICC switch is on
∙ Cruise control SET indicator (green): Indicates that the cruising speed is set ∙ Cruise control warning (yellow): Indi-
cates that there is a malfunction in the
ICC system
2. Set vehicle speed indicator: This indicator indicates the set vehicle
speed. For Canadian models, the speed
is displayed in km/h.
LSD3057LSD2724
Starting and driving5-97

Operating conventional (fixed
speed) cruise control mode
To turn on the conventional (fixed speed)
cruise control mode, push and hold the ICC
switch
Afor longer than about 1.5 seconds.
When pushing ICC switch on, the conven-
tional (fixed speed) cruise control mode dis-
play and indicators
Bare displayed in the
vehicle information display. After you hold
ICC switch on for longer than about 1.5 sec-
onds, the ICC system display turns off. The
cruise indicator appears. You can now set
your desired cruising speed. Pushing the ICC
switch again will turn the system completely off. When the ignition switch is placed in the
OFF position, the system is also automati-
cally turned off.
To use the ICC system again, quickly push
and release the ICC switch (vehicle-to vehicle
distance control mode) or push and hold it
(conventional cruise control mode) again to
turn it on.
CAUTION
To avoid accidentally engaging cruise con-
trol, make sure to turn the ICC switch off
when not using the ICC system.
To set cruising speed, accelerate your vehicle
to the desired speed, push the SET-
C
switch and release it. (The color of the cruise
indicator changes to green and set vehicle
speed indicator comes on.) Take your foot off
the accelerator pedal. Your vehicle will main-
tain the set speed.∙ To pass another vehicle, depress the ac- celerator pedal. When you release the
pedal, the vehicle will return to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep hills.
If this happens, manually maintain vehicle
speed.
LSD3058LSD3059
5-98Starting and driving

PROPILOT ASSIST SYSTEM
OPERATION
1Steering-wheel-mounted control (left)
2Vehicle information display
3Steering-wheel-mounted control (right)
4ProPILOT Assist switch
The ProPILOT Assist system has the follow-
ing two functions: 1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of two
cruise control modes:
∙ Conventional (fixed speed) cruise
control mode: For cruising at a preset
speed
NOTE:
Steering assist is not available in the conven-
tional (fixed speed) cruise control mode. ∙Vehicle-to-vehicle distance control
mode: The ICC system maintains a se-
lected distance from the vehicle in
front of you within the speed range of
0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be se-
lected by the driver between 20 to
LSD2996
Starting and driving5-103
