2020 HYUNDAI SONATA LIMITED homelink

05

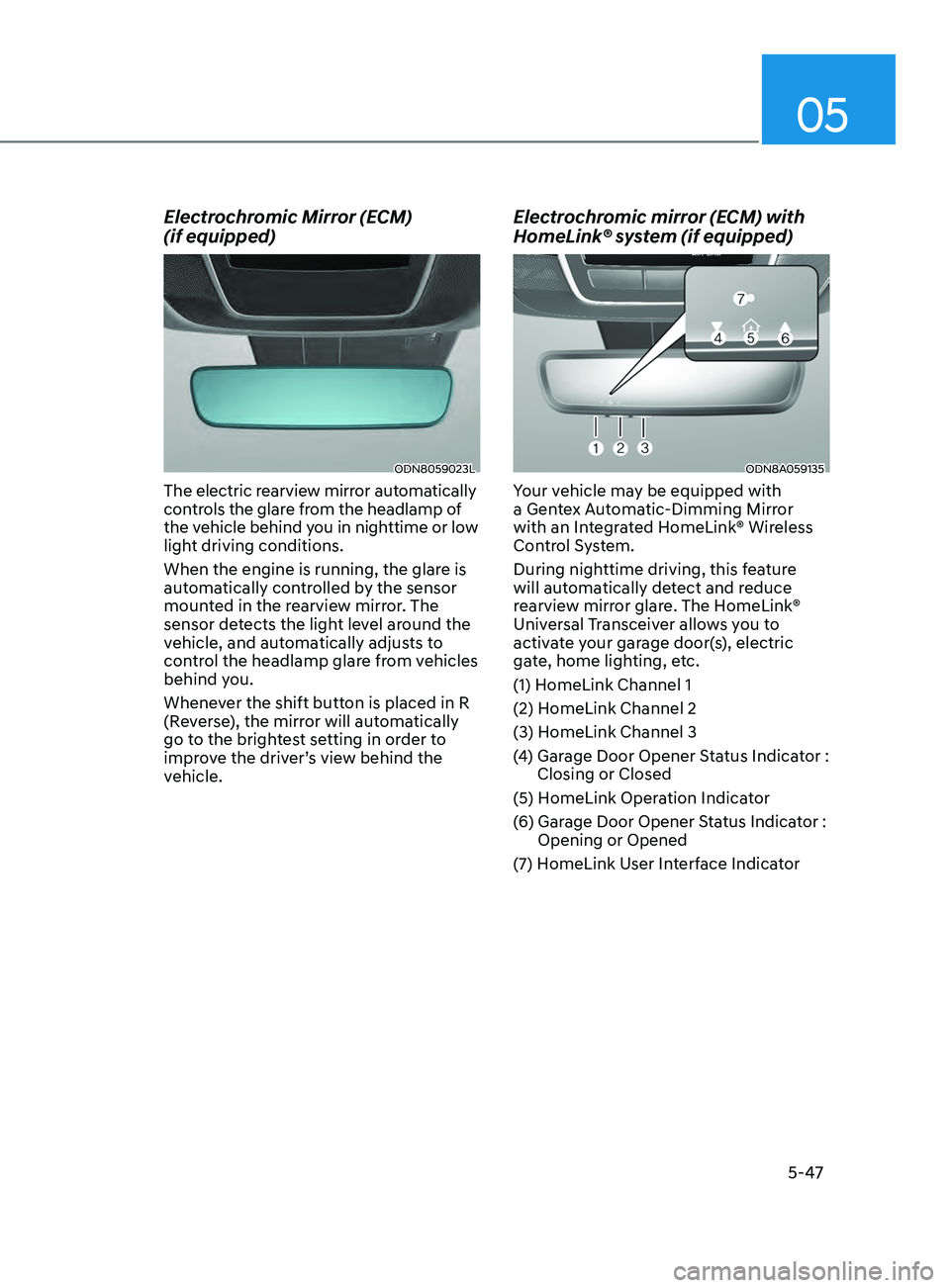

5-47
Electrochromic Mirror (ECM)
(if equipped)
ODN8059023L
The electric rearview mirror automatically
controls the glare from the headlamp of
the vehicle behind you in nighttime or low
light driving conditions.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to
control the headlamp glare from vehicles
behind you.
Whenever the shift button is placed in R
(Reverse), the mirror will automatically
go to the brightest setting in order to
improve the driver’s view behind the
vehicle.
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
ODN8A059135
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4)
Gar
age Door Opener Status Indicator :
Closing or Closed
(5) HomeLink Operation Indicator
(6)

Gar
age Door Opener Status Indicator :
Opening or Opened
(7)

H
omeLink User Interface Indicator

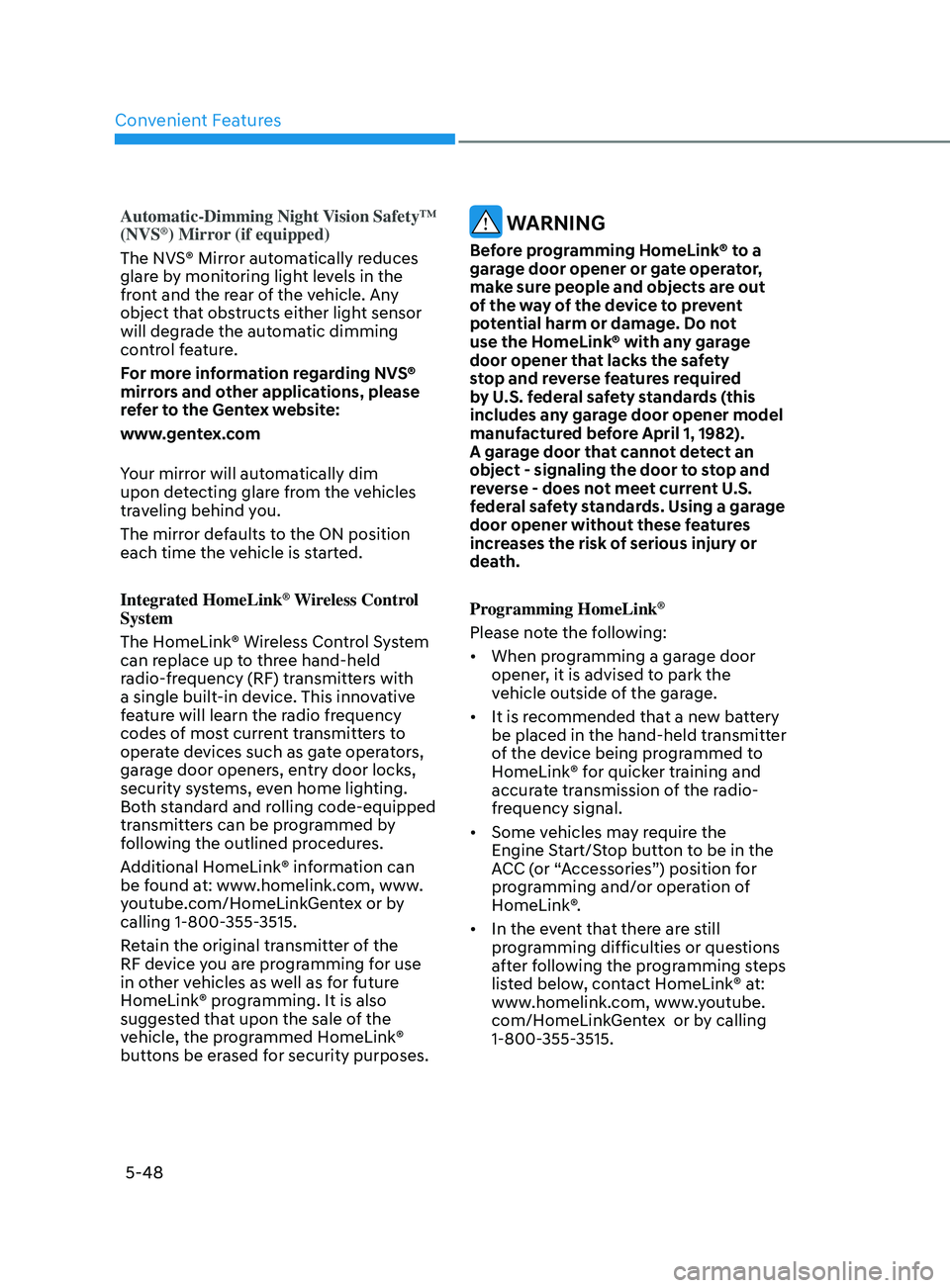

Convenient Features5-48
Automatic-Dimming Night Vision Safety™
(NVS®) Mirror (if equipped)
The NVS® Mirror automatically reduces
glare by monitoring light levels in the
front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS®
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim
upon detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
can replace up to three hand-held
radio-frequency (RF) transmitters with
a single built-in device. This innovative
feature will learn the radio frequency
codes of most current transmitters to
operate devices such as gate operators,
garage door openers, entry door locks,
security systems, even home lighting.
Both standard and rolling code-equipped
transmitters can be programmed by
following the outlined procedures.
Additional HomeLink® information can
be found at: www.homelink.com, www.
youtube.com/HomeLinkGentex or by
calling 1-800-355-3515.
Retain the original transmitter of the
RF device you are programming for use
in other vehicles as well as for future
HomeLink® programming. It is also
suggested that upon the sale of the
vehicle, the programmed HomeLink®
buttons be erased for security purposes.
WARNING
Before programming HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
use the HomeLink® with any garage
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
Programming HomeLink
®
Please note the following:
• When
programming a garage door
opener

, it is advised to park the
vehicle outside of the garage.
• It
is recommended that a new battery
be placed in the hand-held tr

ansmitter
of the device being programmed to
HomeLink® for quicker training and
accurate transmission of the radio-
frequency signal.
• Some
vehicles may require the
E

ngine Start/Stop button to be in the
ACC (or “Accessories”) position for
programming and/or operation of
HomeLink®.
• In
the event that there are still
pr

ogramming difficulties or questions
after following the programming steps
listed below, contact HomeLink® at:
www.homelink.com, www.youtube.
com/HomeLinkGentex or by calling
1-800-355-3515.

05

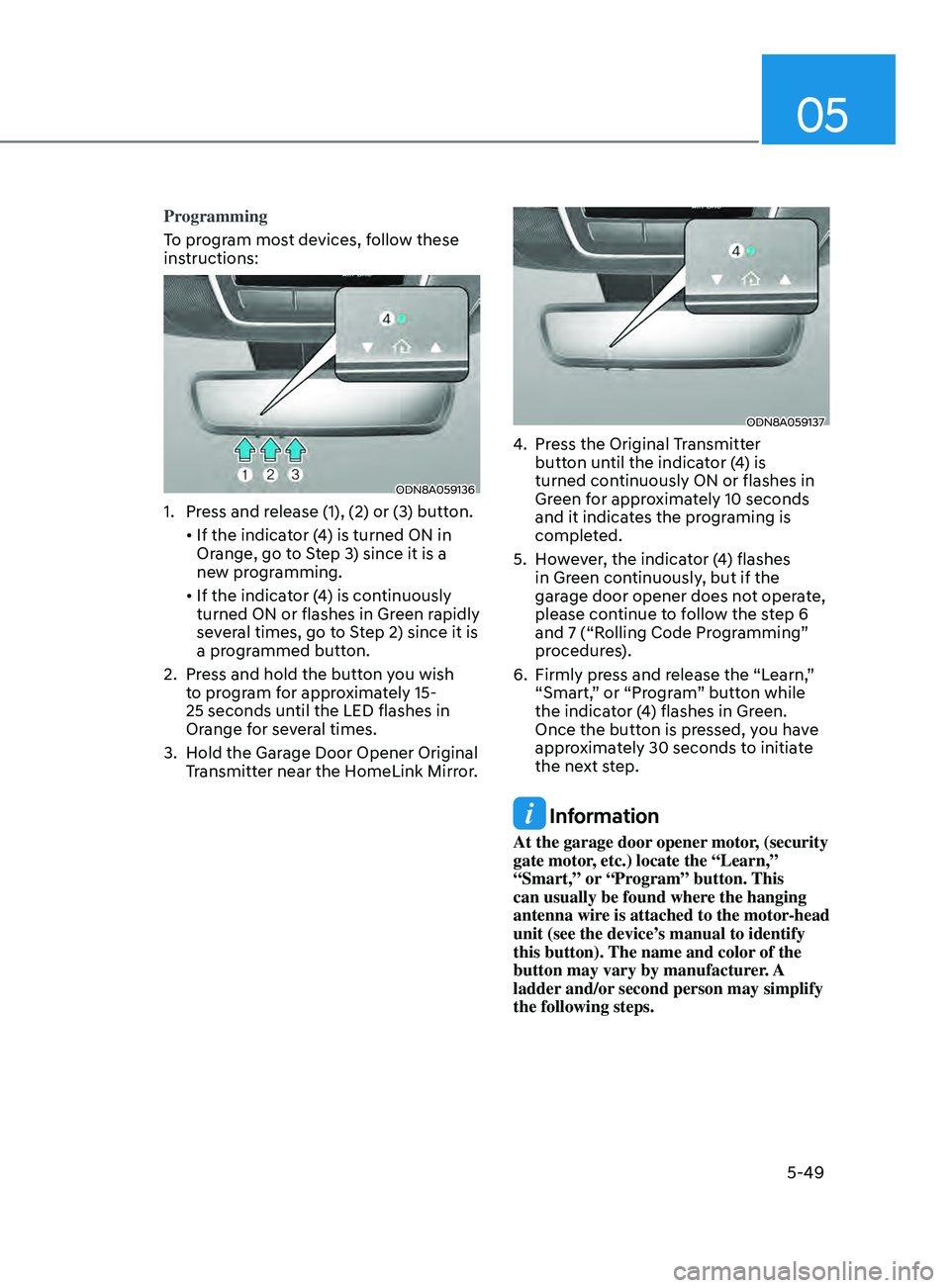

5-49
Programming
To program most devices, follow these
instructions:
ODN8A059136
1. Press and release (1), (2) or (3) button.
•
If
the indicator (4) is turned ON in
Or

ange, go to Step 3) since it is a
new programming.
•

If
the indicator (4) is continuously
turned ON or flashes in Gr

een rapidly
several times, go to Step 2) since it is
a programmed button.
2.

Pr
ess and hold the button you wish
to program for approximately 15-
25 seconds until the LED flashes in
Orange for several times.
3.

H
old the Garage Door Opener Original
Transmitter near the HomeLink Mirror.
ODN8A059137
4. Press the Original Transmitter button until the indicator (4) is
turned continuously ON or flashes in
Green for approximately 10 seconds
and it indicates the programing is
completed.
5.

H
owever, the indicator (4) flashes
in Green continuously, but if the
garage door opener does not operate,
please continue to follow the step 6
and 7 (“Rolling Code Programming”
procedures).
6.

Firmly pr
ess and release the “Learn,”
“Smart,” or “Program” button while
the indicator (4) flashes in Green.
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
Information
At the garage door opener motor, (security
gate motor, etc.) locate the “Learn,”
“Smart,” or “Program” button. This
can usually be found where the hanging
antenna wire is attached to the motor-head
unit (see the device’s manual to identify
this button). The name and color of the
button may vary by manufacturer. A
ladder and/or second person may simplify
the following steps.

Convenient Features

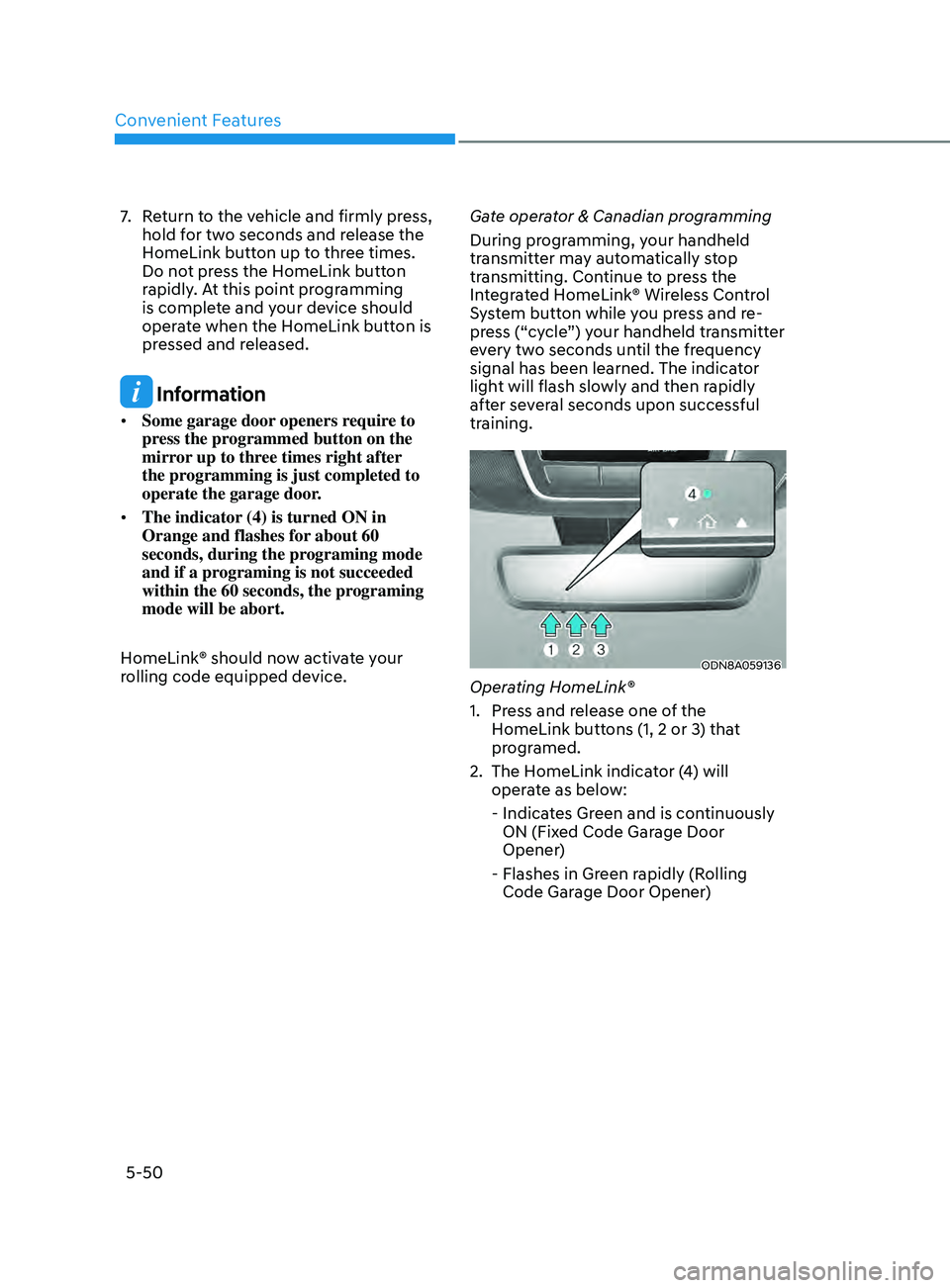

5-50
7. Return to the vehicle and firmly press, hold for two seconds and release the
HomeLink button up to three times.
Do not press the HomeLink button
rapidly. At this point programming
is complete and your device should
operate when the HomeLink button is
pressed and released.
Information
• Some garage door openers require to
press the programmed button on the
mirror up to three times right after
the programming is just completed to
operate the garage door.
• The indicator (4) is turned ON in
Orange and flashes for about 60
seconds, during the programing mode
and if a programing is not succeeded
within the 60 seconds, the programing
mode will be abort.
HomeLink® should now activate your
rolling code equipped device. Gate operator & Canadian programming
During programming, your handheld
transmitter may automatically stop
transmitting. Continue to press the
Integrated HomeLink® Wireless Control
System button while you press and re-
press (“cycle”) your handheld transmitter
every two seconds until the frequency
signal has been learned. The indicator
light will flash slowly and then rapidly
after several seconds upon successful
training.
ODN8A059136
Operating HomeLink®
1.

Pr
ess and release one of the
HomeLink buttons (1, 2 or 3) that
programed.
2.

The H
omeLink indicator (4) will
operate as below:
-


Indica
tes Green and is continuously
ON (Fixed Code Garage Door
Opener)
-


Flashes in Gr
een rapidly (Rolling
Code Garage Door Opener)

05

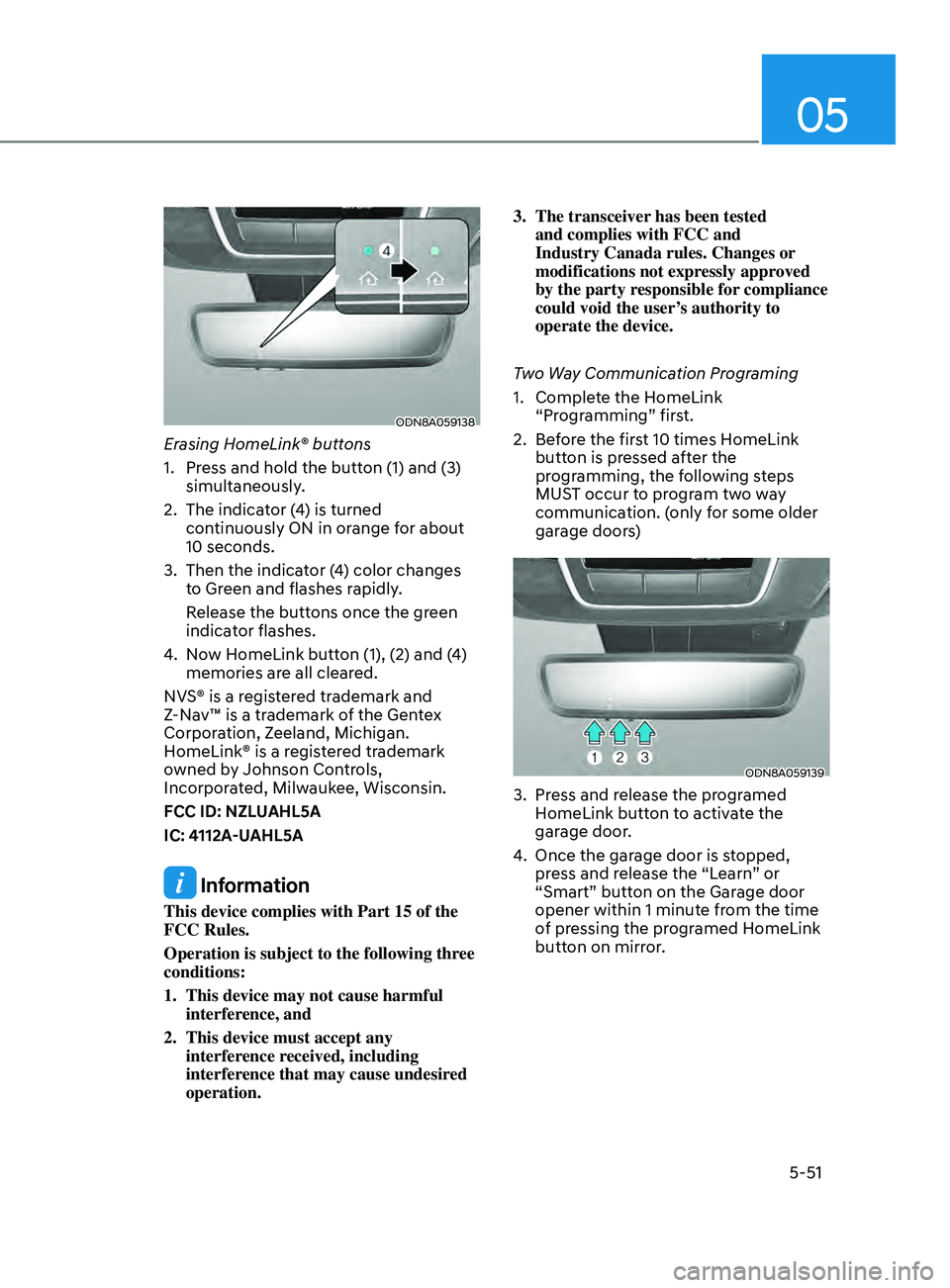

5-51
ODN8A059138
Erasing HomeLink® buttons
1.
Pr
ess and hold the button (1) and (3)
simultaneously.
2.

The indica
tor (4) is turned
continuously ON in orange for about
10 seconds.
3.

Then the indica
tor (4) color changes
to Green and flashes rapidly.
R

elease the buttons once the green
indicator flashes.
4.

N
ow HomeLink button (1), (2) and (4)
memories are all cleared.
NVS® is a registered trademark and
Z-Nav™ is a trademark of the Gentex
Corporation, Zeeland, Michigan.
HomeLink® is a registered trademark
owned by Johnson Controls,
Incorporated, Milwaukee, Wisconsin.
FCC ID: NZLUAHL5A
IC: 4112A-UAHL5A
Information
This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following three
conditions:
1.

This device m
ay not cause harmful
interference, and
2.

This device m
ust accept any
interference received, including
interference that may cause undesired
operation. 3.

The transceiver
has been tested
and complies with FCC and
Industry Canada rules. Changes or
modifications not expressly approved
by the party responsible for compliance
could void the user’s authority to
operate the device.
Two Way Communication Programing
1.
Comple
te the HomeLink
“Programming” first.
2.
Be
fore the first 10 times HomeLink
button is pressed after the
programming, the following steps
MUST occur to program two way
communication. (only for some older
garage doors)
ODN8A059139
3. Press and release the programed HomeLink button to activate the
garage door.
4.

Once the gar
age door is stopped,
press and release the “Learn” or
“Smart” button on the Garage door
opener within 1 minute from the time
of pressing the programed HomeLink
button on mirror.

Convenient Features

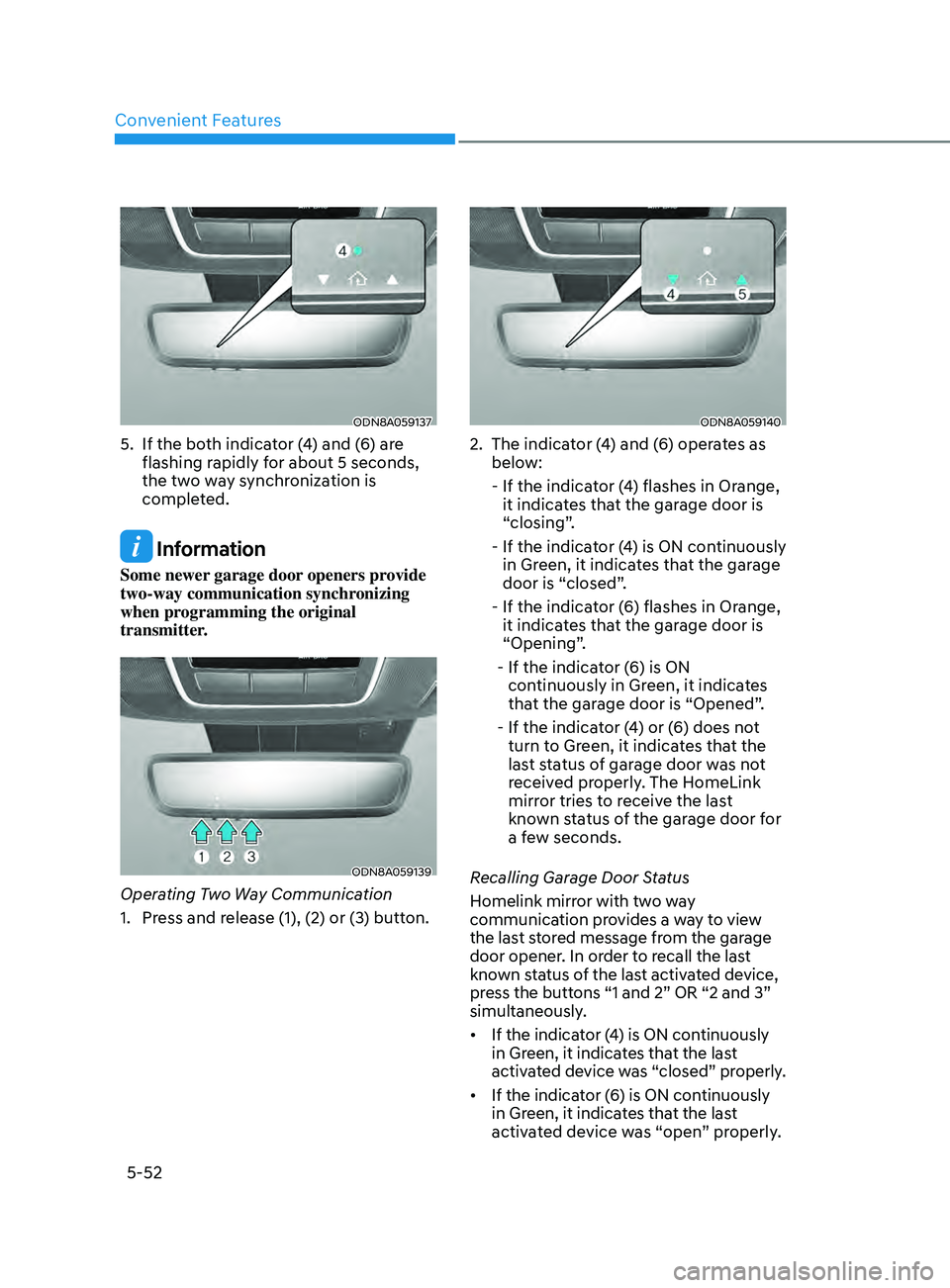

5-52
ODN8A059137
5. If the both indicator (4) and (6) are flashing rapidly for about 5 seconds,
the two way synchronization is
completed.
Information
Some newer garage door openers provide
two-way communication synchronizing
when programming the original
transmitter.
ODN8A059139
Operating Two Way Communication
1.

Pr
ess and release (1), (2) or (3) button.
ODN8A059140
2. The indica tor (4) and (6) operates as
below:
-


If the indica
tor (4) flashes in Orange,
it indicates that the garage door is
“closing”.
- If the indica

tor (4) is ON continuously
in Green, it indicates that the garage
door is “closed”.
-


If the indica
tor (6) flashes in Orange,
it indicates that the garage door is
“Opening”.
-


If the indica
tor (6) is ON
continuously in Green, it indicates
that the garage door is “Opened”.
-


If the indica
tor (4) or (6) does not
turn to Green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last
known status of the garage door for
a few seconds.
Recalling Garage Door Status
Homelink mirror with two way
communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.
• If
the indicator (4) is ON continuously
in Gr

een, it indicates that the last
activated device was “closed” properly.
• If
the indicator (6) is ON continuously
in Gr

een, it indicates that the last
activated device was “open” properly.

I
I -7
Front seat adjustment ........................................................................\
..................... 3-5
Manual adjustment

........................................................................\
.................... 3-5
Power adjustment


........................................................................\
...................... 3-7
Reclining seatback


........................................................................\
.................... 3-8
Front seat head restraints Adjusting the height up and down


.................................................................. 3-12
Removal/Reinstallation


........................................................................\
........... 3-13
Fuel Filler Door
........................................................................\
........................... 5-70
Fuel gauge
........................................................................\
...................................... 4-4
Fuel requirements


........................................................................\
.......................... 1-5
Fuel additives


........................................................................\
............................ 1-6
Fuses
........................................................................\
............................................ 8-48
Instrument panel fuse replacement.................................................................. 8-49
Engine compartment panel fuse replacement
................................................. 8-50
Fuse/relay panel description


........................................................................\
.... 8-51
G
Gauges and meters


........................................................................\
......................... 4-3
Glove box
........................................................................\
.................................. 5-144
Guide to Hyundai genuine parts


........................................................................\
.... 1-3
H
Hazard warning flasher


........................................................................\
.................. 7-2
Hazardous driving conditions


........................................................................\
.... 6-140
Head restraints


........................................................................\
............................. 3-11
Front seat head restraints


........................................................................\
......... 3-12
Rear seat restraints


........................................................................\
.................. 3-14
Headlamp delay function


........................................................................\
............. 5-79
Headlamp leveling device........................................................................\
............ 5-80
Headlamp position


........................................................................\
....................... 5-75
Head-up display (HUD)
........................................................................\
............... 5-72
Heated steering wheel


........................................................................\
.................. 5-44
High Beam Assist (HBA)


........................................................................\
........... 5-76
High beam operation........................................................................\
.................... 5-75
Highway driving
........................................................................\
........................ 6-142
Highway Driving Assist (HDA)
........................................................................\
6-122
Hill-start assist control (HAC)


........................................................................\
..... 6-32
HomeLink
® system ........................................................................\
...................... 5-47
Hood

........................................................................\
............................................ 5-64

Index
I-12
Manual climate control system ........................................................................\
.. 5-118
Heating and air conditioning

........................................................................\
. 5-119
Mode selection


........................................................................\
...................... 5-120
Instrument panel vents


........................................................................\
.......... 5-122
Temperature control


........................................................................\
.............. 5-122
Air intake control


........................................................................\
.................. 5-122
Fan speed control


........................................................................\
.................. 5-123
Air conditioning


........................................................................\
.................... 5-123
System operation


........................................................................\
................... 5-124
System maintenance


........................................................................\
.............. 5-125
Air conditioning refrigerant label.................................................................. 5-126
Mirrors
........................................................................\
......................................... 5-46
Inside rearview mirror


........................................................................\
............. 5-46
HomeLink
® system........................................................................\
.................. 5-47
Side view mirrors

........................................................................\
.................... 5-53
Adjusting the side view mirrors


...................................................................... 5-54
Folding the side view mirrors


........................................................................\
. 5-54
Reverse parking aid function


........................................................................\
.. 5-55
N
Navigation-based Smart Cruise Control (NSCC)


..............................................6-112
O
Occupant Classification System (OCS)


............................................................... 3-47
Odometer
........................................................................\
....................................... 4-5
Oil (Engine)


........................................................................\
................................. 8-19
Outside temperature gauge


........................................................................\
............ 4-5
Owner maintenance


........................................................................\
....................... 8-5
P
Panoramic sunroof
........................................................................\
....................... 5-60
Parking lamp position


........................................................................\
.................. 5-75
Passenger’s front air bag


........................................................................\
.............. 3-39
Power brakes

........................................................................\
................................ 6-20
Power outlet
........................................................................\
............................... 5-146
Power window lock switch

........................................................................\
.......... 5-59
Pre-tensioner seat belt


........................................................................\
.................. 3-24
Retractor pretensioner


........................................................................\
............. 3-24
